MAX HN90 High Pressure Siding & Decking Coil Nailer - MADE IN JAPAN

MAX HN90 High Pressure Siding & Decking Coil Nailer - MADE IN JAPAN

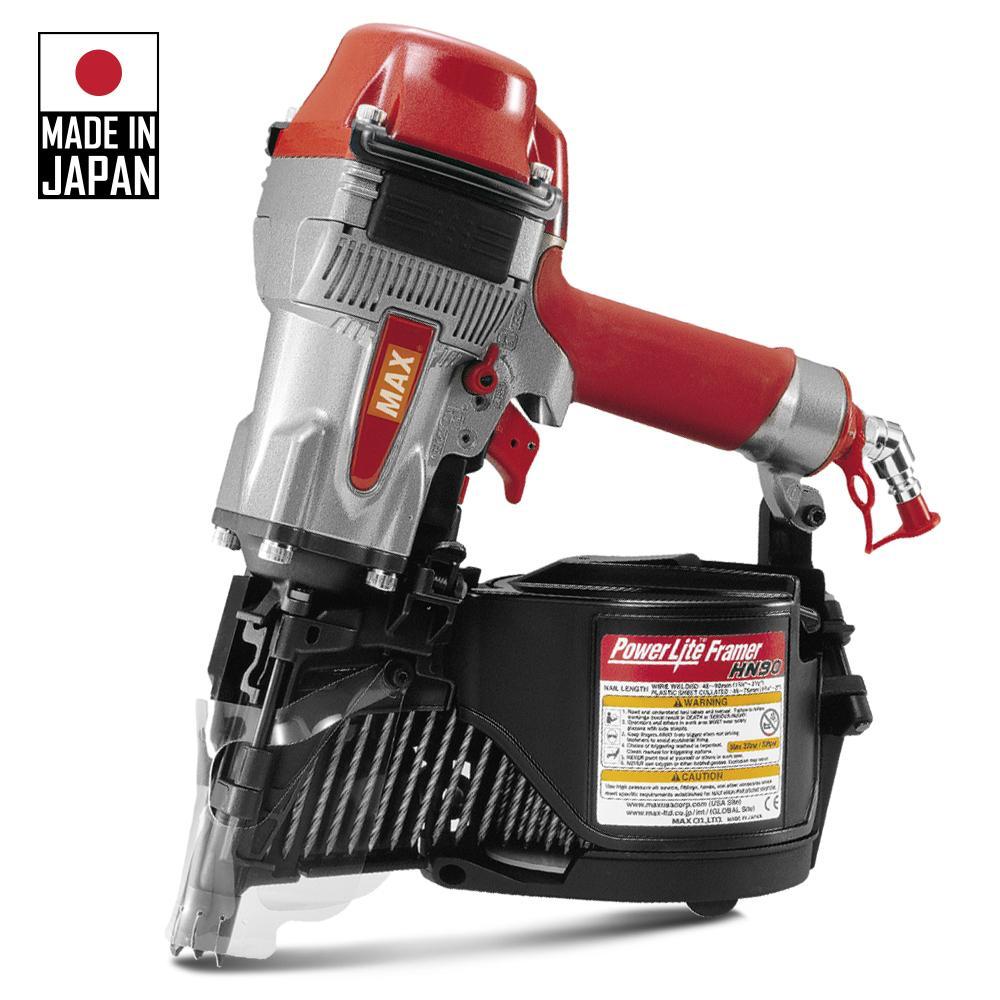

The MAX HN90 High Pressure Siding & Decking Coil Nailer is a premium, high-performance tool engineered for durability, precision, and power—ideal for professional contractors. MADE IN JAPAN, this coil nailer is built to handle demanding applications such as decking, framing, ply-brace, and tile underlay with ease. It features a dial adjustable depth control, maintenance-free end cap filter, anti-double fire trigger, and a reduced exhaust system, all packed into a compact 4kg design. With a 300-nail load capacity and a size of 420mm x 410mm x 160mm, the HN90 delivers reliability and efficiency across a wide range of construction tasks.

Features:

• Dial adjustable depth control
• Maintenance free end cap filter
• Anti Double fire trigger
• Reduced Exhaust System
• Load capacity 300 nails

Applications:

• Decking
• Ply-Brace
• Triple grips
• Framing
• Sub floors
• Tile underlay
• Pink, Blue board

Specifications:

• Operating Pressure: 1.8 – 2.3 MPa (260 – 330 psi)
• Nail Length Capacity: 45mm – 90mm
• Nail Diameter Range: 2.3mm – 3.3mm
• Magazine Angle: 15° Wire Coil
• Air Consumption: Approximately 1.9L per shot at 2.0 MPa
• Trigger Type: Selective Fire Mechanism (Single or Bump Fire)
• Body Material: Durable, lightweight aluminum housing
• Exhaust Direction: Rear (360° adjustable)
• Noise Level: Reduced for quieter operation
• Grip: Ergonomic rubberized grip for comfort and control
• Safety: Contact nose safety mechanism for operator protection
• Dimensions (L x W x H): 420mm x 410mm x 160mm
• Weight: 4kg
