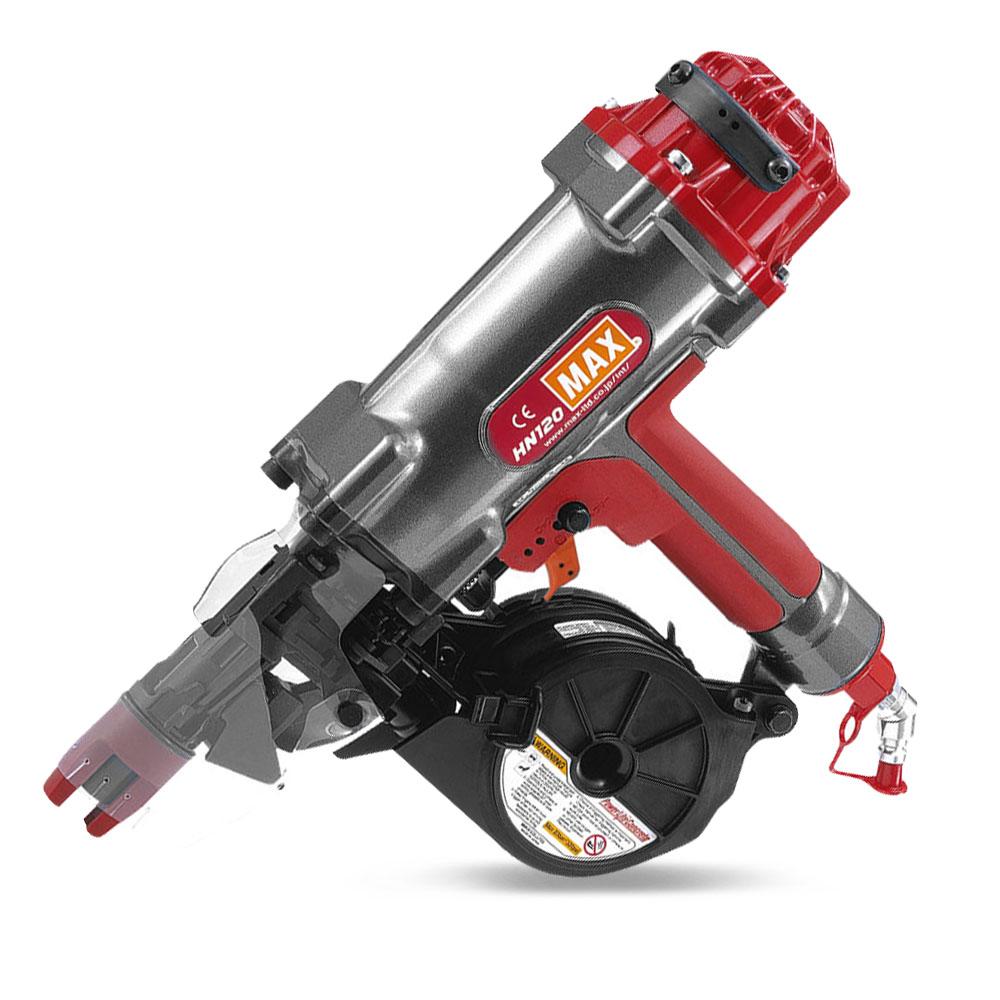

MAX HN120 High Pressure Concrete Pinner - MADE IN JAPAN

MAX HN120 High Pressure Concrete Pinner - MADE IN JAPAN

The MAX HN120 is a top of the line professional grade pneumatic concrete/steel pinner powered by MAX's Powerlite compressor. The HN120 can be used for pinning wood to concrete, wood to steel I-beams, drywall track to concrete and steel I-beams, plywood to concrete and concrete furring. This tool is faster and more efficient than powder actuated tools. No license is required to operate.

Compressor required:

• MAX AKHL1320E High Pressure Air Compressor

Applications:

• Metal track to concrete
• Metal track to concrete
• Timber to concrete
• Timber to steel

Features:

• This extremely powerful high pressure MAX nail gun can shoot a variety of fasteners into wood, steel, or concrete.
• 240J power without powder cartridge but operated high pressed air
• The HN120 is a faster safer and a more cost effective alternative to powder actuated tools.
• Tangle free swivel plug to alleviate the tangling of the air hose from every angle.

Specifications:

• Minimum Operation Pressure: 15 bar
• Maximum Operation pressure: 24 bar
• Air Inlet Size: 7/16"
• Magazine Capacity: 50
• Depth Control: No
• Jam Clearing: No
• Trigger Type: Sequential Fire Trigger
• Air Consumption (FT3/Cycle): 0.166
• Dimensions (L x W x H): 460mm x 410mm x 160mm
• Weight: 5kg

Fasteners:

• Collation Type: Plastic
• Nail Gun Angle: Straight
• Strip or Coil: Coil
• Minimum Fastener Size: 14 mm
• Maximum Fastener Size: 65 mm
• Minimum Nail Diameter: 2.9mm
• Maximum Nail Diameter: 3.4mm
