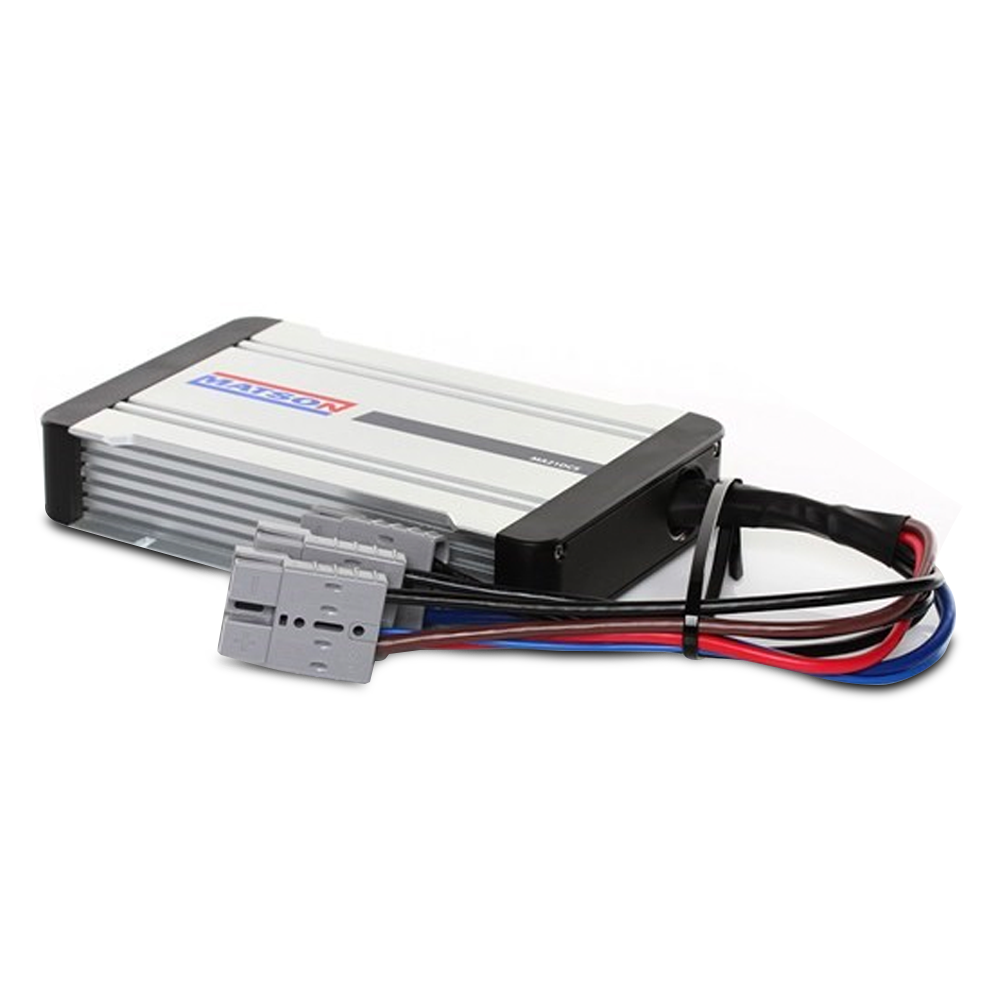

Matson MA21DCS 20amp DC-DC Charger with Solar Input

Matson MA21DCS 20amp DC-DC Charger with Solar Input

Features:

• 20 Amp Charging
• Chemistry Selectable
• MPPT Charging Profile
• Dual Input - Alternator/Solar
• IP65 Under-Bonnet Suitable
• Suits Smart and Conventional Alternators

Specifications:

• Case Construction: Aluminium
• Charging Current: 20 Amp
• Charging Lead Length: N/A
• Charging Stage: Multi
• Charging Voltage - AGM/Lead Acid: 14.7V
• Charging Voltage - Calcium: 15.3V
• Charging Voltage - Gel: 14.3V
• Charging Voltage - LiFePO: 14.4V
• Cut In Voltage (Standard Alternator): 13.0V
• Cut In Voltage (Variable Alternator): 11.5V
• Cut Out Voltage (Standard Alternator): 12.4V
• Cut Out Voltage (Variable Alternator): 10.8
• Dimensions(L x W x H): 207mm x 135mm x 37mm
• Equalisation: Yes
• Fan Cooled: No
• Float Charge Current: 100 (mA)
• Float Charge Voltage: 13.5V
• Input Voltage - DC: 10.8V - 16.0V
• Input Voltage - Solar: 13.5V - 25.0V
• IP Rating: IP65
• Min Start Voltage: 2V
