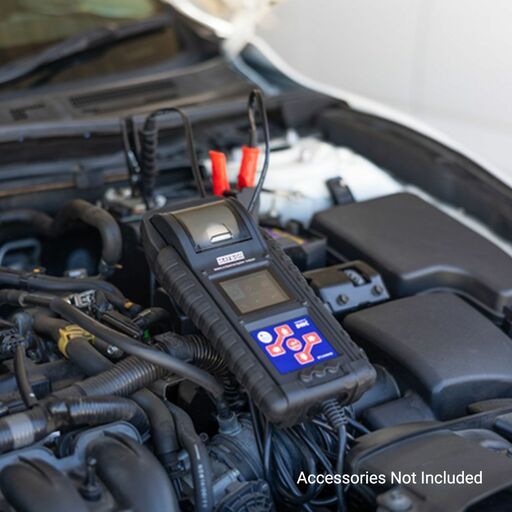

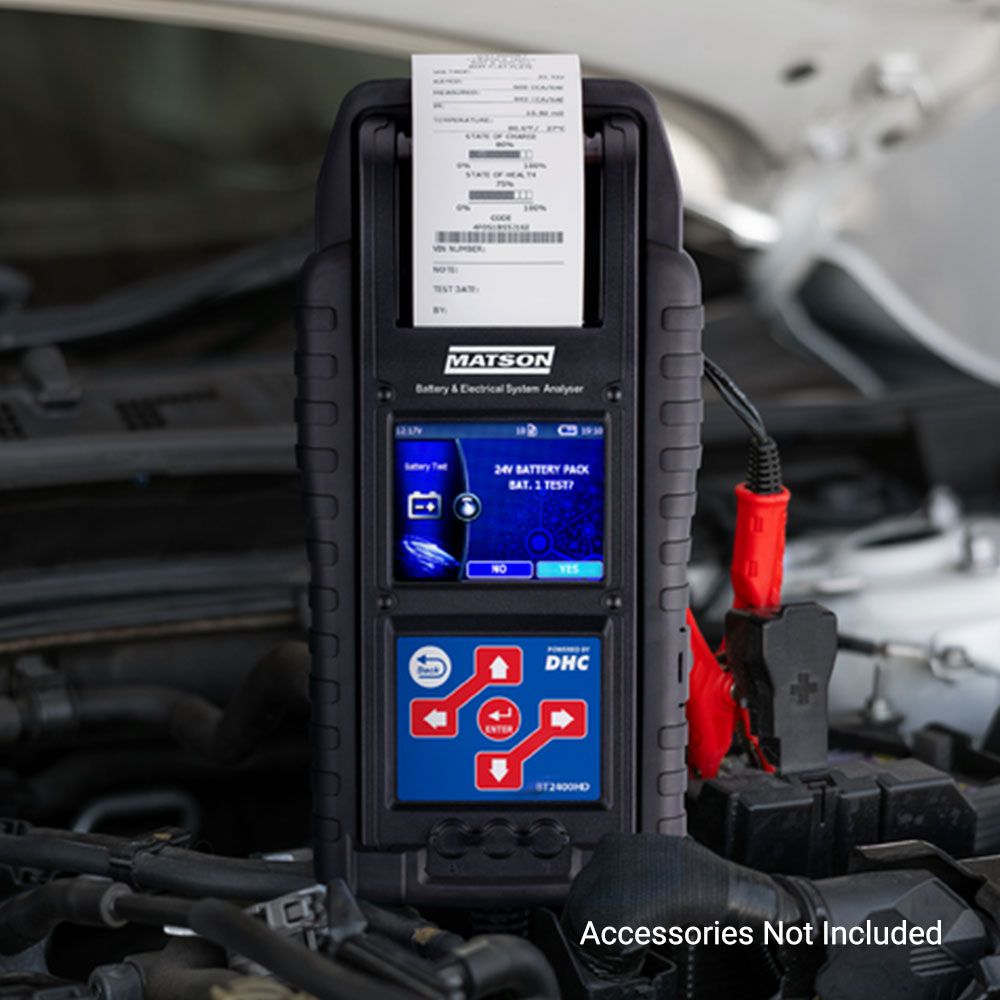

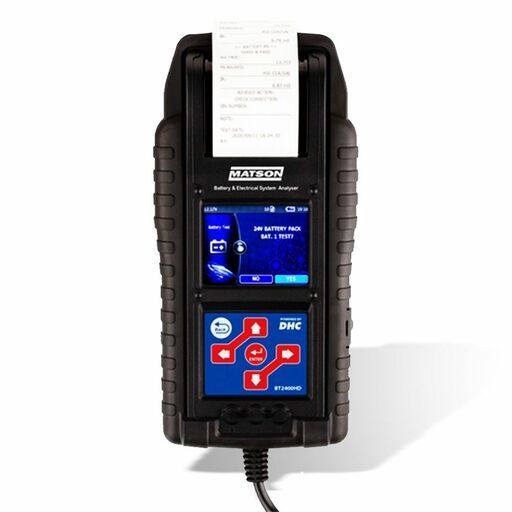

Matson BT2400HD Heavy Duty Digital Battery and System Tester with Printer

Matson BT2400HD Heavy Duty Digital Battery and System Tester with Printer

Heavy-duty hand-held battery and electrical system tester powered by DHC. Ideal tester for motorcycles, cars, trucks and heavy vehicles. With 24V battery and battery pack support, it can test a wide range of applications.

Features:

• 6V/12V/24V Starting Battery Testing
• 12V/24V Starting/Charging System Testing
• 12V Series Pack Test (up to two batteries)
• 12V Parallel Pack Test (up to six batteries)
• 6V/12V Internal Resistance Testing (Ohms)
• Tests Alternator Output and Charging System Output
• VIN input for records/reporting
• Temperature compensation via inbuilt Temperature Sensor
• PC connectivity (download results for records/reporting & firmware updates)
• Recall and print test results of the last 7 days

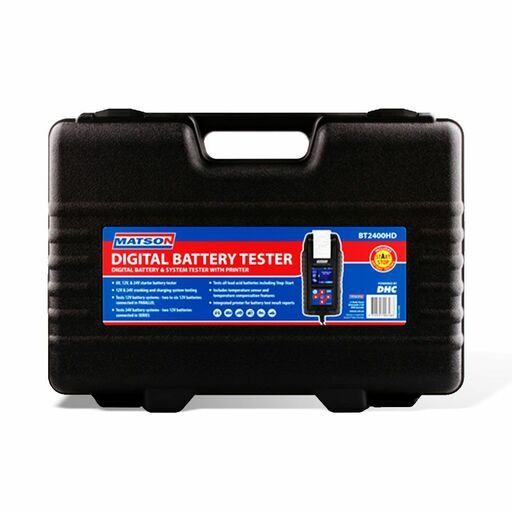

• Hard storage case included
• Replaces BT2100HD
• Replacement Leads - Part No# BT2400L
• Replacement 4.5M Cable - Part No# BT2400C
• Replacement Paper Rolls - Part No# BTP2 (single) or BTP2B10 (pack 10)

Suitable for/applications:

• 6V/12V/24V Battery Testing, 12V/24V Starting & Charging System Testing

Specifications:

• Cable Length: 4.5m
• Display: Coloured TFT-LCD (240x320)
• Operating Range: 25 - 6000CCA (SAE)
• Supported Battery Rating:
  • CCA/SAE
  • EN
  • EN2
  • IEC
  • JIS
  • DIN
  • CA/MCA
• Supported Battery Type:
  • Flooded
  • AGM Flat Plate
  • GM Spiral Plate
  • EFB
  • VRLA
  • GEL
• Temperature Compensation: Yes
• Thermal Printer: Integrated
• Voltage Range: 1V to 32V
• Dimensions (L x W x H): 285x140x75mm
• Weight: 2.7kg
