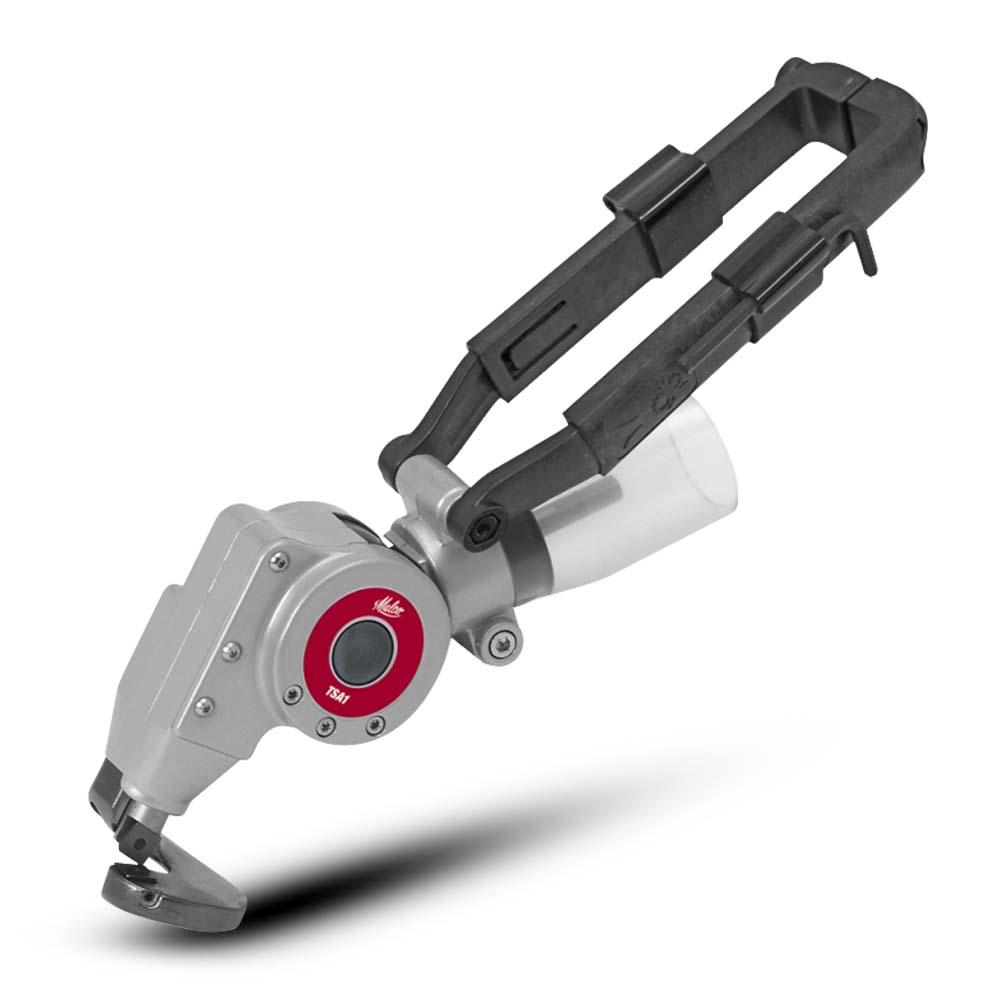

Malco TSA1 (HTE-TSA1) 16GA Automotive Metal Cutting Drill Attachment

Malco TSA1 (HTE-TSA1) 16GA Automotive Metal Cutting Drill Attachment

Step up to heavy-duty metal-cutting performance with a 16-gauge (1.52 mm) capacity TurboShear from Malco Products. The Model TSA1 TurboShear Drill Attachment makes a power drill a powerful metal-cutting shear, instantly! Cutting applications in automotive grade sheet steel include trunk pans and floor boards. Clearance between the shear’s cutting inserts may be adjusted for optimal performance within a range of 16 to 26-gauge (1.52 to 0.46 mm) automotive steel. A helical (spiral) shaped foot permits easy left, right or straight cutting action. And a 5-position 0 to 90 degree (0, 22.5, 45, 67.5 and 90) adjustable head angle makes this TurboShear exceptionally maneuverable for cuts through profiles and into tight spaces.

Long-life, 4-sided, carbon steel cutting inserts are designed to be periodically rotated together to maximize service life before replacement. Insert cutting life is rated at 1,200-ft (365.76 m), at a minimum, in maximum capacity 16-gauge (1.52 mm) steel using all four edges of the cutting inserts. Cutting life of inserts increases dramatically when averaged over cutting applications in a variety of steel thicknesses from 16 to 26-gauge (1.52 to 0.46 mm). Cutting inserts are accessible without disassembly of the shear head casings and are easily replaced on the job.

Features:

• The model TSA1 attachment option is an ideal accessory for cordless drills and features an aluminum shear head and telescoping drill clamp for sure one-handed control.
• The aluminum cast head also offers an additional safe gripping area when needed.
• The compact molded polymer clamp ensures operational ease by adjusting for both length and width of any drill housing, including smaller bodied lithium-ion battery powered units.

Specifications:

• Max Capacity: 16GA
• Weight: 1kg
