Makita DBN640ZK 18V LXT Li-ion Cordless Brushless Metal Connector Nailer - Skin Only

Makita DBN640ZK 18V LXT Li-ion Cordless Brushless Metal Connector Nailer - Skin Only

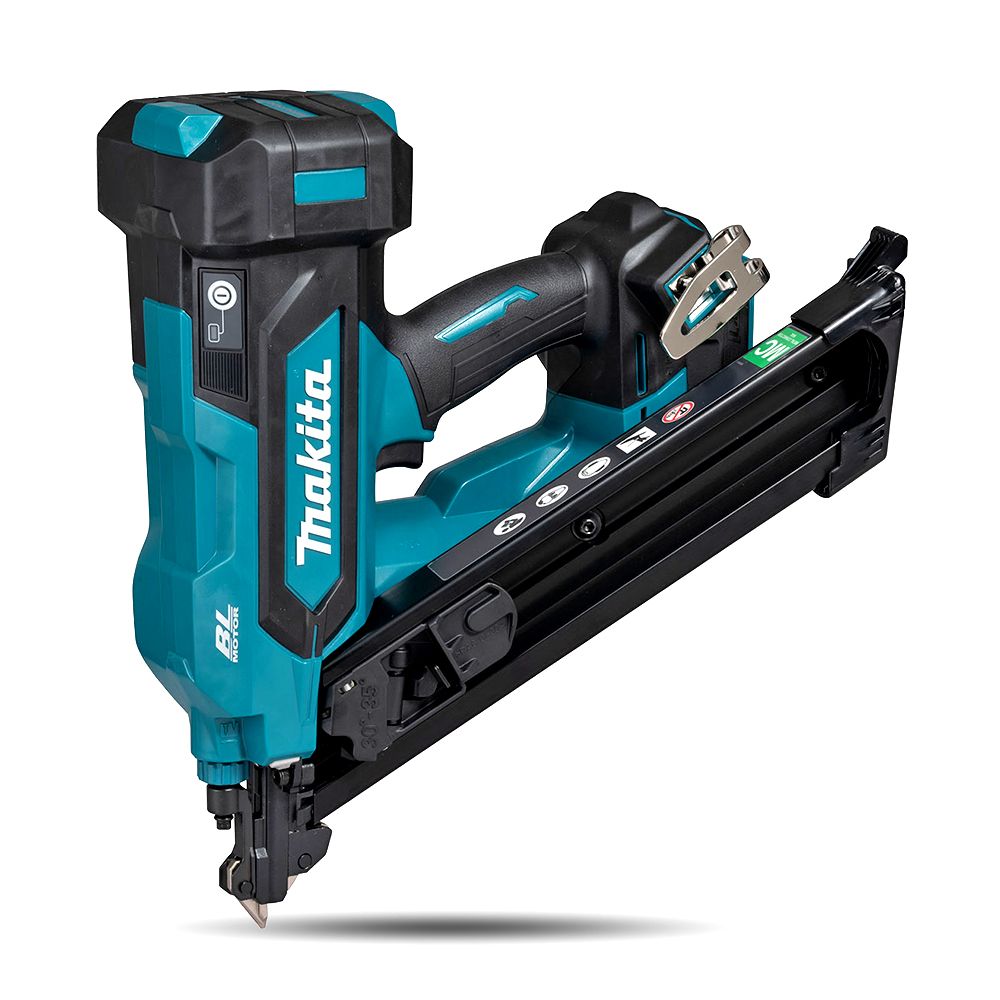

Powered by Makita’s 18V LXT battery platform, the DBN640 18V Brushless Metal Connector Nailer is specifically designed for driving nails into pre-punched holes in metal framing hardware. Capable of delivering up to 1,000 nails on a single 6.0Ah battery, it provides consistent power and precision for demanding fastening applications.
The DBN640 features a pneumatic spring firing mechanism that efficiently drives nails from 38–64mm in length, with a magazine capacity of up to 31 nails. A full sequential actuation mode supports controlled, single-shot nailing for enhanced safety and accuracy.

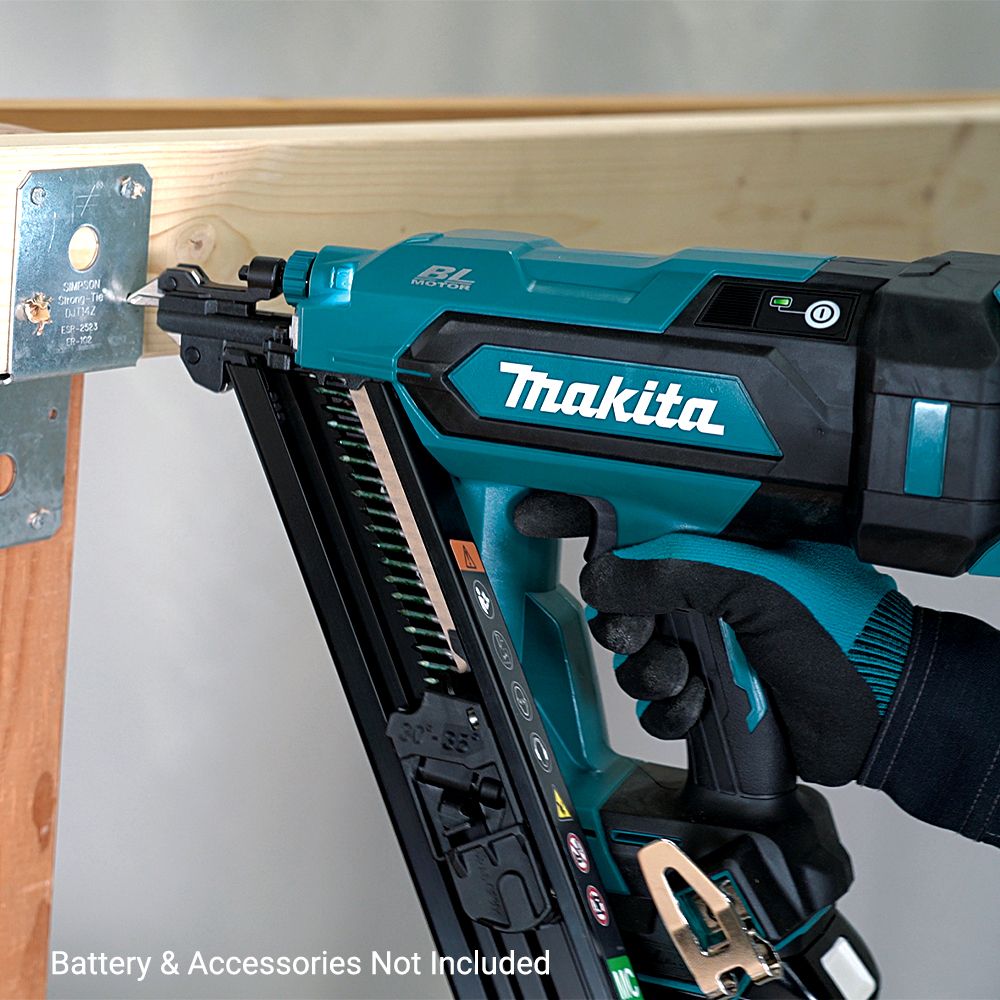

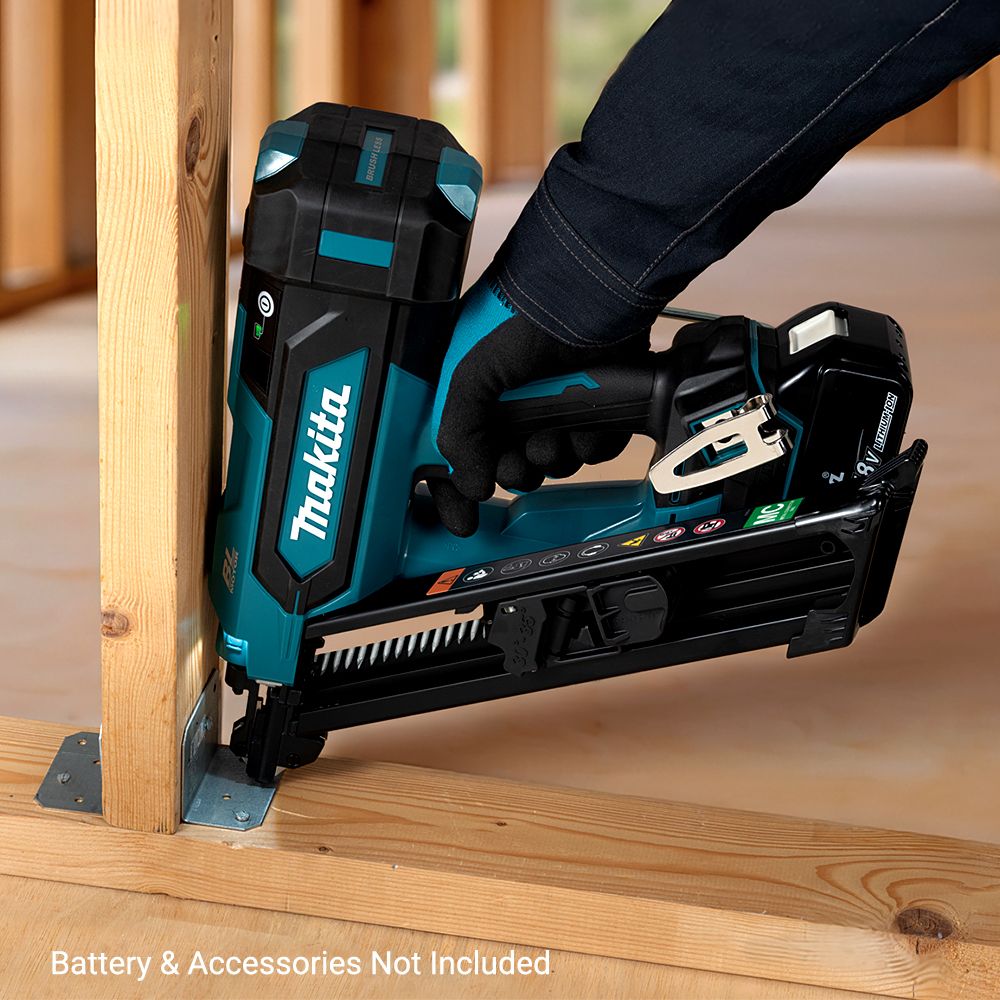

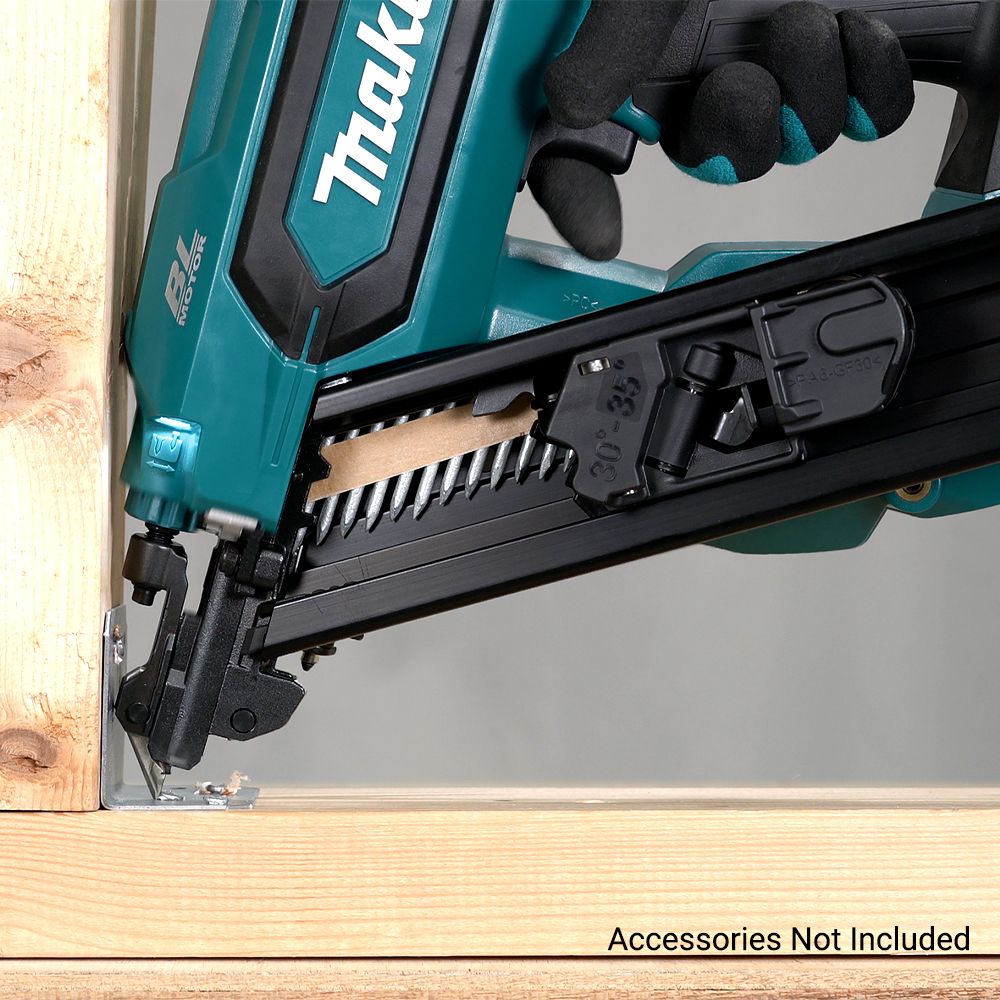

Designed with visibility and access in mind, the DBN640 incorporates a slim nose and 30–35° angled collation, making it easy to reach tight corners. This enables precise alignment with the holes in metal reinforcement connectors at beam-to-column joints, ensuring accurate and reliable corner nailing. The DBN640 is the ultimate solution for precise, high-performance metal connector fastening in structural applications.

Features:

• Pneumatic spring firing mechanism rapidly fires nails from 38-64mm in length
• Single-shot nailing mode only, designed to enhance safety and ensure precise fastening
• Spring drive motor delivers 1,000 nails runtime on a 6.0Ah battery
• Depth driving adjustment for ideal sinking depth
• Anti-dry fire lockout mechanism at 4-5 nails remaining prevents misfires

Specifications:

• Voltage: 18V
• Fastener length: 32-64mm
• Gauge: 3.3-4.1Ga
• Nail collation angle: 30-35°
• Magazine capacity: 31pcs
• Sound pressure level: 92dB(A)
• Overall length: 326mm
• Weight:
  • Skin Only: 4.5kg
  • with battery: 5.2kg (BL1860B not included with Skin Only)

Warranty:

• 3 Years Warranty Covered By Makita
• 5 Years Extended Warranty via registration through Makita within 30 days of purchase
