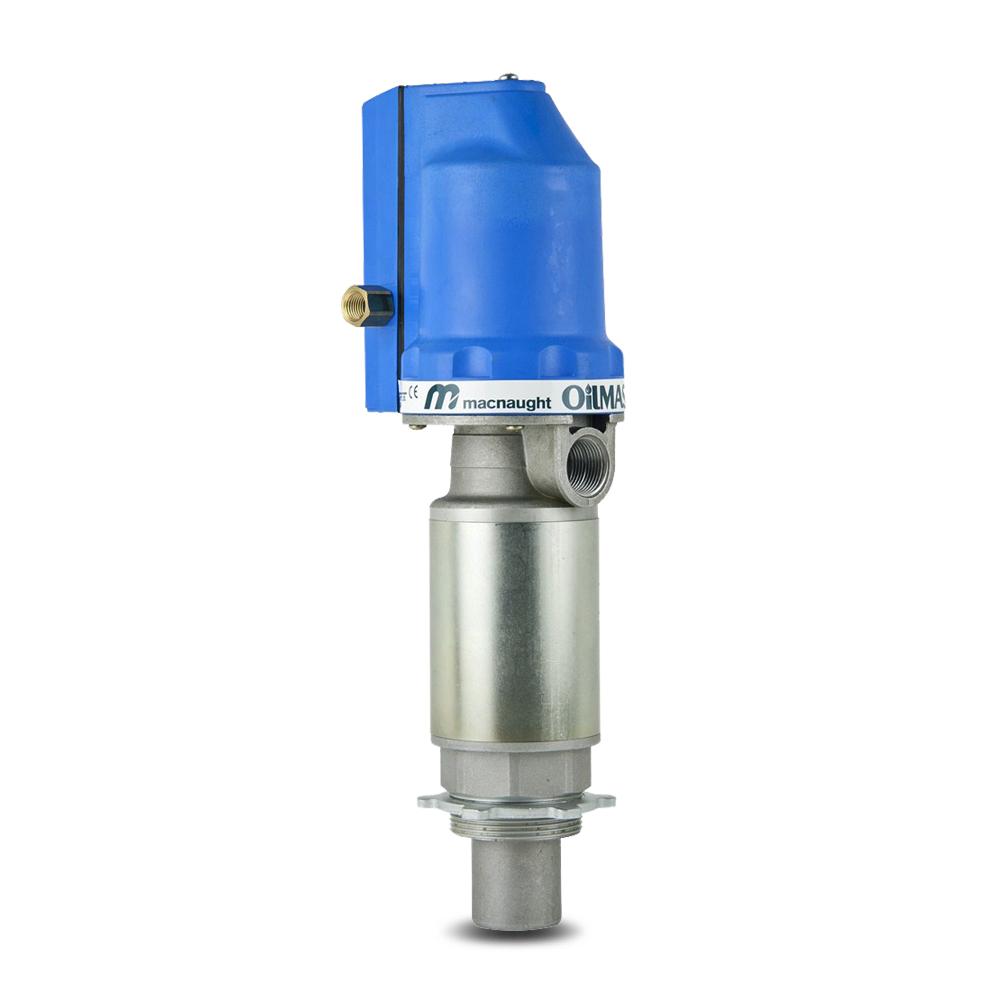

Macnaught T112S-01 Oil Transfer Air Stub Pump 1:1 Ratio

Macnaught T112S-01 Oil Transfer Air Stub Pump 1:1 Ratio

The Mc naught OILMASTER T112 is a reliable 1:1 ratio oil pump is designed to transfer oils up to 10 metres and can be used with any of Macnaught's hose end gun range.

Features

• Stub pump for inclusion in a workshop or mobile bulk oil system
• Suitable for oils up to SAE 140, automatic transmission fluid, engine oil, gear oil and hydraulic oils
• 2" (M) bung adaptor supplied
• No requirement for air line lubricator
• Optional TB25S telescopic suction tube available
• 10 year parts availability

Specifications

• Wetted components: aluminium, zinc and hard chrome plated carbon steel, brass, and nitrile and polyurethane rubber
• Pump ratio: 1:1(oil pressure is the same as air pressure)
• Output: 27 L/min of SAE 10 oil at 690 kPa (100 psi) air pressure (free flow)
• Max. air pressure: 1 030 kPa (150 psi, 10.3 bar)
• Min. air pressure: 400 kPa (60 psi, 4 bar)
• Min. air compressor: 0.3 m3/min, (10 cfm)
• Air inlet: 1/4" NPT (F)
• Pump inlet: 1" BSP or NPT (F) and 1" UNEF
• Pump outlet: 3/4" BSP or NPT (F)
• FluidFree flow (per min.) at pump outlet output (per min.) through 3 m (10 ft) x 19 mm (3/4") hose, and hose end oil delivery gun
• Litres: Litres Oil SAE-10 27 10 Oil SAE-2023 8.5 Oil SAE-3022 7 *flow rates are a guide only and any variations can depend on system setup. *flow rates at 690 kPa (100 psi) air pressure.

Warranty:

• 10 year warranty
