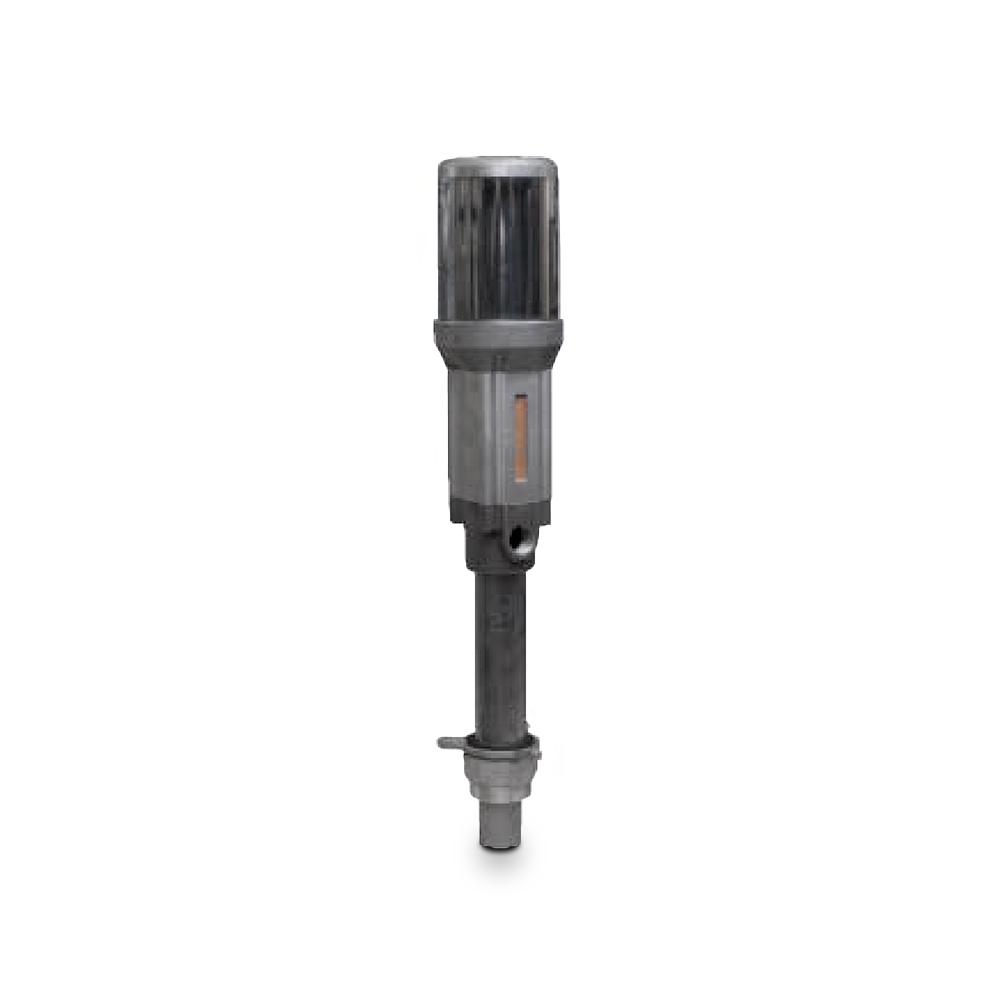

Macnaught R1000 OilMaster Heavy Duty Oil Transfer Air Stub Pump 10:1 Ratio

Macnaught R1000 OilMaster Heavy Duty Oil Transfer Air Stub Pump 10:1 Ratio

MacNaught R1000 R-SeriesThe Macnaught R1000 10:1 ratio oil ratio pump is designed for workshops and other industries requiring oil transfer of distances up to 100 metres. It is best suited for use with bulk tanks and drums and utilising multiple hose reels and meter or gun dispensing systems.

Features:

• Best suited for automatic transmission fluid, engine oil, gear oil, hydraulic oil, anti-freeze/anti-boil and compatible fluids up to SAE 140
• Best suited for 205 Litre drums and bulk tanks (optional telescopic suction tube available for stub version) (TD42S)
• The stub version R100S can be easily wall mounted
• Built in pressure relief valve for safe operation
• Oil lubricator (TA-3K) and 2" (M) bung adaptor also supplied in purchase.
• 10 year parts availability

Specifications:

• Wetted components: Aluminium, nitrile rubber, Carbon PTFE, zinc plated carbon steel
• Pump ratio: 10:1 (oil pressure is 10 times air pressure)
• Output: 15 L/min (4 US gal per min) of SAE 10
• Oil at 690 kPa (100 psi) air pressure (free flow)
• Dimensions: R1000S (stub) 605 mm x 120 mm x 120 mm, R1000T (drum) 1297 mm x 120 mm x 120 mm
• Max. air pressure: 1 030 kPa (150 psi, 10.3 bar)
• Min. air pressure: 400 kPa (60 psi, 4 bar)
• Min. air compressor: 0.50 m3/min (18 cfm)
• Air inlet: 1/4" NPT (F)
• Pump outlet: 3/4" BSP or NPT (F)
• foot value inlet: 3/4" BSP or NPT (F) (stub version)
• Fluid RateFree flow (per min.) at pump outletoutput (per minute.) through 35 m (115 ft) x 12.5 mm (1/2") hose and hose end gun @ 690 kPa/100 psi (air) Litres
• Litres Oil SAE-10 15 10 Oil SAE-3015 6 Oil SAE-9014 4.6 *flow rates are a guide only and any variations can depend on system setup. *flow rates at 690 kPa (100 psi) air pressure

Warranty:

• 10 year warranty
