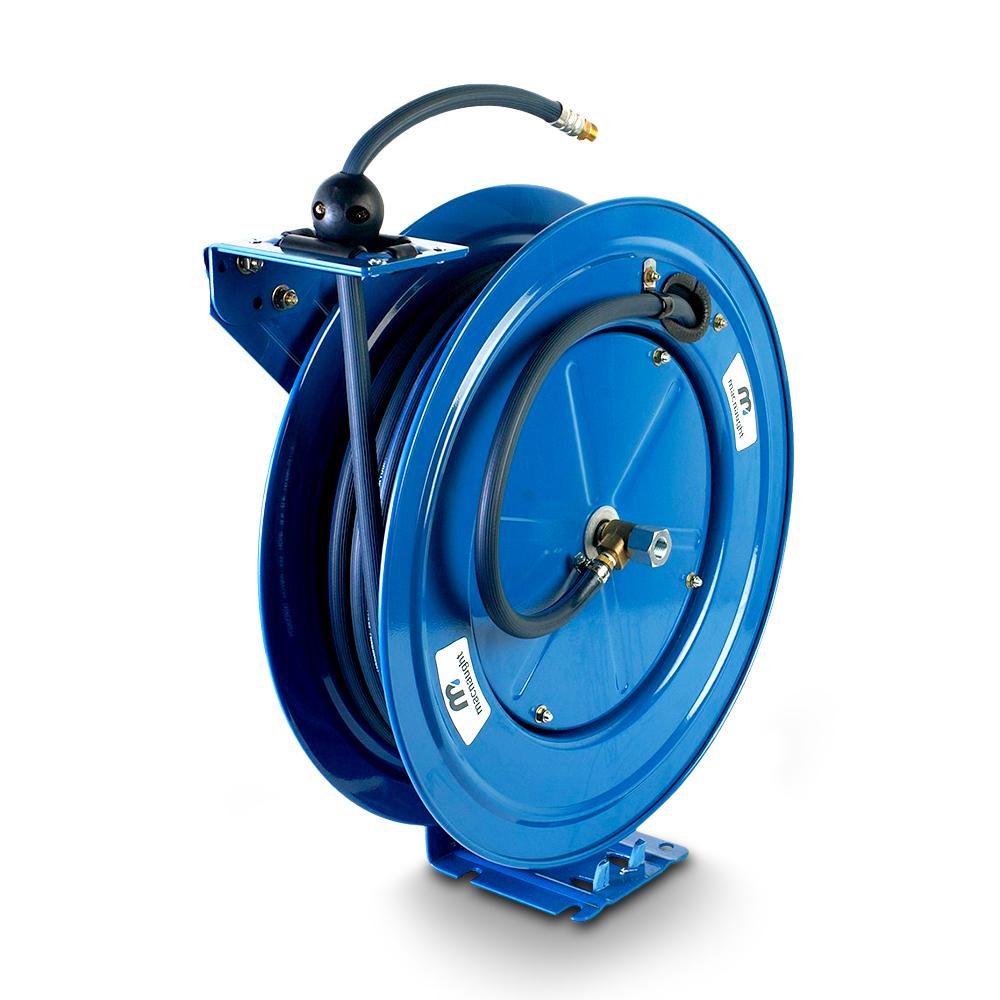

Macnaught MAS1020-01 Standard Duty Single Pedestal Metal Hose Reels - Air & Water

Macnaught MAS1020-01 Standard Duty Single Pedestal Metal Hose Reels - Air & Water

Macnaught standard duty metal hose reels are ideal for those applications where occasional use is normal. These reels are constructed in powder coated steel with a single pedestal and integral spring system. The stainless steel reel is bare, with a high polish finish and is ideal for highly corrosive environments.

Features:

• Double supported steel drum shaft
• 4 bolt heavy duty steel mounting plate
• Multi position ratchet for positive latching
• Adjustable guide arm - can be wall, floor, ceiling, pit or vehicle mounted
• Multi directional nylon roller guides reduce hose drag and wear
• Lubricated spring encapsulated in cassette for safety
• Full flow swivel for maximum product delivery
• External swivel for easy servicing of swivel seals
• 10 year parts availability

Specification:

• Description: Air/Water
• Hose ID: 10mm (3/8)
• Hose length: 20m
• Working Pressure: 2070 kPa (300 psi)
• Hose Rewind Max OP Temp Spring: 80°C
• Reel Inlet: 3/8" BSP
• Hose Outlet: 3/8" BSP

Warranty:

• 5 year warranty
