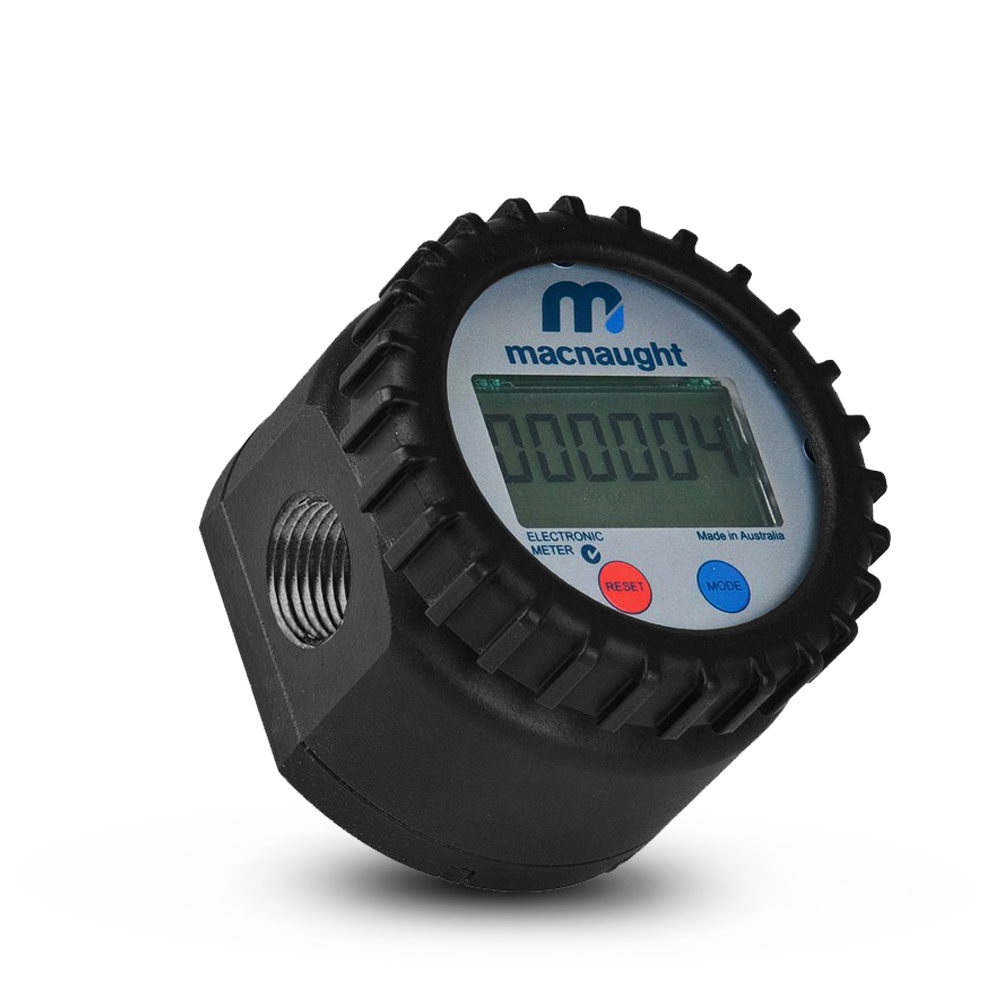

Macnaught IM019E-01 3/4'' BSP Electronic Pulse Oil Meter

Macnaught IM019E-01 3/4'' BSP Electronic Pulse Oil Meter

In-line oval gear meter with electronic register designed to measure lubricating oils. Flow range of 3-80L/min. Accurate reading to +/- 0.5% with maximum pressure to 10,350 kPa (1,500 psi). Large LC display shows batch and cumulative totals. Fitted with 3/4" BSP(F) ports.

Features:

• Digital display showing both cumulative & push-button reset batch totals
• Suitable for oils up to SAE 140, automatic trans fluid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
• Flow rate up to 3 – 80LPM
• Accurate reading to +/-0.5% with maximum pressure to 10,350kPa (1,500psi)
• 3/4” BSP(F) inlet/outlet ports
• 6-digit digital display resettable batch totaliser, resettable and non-resettable totals low rate mode

Specifications:

• Accuracy: 0.5% of reading
• Maximum Pressure: 10 350 kPa (1 500 psi, 103.5 bar)
• Inlet Port: 3/4" BSP
• Outlet Port: 3/4" BSP

Warranty:

• 5 year warranty
