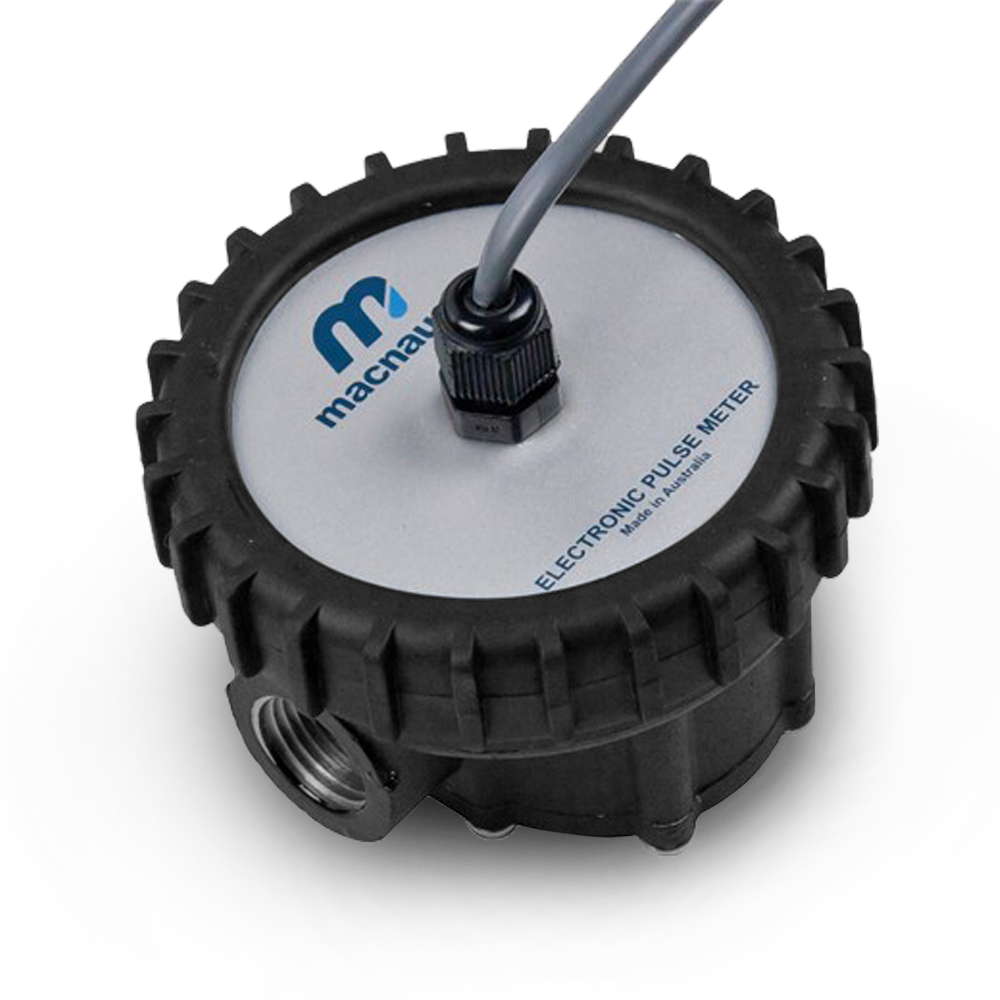

Macnaught IM012P01 1/2'' BSP Electronic Pulse Oil Meter

Macnaught IM012P01 1/2'' BSP Electronic Pulse Oil Meter

In-line oval gear meter with pulse output only, designed to measure lubricating oils. Flow rate up to 30L/min. Accuracy is around +/- 0.5% of reading with maximum pressure to 6,900 kPa (1,000 psi). Fly Lead is included to allow connection to other devices. Fitted with 1/2" BSP(F) ports.

Features:

• IM012 meter with pulse output only
• Suitable for oils up to SAE 140, automatic trans fluid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
• Includes 1m lead either reed switch and/or half effect sensor
• Flow range up to 1 – 30LPM
• Accurate reading to +/- 0.5% with maximum pressure to 6,900kPa (1,000psi)
• 1/2” BSP(F) inlet/outlet ports

Specifications:

• Accuracy: 0.5% of reading
• Maximum Pressure: 10 350 kPa (1 500 psi, 103.5 bar)
• Inlet Port: 1/2" BSP
• Outlet Port: 1/2" BSP
• Flow Range: 1-30L/Min

Warranty:

• 5 year warranty
