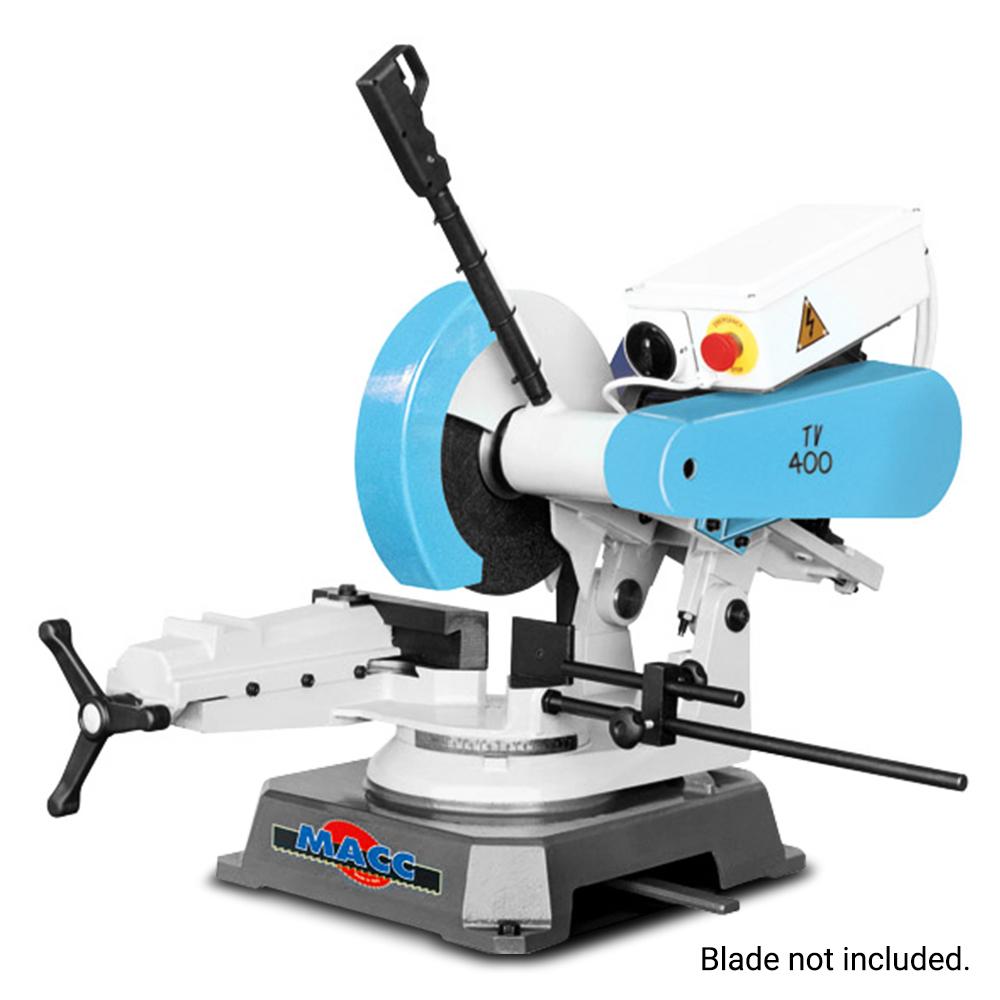

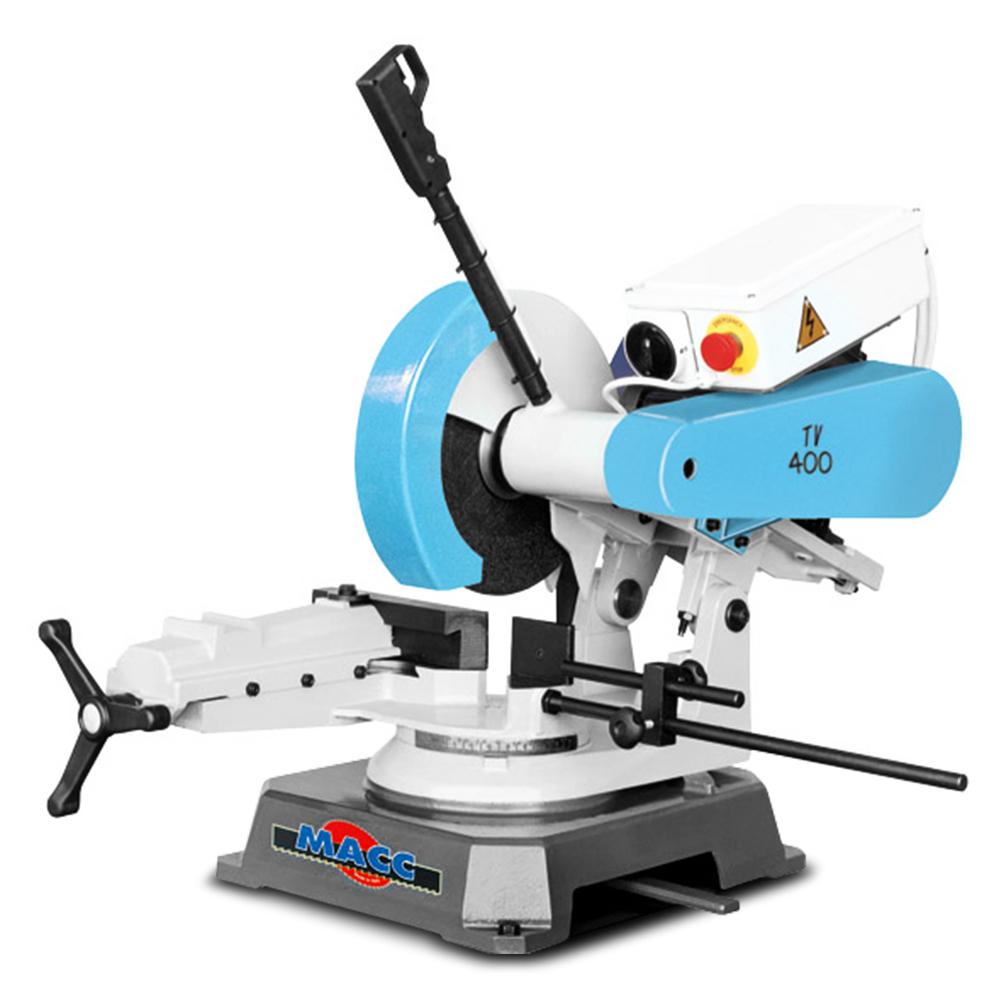

Macc MC-TV400-3 406mm (16") 7.4HP Three Phase Friction Saw

Macc MC-TV400-3 406mm (16") 7.4HP Three Phase Friction Saw

Blade not included.

Features:

• Italian made quality, extra heavy duty
• Swivel head 45° left & right
• Swivel vice provides complete reverse angle cutting
• Trigger switch operation
• Quick locking vice
• Adjustable material stop for repetitive production
• Emergency stop safety switch

Specifications:

• Motor: 7.4HP Three Phase 415V
• Blade Speed: Single Speed 3800rpm
• Blade Size: 406mm
• Blade Bore: 25.4mm
• Cutting Angle 90°:
• Solid Cylinder: 130mm
• Box: 120mm x 120mm
• Rectangle: 170mm x 100mm
• Cutting Angle 45°:
• Solid Cylinder: 120mm
• Box: 100mm x 100mm
• Rectangle: 150mm x 100mm
• Weight: 145kg
