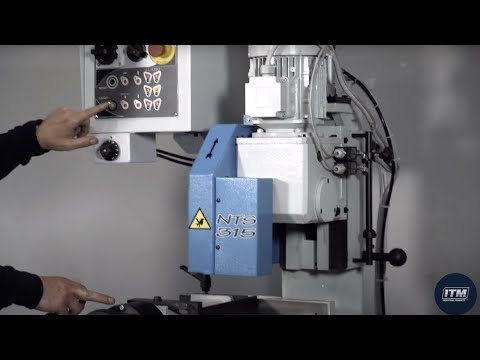

Macc MC-NTS315-3 315mm (12-1/2") 2.5HP Three Phase Semi-Automatic Vertical Cold Saw with Recirculating Coolant System

Macc MC-NTS315-3 315mm (12-1/2") 2.5HP Three Phase Semi-Automatic Vertical Cold Saw with Recirculating Coolant System

Vertical Cold Saws offer increased rigidity over standard horizontal Cold Saws, decreasing chatter and increasing cut finish quality.

Features:

• Italian made quality
• Swivel head 45° left & 60° right
• Recirculating coolant system with electric pump
• Adjustable material stop for repetitive production
• Compressor required to power vice
• Comes complete with blade & stand
• Semi-Auto machine performs the following operations automatically during the cutting cycle:
• 1. Vice closes and blade motor starts
• 2. Cutting head downstroke
• 3. Return of head and blade motor stop
• 4. Vice re-opens

Specifications:

• Motor: 2.5HP Three Phase 415V
• Blade Speed: 2 Speed 33 / 66rpm
• Blade Size: 315mm
• Blade Bore: 32mm
• Cutting Angle 90°:
• Solid Cylinder: 70mm
• Hollow Cylinder: 100mm
• Box: 90mm x 90mm
• Rectangle: 135mm x 80mm
• Cutting Angle 45° (L&R):
• Solid Cylinder: 70mm
• Hollow Cylinder: 100mm
• Box: 90mm x 90mm
• Rectangle: 100mm x 80mm
• Cutting Angle 60° (R):
• Solid Cylinder: 70mm
• Hollow Cylinder: 80mm
• Box: 70mm x 70mm
• Rectangle: 80mm x 70mm
• Weight: 300kg
