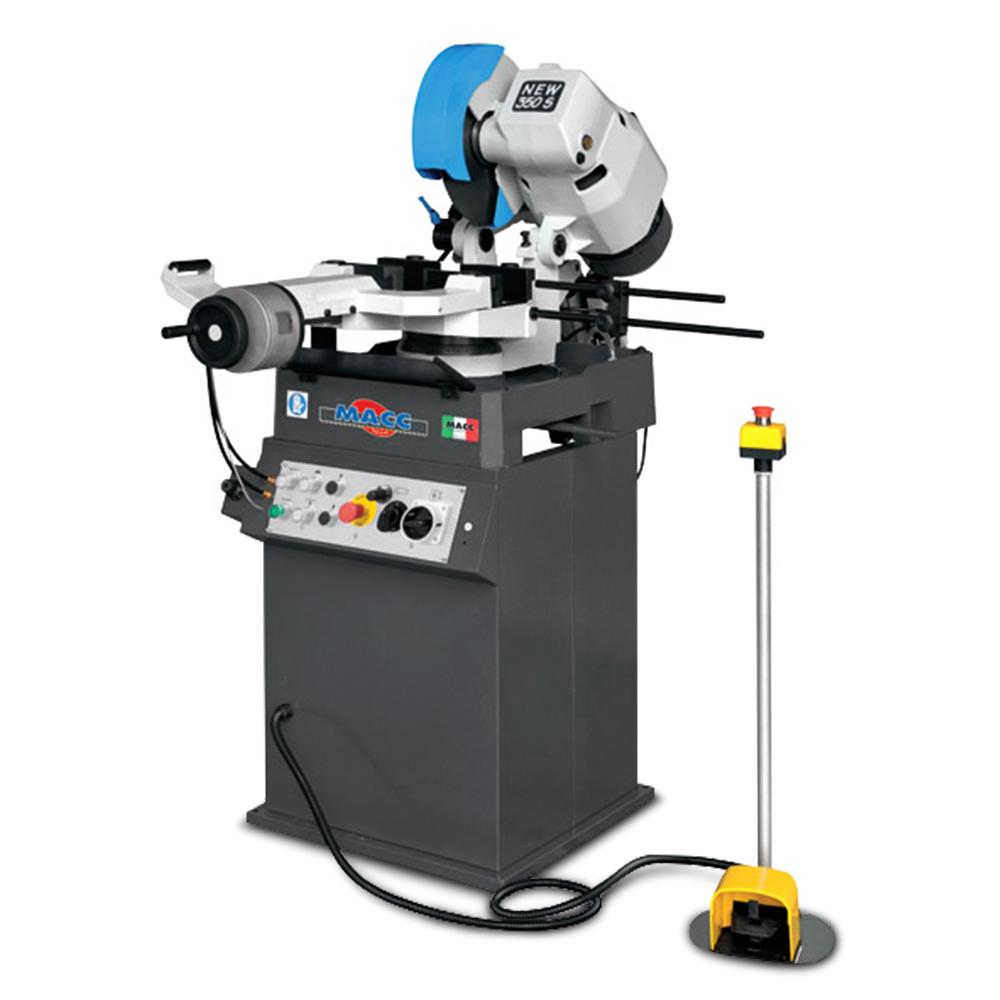

Macc MC-NEW350S-3 350mm (13-3/4") 3.2HP Three Phase Double Vice Semi-Automatic Cold Saw with Recirculating Coolant System

Macc MC-NEW350S-3 350mm (13-3/4") 3.2HP Three Phase Double Vice Semi-Automatic Cold Saw with Recirculating Coolant System

Remote foot switch & emergency stop switch is not included.

Features:

• Italian made quality
• Swivel head 45° left & right
• Quick locking double vice for burr free cutting
• Incorporated recirculating mechanical coolant system supplying coolant to both sides of the blade
• Adjustable material stop
• Compressor required to power vice
• Comes complete with blade & stand
• Semi-Auto machine performs the following operations automatically during the cutting cycle:
• 1. Vice closes and blade motor starts
• 2. Cutting head downstroke
• 3. Return of head and blade motor stop
• 4. Vice re-opens

Specifications:

• Motor: 3.2HP Three Phase 415V
• Blade Speed: 2 Speed 20 / 40rpm
• Blade Size: 350mm
• Blade Bore: 32mm
• Cutting Angle 90°:
• Solid Cylinder: 60mm
• Hollow Cylinder: 110mm
• Box: 100mm x 100mm
• Rectangle: 120mm x 80mm
• Cutting Angle 45°:
• Solid Cylinder: 55mm
• Hollow Cylinder: 80mm
• Box: 80mm x 80mm
• Rectangle: 80mm x 80mm
• Weight: 280kg
