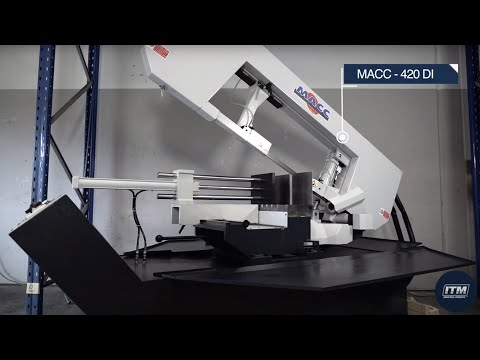

Macc MB-420DI-3 550mm x 400mm 2HP Three Phase Swivel Head Semi-Automatic Band Saw

Macc MB-420DI-3 550mm x 400mm 2HP Three Phase Swivel Head Semi-Automatic Band Saw

The Macc 550mm x 400mm 2HP Three Phase Swivel Head Semi-Automatic Band Saw incorporates a recirculating coolant system, and a swivel head that enable 0° to 60° mitre cuts. It has a duel direction heavy duty vice, an adjustable material stop for repetitive production, and a semi-automatic function.

Features:

• 2 Way swivel head enables 0° to 60° mitre cuts
• Dual direction heavy duty vice
• Incorporated recirculating coolant system
• Adjustable material stop for repetitive production
• Comes complete with stand and blade
• Italian made quality
• Semi-automatic machine function:
• Operator Inserts Material
• Operator Presses Start Button
• Vice Clamps Material
• Blade Motor Starts
• Bow Lowers & Cuts Material
• Blade Motor Stops
• Bow Rises, Vice Opens

Specifications:

• Motor: 2HP
• Voltage: 415V
• Phase: Three
• Blade Speed: 2 Speed 37 / 75mpm
• Blade Size: 34mm x 1.1mm x 4610mm
• Cutting Angle 90°:
• Cylinder: 400mm
• Box: 400mm x 400mm
• Rectangle: 550mm x 400mm
• Cutting Angle 45° Right:
• Cylinder: 400mm
• Box: 380mm x 380mm
• Rectangle: 410mm x 300mm
• Cutting Angle 60° Right:
• Cylinder: 280mm
• Box: 280mm x 280mm
• Rectangle: 400mm x 280mm
• Cutting Angle 45° Left:
• Cylinder: 400mm
• Box: 380mm x 380mm
• Rectangle: 420mm x 300mm
• Cutting Angle: 60° Left:
• Cylinder: 260mm
• Box: 260mm x 260mm
• Rectangle: 400mm x 230mm
• Weight: 820kg
