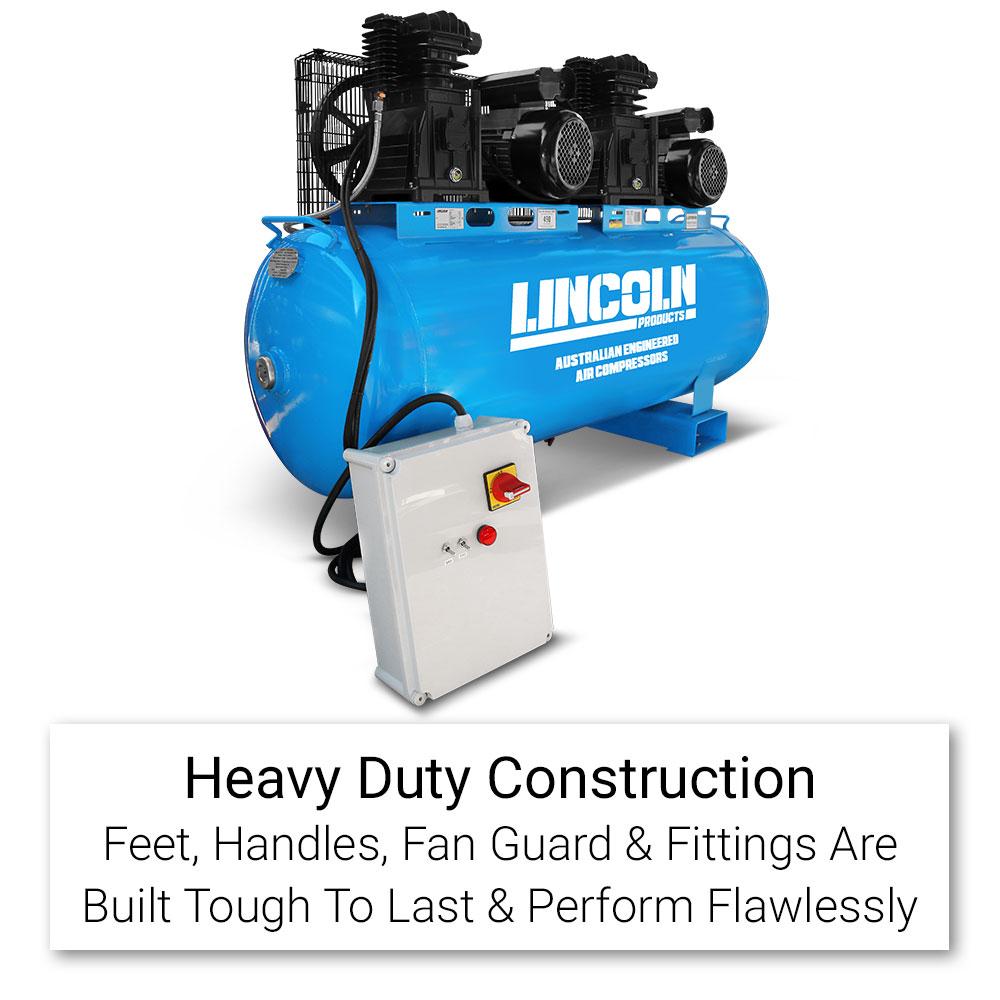

Lincoln L3270DUO 270L 6.0HP (Dual 3.0HP) Single Phase Belt Drive Twin Piston Air Compressor

Lincoln L3270DUO 270L 6.0HP (Dual 3.0HP) Single Phase Belt Drive Twin Piston Air Compressor

Lincoln Heavy Duty Air Compressors are perfect for all air tools and workshop use. Delivering a high efficient flow rate they are ideal for applications up to 145PSI (10 bar). Featuring Dual 3.0 horsepower engine, twin belt driven & Dual cast iron pump, the 270 litre tank is re-pressurised quickly and efficiently. Featuring easy to read dual pressure gauges and a quick release safety valve. The twin nitto style quick connect regulated outlets, are great for most air tools, and condensation is easily removed from the tank via the bottom drain valve.

Includes:

• 1 x Air & Water filter regulator
• 1 x Dual outlet air pressure regulator
• 1 x Twin nitto style couplers

Features:

• Belt driven system
• Bottom drain valve

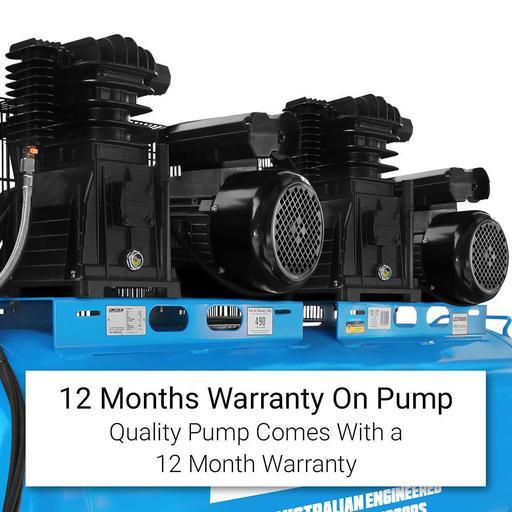

• Dual piston pump

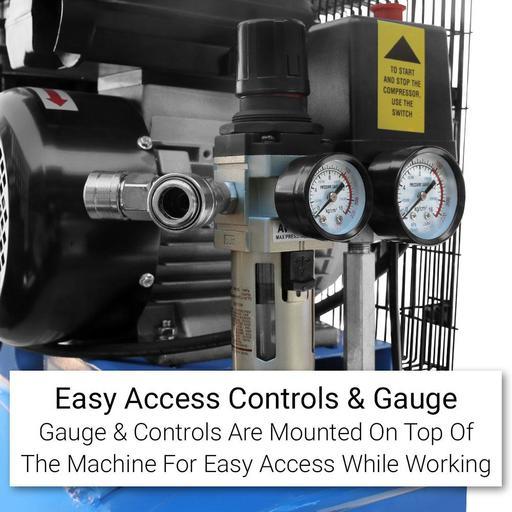

• Easy access quick release valve
• 270L AS1210 approved Tank

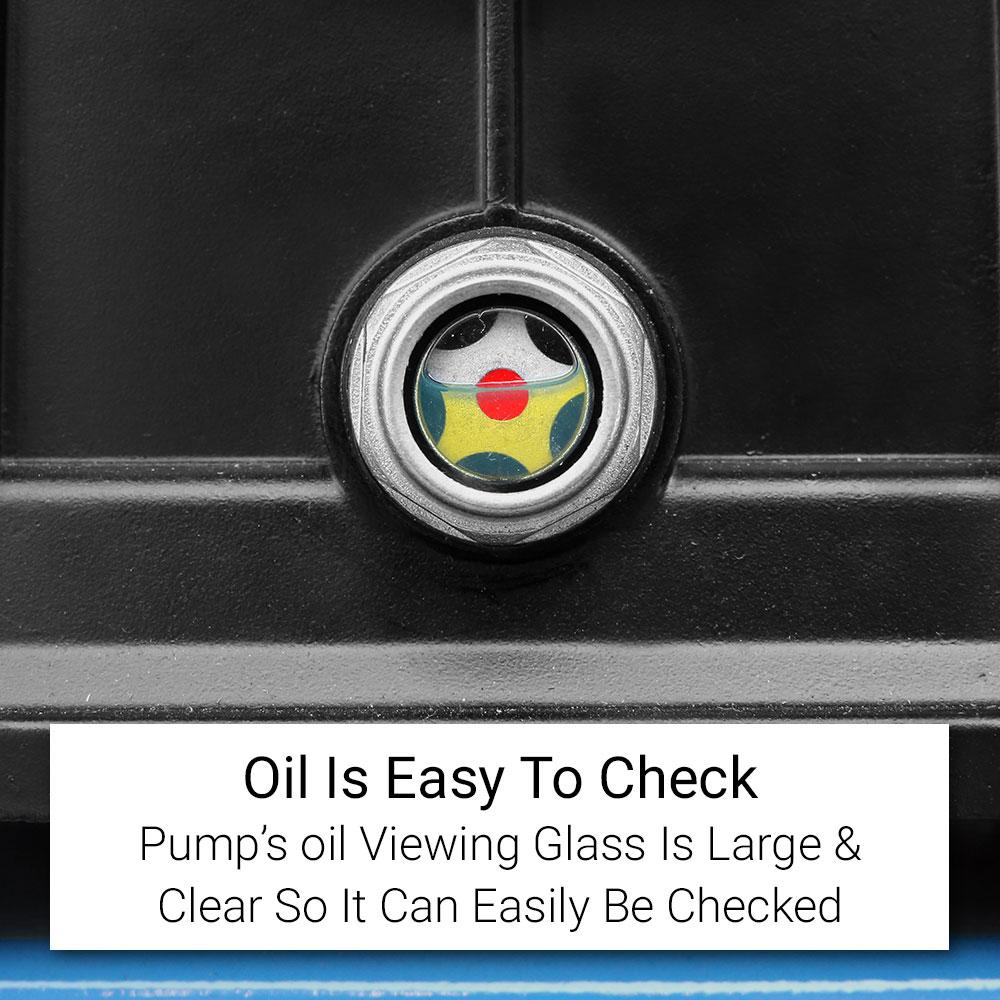

• Easy read oil check & filling

Specifications:

• Motor: Dual 3.0HP
• Required Voltage: 240V / 50Hz
• Cylinders: 2
• Tank Capacity: 270Litres
• Air Delivery Displacement: 2 x 8.6CFM
• Pump Displacement: 2 x 14.4CFM
• Air Flow: 490L/min
• FAD: 490L/min
• Max Work Pressure: 145PSI (10Bar)
• Mounting: Portable
• Motor No-Load Speed: 2850RPM
• Pump No-Load Speed: 890RPM
• Pump Up Time (6-8Bar): 66 seconds
• Dimensions (L x W x H): 1604mm x 500mm x 1000mm
• Weight (Without Cord): 226kg

Warranty:

• 12 Months Warranty Covered By Lincoln

Disclaimer: This electrical unit must be installed by a qualified and licensed electrician. Improper installation may result in injury, damage, fire, or malfunction. The manufacturer is not responsible for damages resulting from improper or unauthorized installation.
