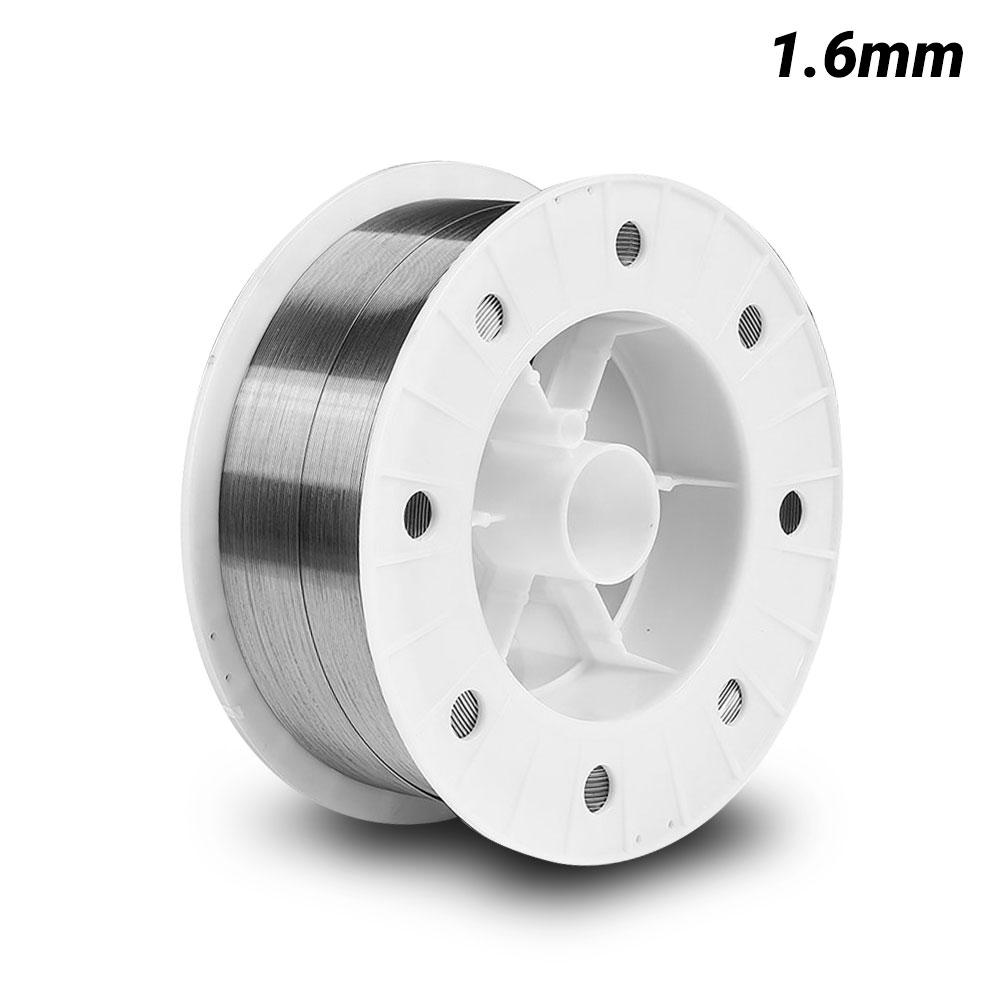

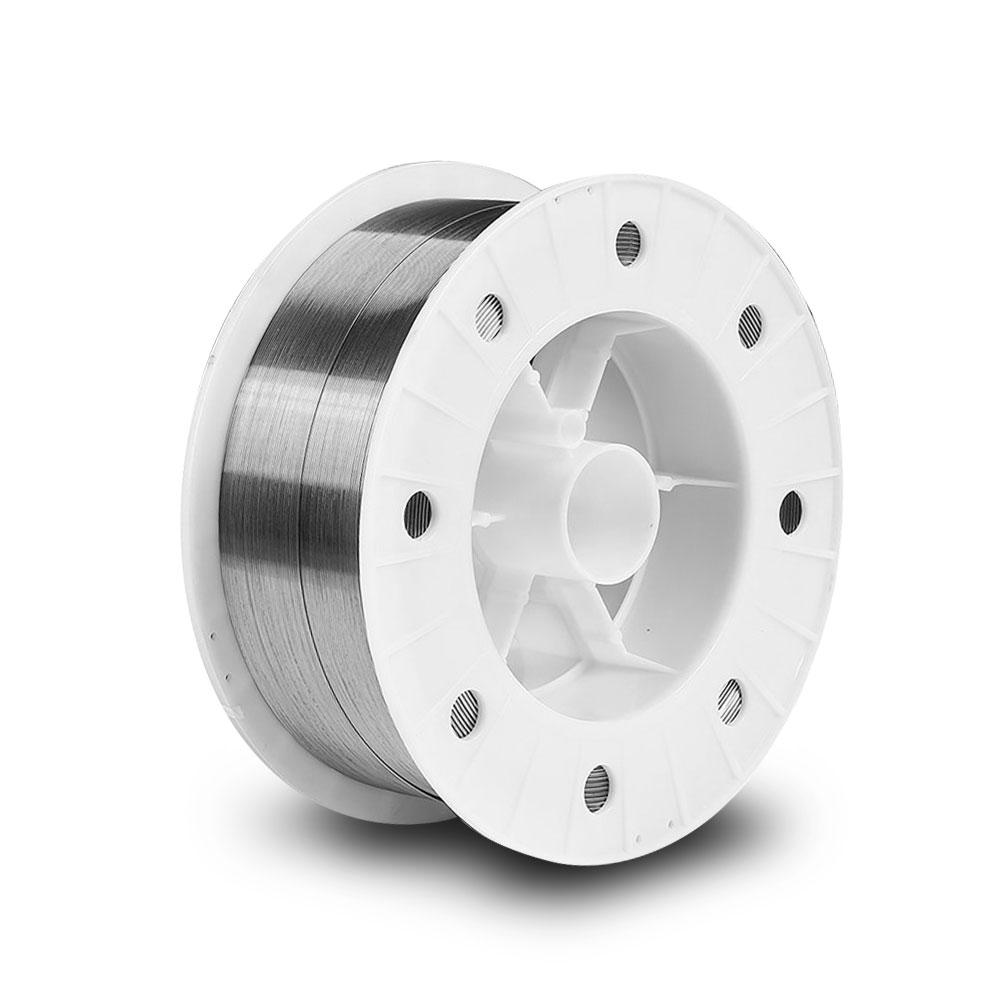

Lincoln Electric COPMW71E61 1.6mm x 15kg PRIMACORE MW-71 Gas Shielded Flux Cored Wire

Lincoln Electric COPMW71E61 1.6mm x 15kg PRIMACORE MW-71 Gas Shielded Flux Cored Wire

The Lincoln Electric Primacore® MW-71 is a basic-rutile, flux-cored welding wire designed for all-position welding of mild steel in applications requiring moderate levels of strength and good impact toughness. Primacore® MW-71 provides great arc stability and smooth bead appearance, even on out-of-position welds. Primacore® MW-71 is designed specifically for use with mixed gas in welding 490N/mm tensile steels. It is suitable for the following applications: general fabrication, heavy equipment fabrication, offshore drilling rig construction, shipbuilding and bridge fabrication.

Features:

• Designed for welding with M21 shielding gas
• Vacuum sealed aluminium foil packaging with precision layer to improve feedability
• Provides a Smooth arc which ensures minimal spatter and excellent slag removal
• Excellent mechanical properties
• Smooth, spray-like metal transfer
• Excellent welder appeal
• Minimal spatter
• Manufactured under a ISO 9001 quality system

Specifications:

• Wire Thickness: 1.6mm
• Voltage: 21-31V
• Current: 180-450amps
• CTWD: 15-20mm
• WFS: 130-300in/min
• Yield Strength: 560
• Tensile Strength: 600MPa
• Elongation: 26%
• Weight: 15kg
