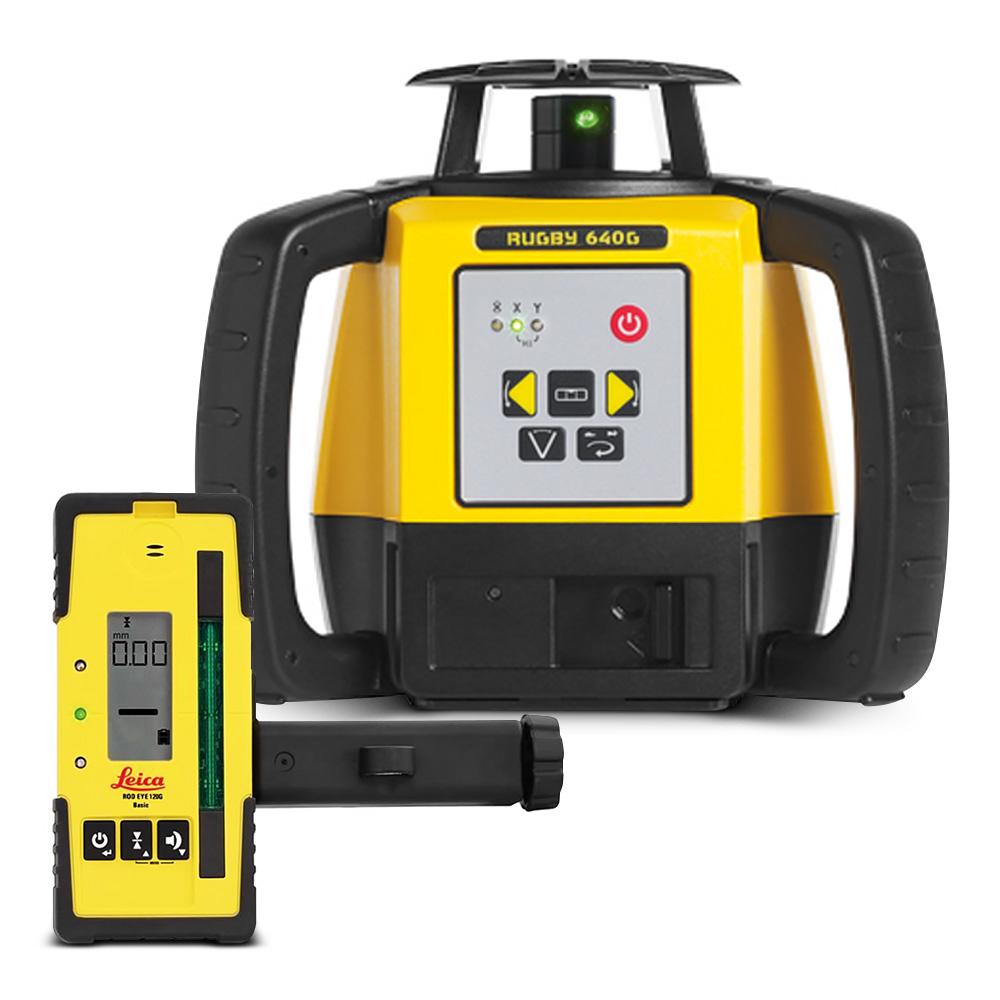

Leica Rugby 640G (LG6011488) Green Beam Multipurpose Kit

Leica Rugby 640G (LG6011488) Green Beam Multipurpose Kit

The Leica Rugby 640G has new green diode technology that provides outstanding visibility for indoor applications. Fit for any interior and exterior levelling, aligning and squaring application. Work conveniently with offsets thanks to the Rod Eye receivers digital read-out.

The digital readout of the Rod Eye 120G measures offset from Rugby 640G beam position, adding convenience and saving time.

Features:

• When levelling and aligning in and around buildings, red beams can be difficult to see.
• Leica Rugby 640G green beam rotating laser enables you to easily see wherever you are working.
• This universal, multipurpose laser provides the best beam visibility and functionality for interior and exterior applications.
• From installing drywall to working on suspended ceilings and raised floors, the new, bright green beam ensures you don’t miss the mark.
• The green beam uses the latest in green diode technology, visible up to 30 metres without a receiver.
• An IP 67 protection and up to 60 hours operating time make these lasers the most trusted and rugged choice for any interior project.
• Rugby 640G is delivered with the Leica Rod Eye 120G with digital read-out ability for convenient offset readings and outstanding operating range.
• The universal Rugby 640G also performs reliably outdoors, even in freezing temperatures.
• Scan 90: Make layout easier by quickly moving the beam 90 degrees to the left or right side
• Plumb Down: Automatic and accurate plum down direction for alignment over a reference point
• Sleep Mode: Save battery and put the Leica Rugby into sleep mode without disturbing your set up

Specifications:

• Range (diameter): 400m
• Functionality: Self-levelling horizontal, vertical, 90° and manual slope in dual axis
• Self-Levelling Accuracy (defined at 25°C): ±2.2mm @ 30m
• Self-Levelling Range: ±5°
• H.I. Elevation Alert: YES
• Rotation Speeds: 0, 2, 5 & 10rps
• Scanning Modes: 10°, 45° & 90°
• Scan90: Yes
• Plumb Up: Yes
• Plumb Down: Yes
• Sleep Mode: Yes
• Laser Diode Type / Class: 520 nm / Class 2
• Protection class (splash water / dust proof): IP67
• Operating Temperature Range: -20° to +50°C
• Remote range (radius): 100m
• Dimensions (L x W x H): 239mm x 192mm x 212mm
• Weight (with batteries): 2.6kg

Leica Rod Eye 120G Green Beam Laser Level Receiver with Bracket

The Leica Rod Eye 120G receiver is designed to capture the green laser beam of the Rugby 640G rotating laser. The digital read out capability makes height readings and working with offsets convenient and fast, whereas the 7cm detection window allows beam detection up to 200 metres (radius).

Includes:

• 2 x AA Batteries
• 1x Bracket

Features:

• LCD indication – two large graphic displays on the front and back of the receiver
• The digital readout of the Rod Eye 120G measures offset from Rugby 640G beam position, adding convenience and saving time
• Accuracy (bandwidth) indication - three accuracy levels: fine, medium, coarse
• Built-in 7cm detection window allows easy detection of the beam over the entire distance
• Includes two large LCD graphic displays on the front and back of the receiver
• The rod eye receiver comes with three auto indication volume levels - loud, soft & off
• Three bandwidth accuracy indication levels - fine, medium & coarse
• Operates up to 50 hours
• It has an IP67 environmental rating which gives this instrument dust and water protection

Specifications:

• Protection Class: IP67
• Bracket/Clamp: Included
• Accuracy:
  • Fine: ±1mm
  • Medium: ±2mm
  • Coarse: ±3mm
• Battery/Power:

  • Power Source: AA Batteries
  • Battery Life: up to 50 hours
  • Low Battery Indicator: Yes
• Operating Temperature: -20°C to +50°C
• Channels: 9
• Display: Dual LCD
• Automatic Shutoff: After 10 minutes
• LED Indicators: Green
• Anti-Strobe Technology: Yes
• Last Beam Memory: Yes
• Beam Finding: Yes
• Dimensions (L x W x H): 80mm x 35mm x 150mm
