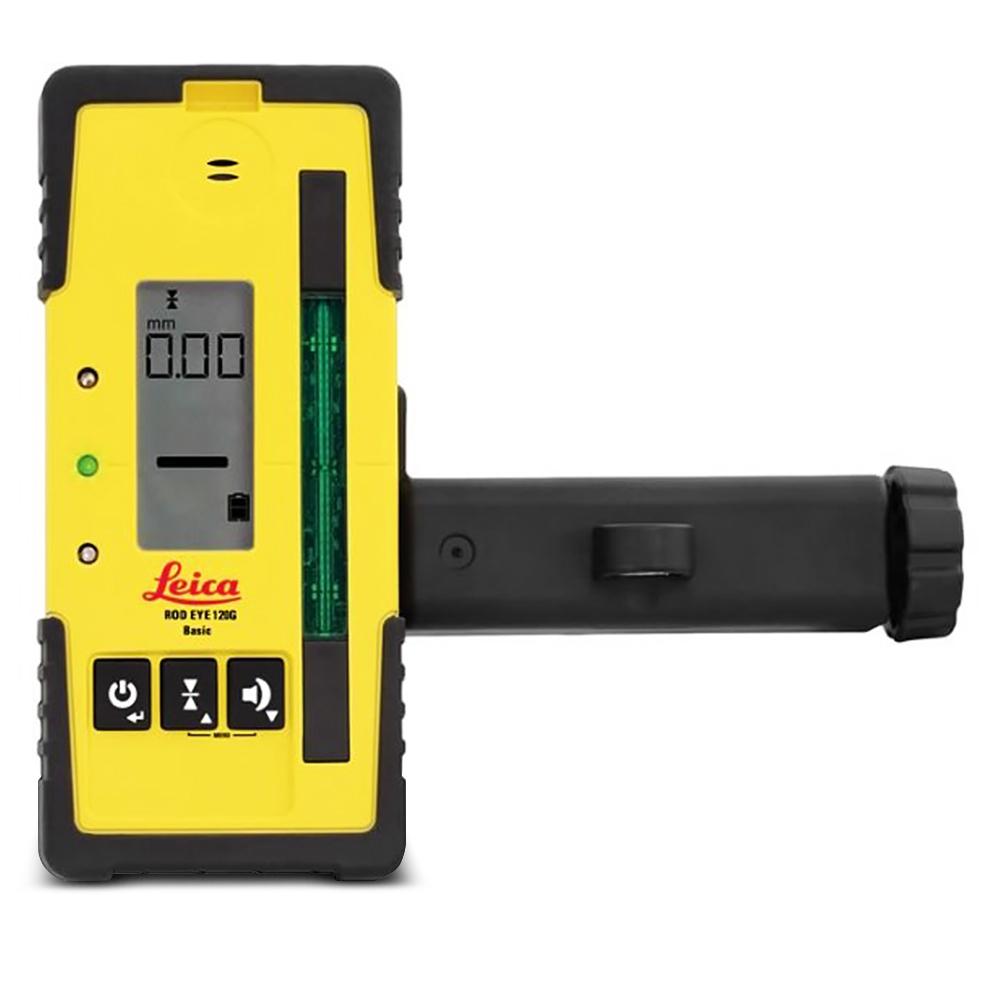

Leica Rod Eye 120G (LG844745) Green Beam Laser Level Receiver with Bracket

Leica Rod Eye 120G (LG844745) Green Beam Laser Level Receiver with Bracket

The Leica Rod Eye 120G receiver is designed to capture the green laser beam of the Rugby 640G rotating laser. The digital read out capability makes height readings and working with offsets convenient and fast, whereas the 7cm detection window allows beam detection up to 200 metres (radius).

Includes:

• 2 x AA Batteries
• 1x Bracket

Features:

• LCD indication – two large graphic displays on the front and back of the receiver
• The digital readout of the Rod Eye 120G measures offset from Rugby 640G beam position, adding convenience and saving time
• Accuracy (bandwidth) indication - three accuracy levels: fine, medium, coarse
• Built-in 7cm detection window allows easy detection of the beam over the entire distance
• Includes two large LCD graphic displays on the front and back of the receiver
• The rod eye receiver comes with three auto indication volume levels - loud, soft & off
• Three bandwidth accuracy indication levels - fine, medium & coarse
• Operates up to 50 hours
• It has an IP67 environmental rating which gives this instrument dust and water protection

Specifications:

• Protection Class: IP67
• Bracket/Clamp: Included
• Accuracy:
  • Fine: ±1mm
  • Medium: ±2mm
  • Coarse: ±3mm
• Battery/Power:

  • Power Source: AA Batteries
  • Battery Life: up to 50 hours
  • Low Battery Indicator: Yes
• Operating Temperature: -20°C to +50°C
• Channels: 9
• Display: Dual LCD
• Automatic Shutoff: After 10 minutes
• LED Indicators: Green
• Anti-Strobe Technology: Yes
• Last Beam Memory: Yes
• Beam Finding: Yes
• Dimensions (L x W x H): 80mm x 35mm x 150mm
