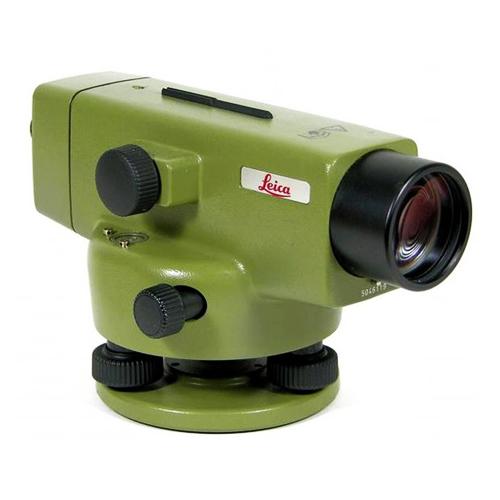

Leica NAK2 (LG352038) 32x Optical Zoom Universal Automatic Level

Leica NAK2 (LG352038) 32x Optical Zoom Universal Automatic Level

Features:

• Diagonal eyepiece for observing from above, below, and from the side; useful in cramped spaces
• Eyepiece lamp for converting the NA2 into a horizontal collimator for laboratory work
• Autocollimation eyepiece for setting machine parts and instrument components precisely vertical

Specififcations:

• Standard deviation for 1 km double-run levelling, depending on type of staff and on
• Procedure: up to 0.7 mm
• With parallel-plate micrometer: 0.3 mm
• Telescope: erect image
• Standard eyepiece: 32×
• FOK73 eyepiece (optional) 40×
• FOK117 (optional) 25×
• Clear objective aperture: 45 mm
• Field of view at: 100 m 2.2 m
• Shortest focusing distance: 1.6 m
• Multiplication factor: 100
• Additive constant: 0
• Working range of compensator: ~30’
• Setting accuracy of compensator (stand. dev.) 0.3“
• Sensitivity of circular level: 8’/2 mm
• Glass circle (K version) 400 gon (360°)
• Graduation diameter: 70 mm
• Graduation interval 1 gon (1°)
• Reading by estimation to 10 mgon (1’)
• Water- and dust resistance: IP53
• Temperature range:
• Operation –20°C to +50°C (– 4°F to 122°F)
• Storage –40°C to +70°C (–40°F to 158°F)
