Leica LG912971-K200 L6G-1 3x360 Green Pro Pack With RGR200 Receiver

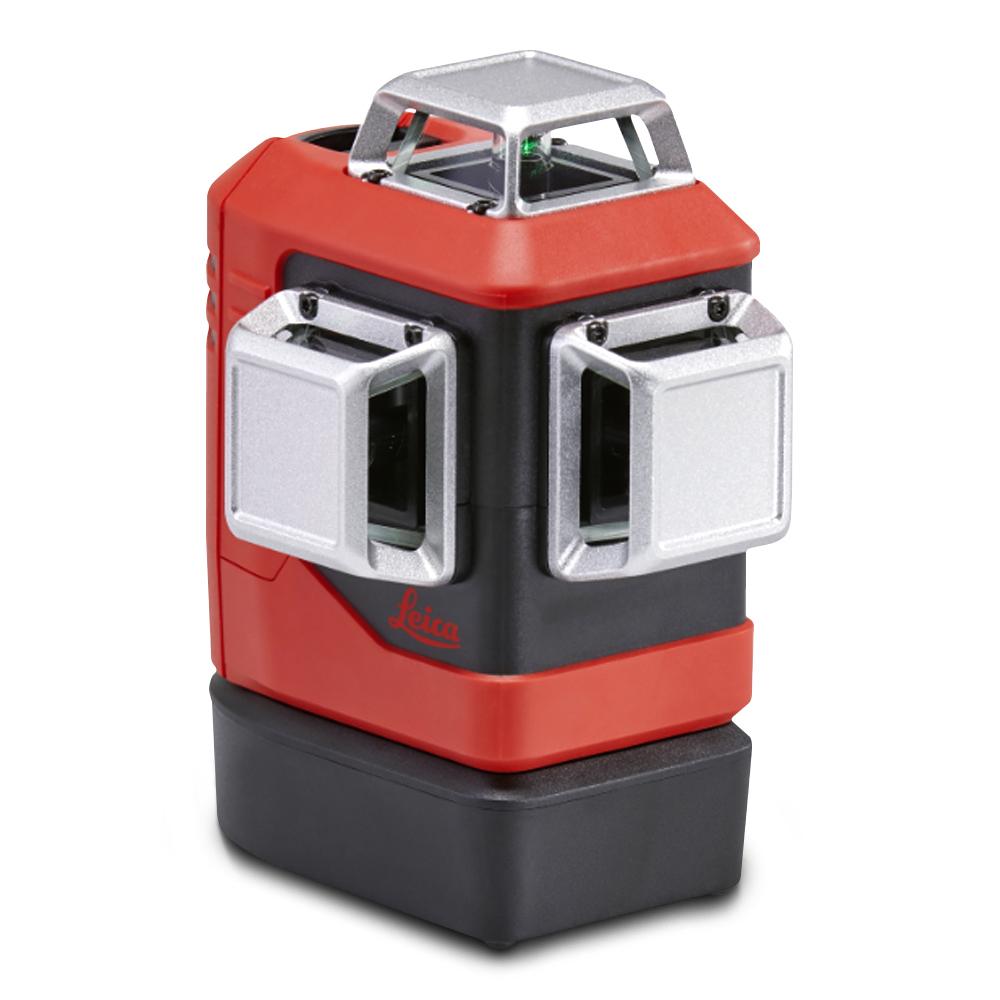

Leica Lino L6G 3x360° Green Beam Multi Line Laser projects three, ultra-strong 360° thin, crisp and clearly visible green laser lines ideal for bright environments and large work environments as green laser lines are up to four times more visible to the human eye if compared to red lasers.

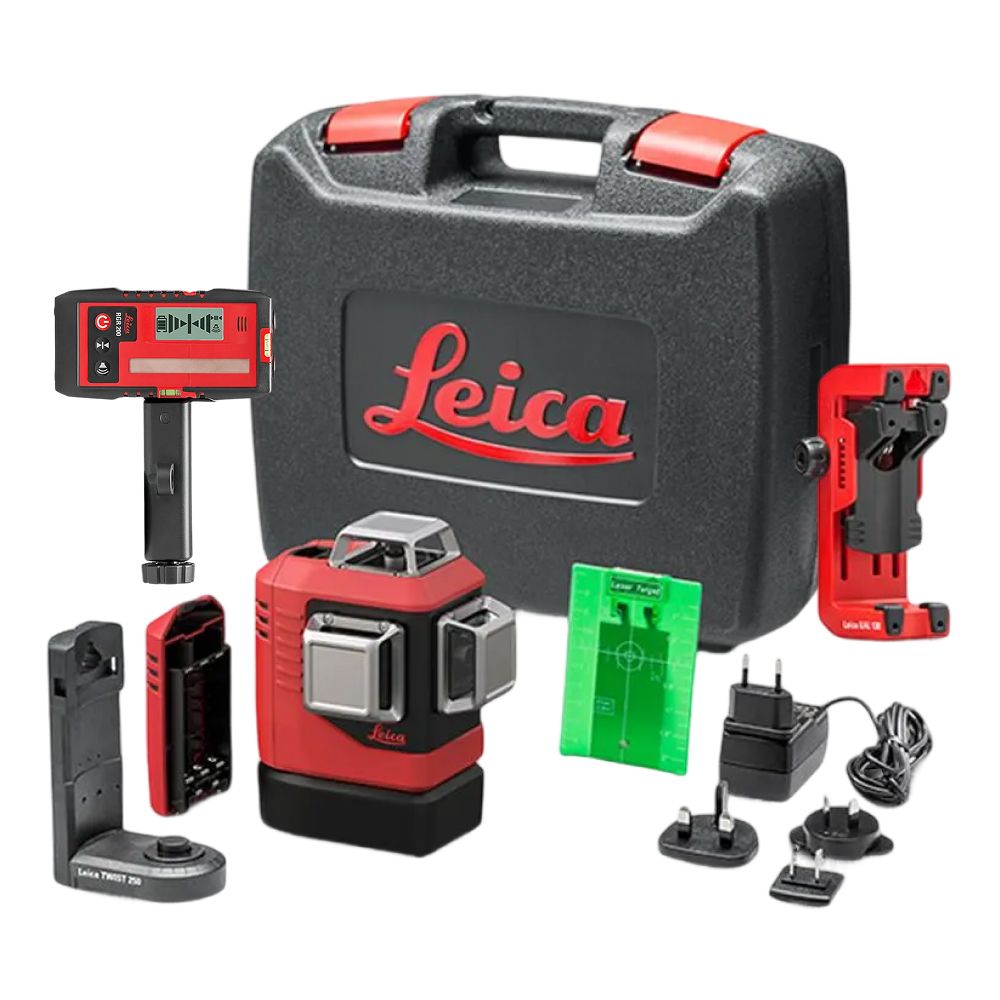

Includes:

• 1 x Twist 250 magnetic adapter
• 1 x UAL 130 wall mount adapter
• 1 x Li-Ion battery pack
• 1 x Charger for Li-Ion battery pack
• 1 x  Battery tray for Alkaline
• 1 x Target plate
• 1 x Quick start guide
• 1 x Calibration Certificate Blue
• 1 x Rugged case

Features:

• Horizontal and two vertical 360° green laser lines
• Best visibility due to green Ultra-power laser diodes
• Self-leveling over wide range
• Fixed plumb point due to integrated base
• Adjustable strength of laser lines
• Operating range of up to 35 metres
• Li-Ion power for up to 11 h
• Uninterrupted working with Triple-Power concept
• Smart magnetic adapters versatile usage

Specifications:

• Beam horizontal: 360°
• Beam vertical: 2 x 360°
• Intersection points: up, down, right, left, front, back (90° / 180°)
• Range / diameter*: 35 m / 70 m (115 ft / 230 ft)
• Range / diameter* with Leica RGR 200 receiver: 70 m / 140 m (230 ft / 460 ft)
• Levelling accuracy: ± 0.2 mm/m (± 0.002 in/ft)
• Horizontal- and Vertical line accuracy: ± 0.3 mm/m (± 0.004 in/ft)
• Intersection point accuracy: ± 0.2 mm/m (± 0.002 in/ft)
• Self-levelling range: ± 4°
• Self-levelling time: < 3 sec
• Fine adjustment: ± 10° around vertical intersection point
• Out-of-level warning: yes – blink lines every 5 s
• Levelling: pendulum (lockable)
• Laser: 525 nm / class 2 (acc. to IEC 60825-1)
• Protection class: IP54 (dust and splash water)
• Battery type: Lino Li-Ion battery pack 5200mAh / 18.7Wh or 3xAA Alkaline
• Laser line intensity (selectable): 100 %, 75 %, 50 %
• Operating time with Li-Ion: up to 11 h (3 beam, 50 % power)
• Operating time with Alkaline: up to 8 h (3 beam, 50 % power)
• Operation temperature: -10 to +50° C (14 to 122° F)
• Storage temperature: -25 to +70° C (-13 to +158° F)
• Laser line width @ 5 m distance (16.4 ft): < 2 mm (< 0.08 in)
• Tripod thread: 1/4 in (5/8 in with adapter)
• Pulse power for receiver: yes
• Dimensions: 124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in)
• Weight: 781 g (1.71 lbs)

Warranty:

• 3 Year Warranty Covered by Lecia

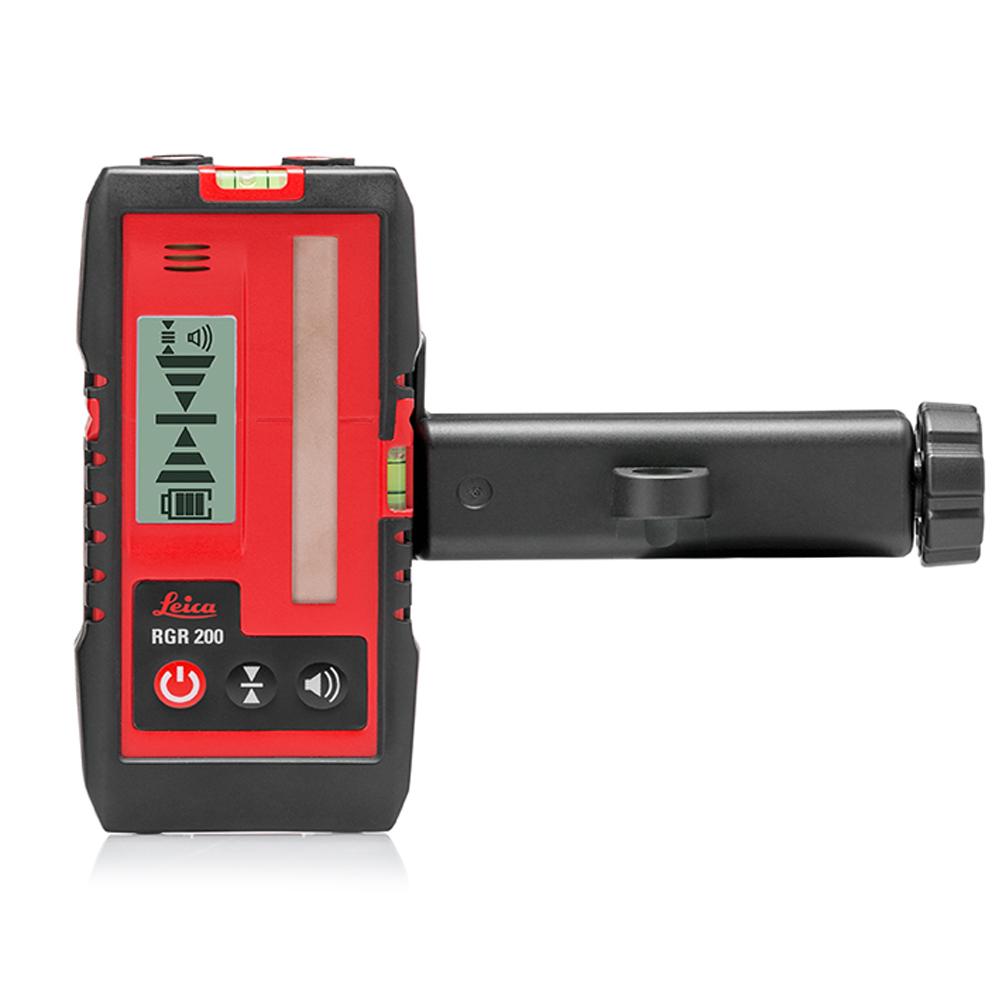

The Leica Lino RGR 200 Receiver detects green and red laser lines in bright lighting conditions. This extends the effective range to over 80 metres. Its robust housing protects from water jets and dust. It is drop-tested to 1.2m and dust and water jet protected to IP65 standards. The receiver also includes a strengthened receiver bracket. An ergonomic illuminated display, receiver sensor and audio signals help find the laser lines easily and fast. Strong magnets allow to easily connect the receiver to any magnetic surface.

Specifications:

• Working range: 2 - 80m
• Accuracy: +/- 1mm, +/- 3mm
• Accuracy channels: 2
• Detection Window: 85mm
• Detectable Spectrum: 635nm +/- 5nm red, 525nm +/- 5nm green
• Automatic shut off: 30 min
• Digital display: 2
• Illuminated display: front and back
• Fixing magnets: Yes
• Acoustical signal: 100 dB, 80 dB, 0 db switchable
• Battery type/life: 2 x AA
• Protection class: IP65
• Dimensions (L x W x H): 158mm x 73mm x 26mm
• Weight 0.25kg
