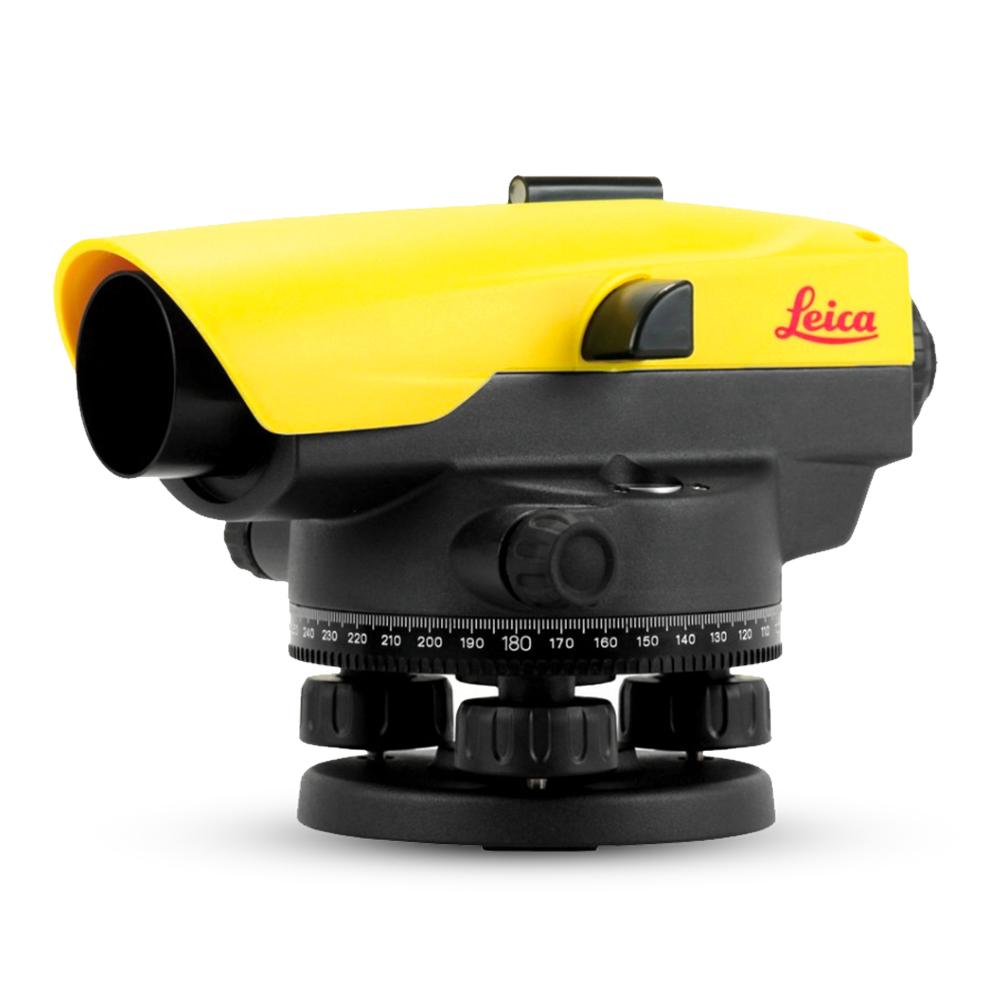

Leica LG840386 (NA532) 32x Auto Optical Level

Leica LG840386 (NA532) 32x Auto Optical Level

Features:

• Leica Geosystems is a pioneer in manufacturing levels and understands the needs of construction workers
• Whatever your need, basic or more, Leica levels are your answer
• With a unique design, these levels produce the highest quality results at the best price value
• The unique design of the Leica NA500 Series reflects the high quality of technology featured inside each level
• The Leica NA500 Series is ruggedly made to withstand the harshest elements
• These levels, while highly accurate, provide quick and easy measurements
• Rely on the known expert knowledge of Leica Geosystems with more than 260 service centers worldwide ready to support you
  Unbeaten warranty and service offering
• Leica Geosystems offers solutions for all your construction needs

Specifications:

• Telescope Image: Upright
• Magnification: 32x
• Objective Aperture: 36mm
• Shortest Target Distance from Inst. Axis: < 1.0m
• Field of View at 100m: < 2.1m
• Multiplication Factor: 100
• Additive Constant: 0
• Working Range: ±15′
• Setting Accuracy (Standard Deviation): < 0.5″
• Sensitivity: 8’/2 mm
• Graduation: 360°
• Graduation Interval: 1°
• Weight: 1.5 kg
• Operating Temperature Range: -20° to 50°C
• Protection: IP56
• Standard Deviation for 1km Double Levelling (ISO17123-1): 1.6mm
