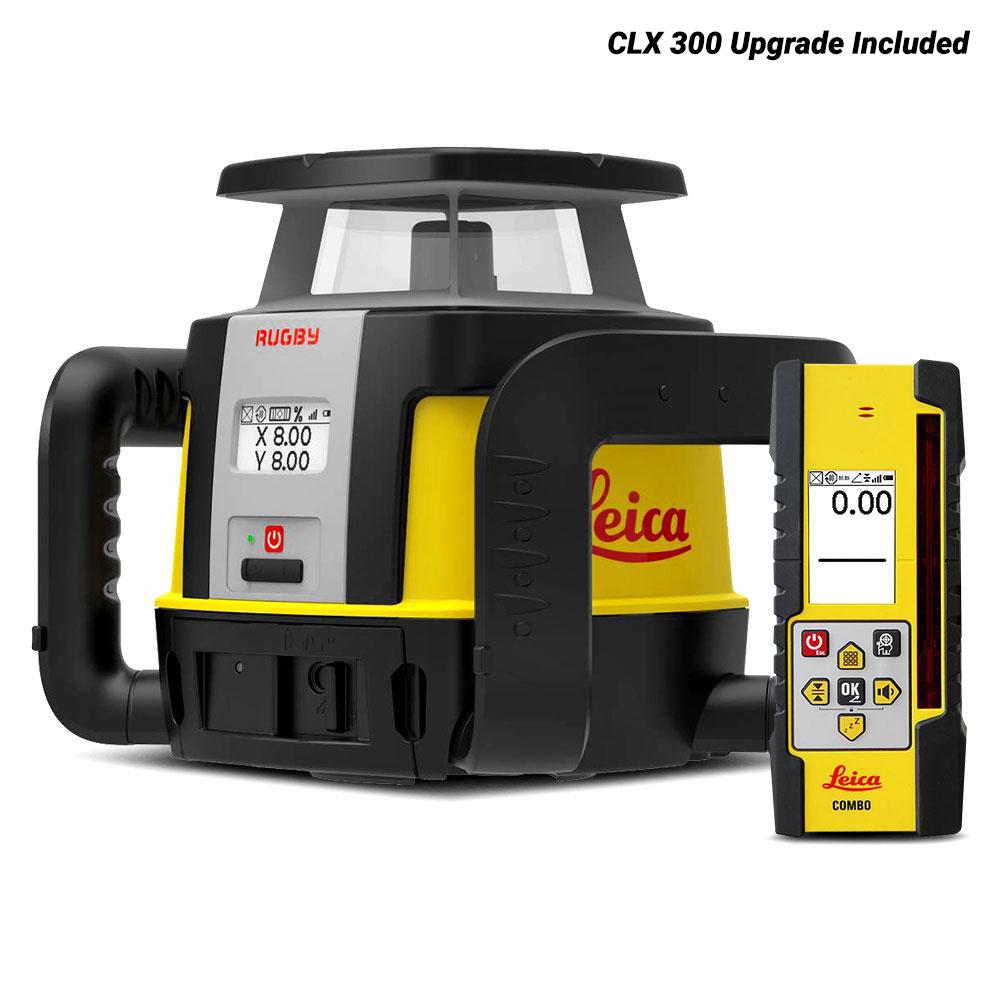

Leica CLX300 (LG6012277) Rugby CLH Chameleon Red Beam Upgradable Rotary Laser

Leica CLX300 (LG6012277) Rugby CLH Chameleon Red Beam Upgradable Rotary Laser

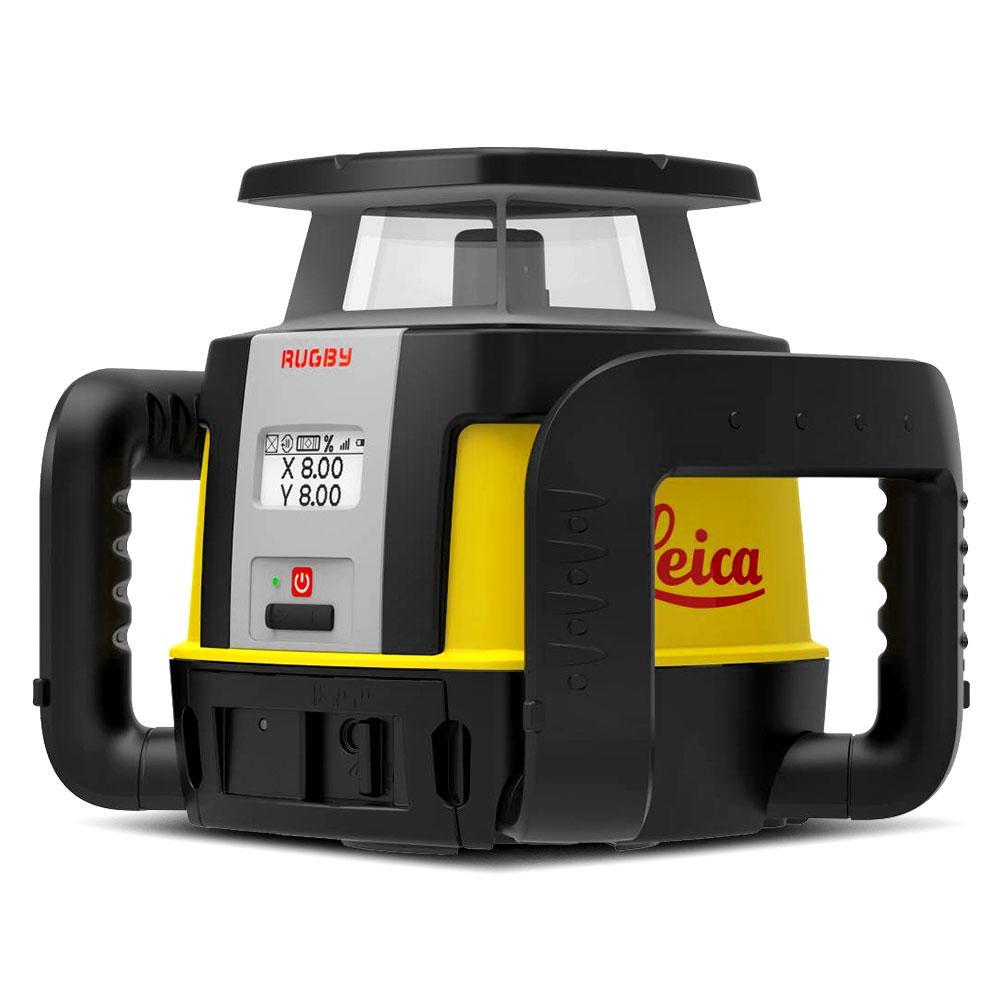

Leica Rugby CLH Chameleon Red Beam Upgradable Rotary Laser - Rugby CLH

The maximum flexibility and the ability to quickly adjust to the job’s needs is vital for your projects. With the Leica Rugby CLH Rotary Laser you can upgrade to match your application needs. You pay for the functionality you need to do your job without paying for the extra features that you don’t use. With additional professional services such as repair and calibration you can secure your laser’s exceptional performance for many years.

Leica Rugby CLH Rotary Lasers simplicity allows effortless use of the capabilities of the laser system. It saves time by simplifying applications and making you more productive. Its robust design secures measurement stability and accuracy for your daily tasks. The handle is fixed to the base with special sockets that feature high rigidity and provide a strong mount to the base.

Includes:

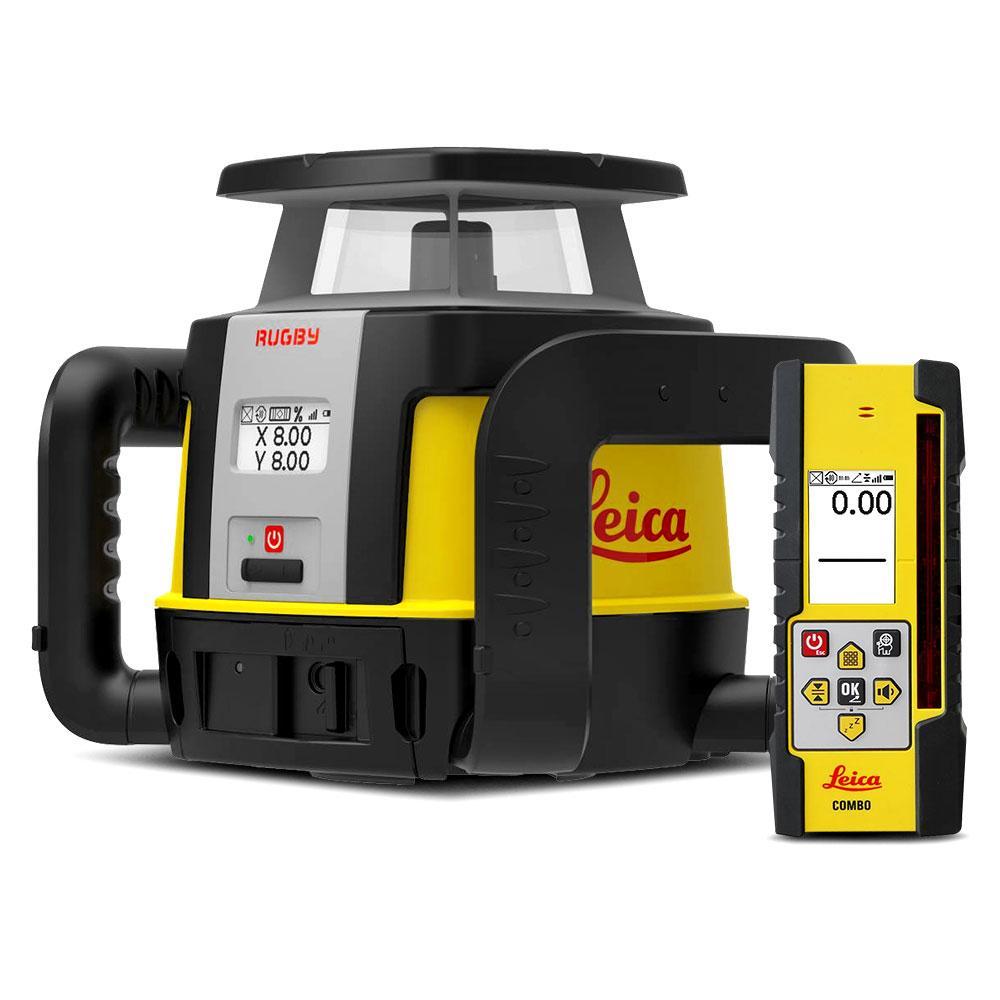

• 1 x Rugby CLH Base model with CLX300 upgrade installed
• 1 x Li-ion Battery & Charger

Features:

• Base unit can be used as a simple to operate, one-button horizontal laser for concrete and formwork levelling, height checking and transferring, and land levelling applications
• CLX300 upgrade included, adding +-8% semi-automatic grade functionality in single axis with a dial-in option, the upgrade delivers a solid performance in single slope applications

Specifications:

• Grade capability (up to 45° with adapter): 8% X/Y Axes
• Self-levelling accuracy: ±1.5mm at 30m
• Self-levelling range: ±6°
• Operating range (with COMBO): 1350m diameter
• Laser class: 1
• Environmental standard: IP68/MIL-STD-810G
• Operating temperature: -20°C to 50°C
• Storage temperature: -40°C to 70°C
• Rotation speed: 10, 15, 20rps
• Battery operating time: 50 hours
• Battery charging:
• Full change: 5 hours
• Fast charge: 1 hour (8 hours operating)
• Dimensions (L x W x H): 212mm x 296mm x 230mm
• Weight: 3.8kg

Warranty:

• 5 Years Rugby Warranty with 2 Year Knock Down covered by Leica Australia

Leica COMBO CLC Laser Receiver & Remote - COMBO

Perfect for Leica Rugby lasers, the Leica CLC Remote/Receiver, COMBO, is a highly functional device that works as both a remote controller and a laser receiver. It features an offset function, real-time acting, an improved radio, and an adjustable-size sensor window. It also has an anti-strobe feature, which assures highest detection reliability by rejecting strobe light.

When used as a remote control, the Leica CLC can work up to 600m and 1350m when used as a receiver. The CLC receiver’s big displays on both sides allow digital reading out of measurements and new pairing via the menu. The seven buttons and clear animated icons for easier operations of the device. It also has adjustable audio volumes and auto shuts off when not in use.

This Leica Rugby remote and receiver combo has a sealed rugged housing designed to last with the IP67 protection class. It has the same bracket interface as existing rod eye receivers for a more versatile use.

Features:

• Receiver and Remote combined
• Anti-strobe feature assures highest detection reliability by rejecting strobe light
• Big display on both sides
• Sealed housing
• Most rugged housing - designed to last - IP 67
• Center line on all sides
• Re-chargeable battery
• USB-C interface for charging
• Improved radio
• Same bracket interface as existing rod eye receivers
• Clear animated icons
• Real time acting
• New pairing via menu
• Offset function
• Adjustable sensor window size
• Information table
• Animated Icons

Specifications:

• Voltage: 3.7V
• Remote range: 600m diameter
• Reciever range: 1350m diameter
• Detection window: 120mm
• Anti-strobe: Yes
• Digital read out: Yes
• Offset: Yes
• Variable detection window length: Yes
• Audio volumes: 4 including mute
• Detection bandwidth: 0.5mm, 1mm, 2mm, & 5mm
• Environmental standard: IP67
• Battery operating time: 50 hours
• Battery charging:
• Full change: 5 hours
• Fast charge: 1 hour (8 hours operating)
• Operating temperature: -20°C to 50°C
• Dimensions (L x W x H): 32mm x 86mm x 205mm
• Weight: 0.4kg

Warranty:

• 2 Years Warranty covered by Leica Australia
