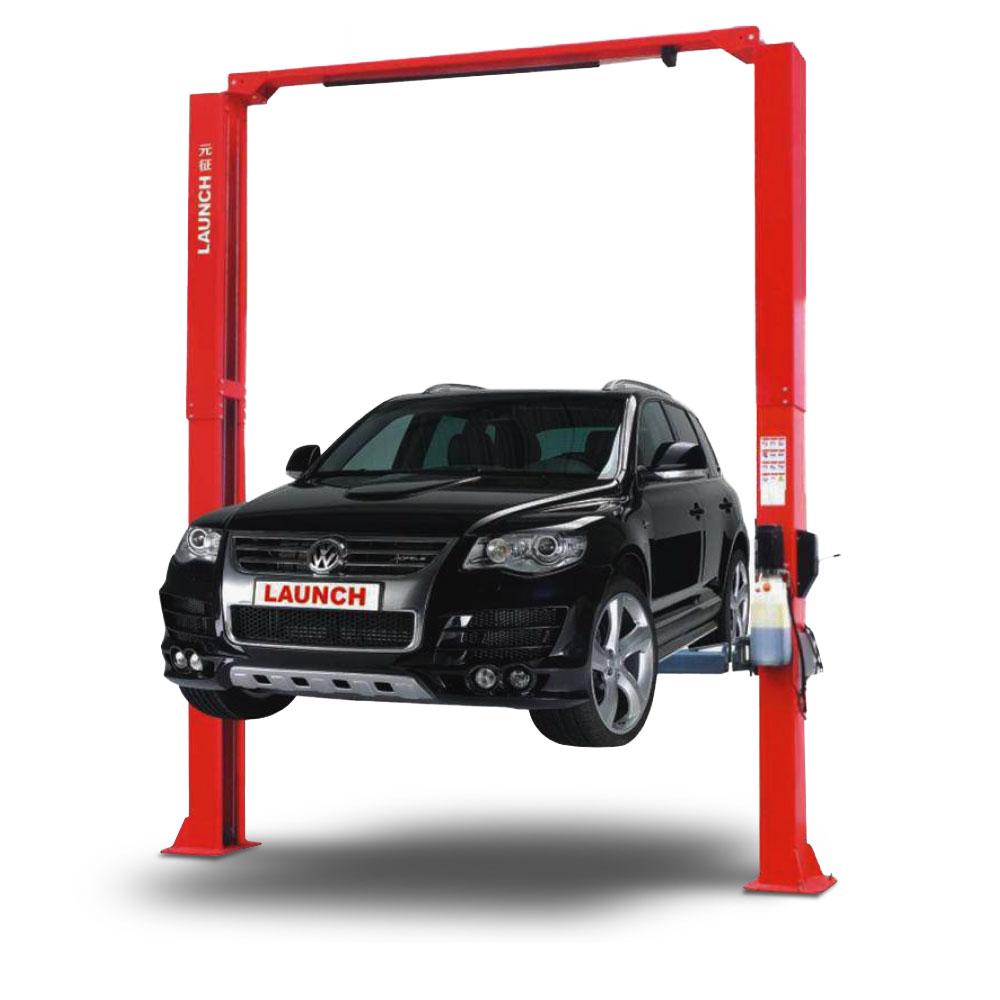

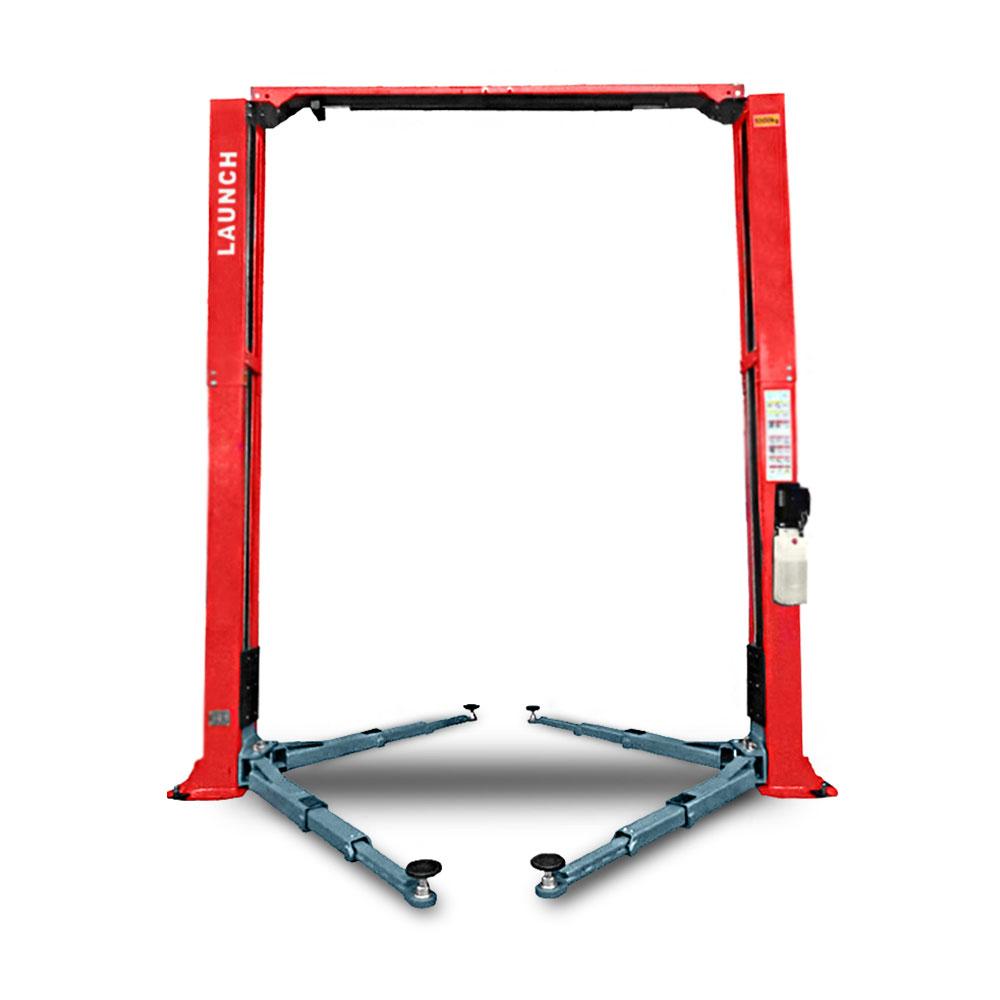

Launch TLT260AT-3PH 3kW 5T 2 Post 3 Phase Floor Clearance Hoist

Launch TLT260AT-3PH 3kW 5T 2 Post 3 Phase Floor Clearance Hoist

Features:

• Easy to Operate, Fully Automatic Descent and Ascent with Manual Lock
• Top Limit Switch to prevent Overhead Collision
• Double Hydraulic Cylinder provide Stable Lifting and Lowering
• Adopt Two Steel Cables for Equalisation, Force Two Carriages to have Synchronous Movement and prevent Vehicle Tilting
• Lowest Height of Lifting Pad is 110mm
• Passed 115% Dynamic Loading Test and 150% Static Loading Test
• Work Safe Australia, Third Party Engineered & Assessed and CE Certified

Specifications:

• Motor Power: 3kW
• Rated Load: 6000kg
• Lifting Height: 1920mm
• Overall Height: 4810mm
• Overall Width (Symmetric Installation): 4110mm
• Overall Width (Asymmetric Installation): 4130
• Passing Width (Symmetric Installation): 3050mm
• Passing Width (Asymmetric Installation): 2888mm
• Lifting Time: ≤ 65s
• Lowering Time: 20 ~ 40s
• Working Oil Pressure: 24MPa
• Noise Level: ≤ 75dB(A)
