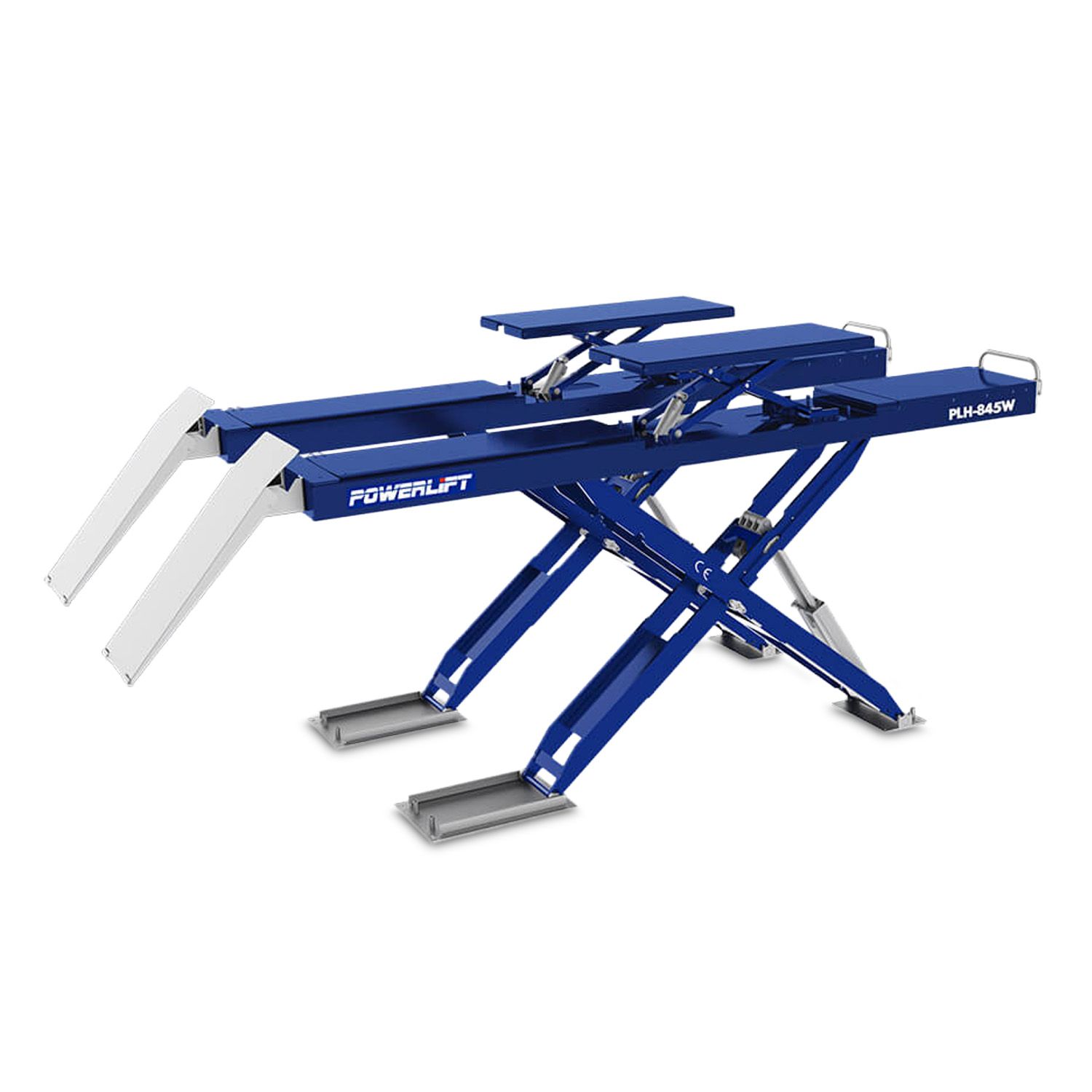

Launch PLH-845W Powerlift 4.5 Ton Ultra Thin Wheel Alignment Scissor Hoist

Launch PLH-845W Powerlift 4.5 Ton Ultra Thin Wheel Alignment Scissor Hoist

The Powerlift PLH-845W is a 4.5-tonne electro-hydraulic platform scissor hoist, purpose-built for wheel alignment and general service applications. Operating on 3-phase power and featuring a 4.8m platform length, the PLH-845W easily accommodates vehicles from compact cars to large SUVs, making it an excellent choice for industrial, commercial, and domestic workshops.

Engineered with precision components and advanced electronic controls, the PLH-845W delivers accurate, efficient wheel alignment and smooth, reliable performance. Its column-free design provides maximum workspace and accessibility, while the robust construction ensures long-term durability and dependable operation. The hoist is engineer-certified and Worksafe registered, ensuring full compliance with Australian safety and performance standards.

Features:

• Ultra-thin surface-mounted design with a lifting capacity of 4500kg
• Maximum lifting height of 2070mm provides an ergonomic working position for operators
• 680 mm widened platform with a flat, stable design allows vehicles to drive on easily
• Integrated secondary lifting system (standard) with single-side extension to accommodate various wheelbase lengths
• Six-cylinder drive system with mechanical safety locks for maximum safety and stability
• Computer-controlled intelligent operation for convenience and precision
• Patented one-touch hydraulic levelling system for smooth, synchronised lifting
• Standard height limit switch prevents overextension during operation
• Built-in hydraulic explosion-proof valve for added safety
• Emergency manual release function included as standard
• Low-voltage 24V control system ensures operator safet
• 16Mn steel support arm plate structure ensures stable and durable lifting performance
• Tested to 120% dynamic load and 150% static load, ensuring exceptional strength and reliability
• Optional dual-side pull configuration available for the secondary lifting platform
• Optional secondary descent function for enhanced control and flexibility
• Optional Infrared synchronisation detection system prevents uneven platform movement
• FREIGHT & INSTALLATION COSTS NOT INCLUDED IN PRICE

 Specifications:

• Lifting Capactity: 4500kg
• Lift Table Lifting Capacity: 3000kg
• Lifting Height: 2070mm
• Lifting Height of Table: 400mm
• Min. Height: 230mm
• Platform Length: 4800mm
• Platform Width: 680mm
• Platform Spacing: 900mm
• Motor Power: 3.5KW
• Power Input: 3-Phase
• Locking Method: Pneumatic Lock
• Certification AS/NZS: WSV-0151572105
• Dimensions (L x W x H): 6310mm x 2260mm x 230mm
• Weight: 2860kg

Warranty:

• 12 Months Warranty covered by Launch Tech Australia
