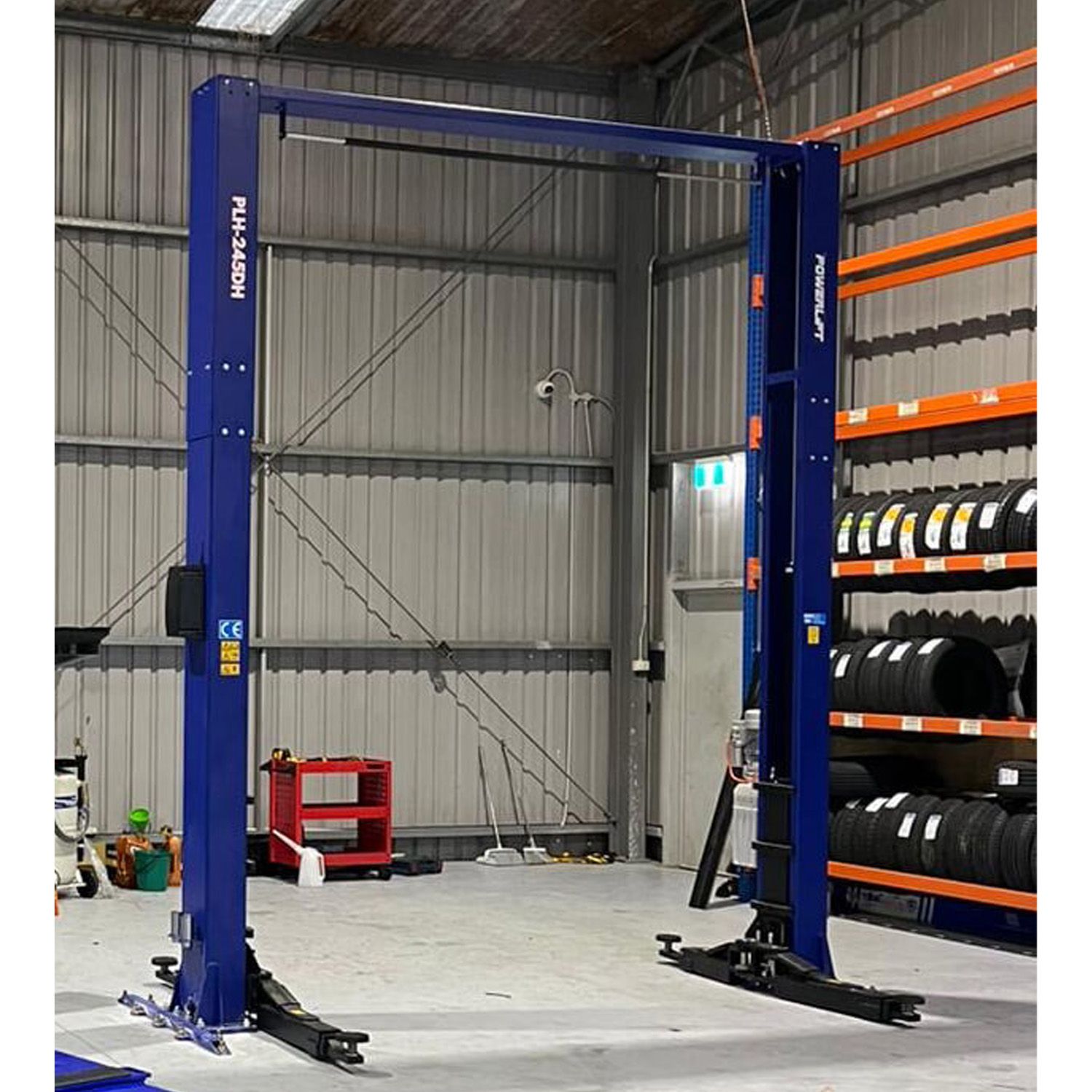

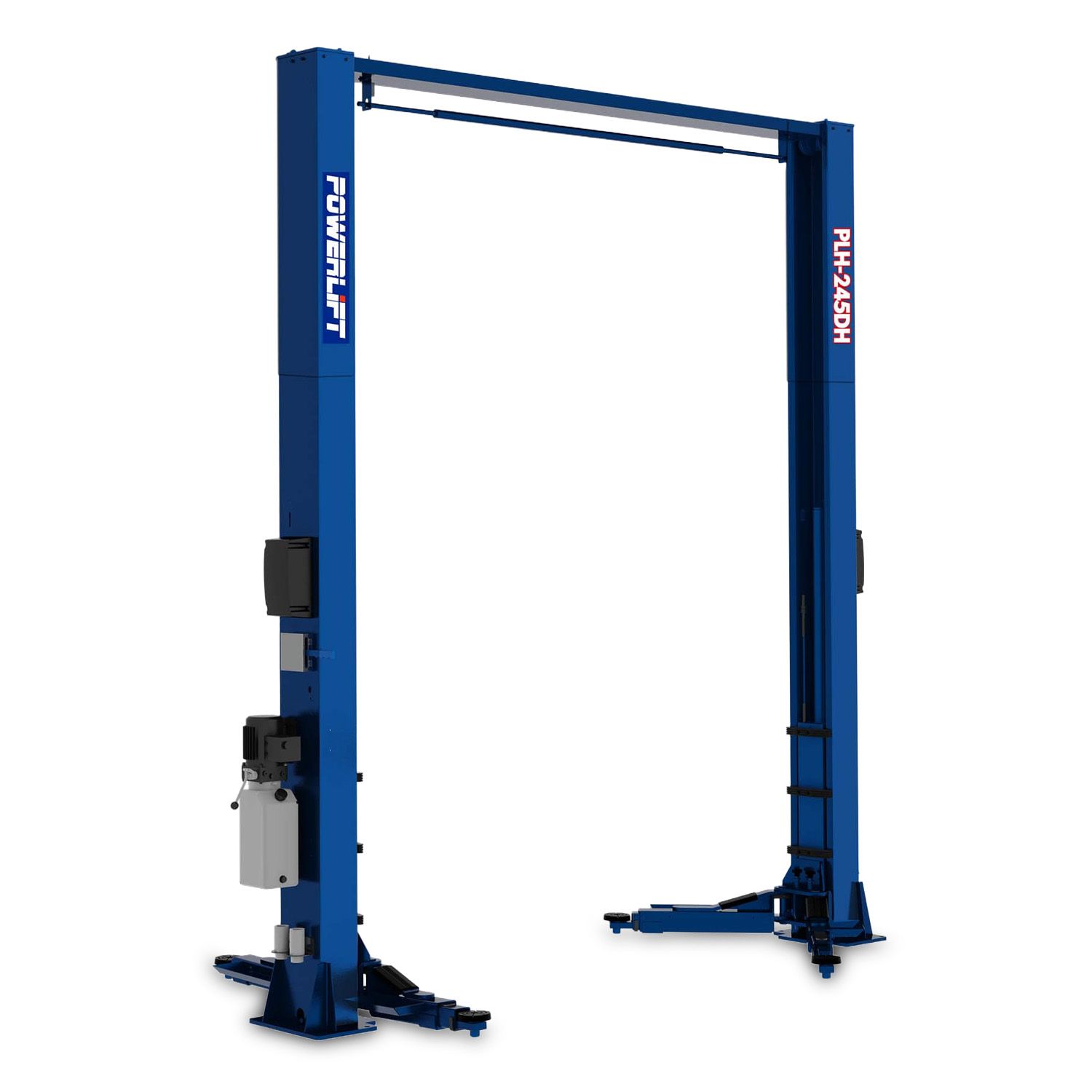

Launch PLH-245DH Powerlift 2 Post 4.5 Ton Clear Floor Car Hoist

Launch PLH-245DH Powerlift 2 Post 4.5 Ton Clear Floor Car Hoist

The PLH-245DH is a robust clear floor car hoist engineered to deliver consistent, high-performance lifting in demanding workshop environments. With a 4.5-ton lifting capacity and a 1.96m lifting height, it’s perfectly suited for a wide range of vehicles—from sedans to light commercial units.

PLH-245DH features a single-point manual lock release for safe and efficient operation, along with a durable powder-coated finish that protects against wear, corrosion, and workshop grime. Door protection pads help safeguard vehicle panels during lifting, and the hoist is engineer-certified and Worksafe registered, ensuring full compliance with Australian safety and performance standards.

Whether you’re setting up a new workshop or upgrading your existing setup, the PLH-245DH delivers the strength, reliability, and certified safety your business demands.

Features:

• Handy single-side unlock design for convenient and safe operation
• Standard height limit switch prevents over-lifting for added equipment and vehicle protection
• Integrated tool trays for foot protection and convenient storage of tools and small parts
• Integrated 2x 3-stage arms and 2x 2-stage arms
• Two-cylinder direct drive system for lower maintenance and smoother operation
• Quick-change slider blocks allow for easy maintenance and reduced downtime
• 5mm thick steel column construction ensures long-lasting structural strength
• 16mm thick column base foot plates provide excellent foundation stability
• High-strength, extra-long carriage made from 14mm bent steel plate for enhanced durability
• Reinforced lifting arms to prevent deformation under heavy load
• High-strength fine-tooth locking mechanism with closely meshing gears for added safety and precision
• 115mm diameter steel rope pulleys minimise wear and ensure smoother operation
• Bonus 4x100mm and 4x37mm 4WD height adaptors with holders included
• FREIGHT & INSTALLATION COSTS NOT INCLUDED IN PRICE

Specifications:

• Lifting Capactity: 4500kg
• Lifting Time: 40s
• Lifting Height: 1960mm
• Min. Height: 105mm
• Post Distance: 2800mm
• Motor Power: 2.2KW
• Power Input: 1-Phase or 3-Phase
• Locking Method: Single Side Manual Lock
• Certification AS/NZS: WSV-0151496333
• Min. Concrete Slab Thickness (for installation purposes): 150mm
• Dimensions (L x W x H): 3313mm x 430mm x 4030mm
• Weight: 830kg

Warranty:

• 12 Months Warranty covered by Launch Tech Australia
