Launch CR601 OBDII/EOBD Code Reader

Launch CR601 OBDII/EOBD Code Reader

Launch CR601 is a handheld OBD diagnostic tool. It provides full OBDII/EOBD diagnostic functions and meets communication standards such as ISO9141-2, ISO14230-4, SAEJ1850 and ISO15765-4, and provides user the access to commonly-used diagnostic functions, as well as data printing via PC and data record and replay function.

Includes:

• USB cable
• Instruction Manual

Features:

• Reads dynamic data streams and MIL
• Reads readiness status
• Reads freeze frame data
• Reads current DTCs
• Clear DTCs
• O2 sensor test
• On-board monitor test
• Read pending DTCs
• On-board system or component control
• Read vehicle information
• Read permanent DTCs
• Color graphical display of data streams
• Built in DTC help information
• Free PC upgrade via internet
• Multilingual support
• Record and playback Live Data
• Print data via PC

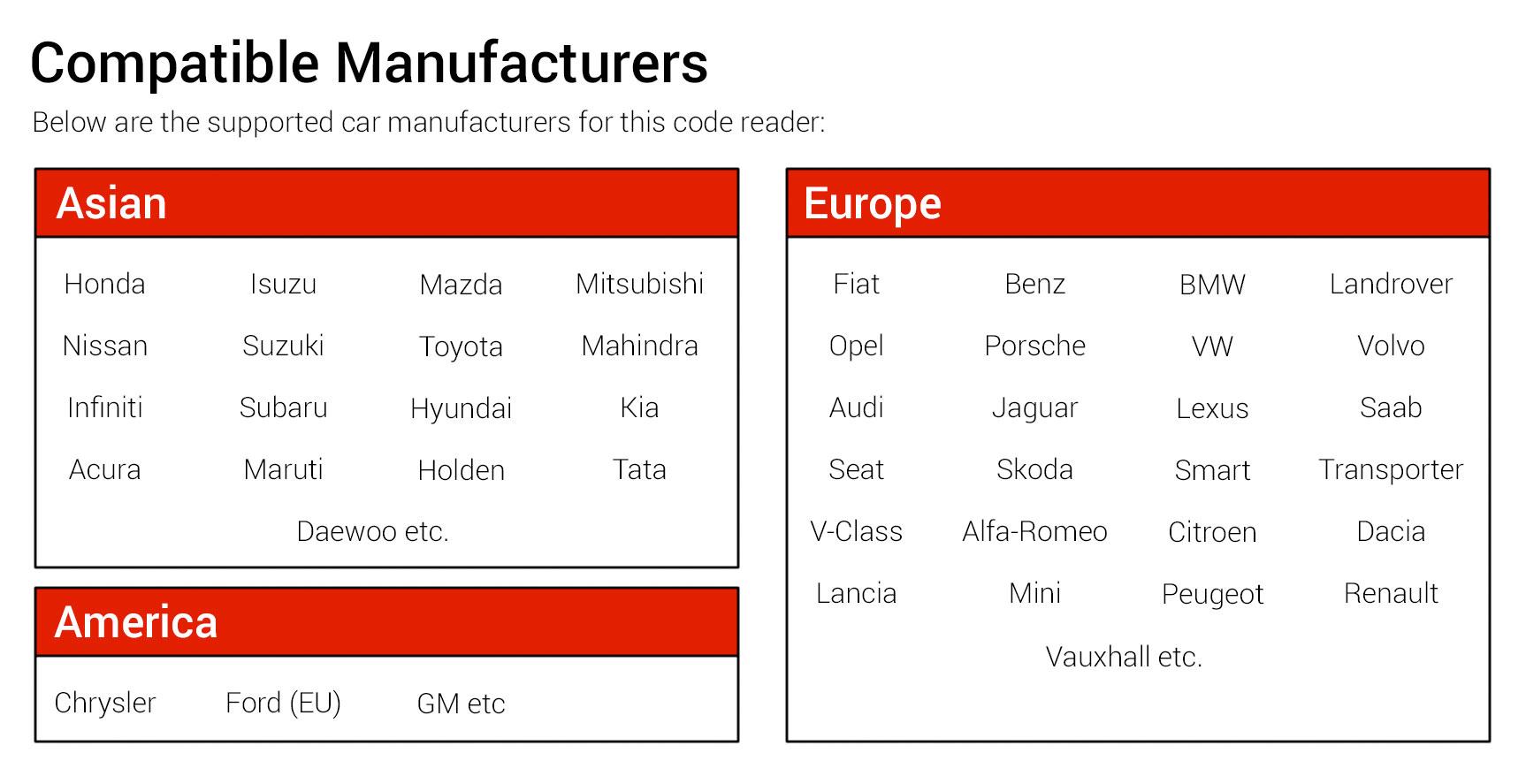

• OBDII approximate compatibility, U.S. 1996-Current, E.U. 1999-Current, AUS/ ASIA 2004-2006 Approx.-Current

Specifications:

• Screen: 2.8 inch TFT 320 x 240dpi
• Voltage Range: 9-18V
• Operating Temperature: 0℃~ 50℃
• Environment Temperature: -20℃~70℃
• Dimensions (L x W x H): 157 x 85 x 30mm
• Weight: 0.32kg
