Kreg KR-KHI-PROMO21 Hardware Installation & Pocket Hole Jig Combo Kit

Kreg KR-KHI-PROMO21 Hardware Installation & Pocket Hole Jig Combo Kit

Kreg KR-KHI-HINGE Concealed Hinge Jig

Drilling consealed hinges for kitchen style cabinetry is easy using a drill press or specific machine, but not always easy any other way, until now. This jig easily gives the correct position from the edge using the easy to use cam, and the positioning from the end of the door is also easy using the built in measuring scales.

Combined with the matching 35mm forstner style drill bit, and drill and fitting concealed hinges has just become a "hole" heap easier.

Includes:

• 1 x Jig base with index cams
• 1 x Drill guide
• 1 x 35mm carbide-tipped drill bit
• 1 x Stop collar with Hex wrench
• 1 x Owner’s manual

Features:

• Accurate hinge positioning with built-in indexing tabs
• Repeatable results with built-in measuring scales
• Reliable drilling with bit guide and stop collar
• Simple to use with any drill—no special tools needed
• Adjustable cams ensure proper hinge offset
• Durable carbide-tipped drill bit included
• Strong, lightweight materials for easy handling

Specifications:

• Construction: Glass-filled nylon
• Hinge compatibility: 35mm cup-style concealed hinges
• Hinge offset: 3mm, 4mm, 5mm, 6mm
• Drill bit, four-cutter carbide tipped with stop collar
• Hinge offset from door end: 2'' (50mm) to unlimited

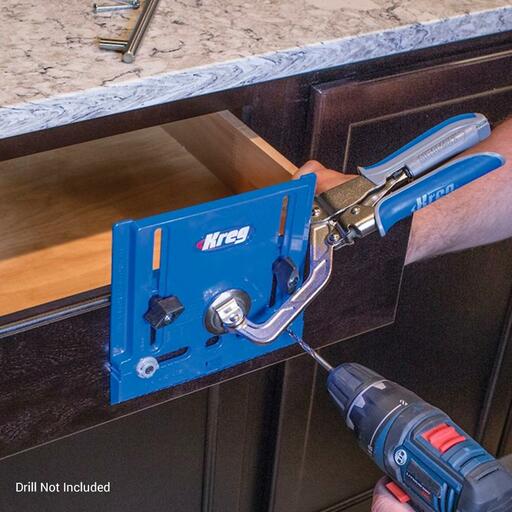

Kreg KR-KHI-PULL Cabinet Hardware Jig

The Kreg Cabinet Hardware Jig is making drilling doors for handles that so much easier and faster.

The hardened steel drill guides means the drill guides will not wear out, the edge to centre adjustment is going to cater for most desired handle positioning, and the drill guide spacing caters for standard 64mm, 96mm and 128mm handles.

Clamp it to the door or drawer front in the desired position and drill the holes, it really is that simple. Whether it is a few handles, or you are a cabinetmaker needing this for constant kitchen fitouts, this jig is a great addition to any tool kit.

Includes:

• 2 x Drill guides with knurled nuts
• 2 x Non-slip pads
• 2 x T-knobs and bolts
• 1 x Jig base
• 1 x Edge guide
• 1 x Owner’s manual

Features:

• Adjustable guides for accurate hole placement
• Built-in measuring scales for repeatable results
• Versatile for mounting single and multi-hole knobs
• Adjustable edge guide for easy positioning
• Strong, lightweight materials for easy handling
• Durable hardened-steel drill guides

Specifications:

• Construction: Polycarbonate/ABS
• Drill Guide: Two 3/16'' guides, moveable, with locking nuts
• Drill Guide Material: Hardened steel
• Drill Guide Spacing: 0'', 2 1/2'', 3'', 3 1/2'', 4'', 4 1/2'', 5'', 64mm, 96mm, 128mm
• Edge Guide to Hole-Center Spacing: 1'' to 5'' (25mm-127mm)
• Measuring Scales: Imperial and Metric

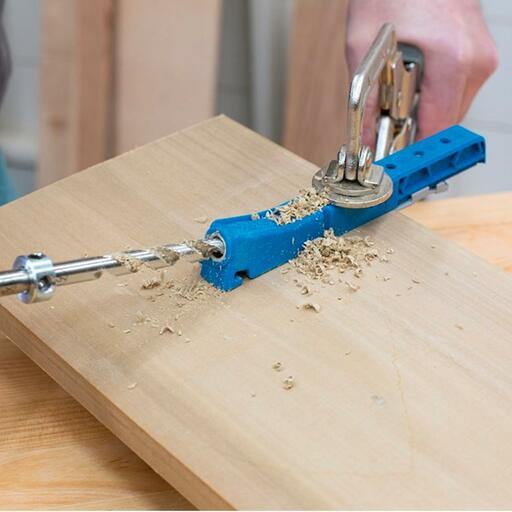

Kreg KR-KPHJ310 Pocket Hole Jig

The Kreg Pocket-Hole Jig 310 makes it easier than ever to build wood projects—whether you’re building your first DIY project, or you’ve been working with wood for years. The Pocket-Hole Jig 310 uses a simple, easy-to-understand setup process that gives you the versatility you need to build with boards and plywood of any thickness between 13mm and 38mm. The 310 features a hardened-steel drill guide and a convenient material-thickness stop.

The included material thickness gauge and easy-set drill bit make setup simple, and the anti-slip base holds the jig precisely in position while you drill perfectly positioned pocket holes every time. Durable construction and a lifetime drill-guide warranty ensure that the Kreg Pocket-Hole Jig 310 will deliver the years of project-building and home-repair satisfaction and value you expect from the #1 pocket-hole brand—Kreg.

Features:
