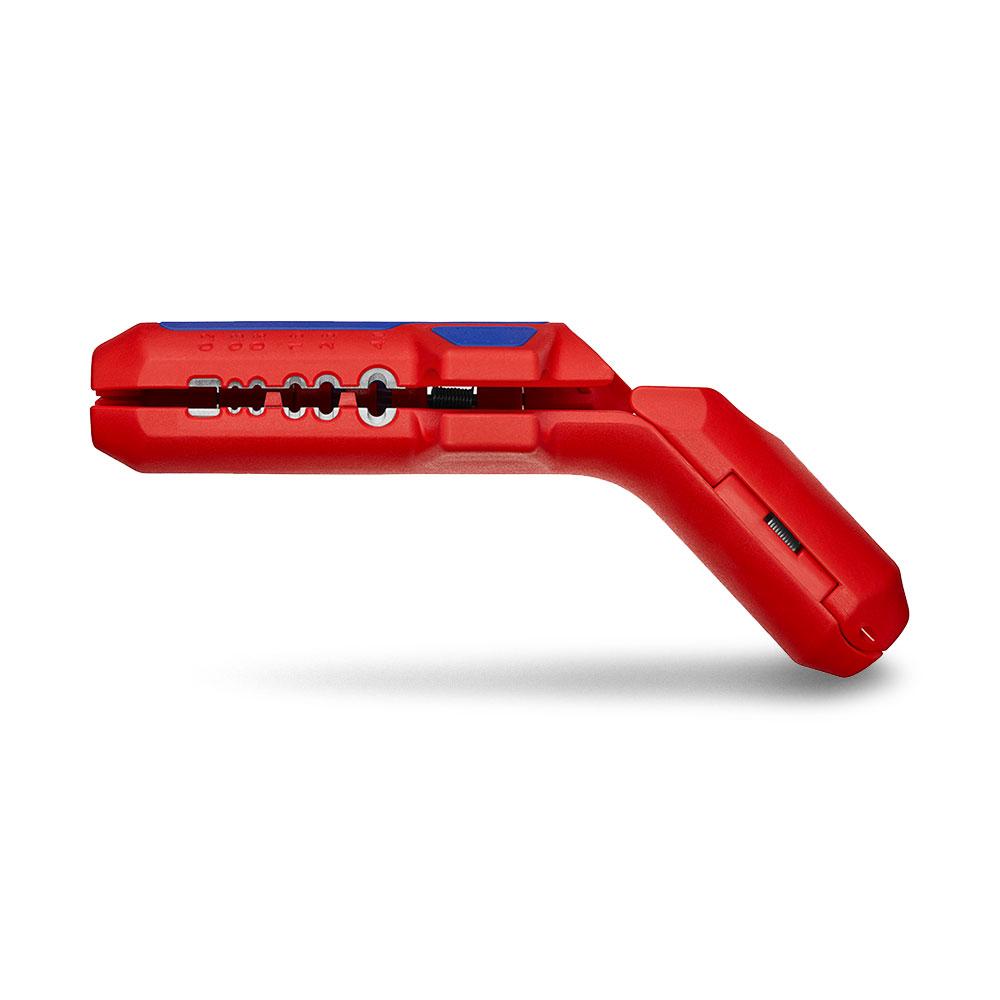

Knipex 169501SB Ergostrip Universal Stripping Tool

Knipex 169501SB Ergostrip Universal Stripping Tool

Features:

• For fast and precise stripping of all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²), data cables (e.g. twisted pair) and coax cables

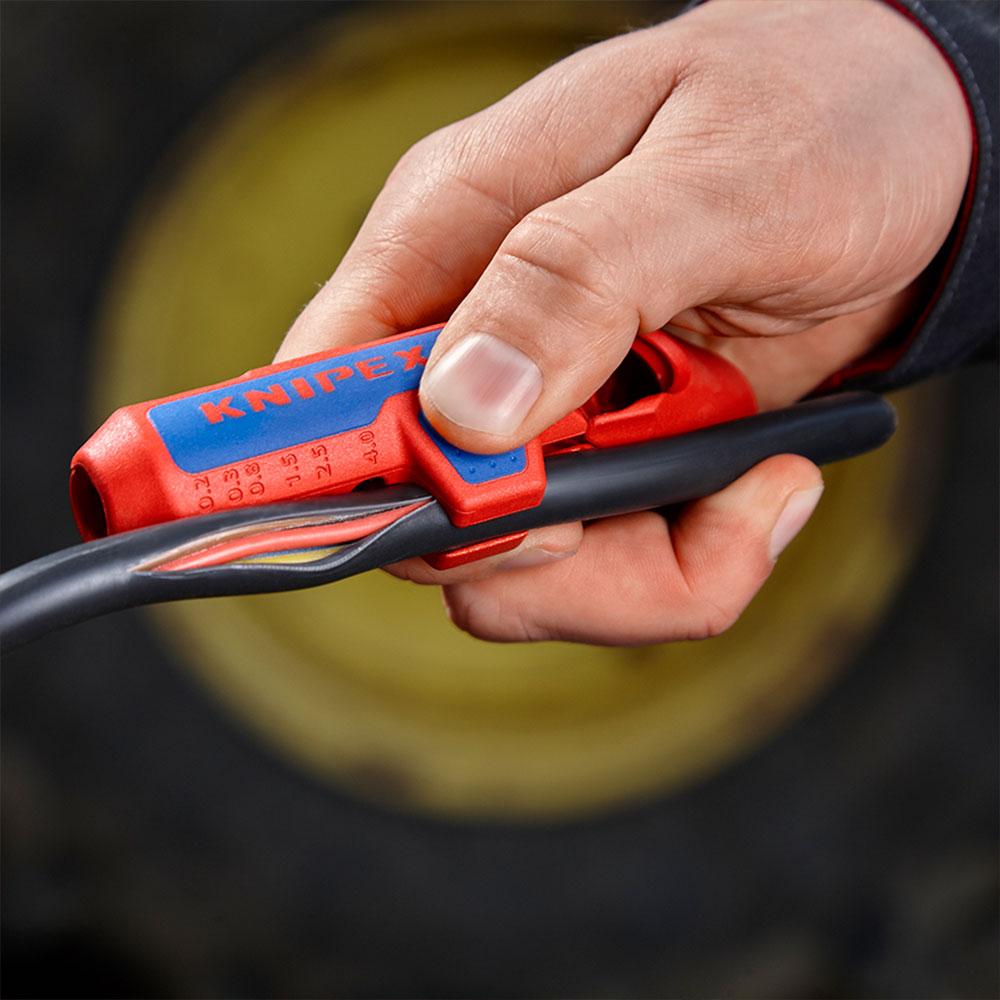

• Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath
• Conical, slimmed down tool ends for better access in confined areas
• Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²

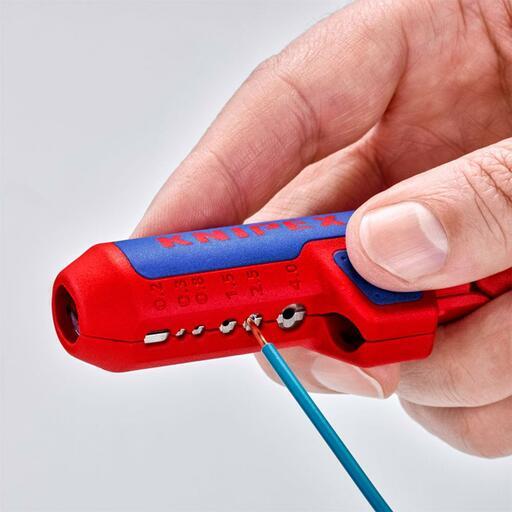

• Simplified insertion of single wires for stripping using location ridges
• With opening spring and locking device

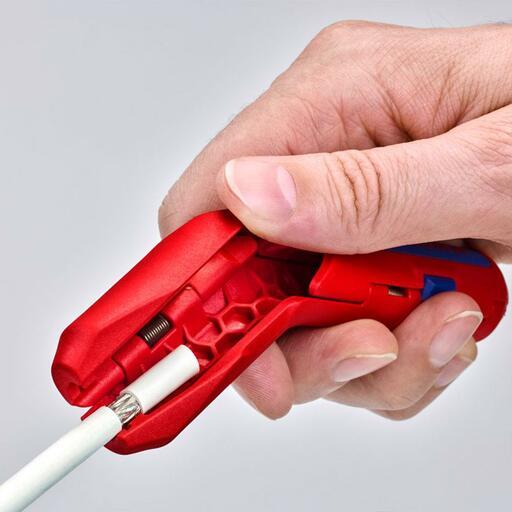

• Easy insertion of coax and data cable thanks to opening aid
• Multi-component design with a soft plastic zone for comfortable use and a secure grip
• Housing made from stable glass fibre reinforced plastic

Specifications:

• Stripping Capacities:
  • Round Cable: 8mm - 13mm
  • Coax Cable: 4.8mm - 7.5mm
• Wire Stripping Value:
  • Conductors and Strands: 0.2mm - 4.0mm²
  • Data Cable: CAT 5 - 7, Twisted pair (UTP/STP)
• Dimensions (L x W x H): 135mm x 85mm x 37mm
• Weight: 75g
