Klein A-VDV501-853 Scout Pro 3 Tester with Test + Map Remote Kit

Klein A-VDV501-853 Scout Pro 3 Tester with Test + Map Remote Kit

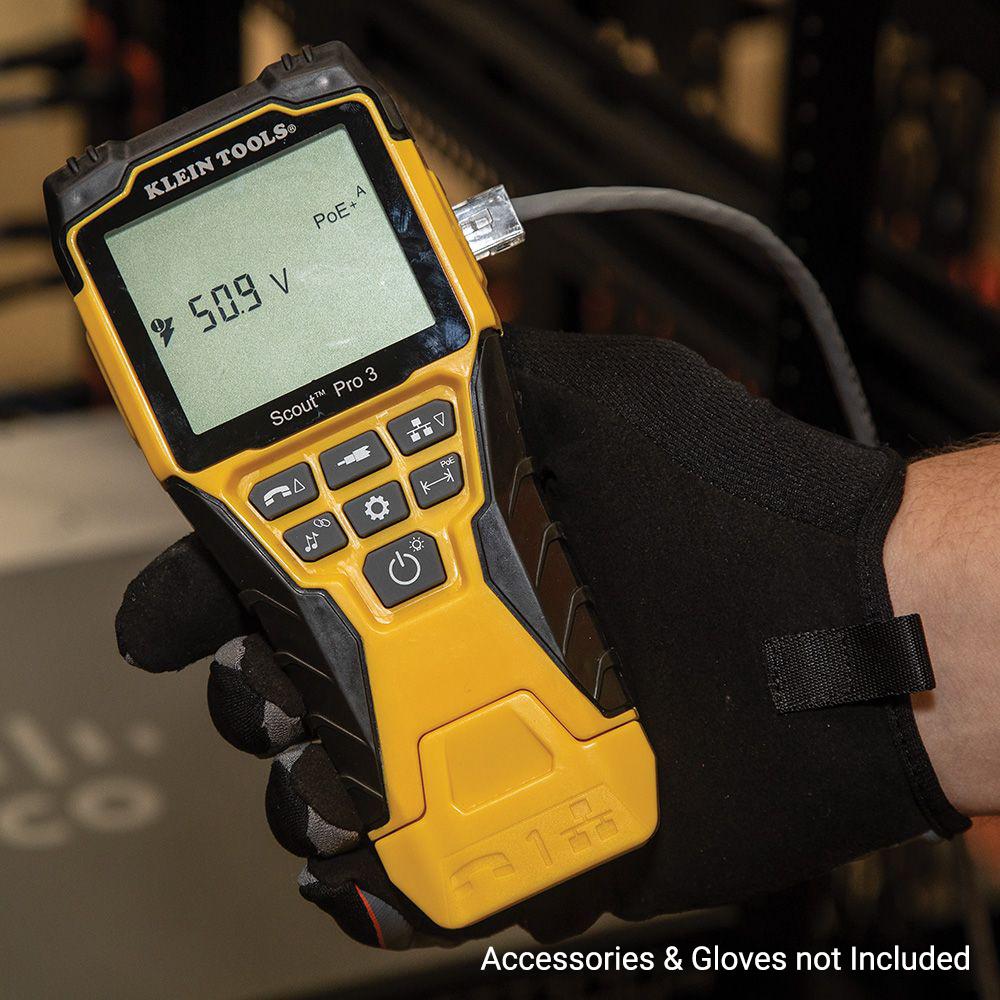

The Scout Pro 3 Tester with Test + Map Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Use the self-storing remote and Test + Map remotes No. 2 - No. 6 for fast, accurate identification. Identify POE, POE+, A wiring, B wiring and voltage. This tester also measures cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

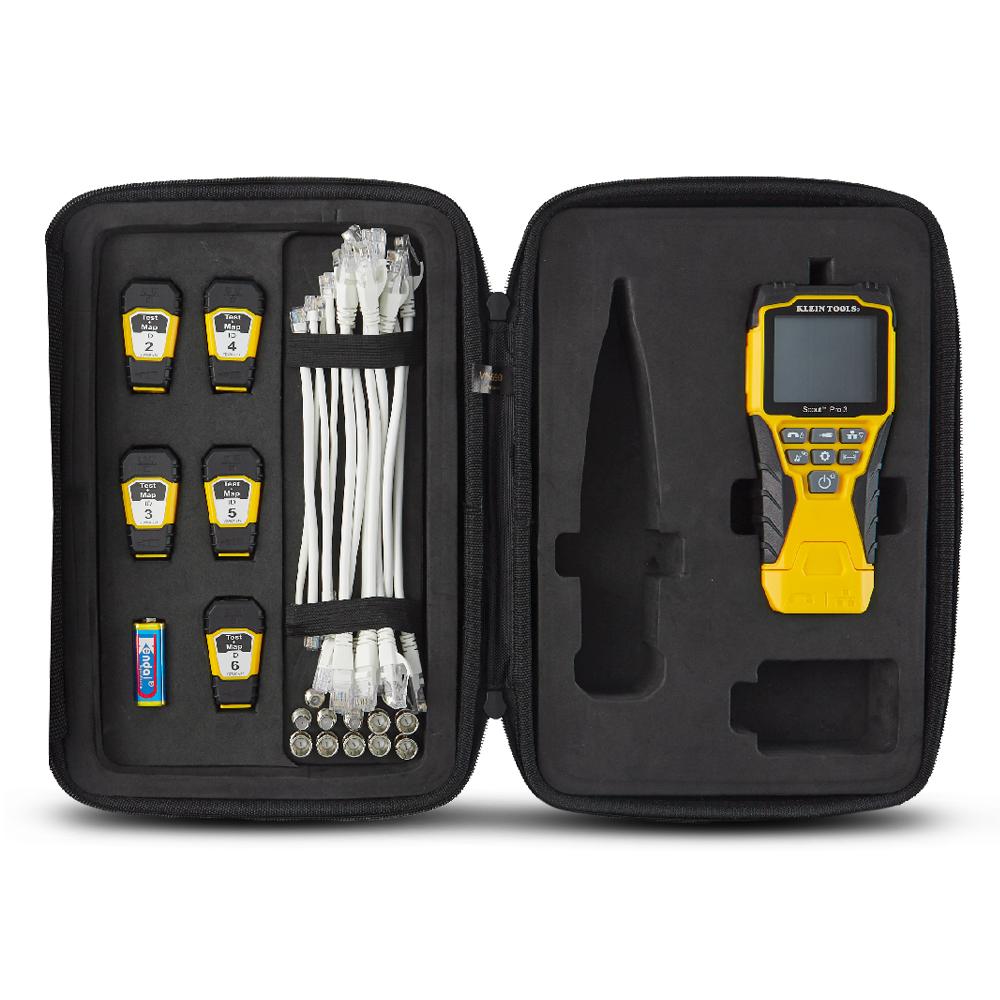

Includes:

• 7 x Coaxial Barrel Adapters (female-to-female)
• 7 x Coaxial Barrel Adapters (male-to-female)
• 7 x RJ45 Jumper
• 2 x RJ11 Jumper
• 2 x RJ12 Jumper
• 1 x Carrying Case
• 1 x 9V Alkaline Battery

Features:

• Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
• Backlit LCD screen displays cable length, wiremap, cable ID and test results
• Wiremap testing, as well as testing for Miswires, Split Pairs, Short Faults, Open Faults and Shields
• Measures cable length of up to 2000"
• Trace cables, wire pairs and individual conductor wires with a multi-style tone generator (requires analogue probe Cat. No. VDV500-123; sold separately)
• Detect, identify and test Power over Ethernet (PoE)
• Identify multiple cable runs with location-mapping remotes
• Hub blink mode to identify port location on a hub or a switch

Specifications:

• Type: Twisted Pair, DATA, Voice, LAN and Coaxial
• Application: Cable Testing
• Special Features:  Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
• Cable type: DATA: Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7, COAXIAL: RG59, RG6/6Q
• Overall Length:  7'' (17.8 cm)
• Overall Height: 3.2'' (8 cm)
• Overall Width: 1.5'' (3.8 cm)
• Material: Plastic and Metal
• Batteries: 9V Alkaline
• Battery Life: 50 hrs
• Drop Protection:  2 m
• Supported Remotes: 18
• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Display: Backlit LCD
• Multiple Style Tone Generator:    Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
• Faults detected: Open, Short, Mis-wire
• Testing & Measurement Types: Ethernet, Data, Coaxial
• Standard: CE
• Weight:    1.2 lb (0.5 kg)
