Klein A-VDV501-851 Scout Pro 3 Cable Tester Kit

Klein A-VDV501-851 Scout Pro 3 Cable Tester Kit

The Scout Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests Voice, Data and Video cables. Identify multiple cable runs with the included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

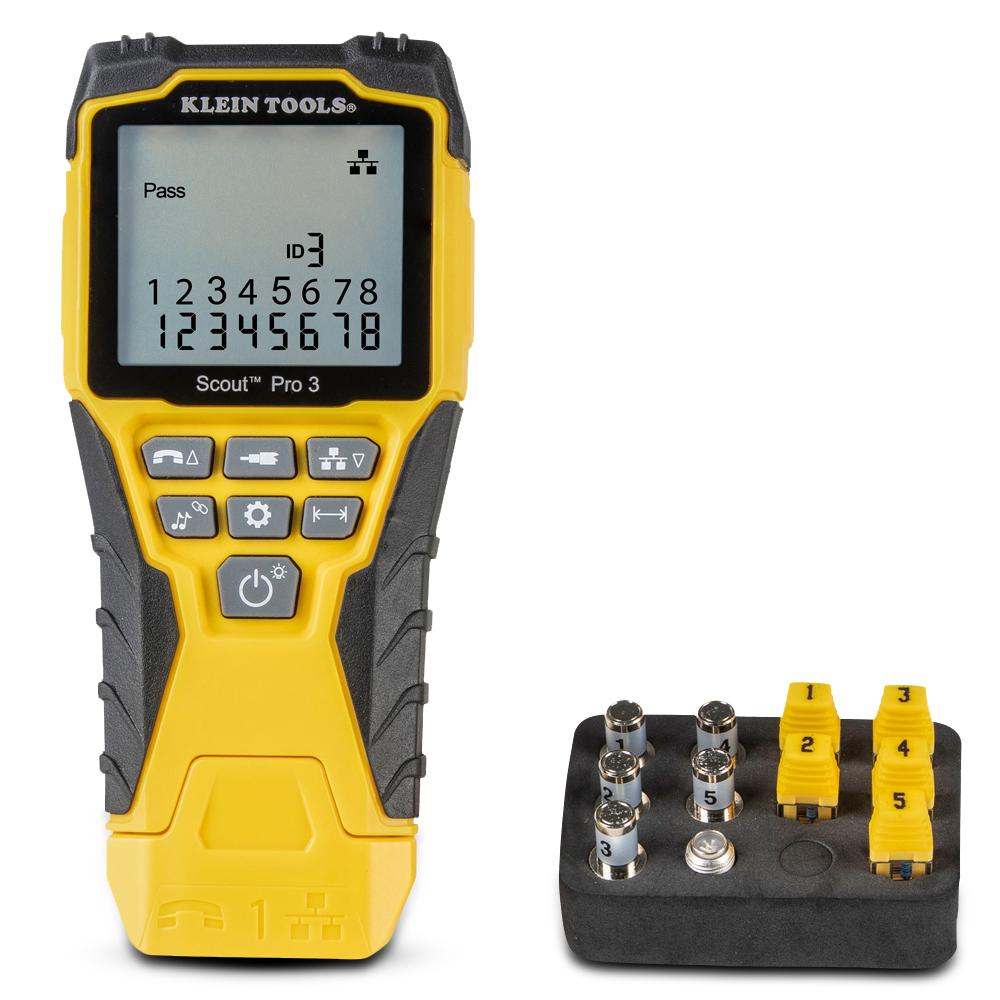

Includes:

• 1 x Scout Pro 3 Tester
• 1 x Self-Storing Remote
• 5 x LanMap RJ45 Locator Remotes
• 5 x CoaxMap F-Connector locator remotes
• 1 x Coax F-Connector
• 1 x Manual
• 1 x 9V Battery

Features:

• Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
• Measures cable length of up to 2000' (610 m)
• Test for open, short, miswired or split-pair faults
• Backlit LCD screen displays cable length, wiremap, cable ID and test results
• Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

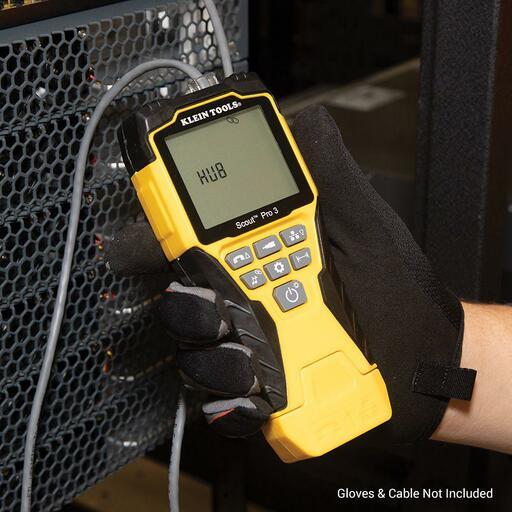

• Hub blink mode to identify port location on a hub or a switch
• LanMap and CoaxMap Location Remotes (5 each) map and ID multiple cable runs in a single step
• Includes voltage warning, shield detection, auto power-off, low-battery indicator and a self-storing remote control
• Auto Power-Off feature to conserve battery life (9V included)

Specifications:

• Supported Remotes: 18
• Cable Types:
  • Data: Shielded/Unshielded CAT3, CAT5E, CAT6, CAT6A, CAT7
  • Coaxial: RG59, RG6/6Q
• Connection & Adaptor Types: RJ11, RJ12, RJ45, Coax F
• Display: Back-lit LCD
• Faults Detected: Open, Short, Mis-Wire
• Testing & Measurement Type: Ethernet/Data & Coaxial
• Batteries: 9V
• Battery Life: 50h
• Drop Protection: 2m
• Overall Dimensions(L x W x H):178mm x 32mm x 76mm
• Weight: 0.5kg
