Klein A-VDV501-770 Scout® Pro Max Network Cable Tester With Remote Set

Klein A-VDV501-770 Scout® Pro Max Network Cable Tester With Remote Set

The Klein Tools A-VDV501-770 Scout® Pro Max Network Cable Tester is a professional cable testing solution designed to quickly identify and troubleshoot Ethernet/data, voice and coaxial cabling. It measures cable length, verifies wiring and identifies cable faults, while the backlit LCD provides clear results in low-light environments. The kit includes a comprehensive set of remote locators for efficient cable identification across multiple connections.

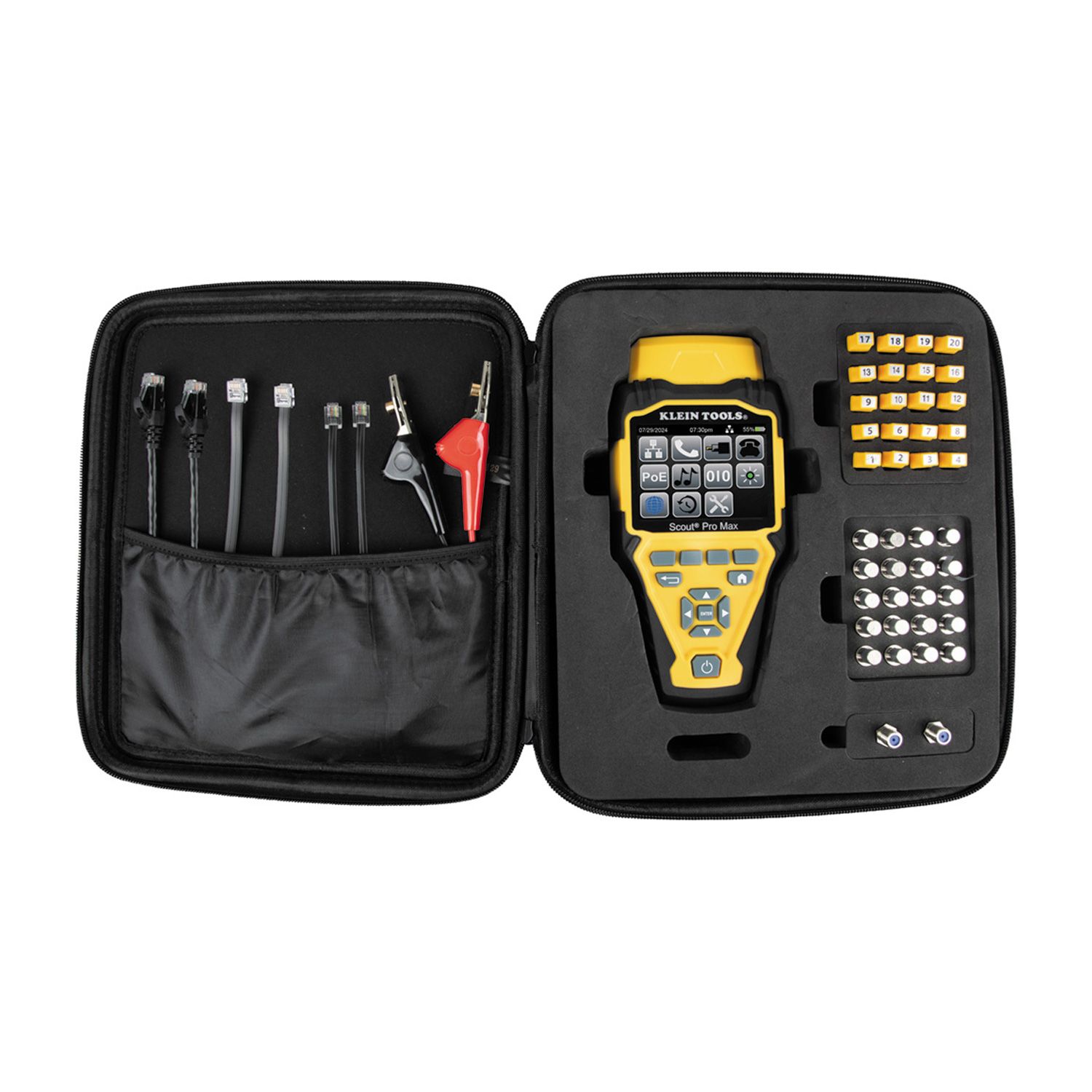

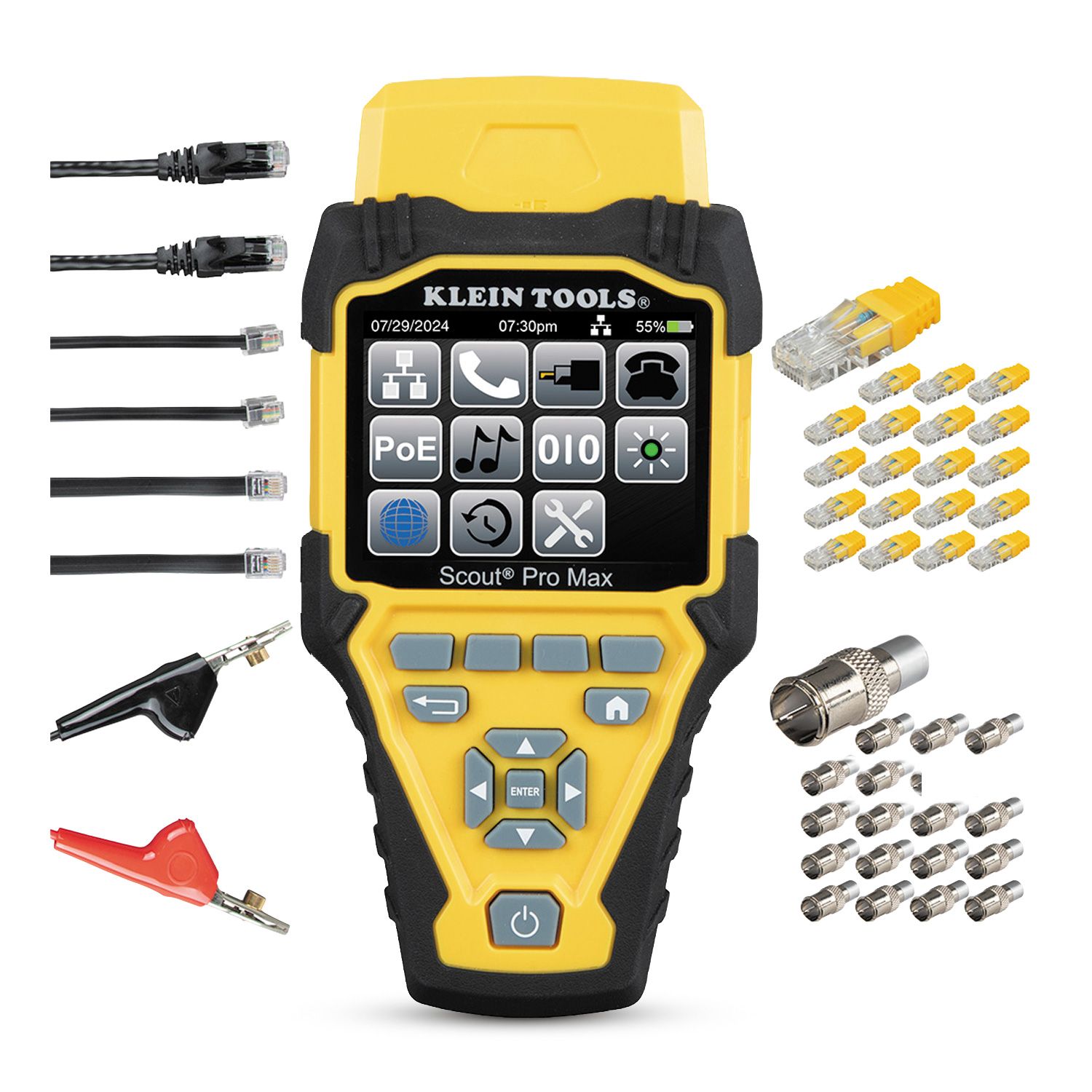

Included:

• 1 x Scout™ Pro Max Network Cable Tester
• 1 x USB-C to USB-A Cable
• 1 x Female Coax-F to Angled Bed-of-Nails Cable
• 2 x RJ12 to RJ12 Cables
• 2 x RJ11 to RJ11 Cables
• 2 x RJ45 CAT6 to RJ45 CAT6 Cables

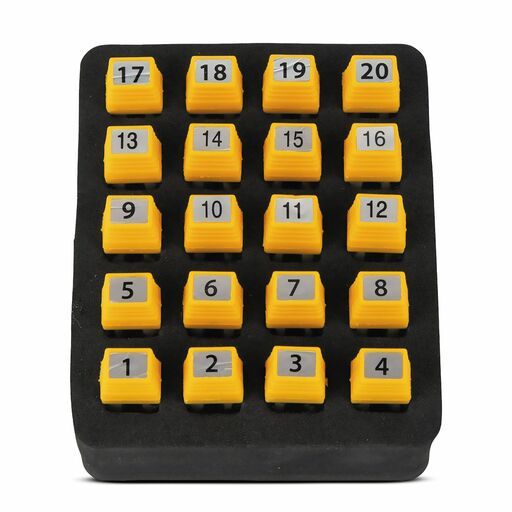

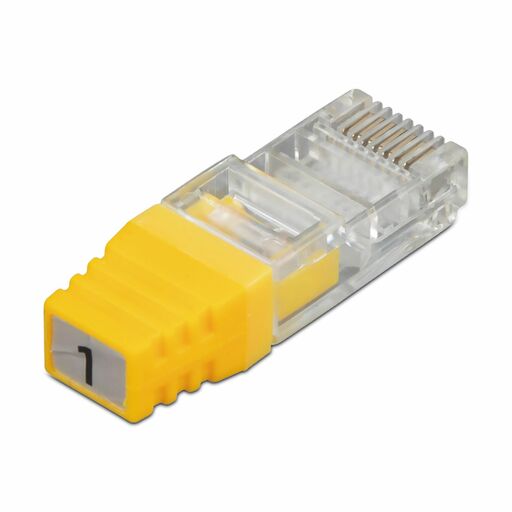

• 20 x RJ45 LanMap™ Location ID Remotes

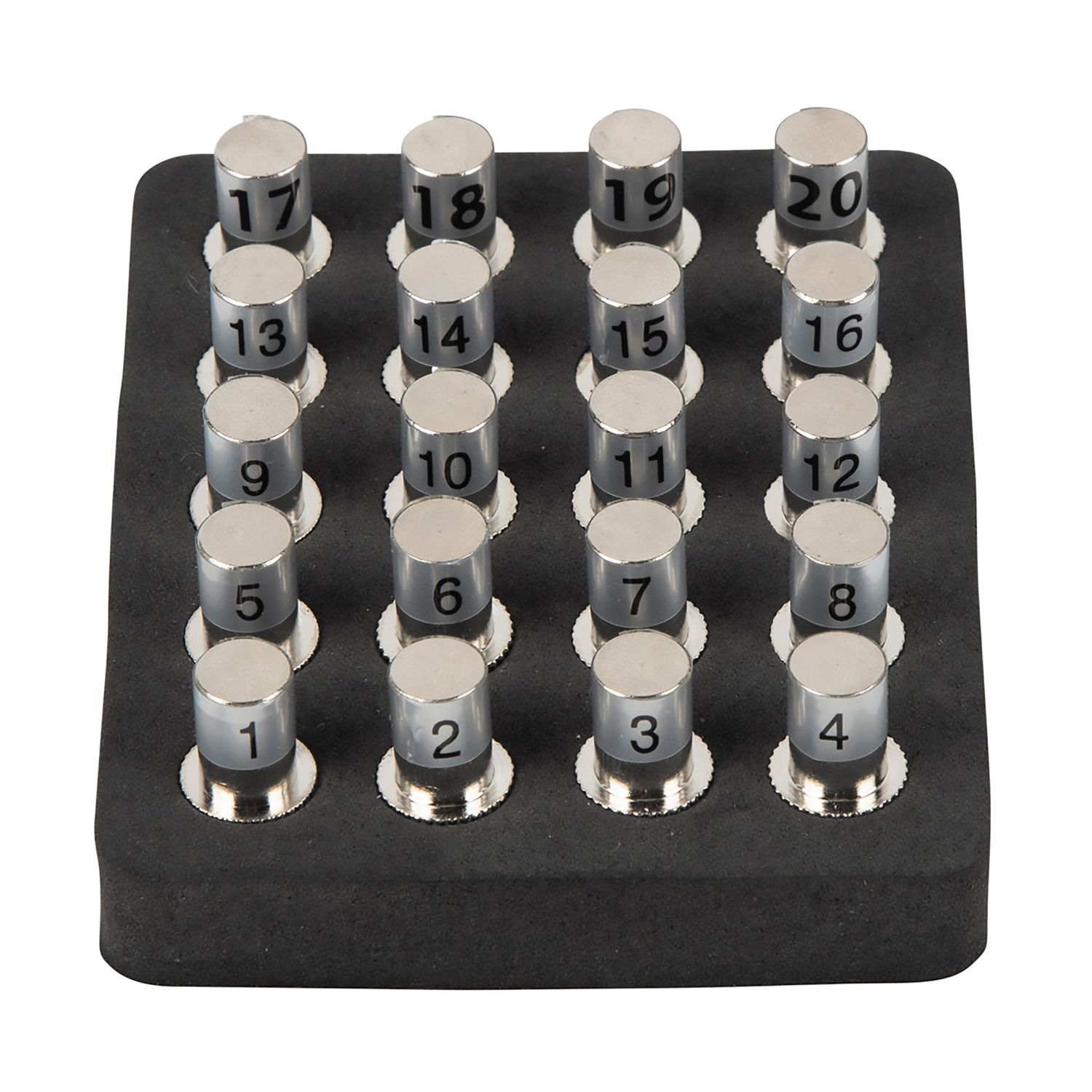

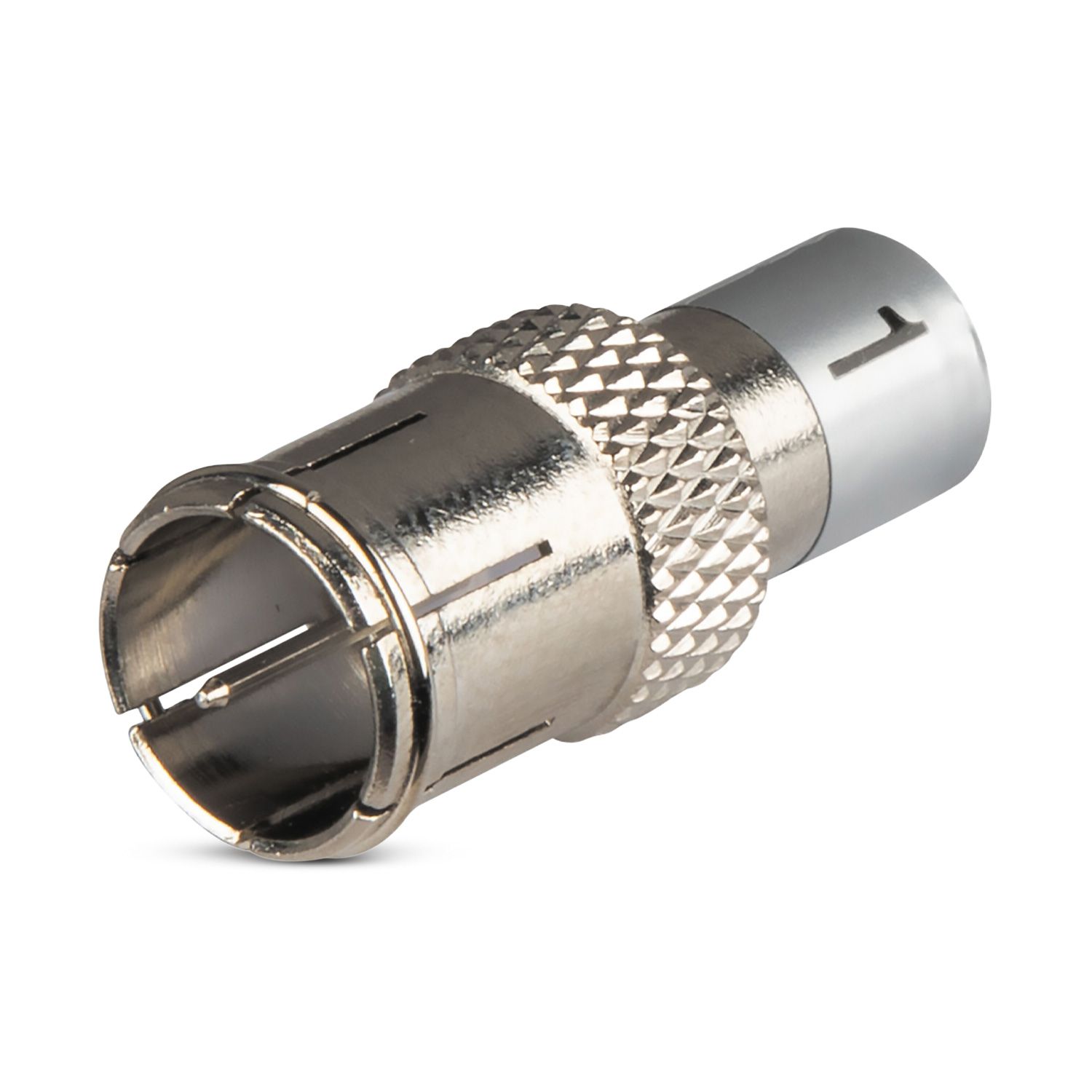

• 20 x F-Connector CoaxMap™ Location ID Remotes
• 1 x Female F-Barrel Connector
• 3 x AA Batteries
• 1 x CR2032 Battery

Features:

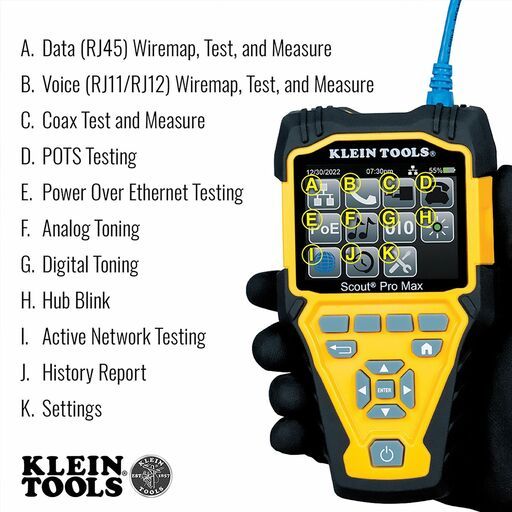

• Network cable tester locates, tests and measures data, phone and coax cables to ensure fast and accurate installations and troubleshoot faults
• Full colour back-lit screen and internal memory to store, download and output test results for easy report management

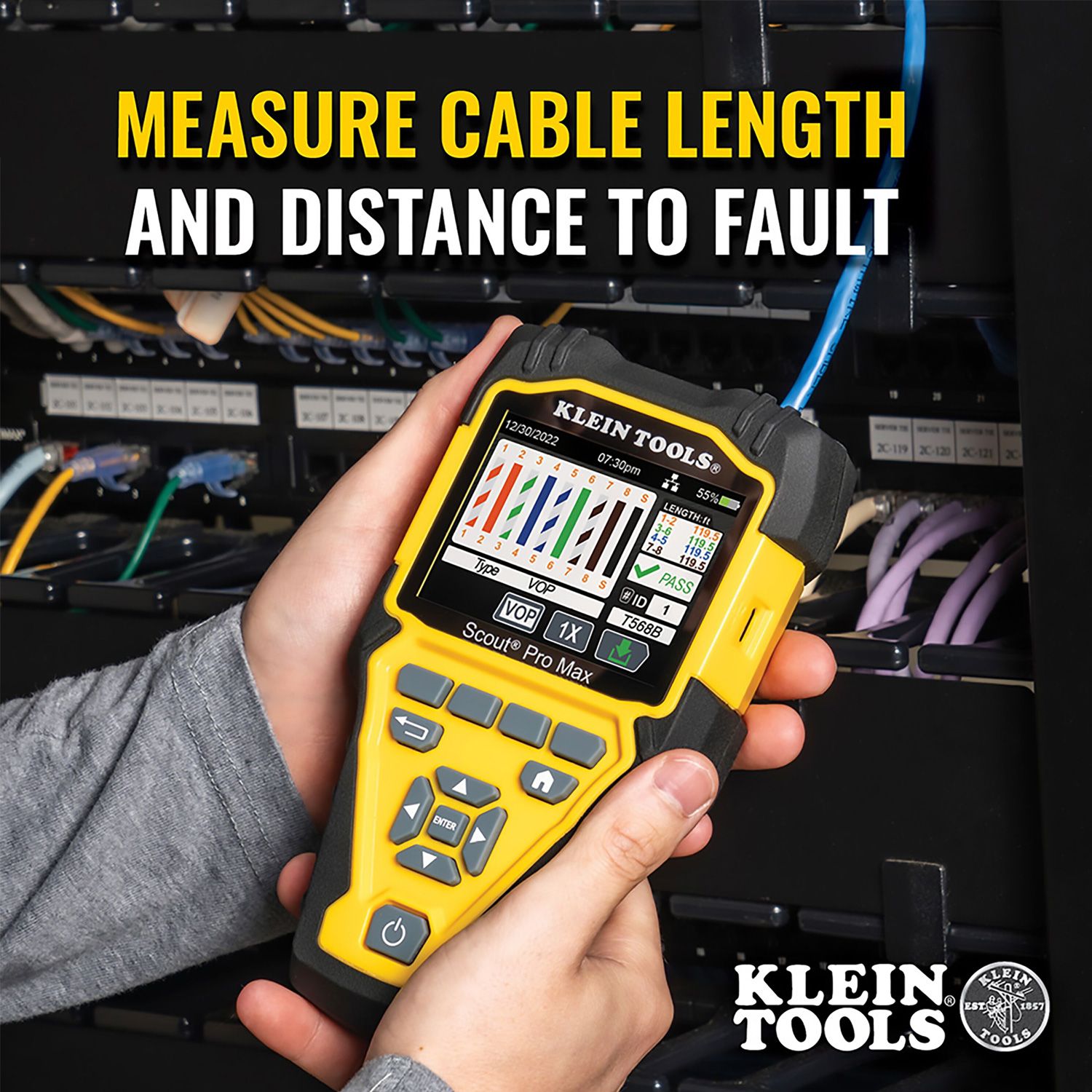

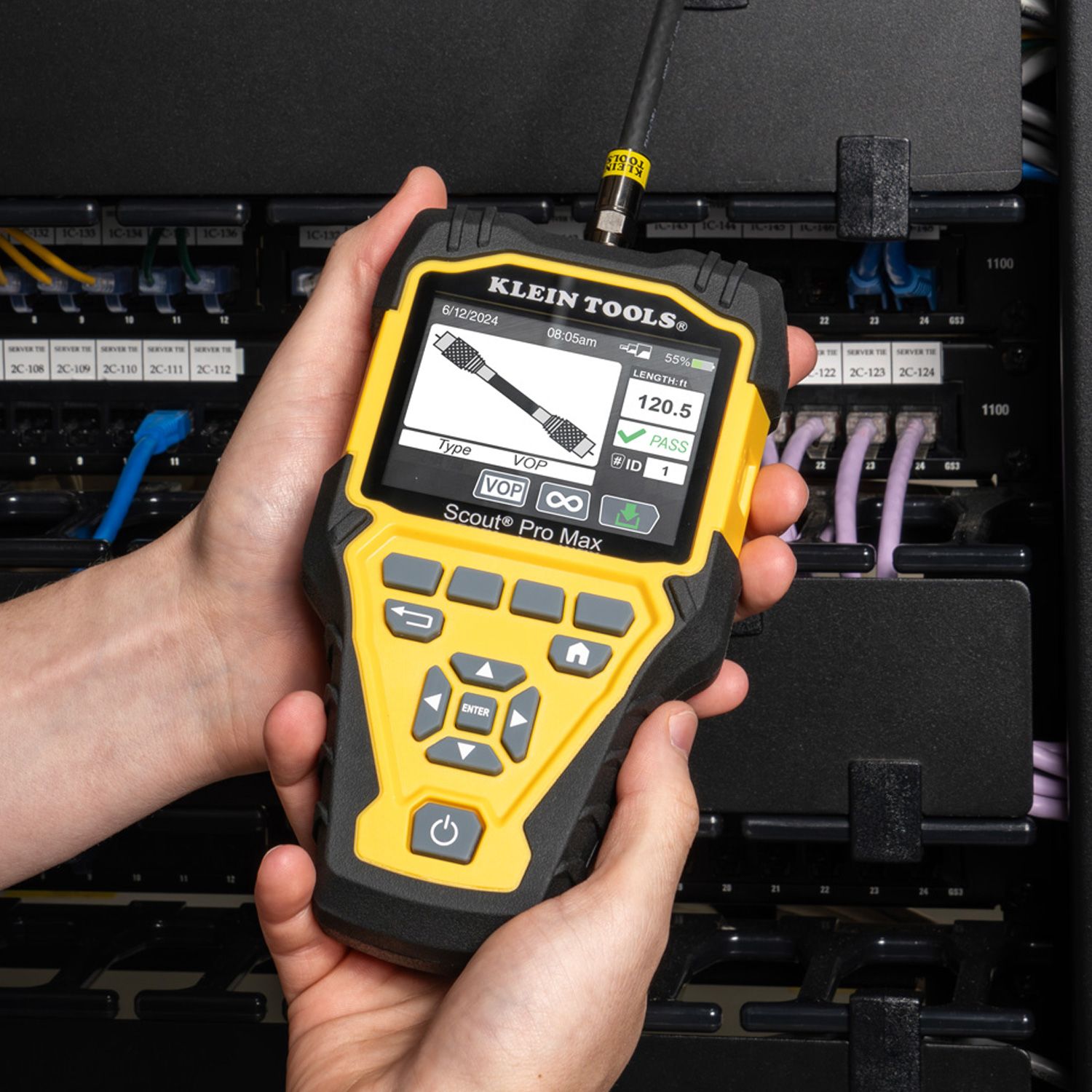

• Measure cable length up to 2000 feet (610 m) and distance to fault with TDR
• Digital / analogue tone generation to easily probe cables (requires Cat. No. VDV500-223, sold separately)
• Locate and identify up to 20 locations with ID remotes for greater cable management and organisation

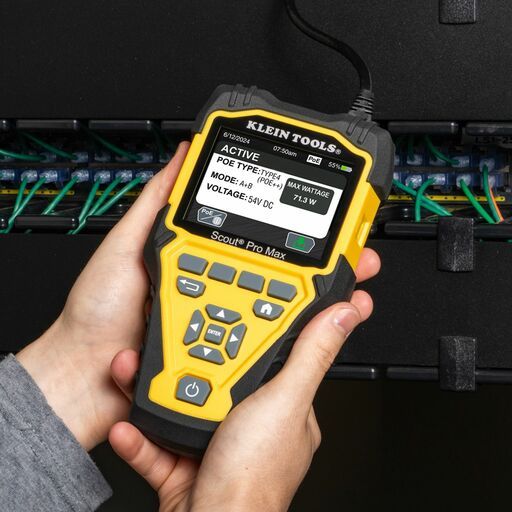

• Detect network capabilities and connection speeds up to 10G bps

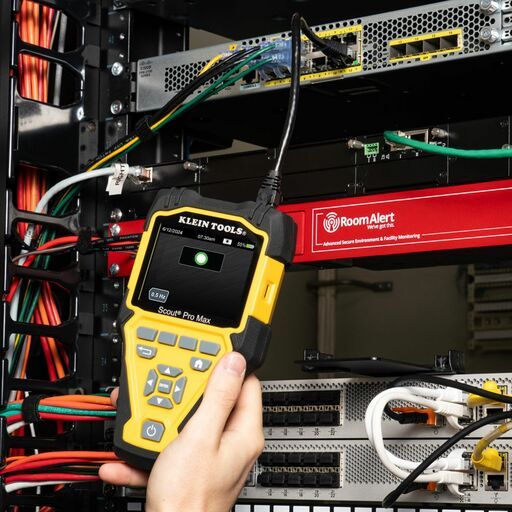

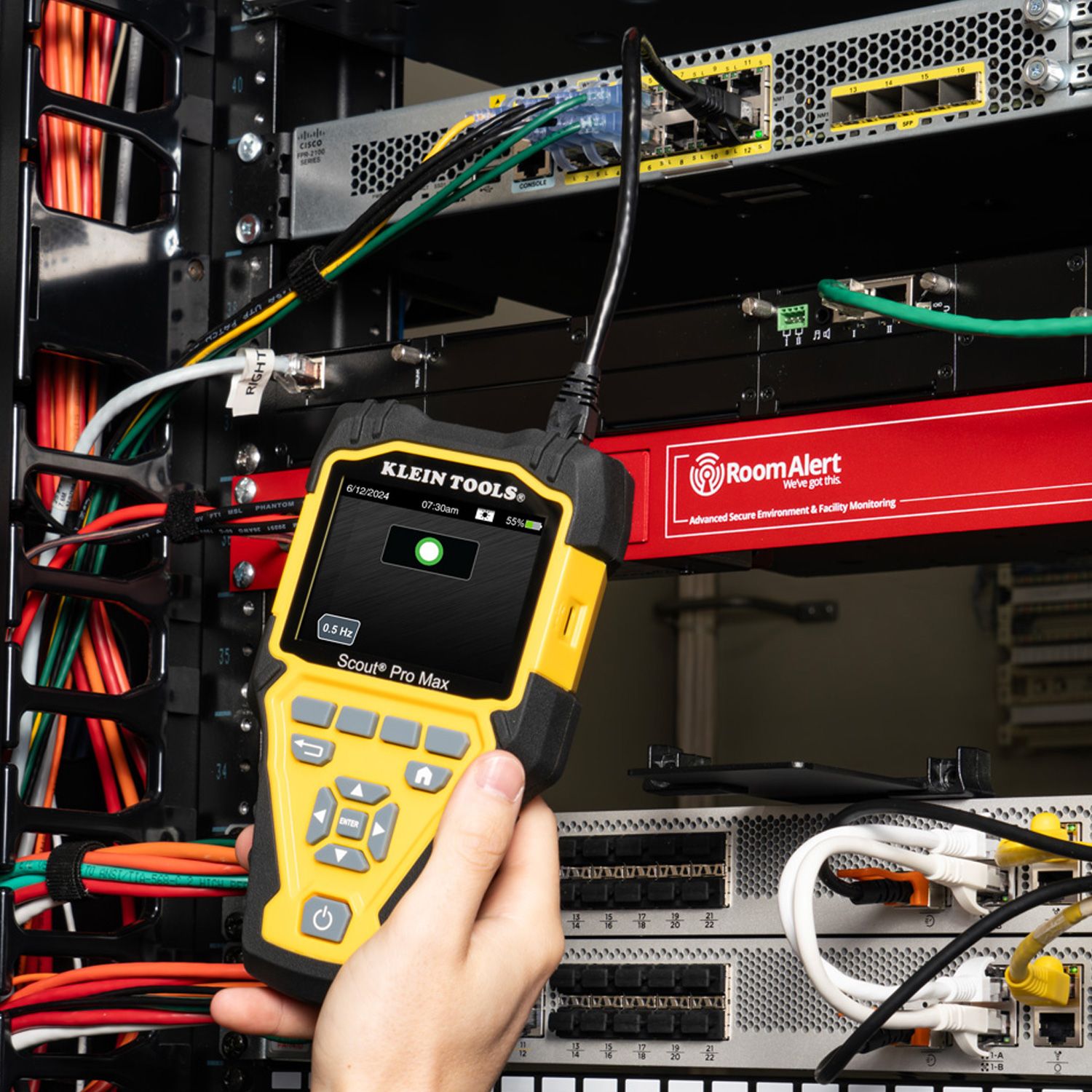

• Initiate hub blink to easily identify and locate cables on device and POTS testing

Specifications:

• Type: Twisted Pair, Data, Voice, LAN and Coaxial
• Application: Cable Testing
• Special Features: Measures Cable Length; Backlit LCD; Hub Blink
• Material: Plastic and Metal
• Batteries: 3 x AA Alkaline
• Battery Life: Active: 15 hrs; Standby: 1 year
• Drop Protection: 2m (6.6')
• Supported Remotes: 41
• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Display: Backlit LCD
• Multiple Style Tone Generator: Yes, 5 tones; requires tracing probe (Cat. No. VDV500-223), sold separately
• Cable Type: Data: Shielded or Unshielded CAT6; Coaxial: RJ11, RJ12, RJ45
• Cable Identification: Includes 20 Remote Locators
• Testing & Measurement Types: Ethernet/Data and Coaxial
• Accuracy: ±(2% + 3' or 1m) with known VoP and consistent cable parameters
• Dimensions (L x W x H): 203mm x 102mm x 38mm
• Weight: 0.4kg

Warranty:

• 12 Month Warranty as Covered by Klein Tools
