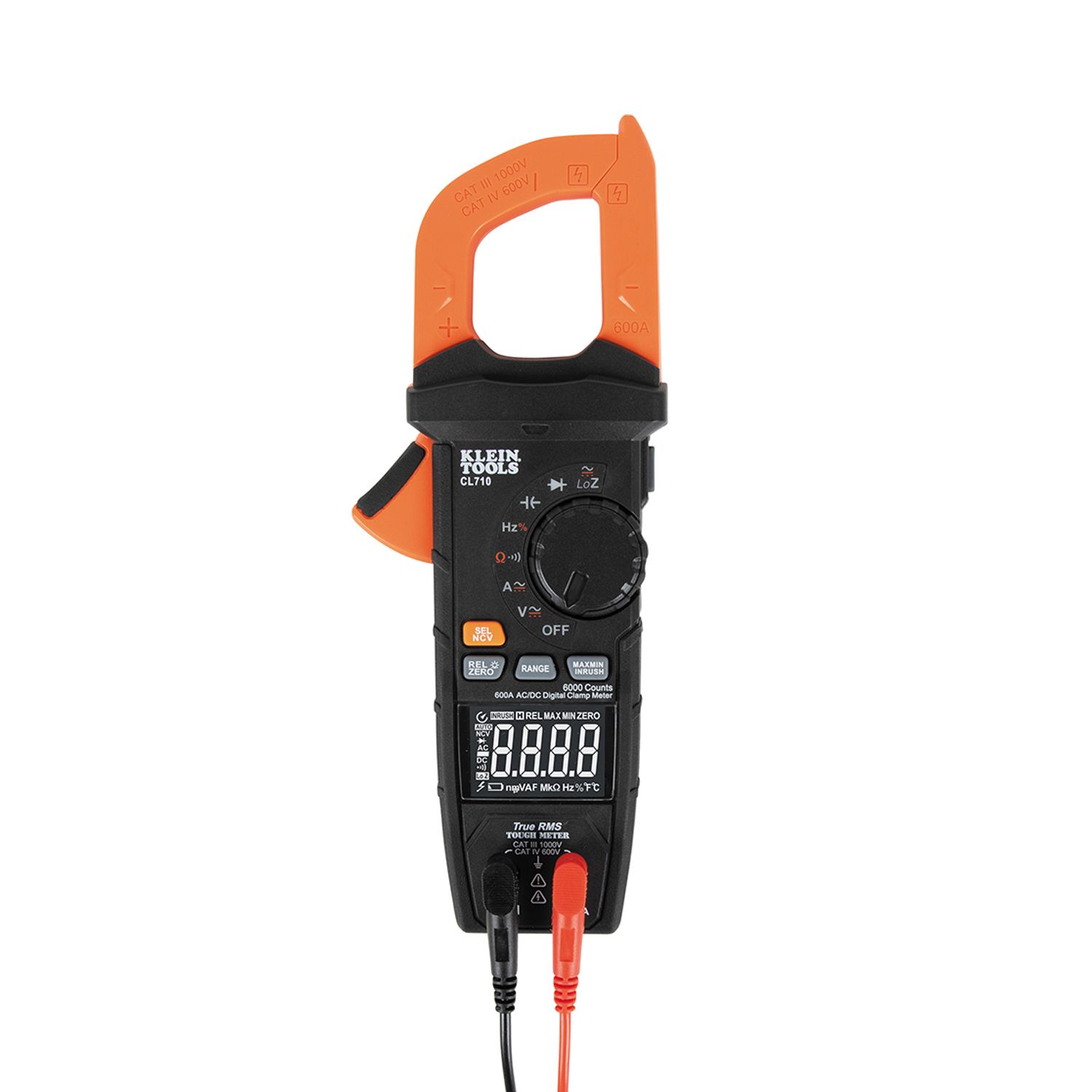

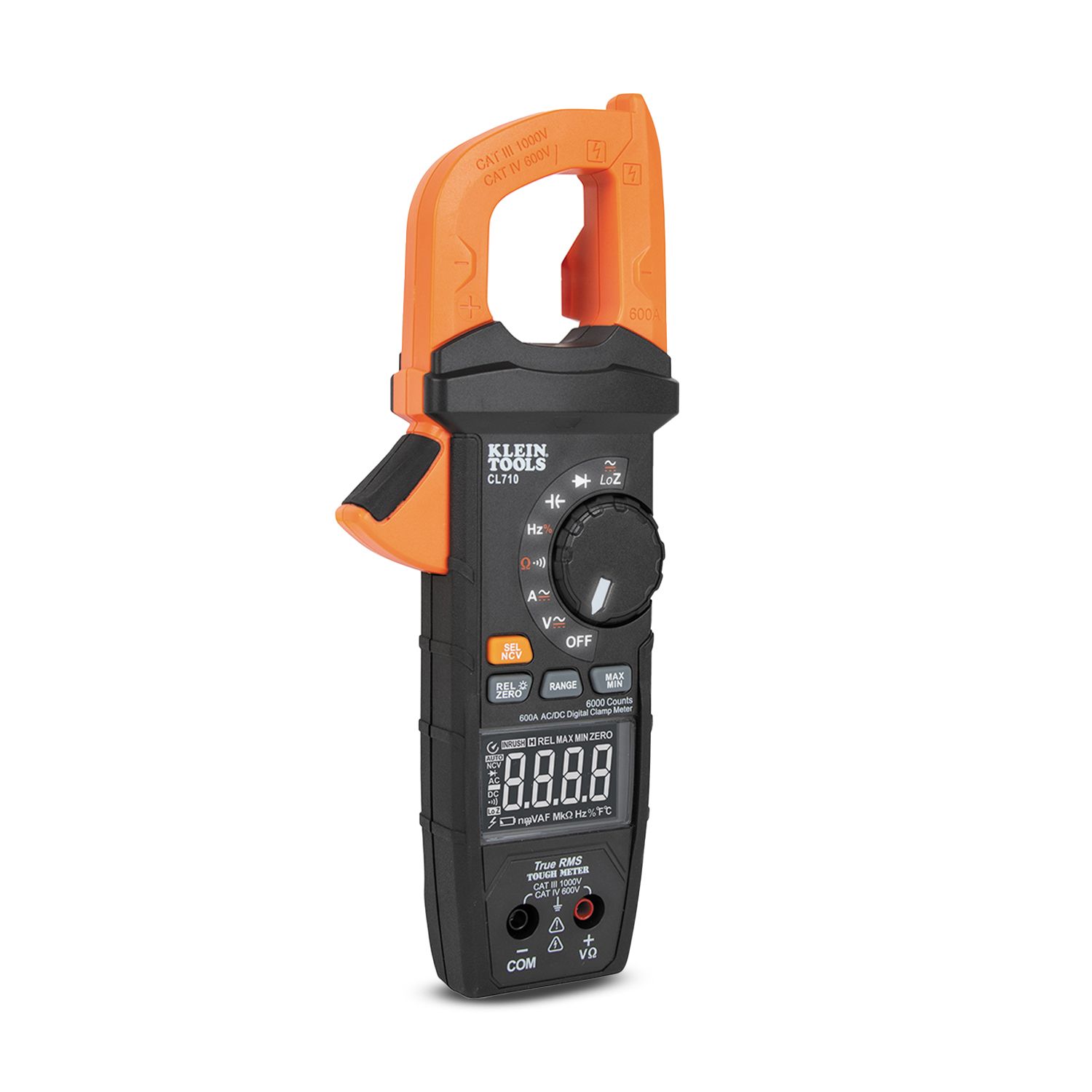

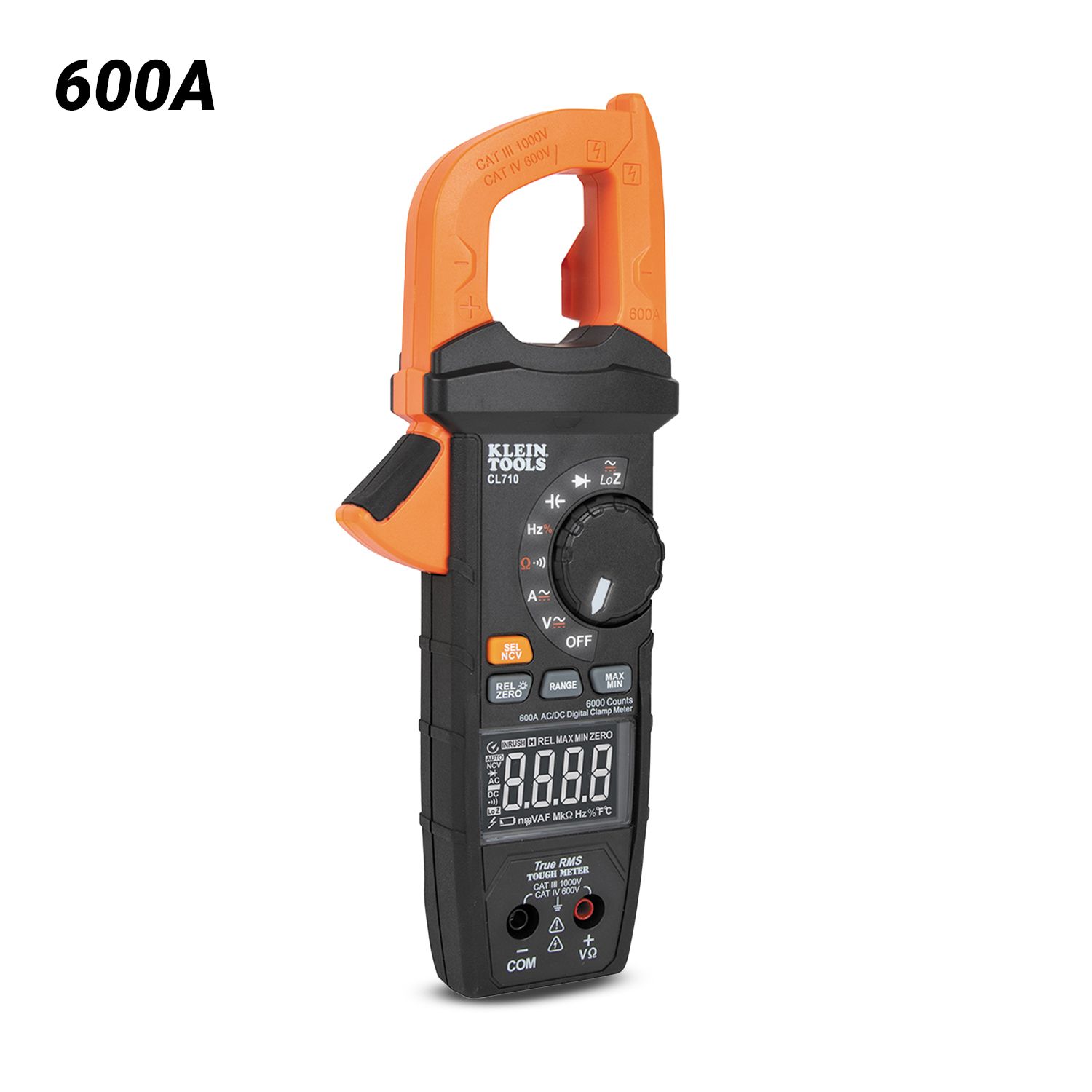

Klein A-CL710 600A AC/DC Auto-Ranging TRMS Digital Clamp Meter
The Klein Tools A-CL710 is a high-performance, True RMS digital clamp meter designed for professional electricians, HVAC technicians, and maintenance personnel. Engineered for accuracy and durability, this meter safely measures AC/DC current up to 600 amps without breaking the circuit, as well as voltage, resistance, continuity, capacitance, and frequency.

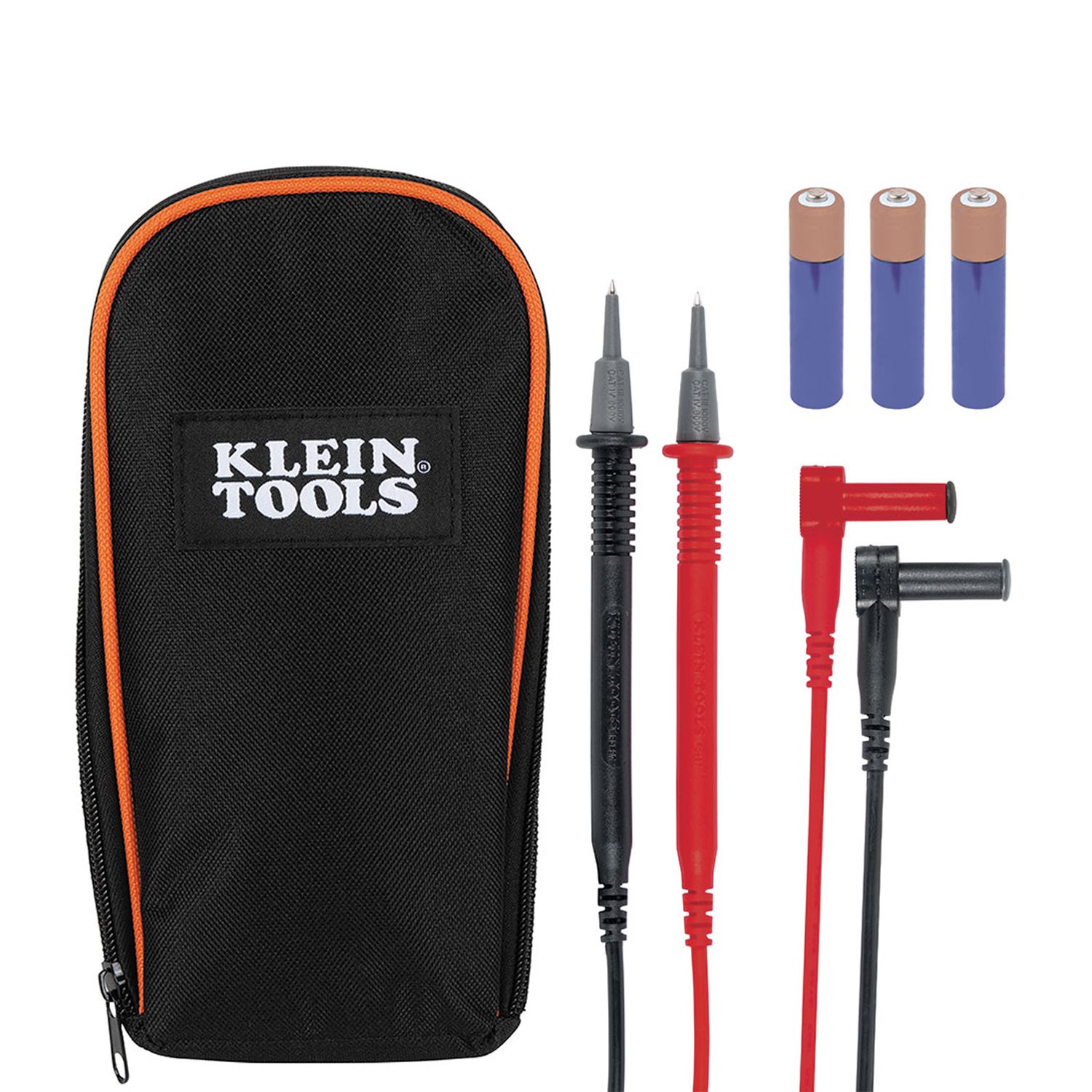

Includes:
- 1 x Clamp Meter
- 1 x Right-Angle Input Test Leads
- 1 x Storage Pouch
- 1 x Instruction Manual
- 3 x AAA Batteries
Features:
- Clamp meter with True RMS provides accurate and reliable measurements across various applications
- Measures AC/DC voltage, AC/DC current, resistance, diode test, continuity, capacitance, and frequency/duty cycle

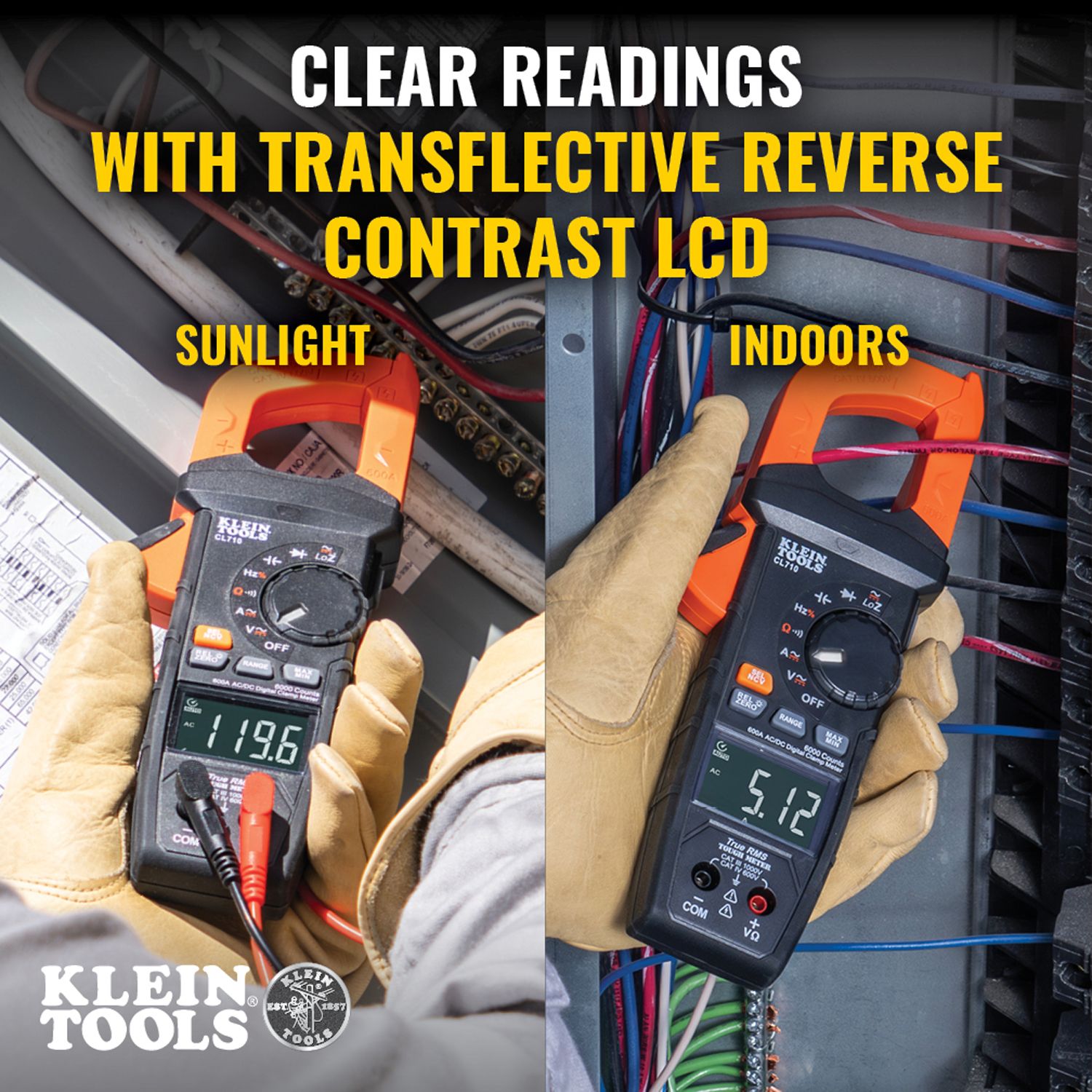

- Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments

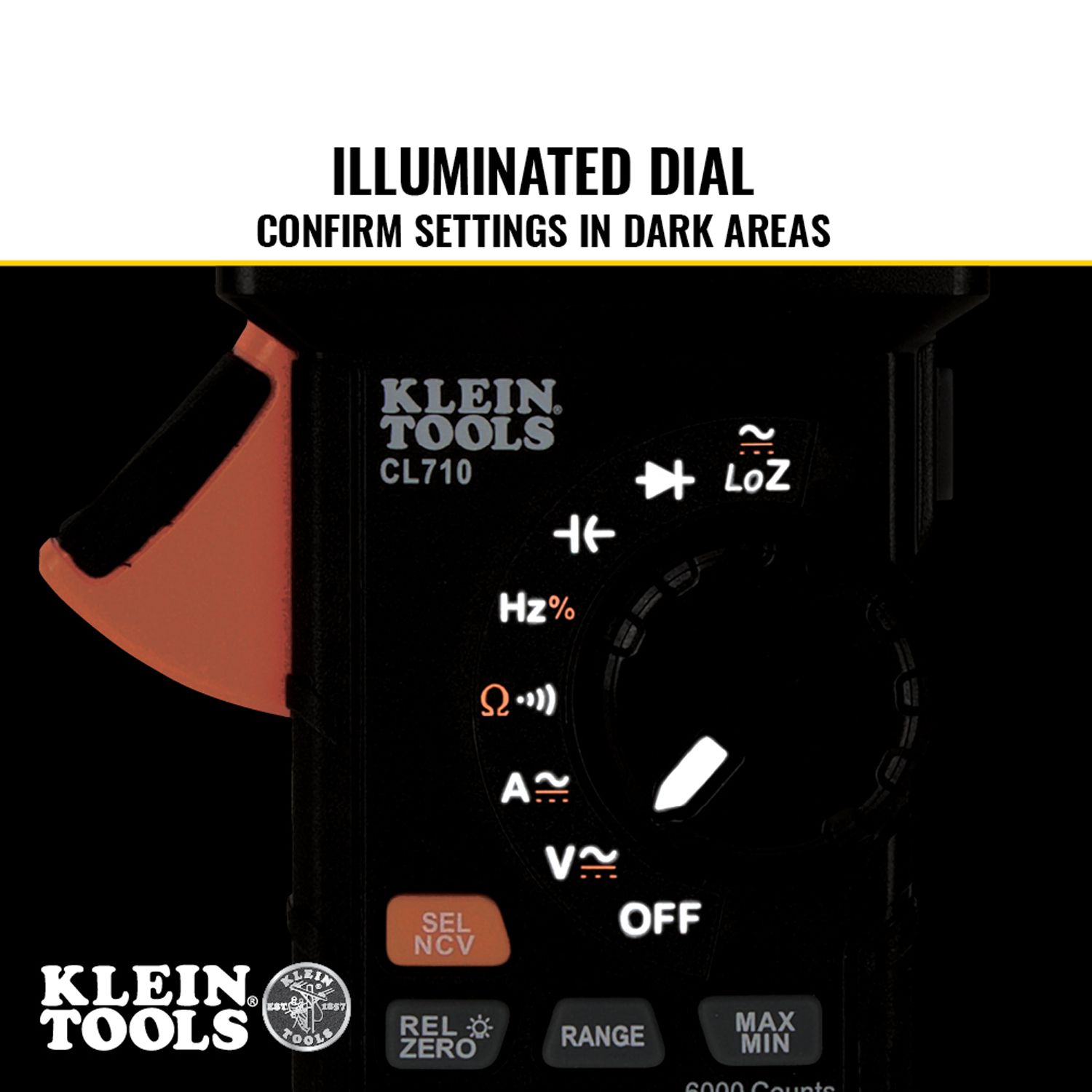

- Illuminated dial ensures clear visibility and easy reading, even in low-light environments
- Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Durable Clamp Meter is rated IP40 for ingress protection and withstands drops up to 6.6 feet (2 m)
- Includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
- Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb

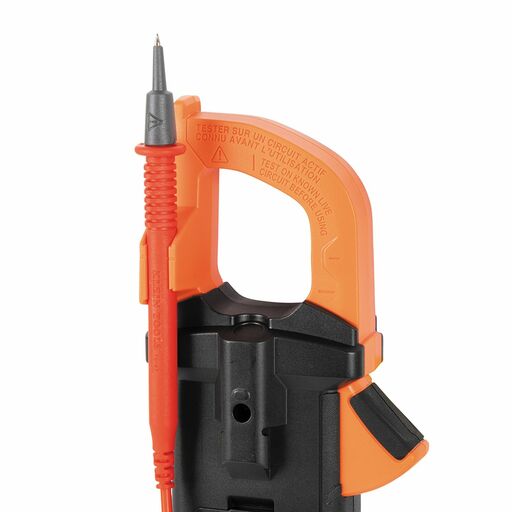

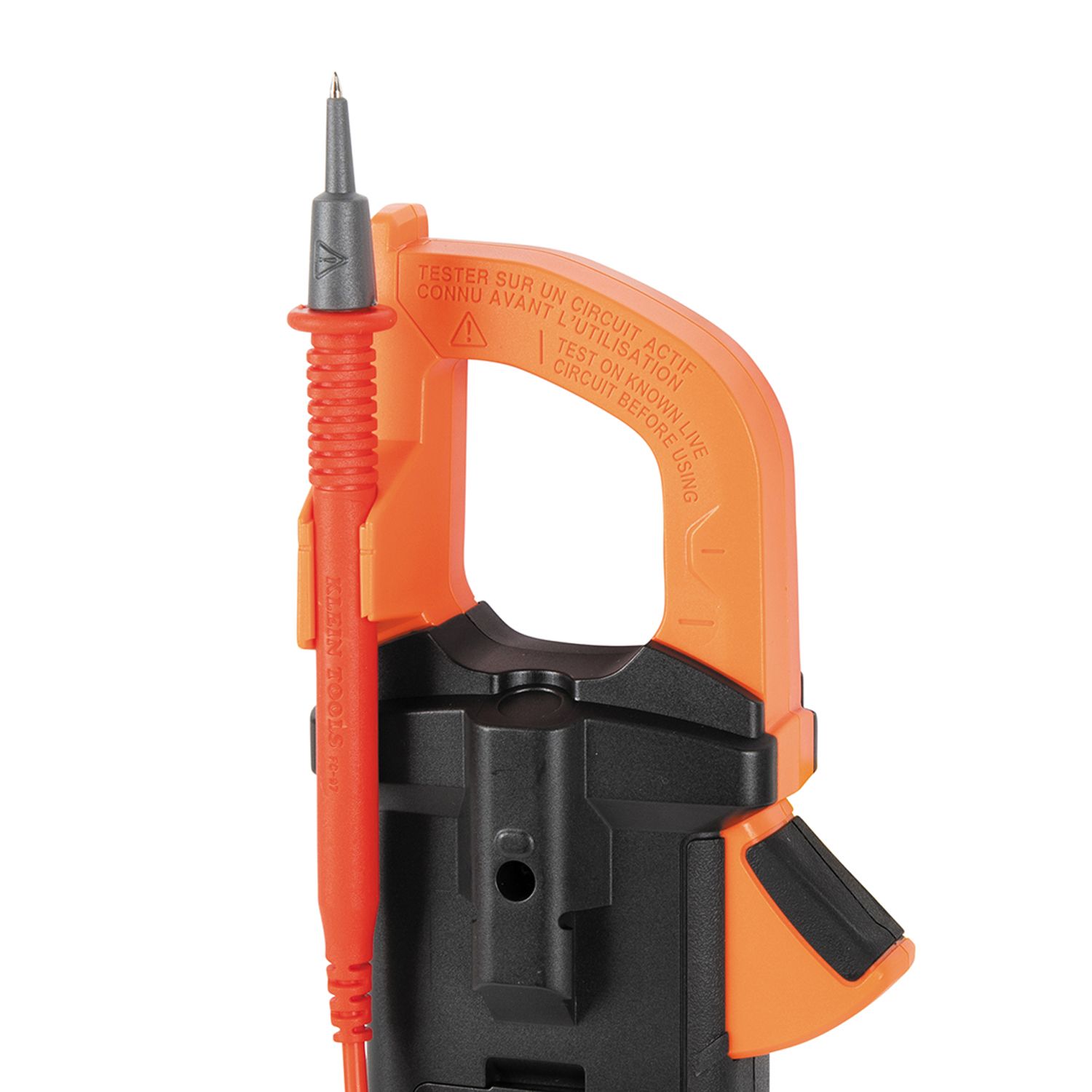

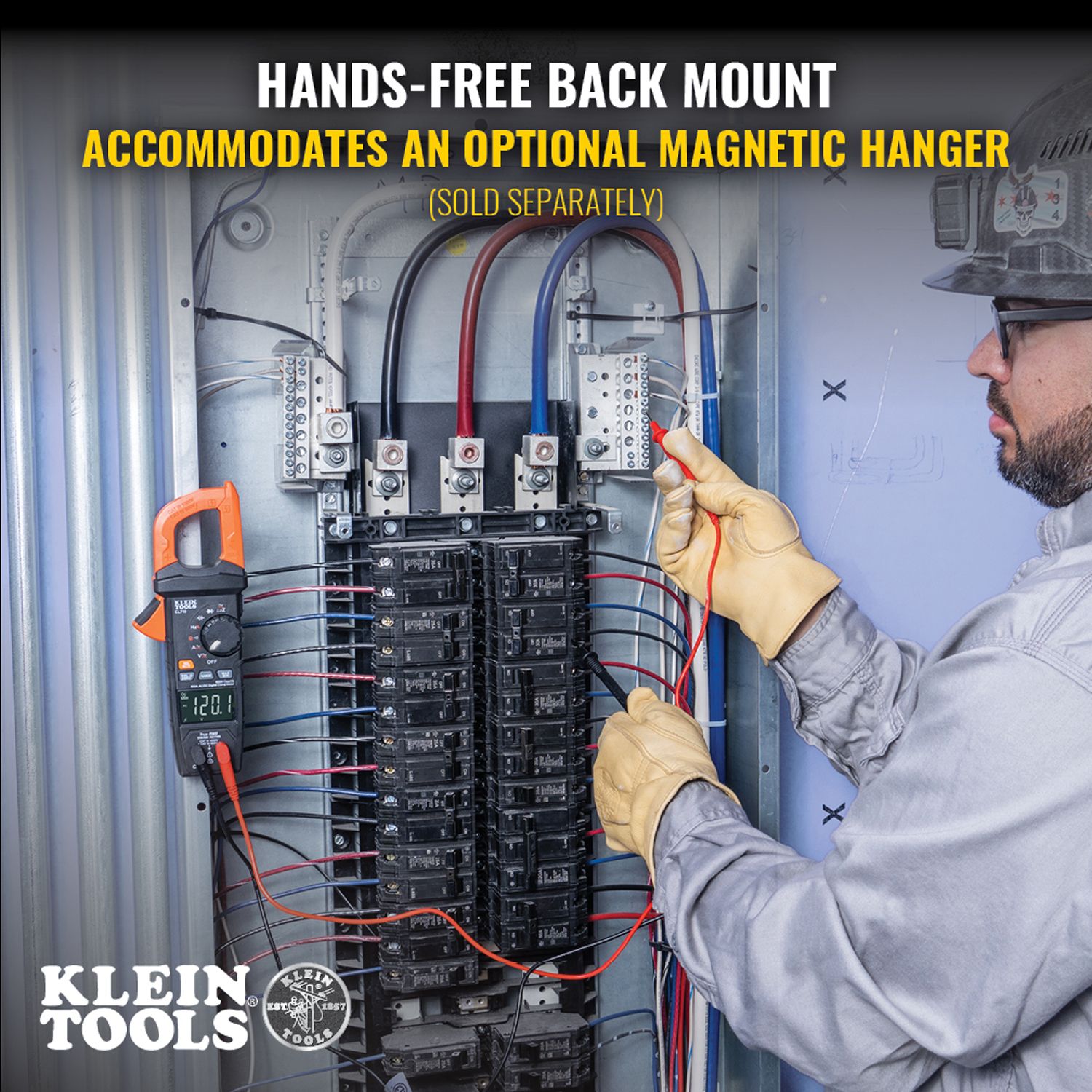

- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
Specifications:
- Type: Pro Clamp Meter
- Application: Variety of electrical diagnostic and troubleshooting applications
- Material: ABS/Electronics
- Auto-Power Off: Yes
- Drop Protection: 2m
- Display: Transflective Reverse-Contrast with 6000 Count LCD
- Auto Ranging: Yes
- TRMS: Yes
- Voltage: 1000V AC; 1000V DC
- Frequency: 1Hz - 500 KHz
- Current: 600A
- Capacitance: 6000µF
- Ohms (Resistance): 60MΩ
- AC Voltage: 1000V
- DC Voltage: 1000V
- DC Polarity Indicator: Yes
- DC Micro-Amp: No
- Temperature Range:
- Ingress Protection: IP40
- Accuracy: See Instructions
- Standard: CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA

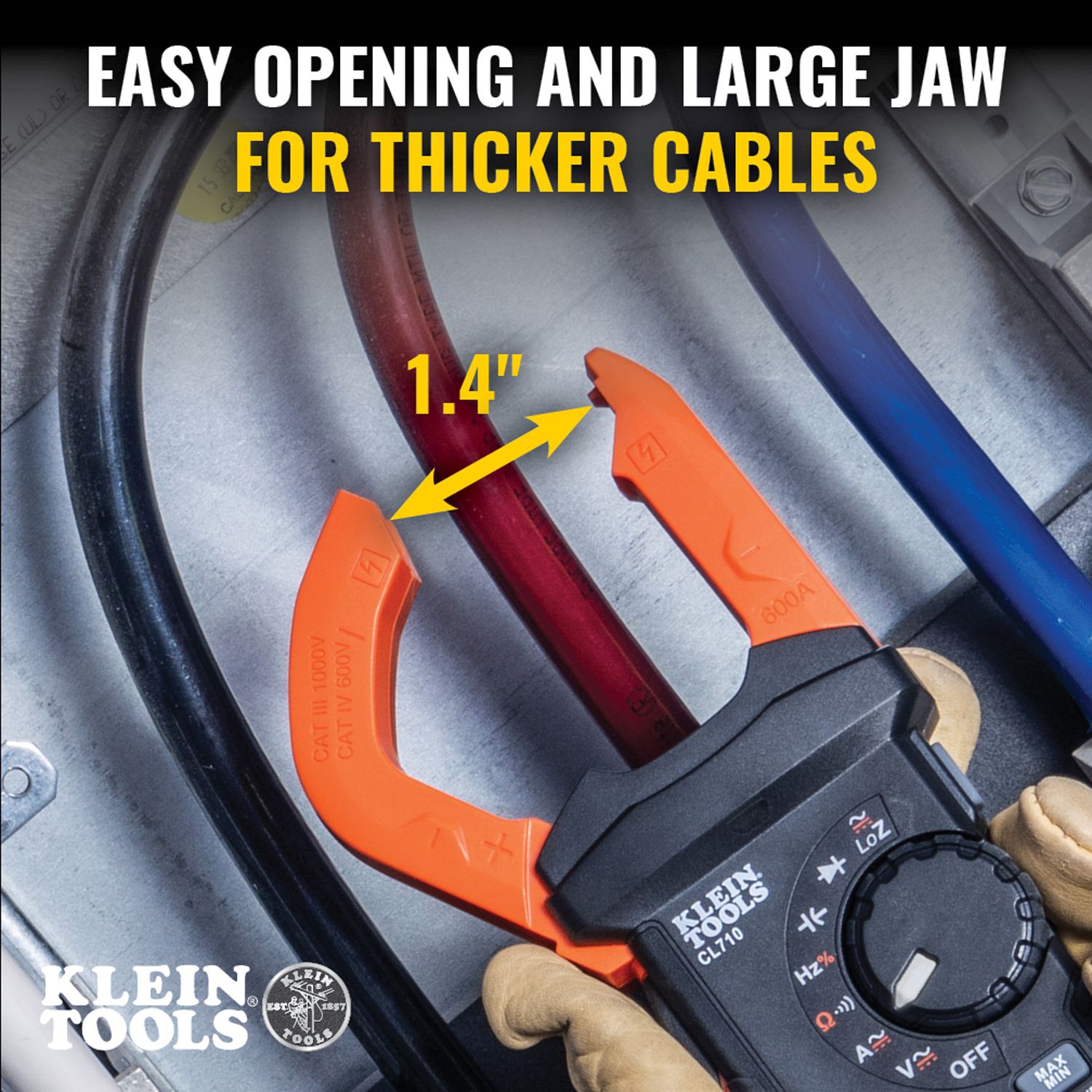

- Jaw Size: 36mm
- Display Size: 383mm x 26mm
- Dimensions (L x W x H): 230mm x 88mm x 42mm)
- Weight: 0.6kg
Warranty:
- 1 Year Warranty as Covered by Klein
