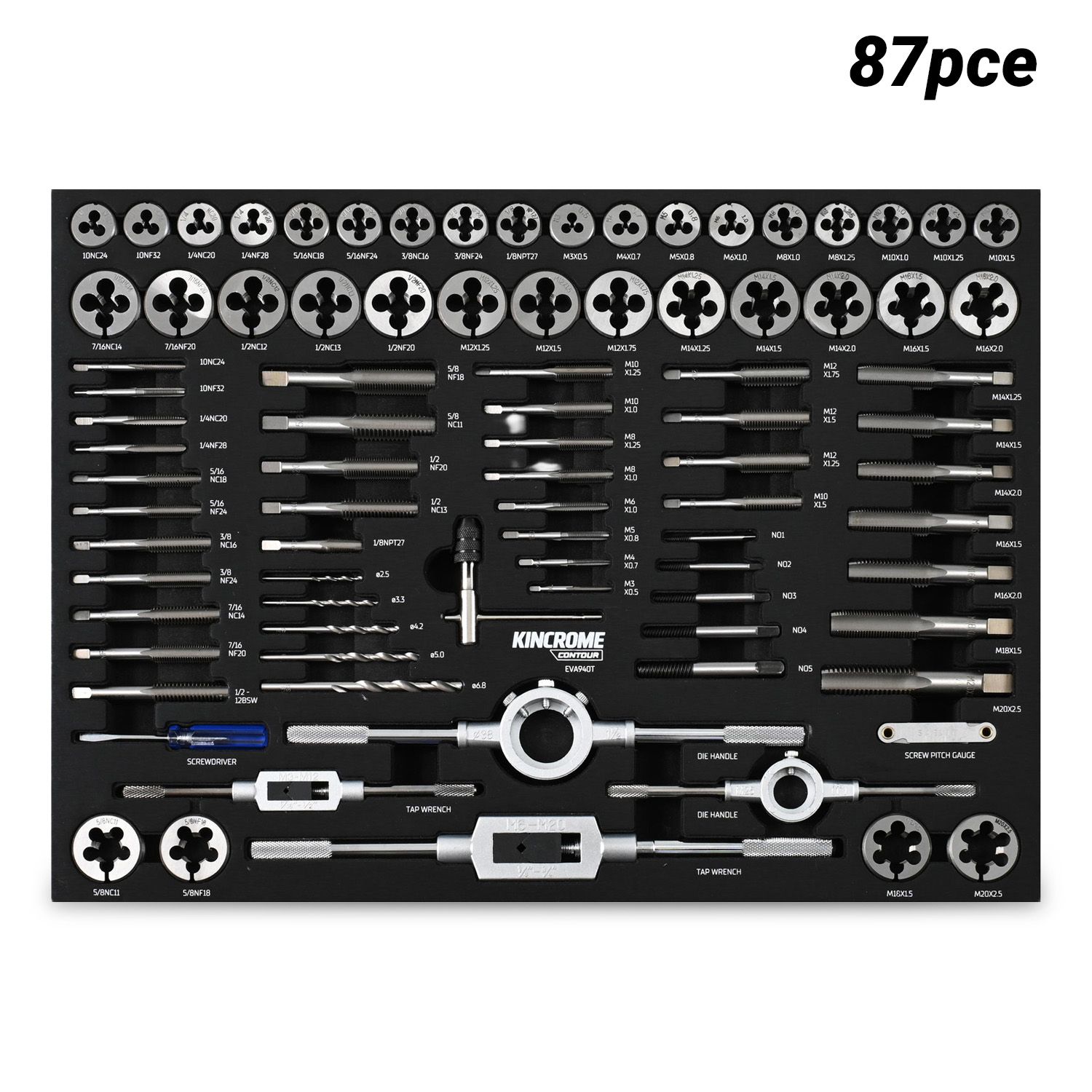

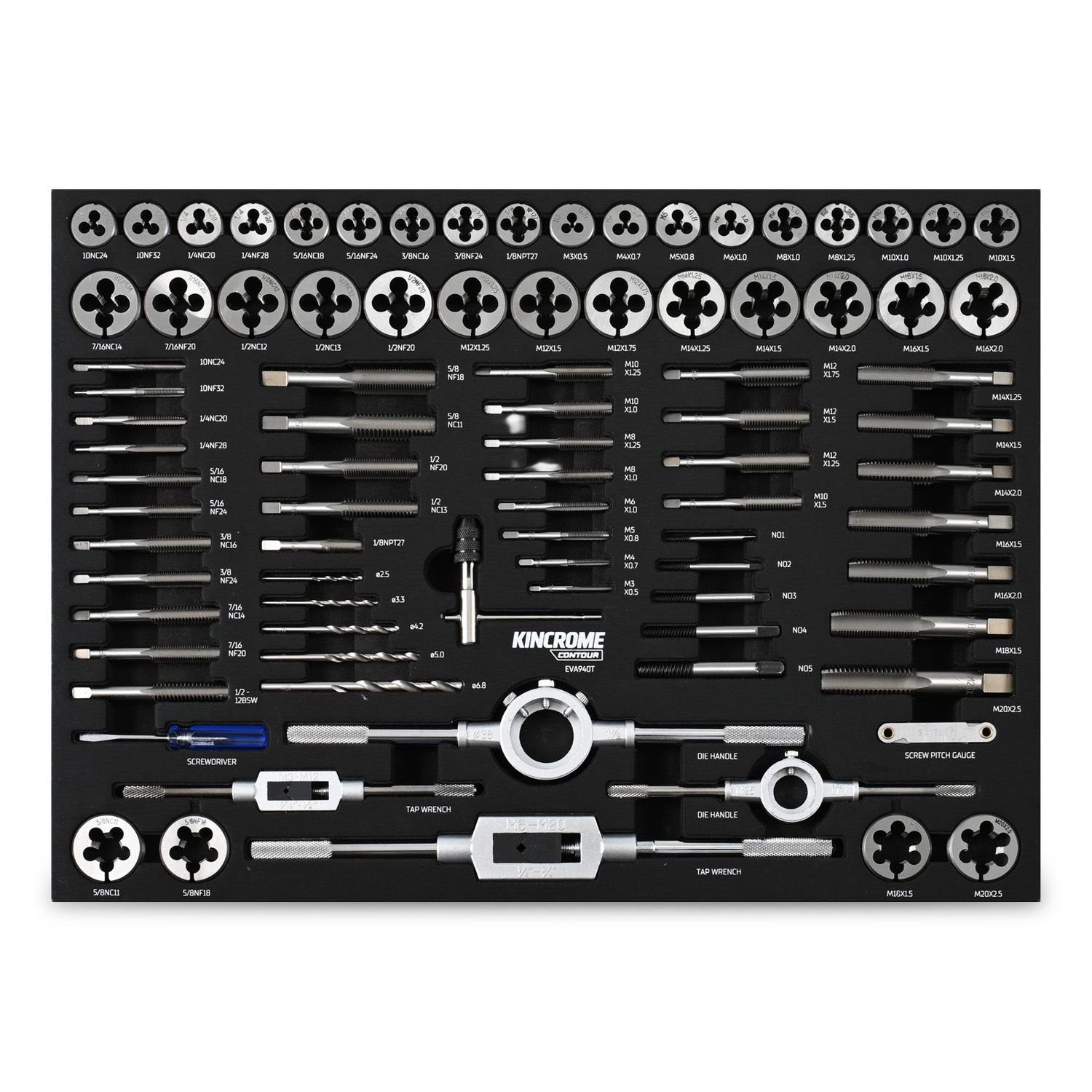

Kincrome EVA940T 87pce Tap & Die Set in EVA Tray

Kincrome EVA940T 87pce Tap & Die Set in EVA Tray

Kincrome EVA Trays have been specifically designed to protect and maintain your Kincrome Professional Quality Tools. These tool trays are custom made to suit Kincrome Tool Chests and Trolleys. Kincrome EVA Trays make selection & storage of your tools quicker and easier - saving you valuable time.

Includes:

• 19 x Metric Dies:
  • M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8x1.25, M10x1.0, M10x1.25, M10x1.5, M12x1.25, M12x1.5, M12x1.75, M14x1.25, M14x1.5, M14x2.0, M16x1.5, M16x2.0, M18x1.5, M20x2.5
• 16 x Imperial Dies:
  • 10-NC24, 10-NF32, 1/4-NC20, 1/4-NF28, 5/16-NC18, 5/16-NF24, 3/8-NC16, 3/8-NF24, 7/16-NC14, 7/16-NF20, 1/2-NC12, 1/2-NC13, 1/2-NF20, 5/8-NC11, 5/8-NF18, 1/8-NPT27
• 19 x Metric Taps:
  • M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8 x 1.25, M10x1.0, M10x1.25, M10x1.5, M12x1.25, M12x1.5, M12x1.75, M14x1.25, M14x1.5, M14x2.0, M16x1.5, M16x2.0, M18x1.5, M20x2.5
• 16 x Imperial Taps:
  • 10-NC24, 10-NF32, 1/4-NC20, 1/4-NF28, 5/16-NF24, 5/16-NC18, 3/8-NC16, 3/8-NF24, 7/16-NC14, 7/16-NF20, 1/2-NC13, 1/2-NF20, 5/8-NC11, 5/8-NF18, 1/2-12BSW, 1/8-NPT27
• 5 x Drill Bits:
  • 2.5mm, 3.3mm, 4.2mm, 5.0mm, 6.8mm
• 5 x Screw Extractors:
  • #1, #2, #3, #4, #5
• 2 x Die Handle
  • 1", 1.5”
• 2 x Adjustable Tap Wrenchs:
  • M3-M12 (1/16"-1/2"), M6-M20 (1/4"-3/4")
• 1 x 1/4" T-Type Tap Wrench
• 1 x Screw Pitch Gauge
• 1 x Screwdriver

Features:

• Trays are made from Ethylene-Vinyl Acetate (EVA) material
• Comes with Polypropylene (PP) top layer on EVA trays
• EVA Trays are screen printed with part descriptions to identify where each item is stored in trays
• Metric & Imperial Taps & Dies
• Suits CONTOUR Tool Chests & Trolleys

Suitable for:

• Kincrome CONTOUR Tool Chests & Trolleys

Specifications:

• Pieces: 87
• Measurement System: Metric & Imperial
• Dimensions (L x W x H): 539mm x 394mm x 30mm
• Weight: 4.2kg
