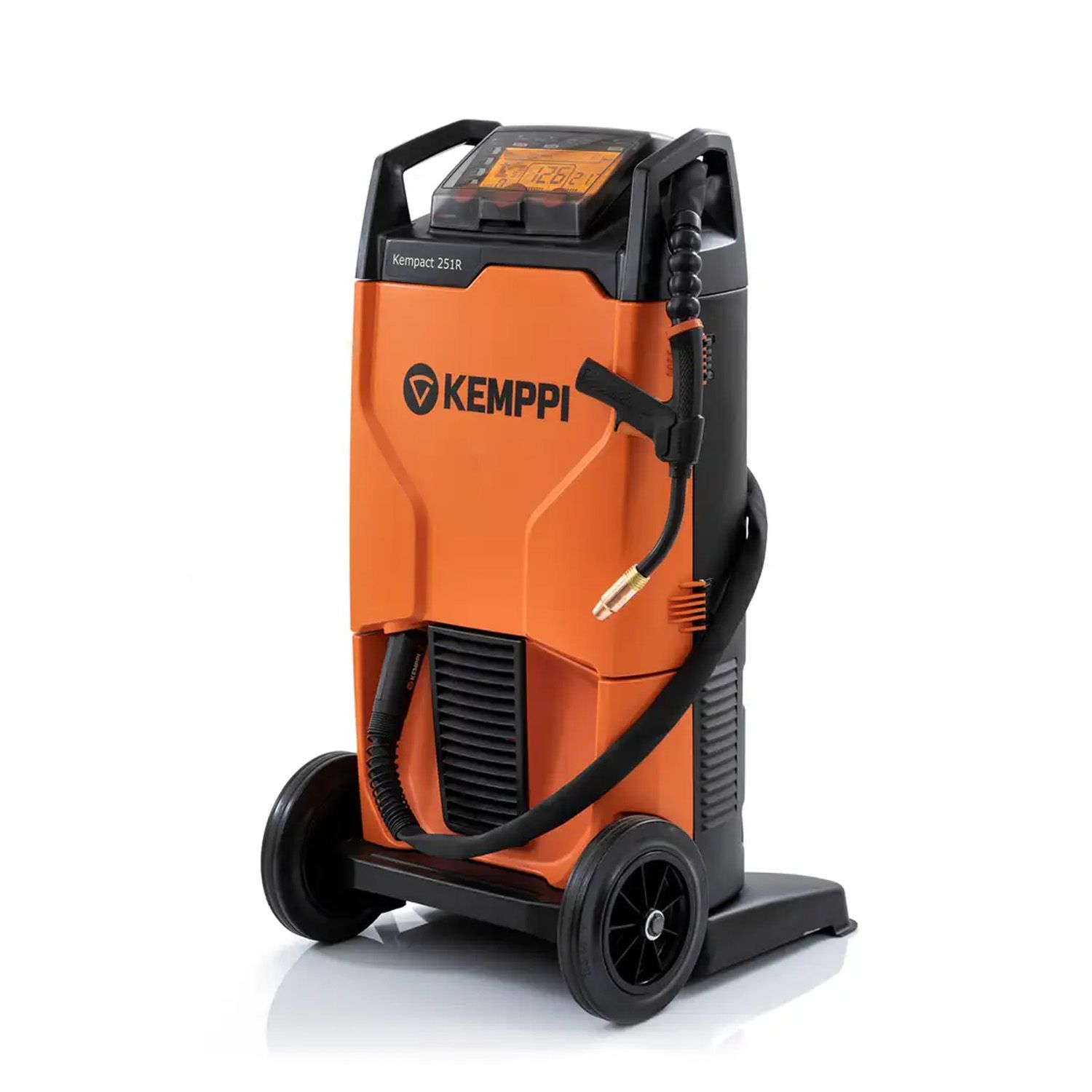

Kemppi P2308GXEAU Kempact 251R 250A 1-Phase MIG/MAG Welder with 3.5m GXe Torch

Kemppi compact welder with regular control panel for cost-efficient MIG/MAG welding, delivering 250 A with a 1-phase 240 V power supply. This model is specifically for the Australian market due to the different mains plug fitted and VRD active.

Features:

• Australian Market Ready: Specifically configured for Australia, featuring a standard local mains plug and an active Voltage Reduction Device (VRD) for enhanced safety on the job site
• Robust Output: Delivers a powerful 250 A output from a convenient single-phase 240 V power supply, ideal for cost-efficient MIG/MAG welding
• Regular LCD Control Panel: Equipped with a built-in "Regular" LCD interface, offering manual setup functions for precise, direct control over voltage and wire feed speed
• Energy Efficient: Built on modern power platform technology, optimizing power consumption while maintaining excellent welding performance
• Versatile Material Handling: Compatible with a wide range of filler wires, including Iron (solid and flux-cored), Stainless Steel, and Aluminum
• Advanced Convenience Functions: Includes Kemppi's HotSpot™ heat treatment function, Spot and cycle arc timer, and 2T/4T gun switch latching
• GasMate™ Chassis: Features an innovative floor-level cylinder loading design, making gas cylinder collection, storage, and movement significantly easier and safer

Specifications:

• Mains Connection:
  • Voltage: 240V ±15 %
  • Phases: 1~50/60 Hz
  • Cable Type: 3G, H07RN-F
  • Cable Size: 2.5mm²
• Rated Maximum Input Power [S1max]: 8.5 kVA
• Mains Fuse: 20 A
• Idle State Power Consumption [P1idle]: 35W
• Output:
  • @ Rated Max. Current (Duty Cycle %), MIG: 30%
  • @ +40 °C, Rated Max Current, MIG: 250 A
  • @ +40 °C, 100% MIG: 150 A
• Output range, MIG: 20 A / 10 V - 250 A / 29 V
• Voltage Adjustment Range, MIG: 8 - 29 V
• Power Factor at Rated Maximum Current [λ]: 0.99
• Efficiency at Rated Maximum Current [η]: 82%
• EMC Class: A
• Filler Wire Diameter:
  • Fe: 0.8 - 1.2mm
  • Fe-MC/FC: 0.8 - 1.2mm
  • Ss: 0.8 - 1.2mm
  • Al: 1 - 1.2mm
• Wire Feed Speed: 1 - 18m/min
• Max. Wire Spool Weight: 20kg
• Max. Wire Spool Diameter: 300mm
• Control Panel:
  • Model: LCD Regular
  • Type of Installation: Built-in
• Temperature:
  • Operating: -20 - 40°C
  • Storage: -40 - 60°C
• Standards: IEC 60974-1, IEC 60974-5, IEC 60974-10, IEC 61000-3-12
• Dimensions (L x W x H): 623mm x 579mm x 1070mm
• Weight: 44kg

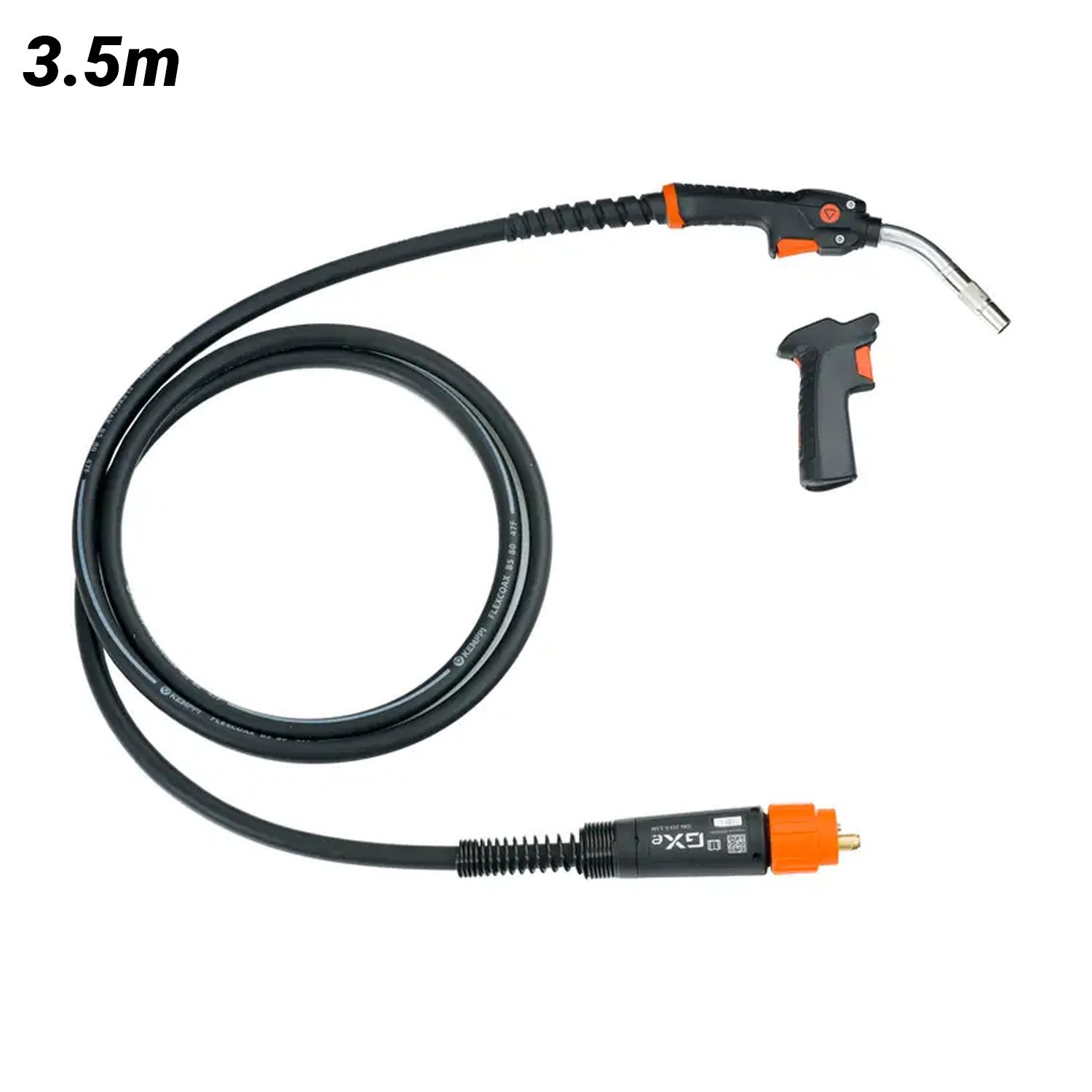

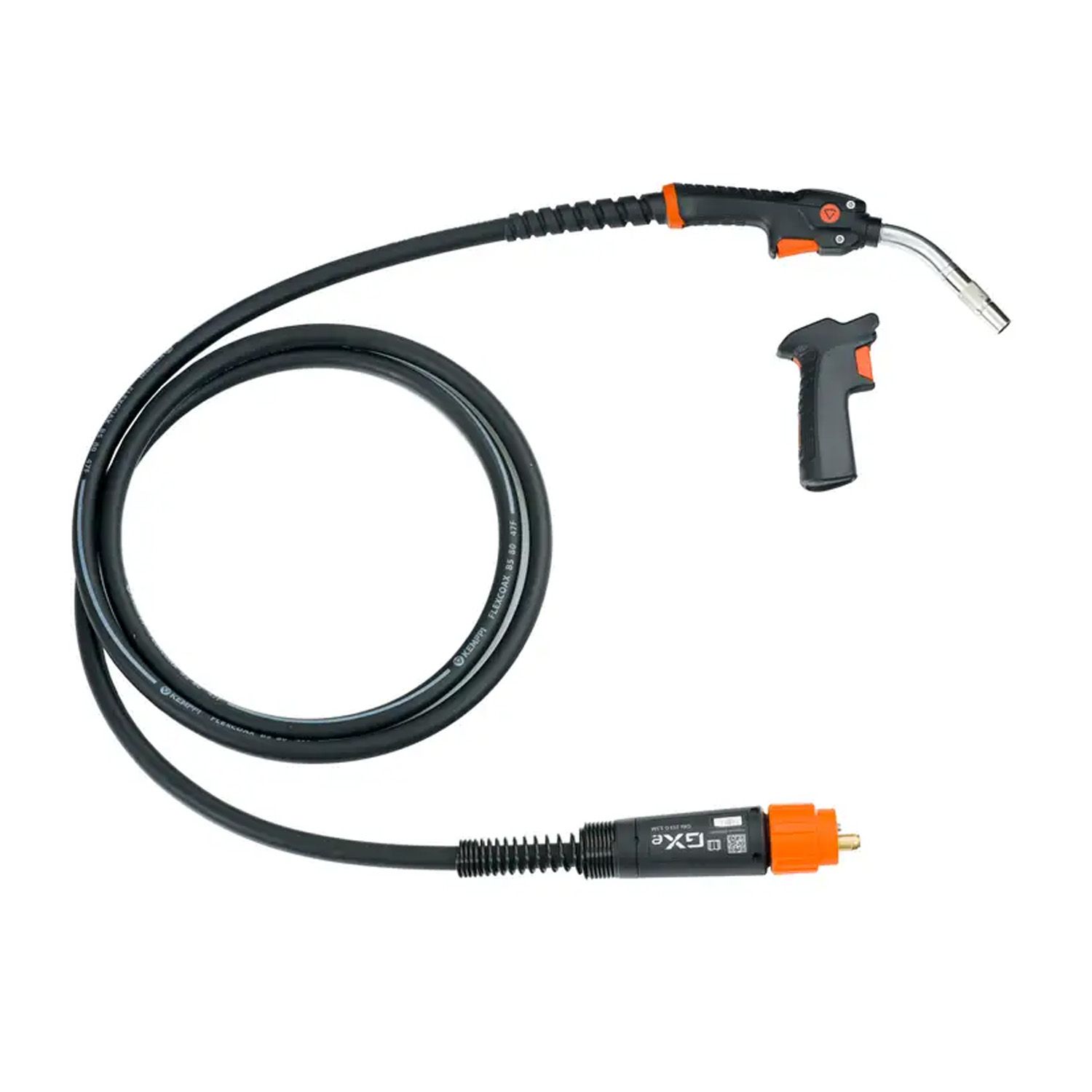

A gas-cooled 250 A MIG/MAG welding torch with Euro connector and Kemppi Flexcoax cable. Cable length options are 3.5 and 5 meters.

Features:

• Professional Performance: A gas-cooled MIG/MAG welding torch designed to reliably deliver 250 A for demanding fabrication and welding tasks

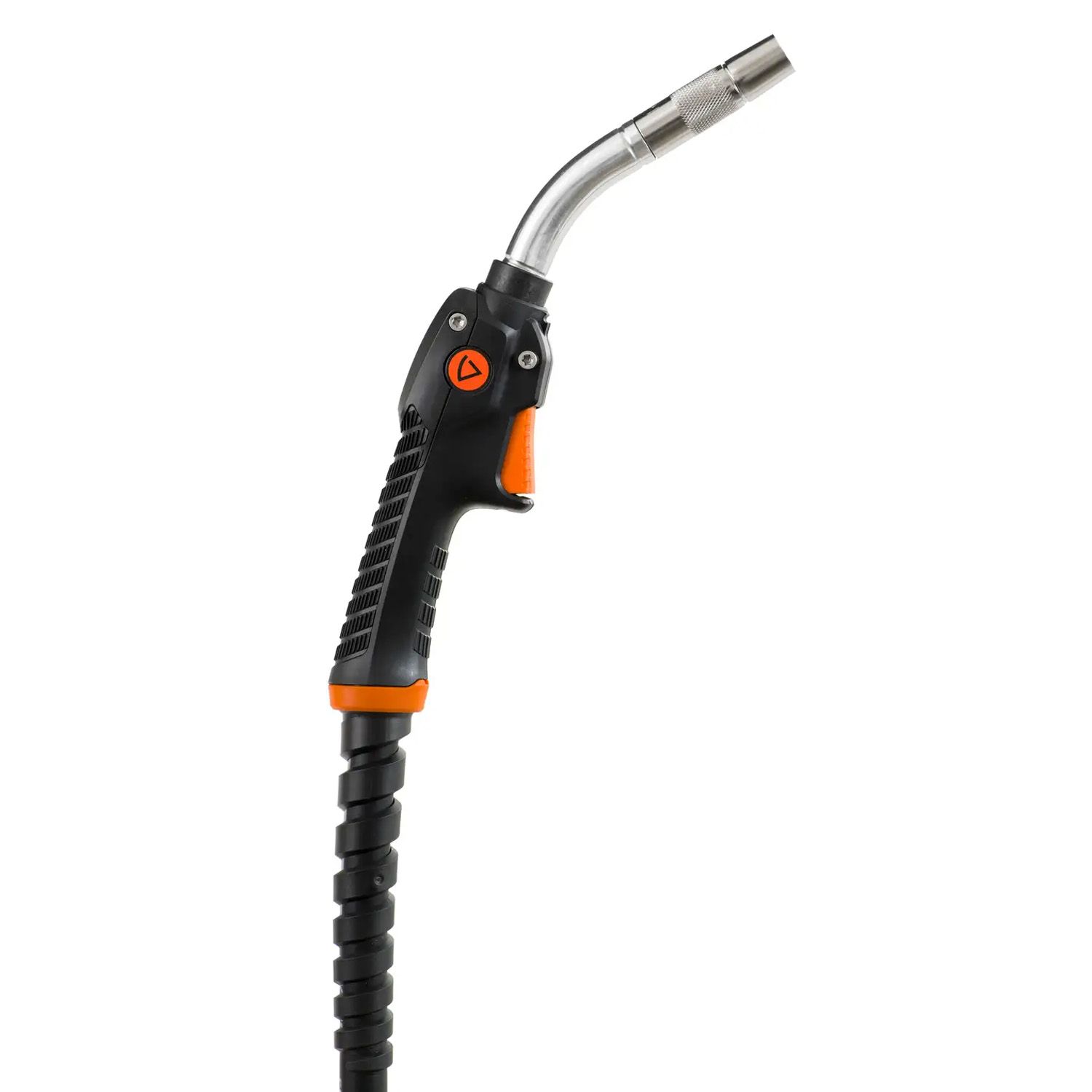

• Ergonomic & Compact Design: Features a new small-sized handle with improved grip and reduced weight, making it highly maneuverable and perfect for accessing narrow, restrictive gaps
• Flexcoax Cable: Equipped with a 3.5-meter Kemppi Flexcoax coaxial cable that includes a ball joint and smart bending support for maximum flexibility and a smoother wireline without feeding disturbances
• Heavy-Duty Neck Construction: The upgraded air-cooled G-neck features a robust structure with optimized bending angles and wireline geometry to boost arc stability and durability
• IP5X Protection: Fully protected against dust and built to resist humidity, ensuring a long, cost-efficient lifespan even in tough industrial environments
• Universal Compatibility: Features a standard Euro connector and shares the same proven consumables as the previous GX series, reducing your inventory and consumable costs

Specifications:

• Welding Connection Type: Euro
• Filler Wire Diameter:
  • Fe: 0.8 - 1.2mm
  • Fe-MC/FC: 0.8 - 1.2mm
  • Ss: 0.8 - 1.2mm
  • Ss-MC/FC: 0.9 - 1.2mm
  • Al: 0.8 - 1.2mm
• Type of Cooling: Air
• Contact Tip: M6
• Method of Guidance: Manual
• Load Capacity:
  • 35% / Ar + 18% CO₂: 250 A
  • 60% / Ar + 18% CO₂: 200 A
• Load Capacity Test:
  • Filler Wire Material: Fe
  • Filler Wire Diameter: 1mm
  • Stick Out Length: 15mm
  • Gas Flow: 13L/min
• Remote Control: Optional
• Temperature:
  • Operating: -20 - 40°C
  • Storage: -40 - 60°C
• Standards: IEC 60974-7
• Gun Handle: Yes
• Neck Type: Rotating
• Neck Angle: 40°
• Neck Dimensions (L x H): 107mm x 65mm
• Cable Length: 3.5m
