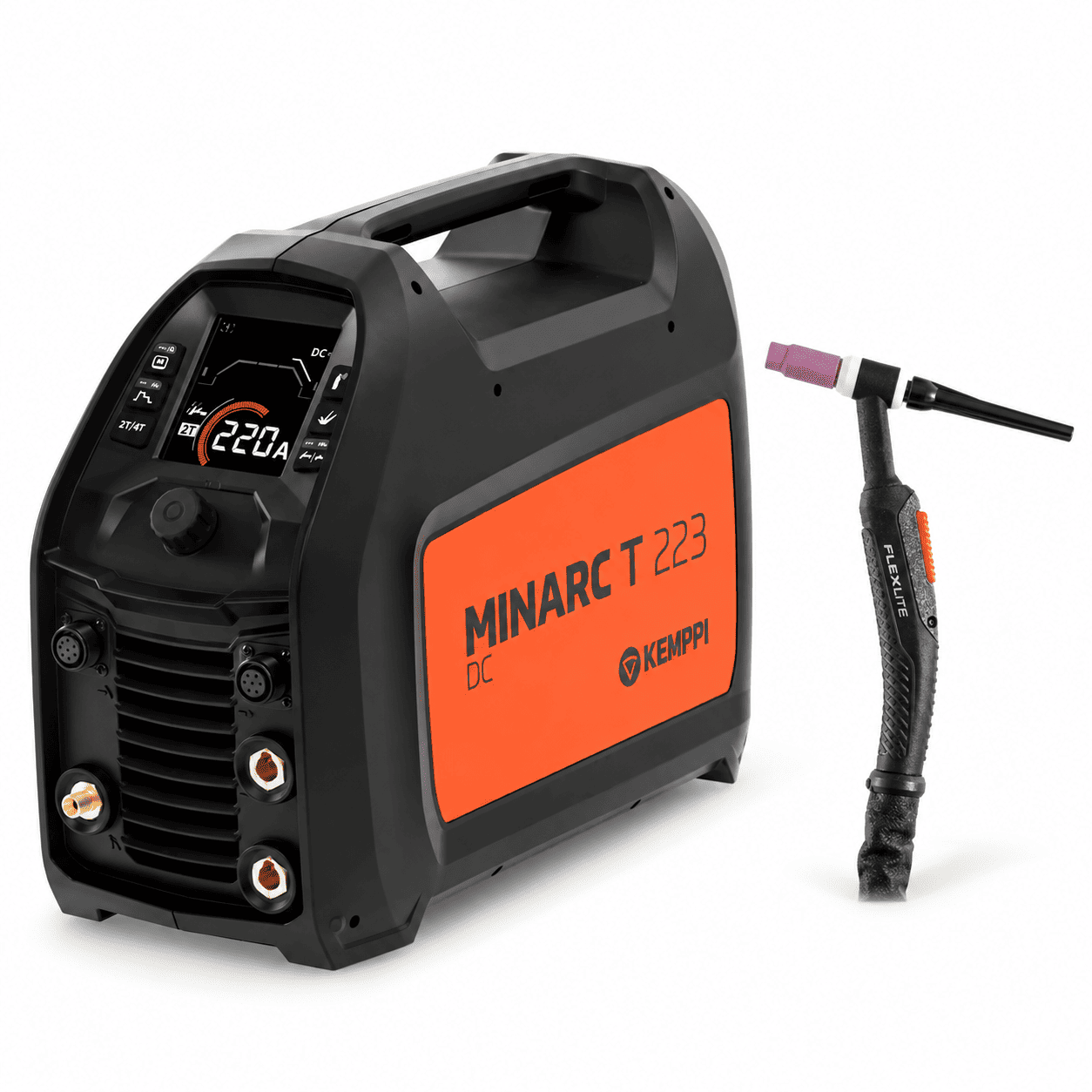

Kemppi P223TX225G4AU (10610) Minarc T 223 DC TIG Welder with 8m Flexlite Torch

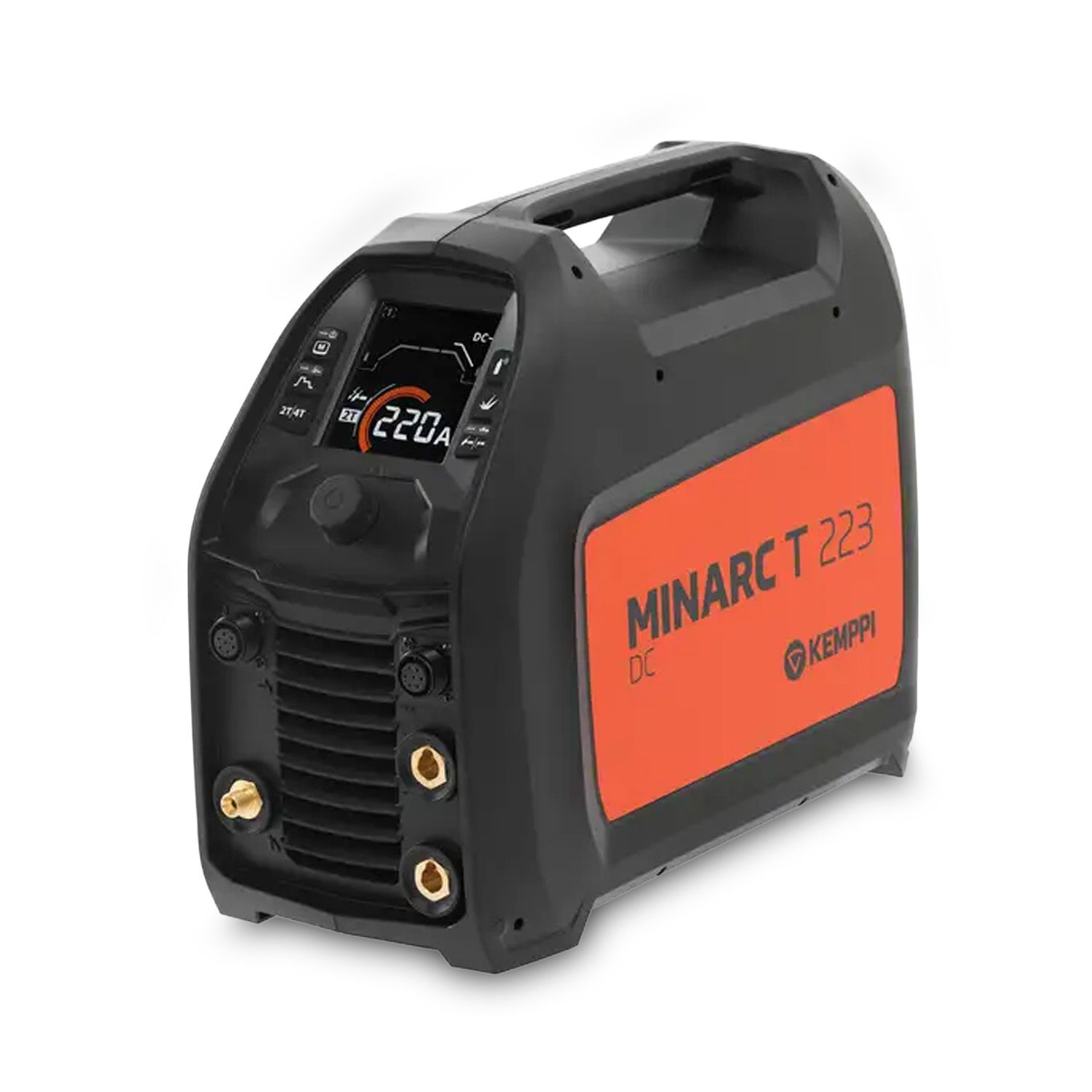

The Minarc T 223 DC, 1ph 110V / 230V, is a portable, small, but mighty TIG welding machine designed for welders on the go. With a powerful output of 220 amps, this portable welding machine delivers precise DC TIG and MMA performance and is protected with a durable and stylish molded casing. Kemppi's professionals design, engineer, build, and test every Minarc T DC TIG welding power source in Finland, ensuring reliable Finnish welding quality for every weld.

This multi-voltage TIG welder is perfect for industrial workshops and site welding applications. It uses PFC technology for energy-efficient operation. Standard features include pre- and post-flow gas control, slope time regulation, memory channels, and power adjustments that can be made using optional remote controls.

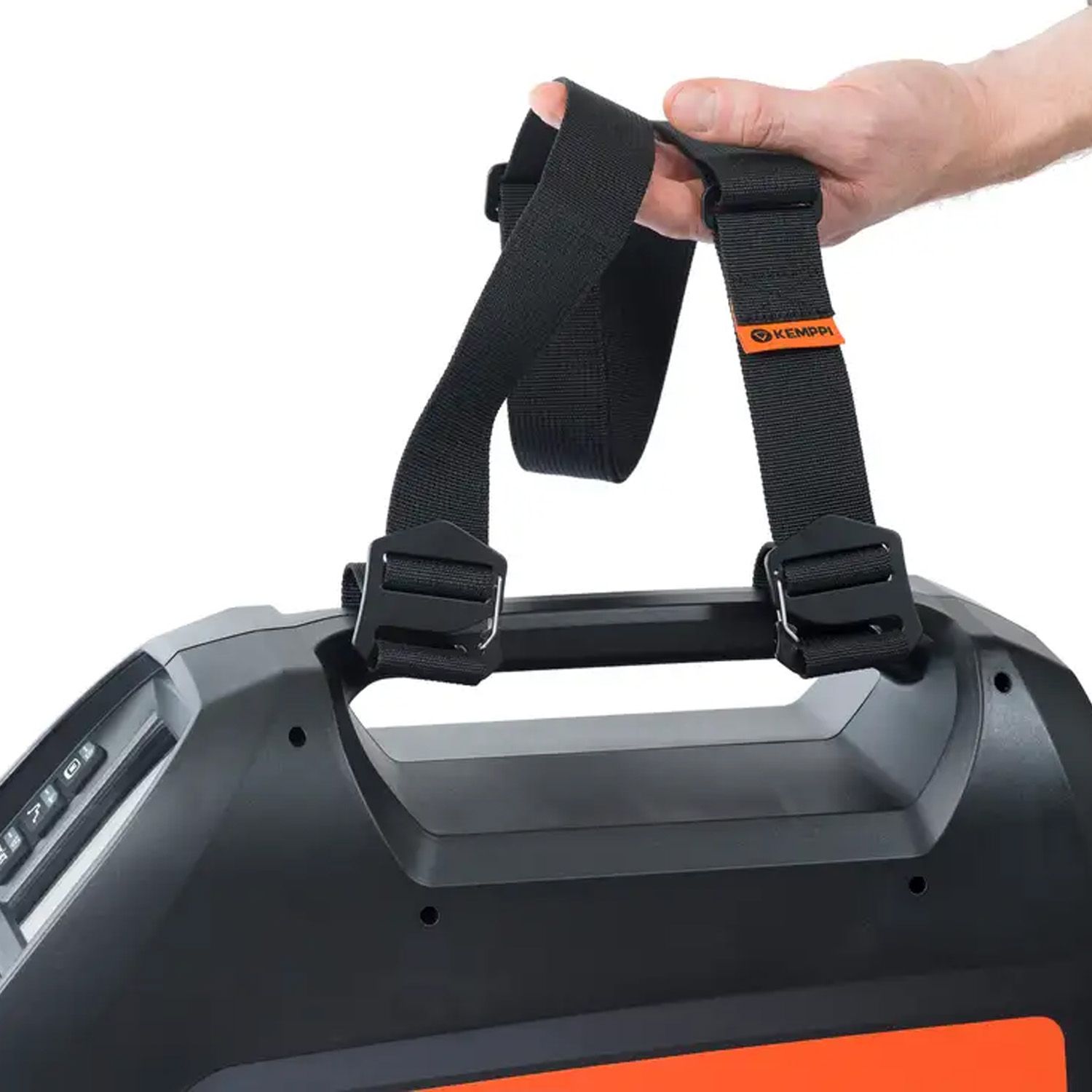

The Minarc T 223 DC MLP models also offer a pulse function and 'Minilog' control, which allows welders to select preset power levels during welding directly from the standard torch trigger switch. Delivery packages come with the DC TIG power source, a carrying strap, an earth return cable, a gas hose, and a Flexlite TX welding TIG torch (available in 4m or 8m lengths).

Features:

• Stylish. Stable. Simple: With a robust modern body, fast set-up, and simple controls, the Minarc T 223 DC helps every welder deliver a smooth, stable arc in all conditions
• Power that's good to go: Outputting 220 amps for only 9.6kg, you can take the Minarc T 223 DC anywhere, confident it'll get the job done
• Finnish quality that endures: Every single Minarc is designed, engineered, built and tested in Finland by Kemppi – from the first power circuits to the casing
• Made from environmentally friendly materials and components
• High recyclability rate at end of life
• DC TIG and MMA processes available
• 220 A DC @ 20% duty cycle, 1-phase, 220V-240V
• Power-efficient PFC technology
• HF and Lift ignition
• Pulse option and Minilog (MLP models)
• Lightweight and portable with 9.6kg
• Refined ignition
• Stable welding arc
• Reliable Finnish quality
• Four memory channels
• Hand and foot-operated remote-control options
• Color LCD for easy-to-use user interface
• Pre and post-gas timer
• Slope in/out timer

Specifications:

• Mains Connection:
  • Voltage: 230/240 V ±10 %
  • Voltage (MV low range): 110V - 120 V ±10 %
  • Phases: 1~50/60 Hz
  • Cable Type: 3G, H07RN-F
  • Cable Size: 1.5 mm²
• Rated maximum input power [S1max]: 5.5 kVA
• Mains Fuse: 15 A
• Mains Fuse (@MV low range): 15 A
• Idle Power: 10 W
• TIG Output, duty cycle % at rated max. current: 20 %
  • TIG Output at +40 °C
    • Rated max current: 220 A
    • +40 °C, 60%: 170 A
    • 100%: 140 A
• MMA Output, duty cycle % at rated max. current: 25 %

  • Output at +40 °C:
    • rated max current: 170 A
    • 60%: 140 A
    • 100%: 120 A
• TIG: Output, duty cycle % at rated max. current @MV low range: 20 %

  • TIG Output at +40 °C:
    • Rated max current @MV low range: 130 A
    • 60% @MV low range: 110 A
    • 100% @MV low range: 90 A
• MMA Output, Duty Cycle % at rated max. current @MV low range): 20 %
  • Output at +40 °C
    • rated max current @MV low range: 75 A
    • 60% MMA (@MV low range): 70 A
    • Output at +40 °C, 100% MMA (@MV low range): 60 A
• Output Range:
  • TIG: 5 A / 8 V - 220 A / 20 V
  • MMA: 15 A / 15 V - 170 A / 34 V
  • TIG @MV low range:  5 A / 8 V - 130 A / 16 V
  • MMA @MV low range: 15 A / 15 V - 75 A / 31 V
• Power factor at rated maximum current [λ]: 1
• Efficiency at rated maximum current [η]: 85 %
• EMC Class: A
• Stick electrode Diameter: 1.6mm - 4mm
• Welding Connection Type: R1/4
• Wired communication type: Analog
• Operating Temperature:  -20 - 40 °C
• Storage Temperature:  -40 - 60 °C
• Recommended minimum generator power [Sgen]: 8 kVA
• Degree of protection (fully installed): IP23
• Standards: EN IEC 60974-1, -3, -10, IEC 61000-3-12
• Dimensions (L x W x H): 461mm x 202mm x 367mm
• Weight without accessories: 9.6kg

Warranty:

• 24 Months Warranty Covered by Kemppi
• + Additional 12 Months when Registered via Kemppi

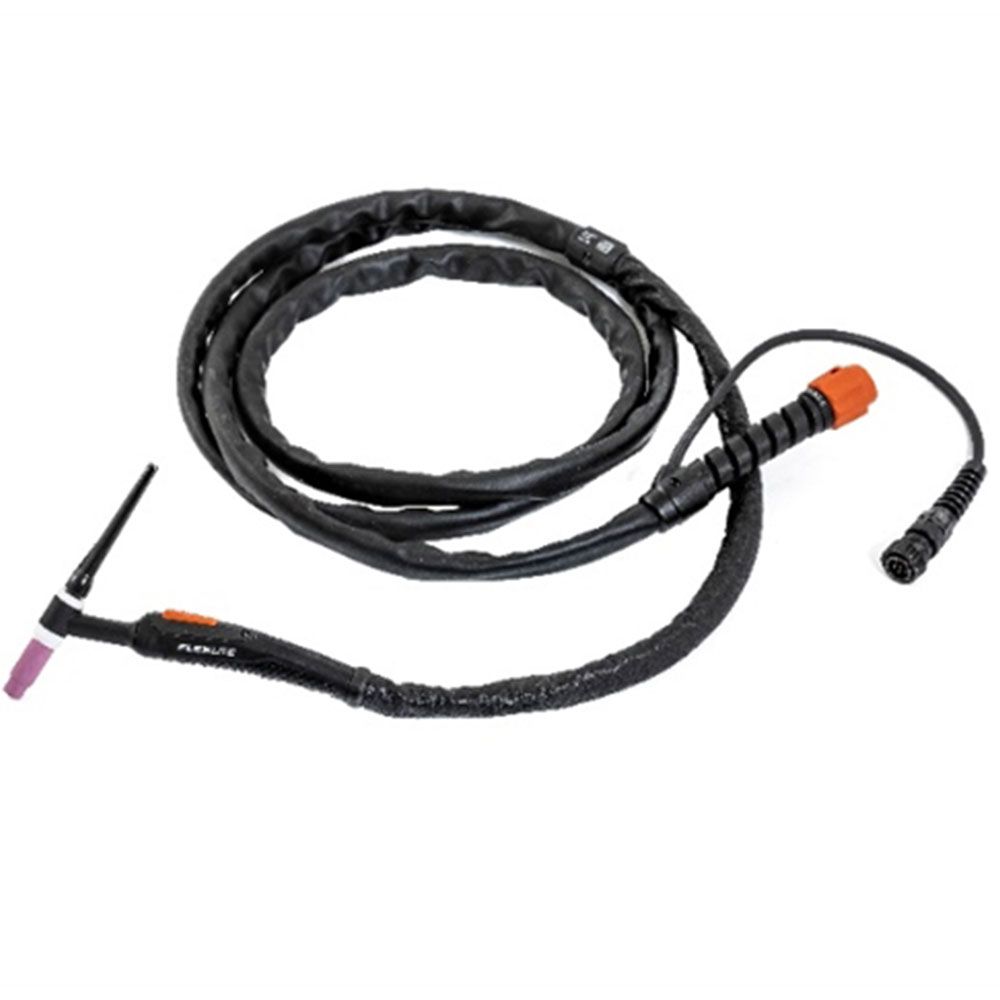

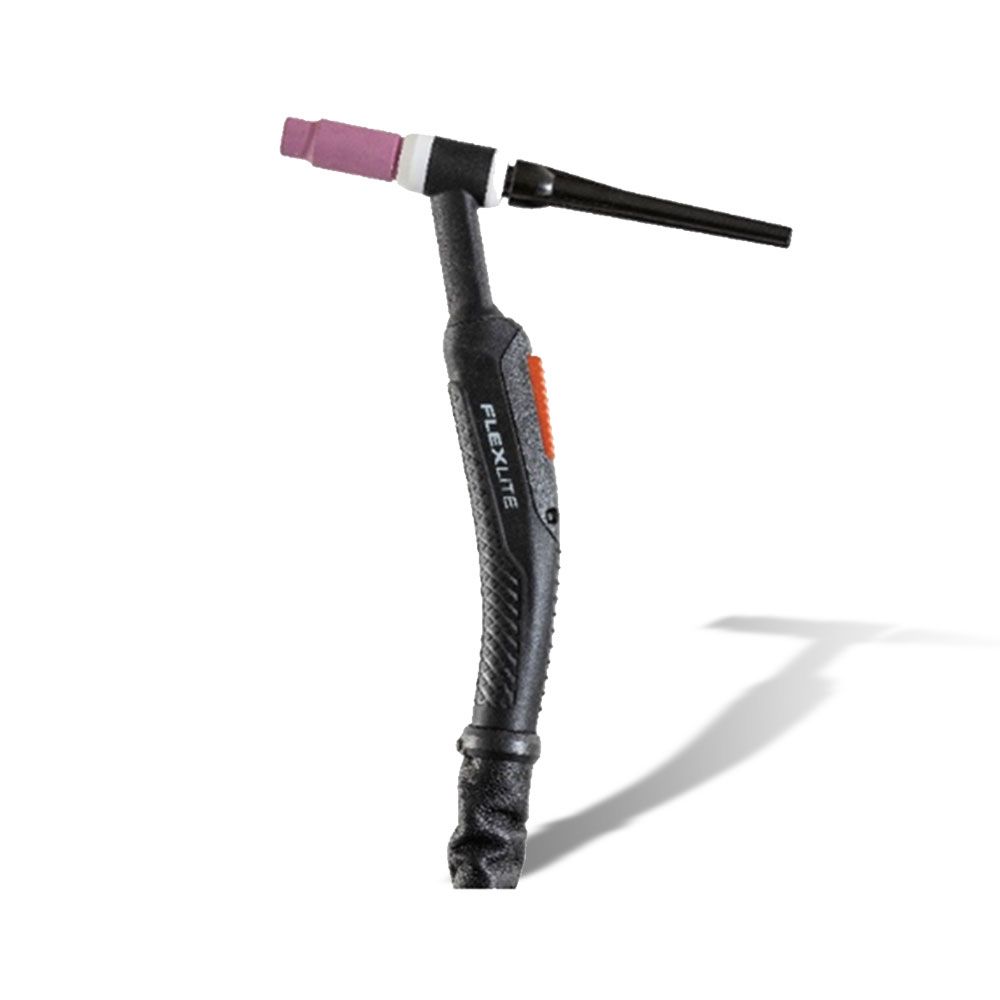

Industrial design reddot winner 2020. Innovative and patented TX silicone handle have pushed tig welding ergonimics to the next level. Handle grip with its design is the future trendsetter. TX 255 G 4M is gas cooled torch with large and rigid torch head. 4 m cable package is equipped with 7-pin control cable connector. Option for remote control as an accessory. Flexlite TX welding torches for TIG welding feature excellent technical performance, extended consumables life, and everyday welding comfort. Durable silicone rubber material gives a firm grip while the torch handle's innovative design reduces wrist loading, allowing welders to concentrate on challenging tasks to achieve the perfect weld. Available in alternative power classes and lengths, the Flexlite TX TIG torch range includes different neck versions for water and gas-cooled models. On-torch remote control options allow accurate and immediate welding current adjustment at a distance. To get the best quality and cost-effectiveness for your welding, equip your Flexlite TX torch with Kemppi consumables.

Features:

• Flexible cable set with leather sheathing protection maximises durability
• Innovative torch design increases user comfort by reducing wrist loading
• Silicone rubber material gives a firm grip on the handle
• Kemppi consumables guarantee high quality and cost effectiveness for your welding

Specifications:

• Type of Cooling: Gas
• Type of Connection (Current-gas): G1/4
• Load Capacity @ 40% (Argon): 220A
• Type of Connection (Control): 7 Pin
• Remote Control: Optional
• Neck Type: 70 Degree Angle
• Cable Length: 4m
• Standards: IEC 60974-7
