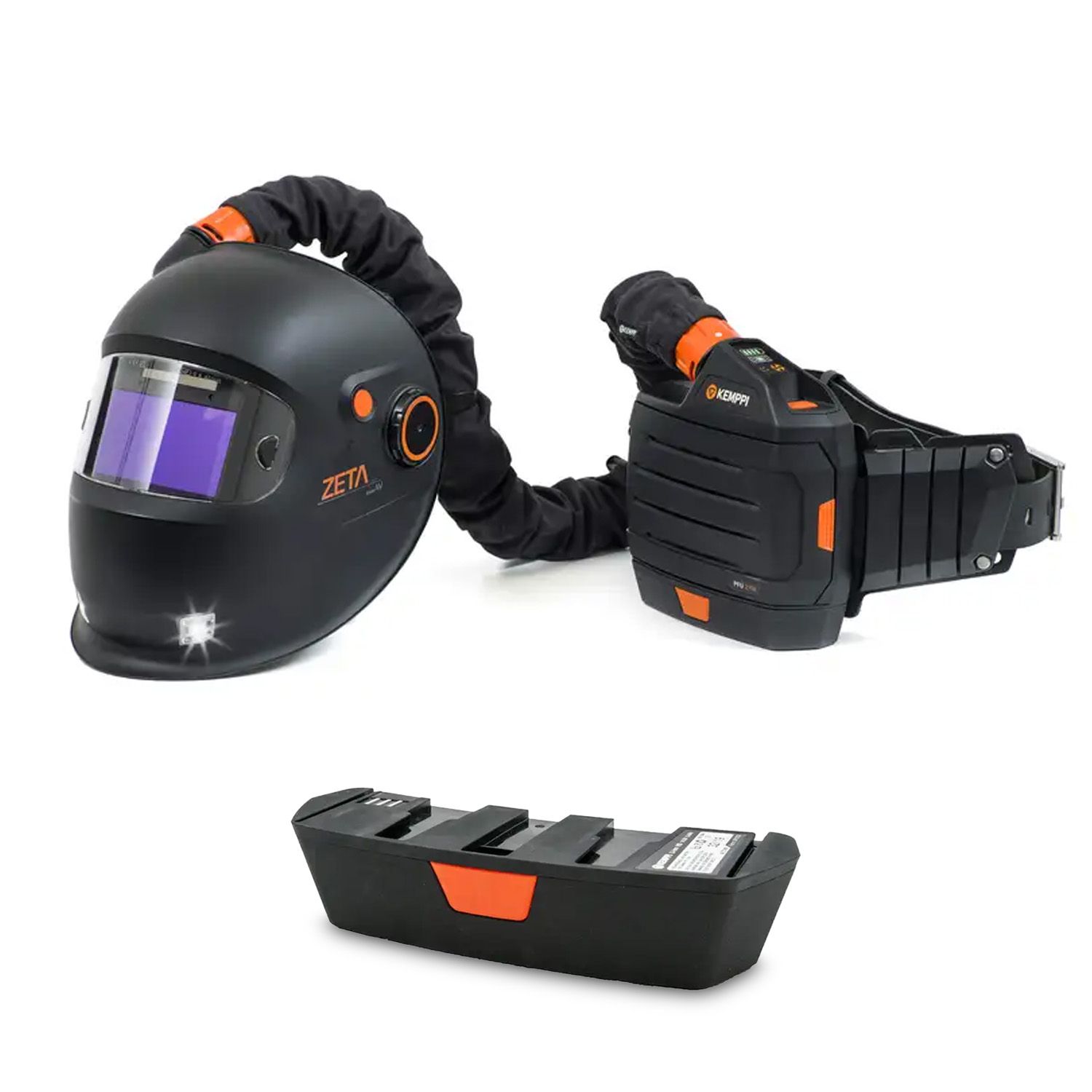

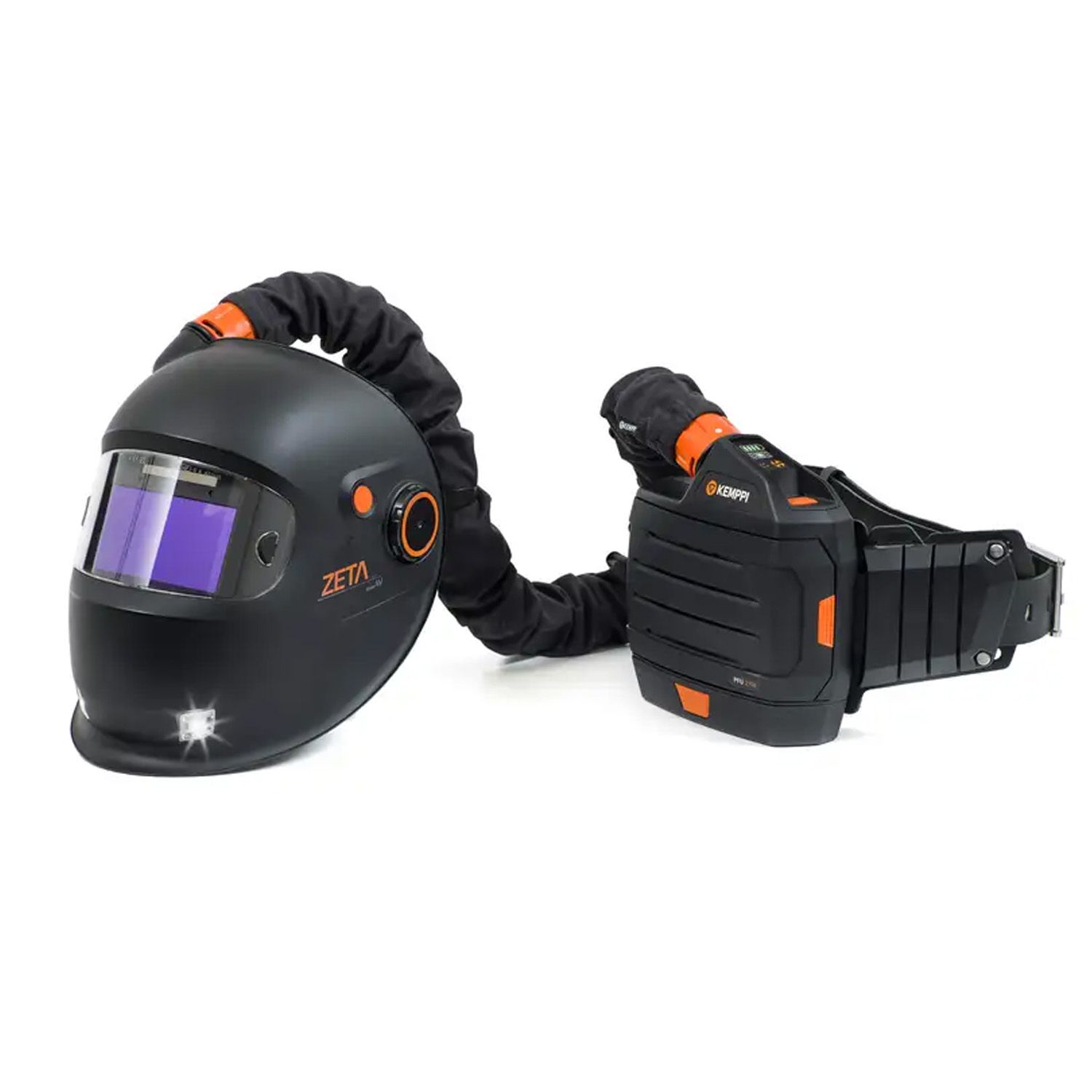

Kemppi P0736 Zeta Fresh Air Welding Package with Integrated Work Lights & Battery

A complete breathing system that offers face, eye, and respiratory protection while still providing maximum comfort and ease of use. This version includes a powered filter unit for TH3-level breathing protection, a best-in-class auto-darkening welding filter, and built-in automatic LED work lights for added visibility during the inspection.

Features:

• TH3-Level Respiratory Protection: The PFU 210e powered filter unit to deliver the highest class of breathing protection, filtering out 99.8% of harmful fumes, gases, and particles
• Integrated Auto LED Work Lights: Features built-in LED lights that automatically adjust to ambient conditions, turning off during welding and back on for optimal visibility during inspection and grinding tasks
• VISION+ Technology: Equipped with an advanced auto-darkening filter (ADF) boasting a 2.5 DIN light state, providing remarkable arc-off clarity to easily see true colors and fine details
• Large Viewing Area: A generous 110 x 60 mm viewing window minimizes restrictions, allowing you to clearly see your work area without needing to remove the helmet
• Lightweight & Ergonomic: The narrow, balanced helmet design significantly reduces neck fatigue while making it easier to maneuver in tight workspaces
• Grind Mode: Easily switch to a clear view for grinding operations, maintaining full face protection without taking off the hood

Specifications:

• Welding Filter Type: SA 60Z
• ADF:
  • View Size: 110mm x 60mm
  • Switching Time: 0.1 ms
  • Light State: 2.5
  • Shade Range: 8 - 12
  • Sensors: 3
  • UV/IR Protection: At all times
  • Battery Type: 1 x CR2450
  • Remote Control: Yes
  • Classification: V1
• LED Light: Yes
• Grind Mode: Yes
• Impact Rate: EN ISO 16321 E
• Temperature:
  • Operating: -5 - 55°C
  • Storage: -20 - 50°C
• Recommended Max Humidity for Use: 80%
• Materials: Glass, 100% cotton, ABS, PA, Padding foam plastic, PC, POM, PP
• Standards: EN ISO 16321-1 E, EN ISO 16321-2, EN 12941 TH3, EN 14594, AS/NZS 1716 P2, AS/NZS 1337.1, AS/NZS 1338.1
• Type Inspected by: NB. No 1883, 0200, 2834
• FA Air Supply/Respirator Unit:
  • Model: PFU 210e
  • Air Filter: Prefilter, Particle filter Life+, Gas filter Life+ , Odor filter (optional)
  • Belt Size: 125cm
  • Battery Type & Voltage: SD: Li-ion 14.4 V, 3.2 Ah (46 Wh), HD: Li-ion 14.4 V, 6.4 Ah (92 Wh)
  • Average Battery Life:
    • SD: 7 hr
    • HD: 9 hr
  • Airflow:
    • Minimum: 160 l/min
    • Maximum: 210 l/min
• Respiratory Protection Level: TH3
• Weight:
  • Helmet: 0.71 kg
  • Respirator Unit: 2.51 kg

Warranty:

• 24 Months Warranty covered by Kemppi

6.4 AH Li-on battery for PFU 210e filter unit.

Suitable for:

• Zeta Fresh Air Welding Helmet with Filter Unit - Skin Only
• PFU 210e

Specifications:

• Battery Type: Lithium-ion
• Capacity: 6.4 Ah
