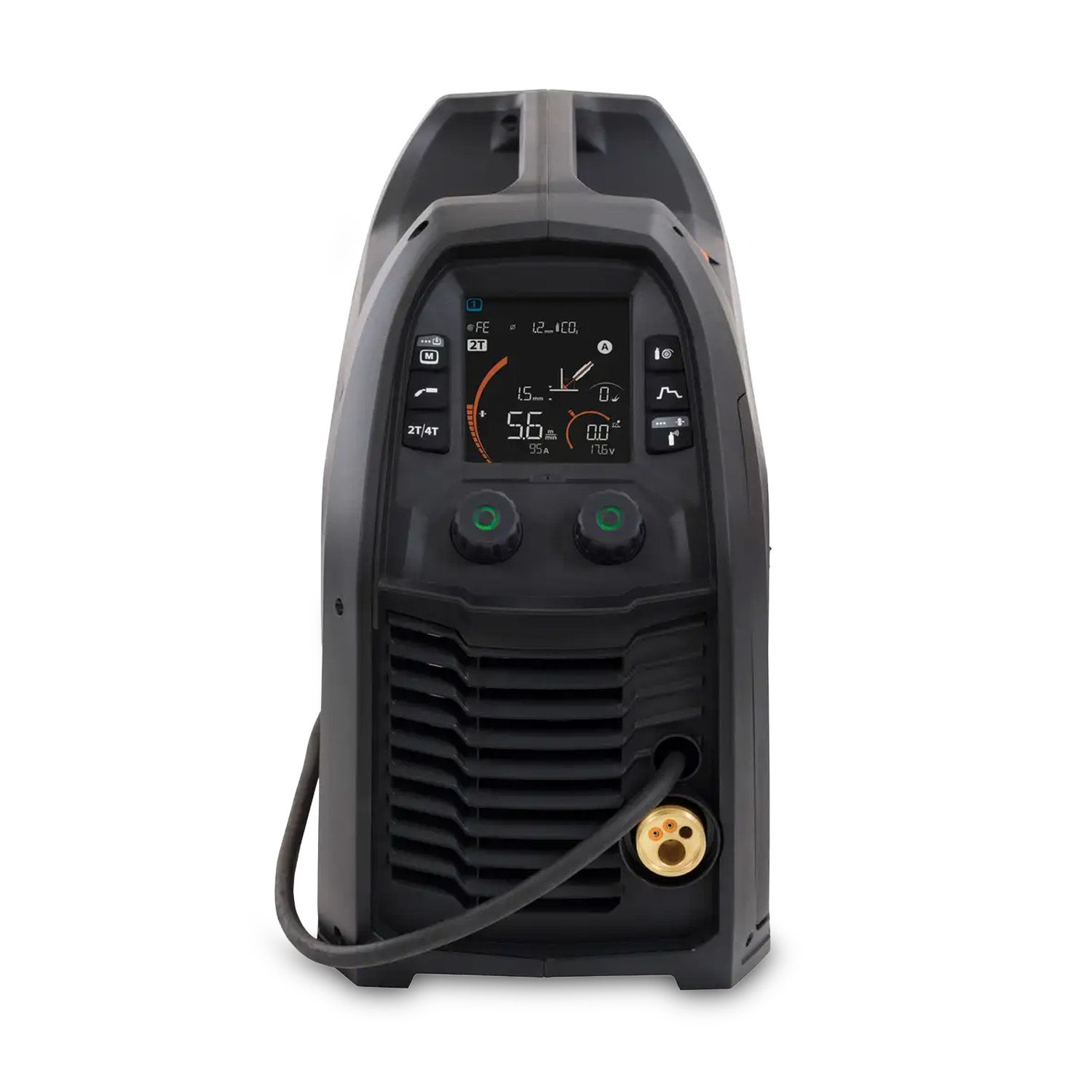

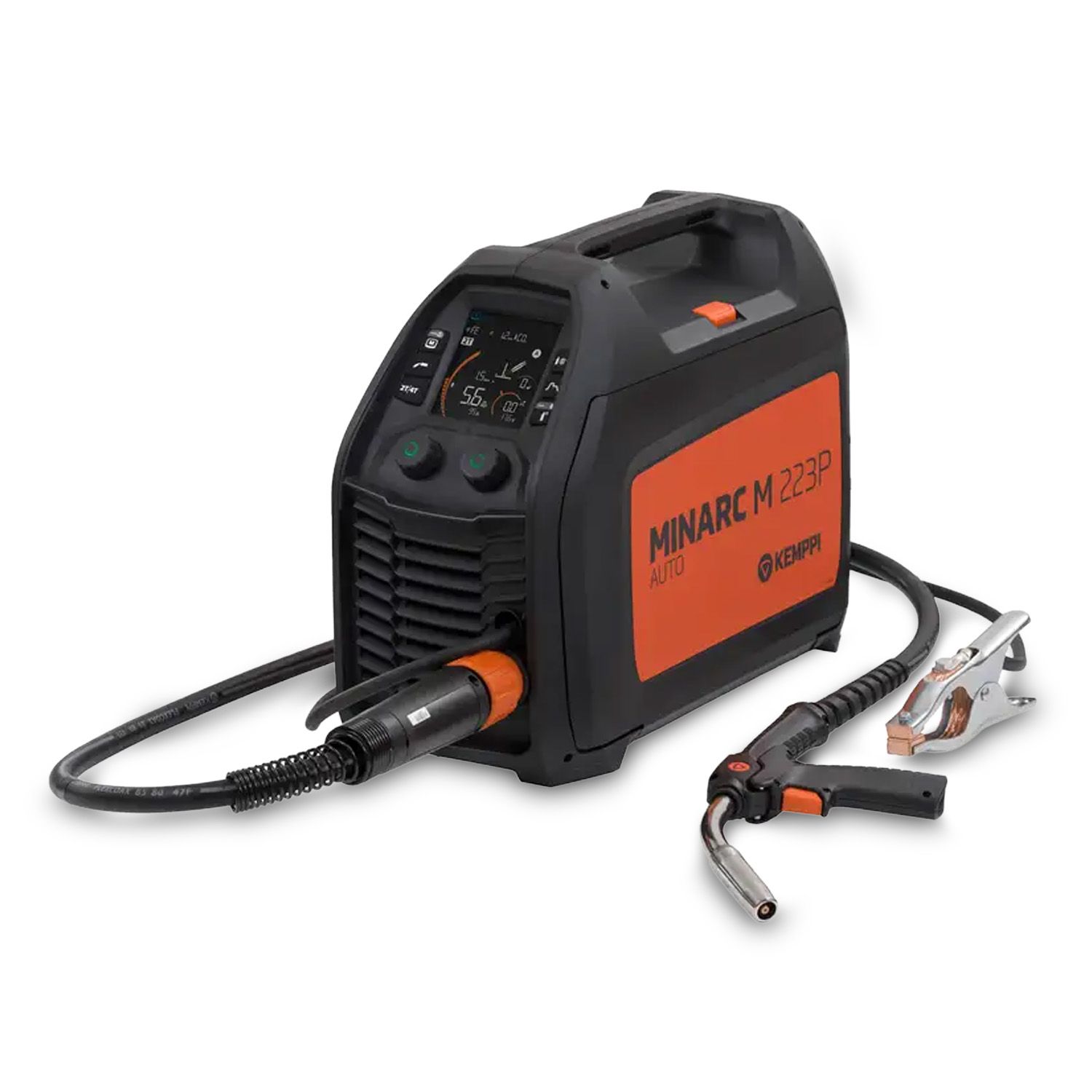

Kemppi MIM223PGMAU Minarc M 223P 110/240V MIG/MAG Pulse Welder

Kemppi MIM223PGMAU Minarc M 223P 110/240V MIG/MAG Pulse Welder

Premium portable 110/240V MIG/MAG welding machine providing 220 A @ 20% duty cycle from a 1-phase mains supply and weighs 11 kg. Manual, synergic and pulse welding options available. The power source can be used with a generator, it includes five memory channels and it has Euro-Connector for the torch. Compatible with a wide range of materials, including steel (Fe), stainless steel (Ss), aluminum (Al), CuSi, Flux cored and Gasless filler wires. Package includes power source, gas hose, drive roll, shoulder strap, earth return, power cable plug, gun handle and welding torch. For Australian markets.

Features:

• Welding Processes: Supports Manual MIG/MAG, Synergic 1-MIG, and Pulse MIG
• Pulse MIG Welding provides precise control over heat input, minimizing spatter and distortion, which is ideal for heat-sensitive materials like aluminum and stainless steel
• Dual Voltage: Operates on both 110V and 240V 1-phase mains supply
• Generator Compatible: Designed for site work, fully compatible with generators (minimum 8 kVA recommended)
• Welding Programs & Memory: Includes 48 welding curves for various materials and wire types, plus five memory channels to save your preferred settings
• Material Compatibility: Works with Steel (Fe), Stainless Steel (Ss), Aluminum (Al), CuSi brazing, Flux-cored, and Gasless filler wires
• Euro Torch Connector: Features a removable Euro-Connector, allowing torches to be easily swapped, replaced, or upgraded
• Wire Feeder: Uses a robust single-motor, digital 2-roll wire feed mechanism for consistent delivery

Specifications:

• Welding Processes: Manual MIG/MAG, Synergic 1-MIG
• Input Voltage: 110V / 240V, 1-Phase (50/60 Hz)
• Mains Connection Cable Type: 3G, H07RN-F
• Mains Connection Cable Size: 1.5mm²
• Rated maximum input power (S1max): 7 kVA
• Mains Fuse: 15 A
• Welding Output (@ +40 °C):
  • 240V : 220 A @ 20% | 160 A @ 60% | 140 A @ 100%
  • 110V: 120 A @ 20% | 95 A @ 60% | 75 A @ 100%
• Output Range MIG:
  • 240V: 15 A / 11 V - 220 A / 28 V
  • 110V: 15 A / 11 V ... 120 A / 23 V
• Power factor at rated maximum current [λ]: 1
• Efficiency at rated maximum current [η]: 85%
• Welding Connection Type: Euro
• EMC Class: A
• Wire Feed Mechanism: 2-roll, single motor
• Wire Feed Speed: 0.5 – 18m/min
• Diameter of Feed Rolls: 30mm
• Supported Wire Diameters:
  • Fe: 0.6 – 1.2mm
  • Al: 0.8 – 1.2mm
  • Ss: 0.6 – 1mm
  • Fe-MC/FC: 1 – 1.2mm
• Max Wire Spool Capacity: 5kg
• Max Wire Spool Diameter: 200mm
• Torch Connection: Fixed (Integrated)
• Operating Temperature: -20 - 40 °C
• Storage Temperature: -40 - 60 °C
• Generator Compatible: Yes (Minimum 8 kVA recommended)
• Degree of Protection: IP23
• Certification: IEC 60974-1, -10
• Dimensions (L x W x H): 460mm x 221mm x 365mm
• Weight: 10.85 kg

Warranty:

• 2 Years Warranty covered by Kemppi (+ 1 Year with Registration)
