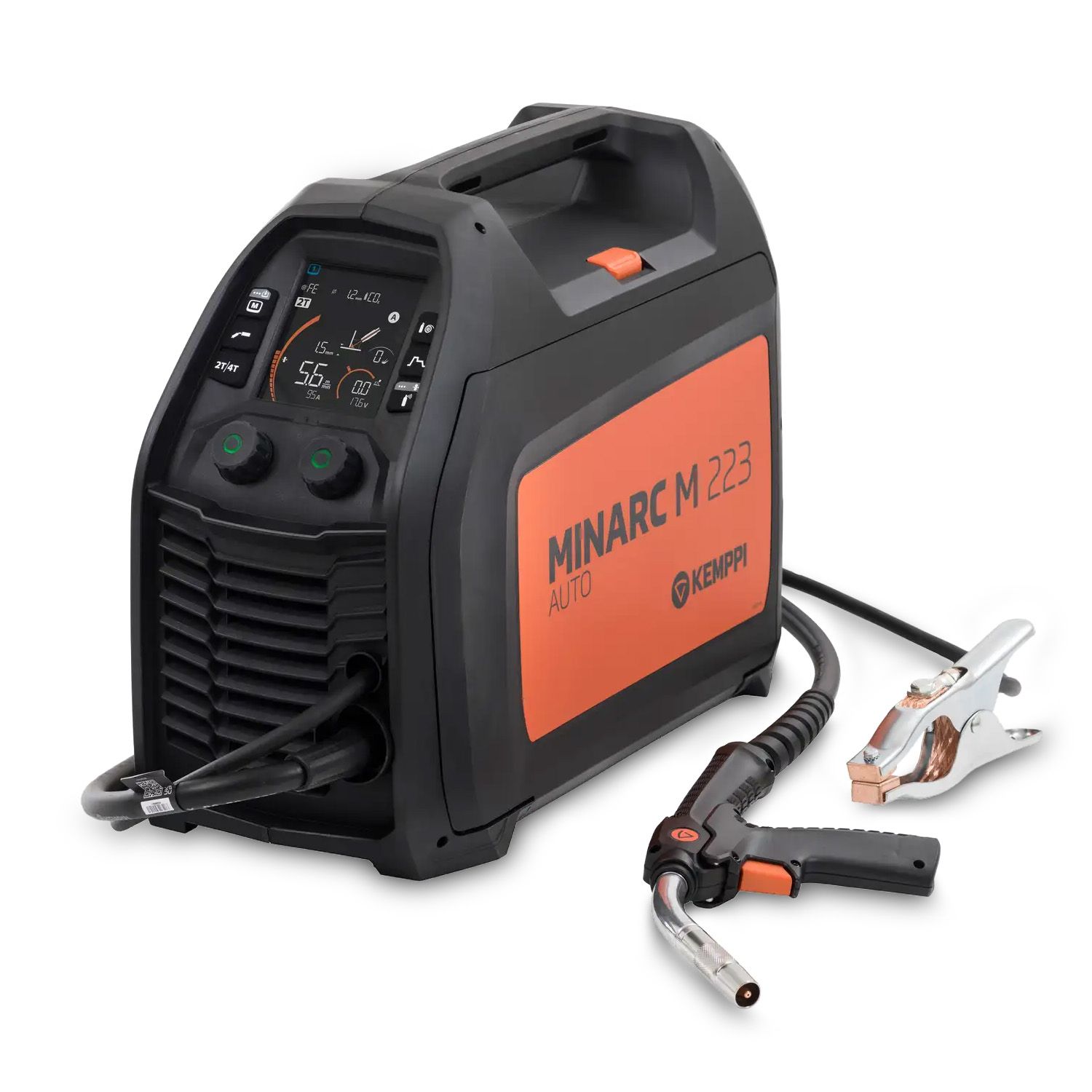

Kemppi MIM223GMAU Minarc M 223 110/240V MIG/MAG Auto Welder

Kemppi MIM223GMAU Minarc M 223 110/240V MIG/MAG Auto Welder

Premium portable 110/240V MIG/MAG welding machine providing 220 A @ 20% duty cycle from a 1-phase mains supply and weighs 12 kg. Manual and synergic welding options available. The power source can be used with a generator and it includes five memory channels. Compatible with a wide range of materials, including steel (Fe), stainless steel (Ss), aluminum (Al), CuSi, Flux cored and Gasless filler wires. Package includes power source, gas hose, drive roll, shoulder strap, earth return, power cable plug, gun handle and welding torch. For Australian markets.

Features:

• Dual-Voltage Versatility: Operates smoothly on a 230–240V single-phase supply while supporting 110–120V input when necessary
• Synergic 1-MIG Technology: Simplifies parameter selection by maintaining the correct voltage-to-speed ratio so operators spend less time dialing in settings and reduces operator error
• Broad Material Compatibility: Easily handles Steel (Fe), Stainless Steel (Ss), Aluminum (Al), CuSi, as well as Flux-cored and Gasless filler wires
• Memory Channels: Save and instantly recall up to five customized welding settings to eliminate repetitive setup time
• Digital Wire Feeding: A robust, single-motor 2-roll digital wire feeder ensures smooth, consistent wire delivery across a wide feed speed range (0.5–18 m/min)
• Site-Ready & Portable: Weighing only 12 kg with an included shoulder strap, plus full generator compatibility (minimum 8 kVA recommended)

Specifications:

• Welding Processes: Manual MIG/MAG, Synergic 1-MIG
• Input Voltage: 110V / 240V, 1-Phase (50/60 Hz)
• Welding Output (@ +40 °C):
  • 240V : 220 A @ 20% | 160 A @ 60% | 140 A @ 100%
  • 110V: 120 A @ 20% | 95 A @ 60% | 75 A @ 100%
• Output Range MIG:
  • 240V: 15 A / 11 V - 220 A / 28 V
  • 110V: 15 A / 11 V ... 120 A / 23 V
• Power factor at rated maximum current [λ]: 1
• Efficiency at rated maximum current [η]: 85%
• EMC Class: A
• Wire Feed Mechanism: 2-roll, single motor
• Wire Feed Speed: 0.5 – 18m/min
• Supported Wire Diameters:
  • Fe: 0.6 – 1.2mm
  • Al: 0.8 – 1.2mm
  • Ss: 0.6 – 1mm
  • Fe-MC:/FC 1.0 – 1.2mm
• Max Wire Spool Capacity: 5kg
• Max Wire Spool Diameter: 200mm
• Torch Connection: Fixed (Integrated)
• Operating Temperature: -20 - 40 °C
• Storage Temperature: -40 - 60 °C
• Generator Compatible: Yes (Minimum 8 kVA recommended)
• Degree of Protection: IP23
• Certification: IEC 60974-1, -10
• Dimensions (L x W x H): 460mm x 221mm x 365mm
• Weight: 12 kg

Warranty:

• 2 Years Warranty covered by Kemppi (+ 1 Year with Registration)
