Kemppi GXE305G6 6m Gas-Cooled 300A MIG/MAG Welding Torch

Kemppi GXE305G6 6m Gas-Cooled 300A MIG/MAG Welding Torch

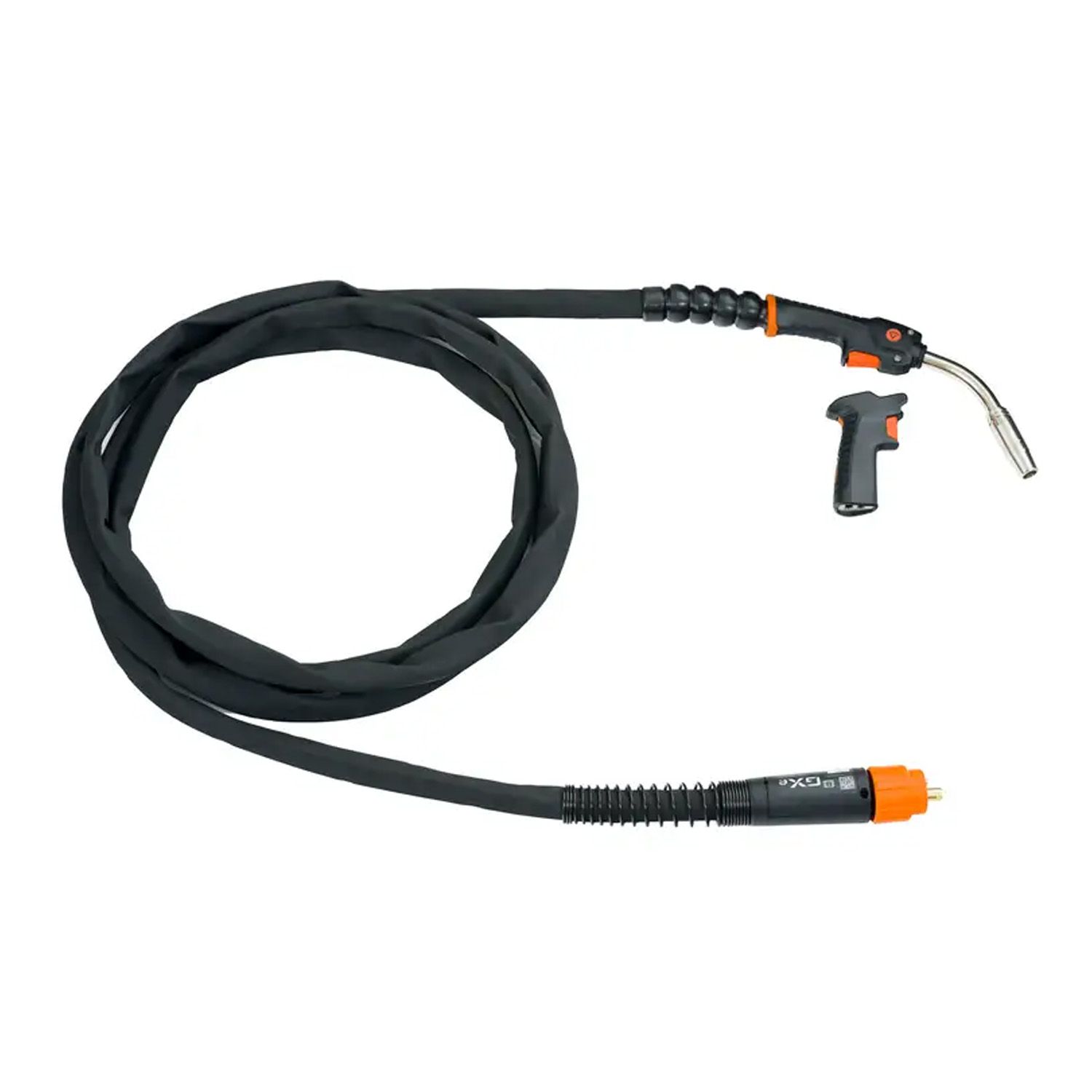

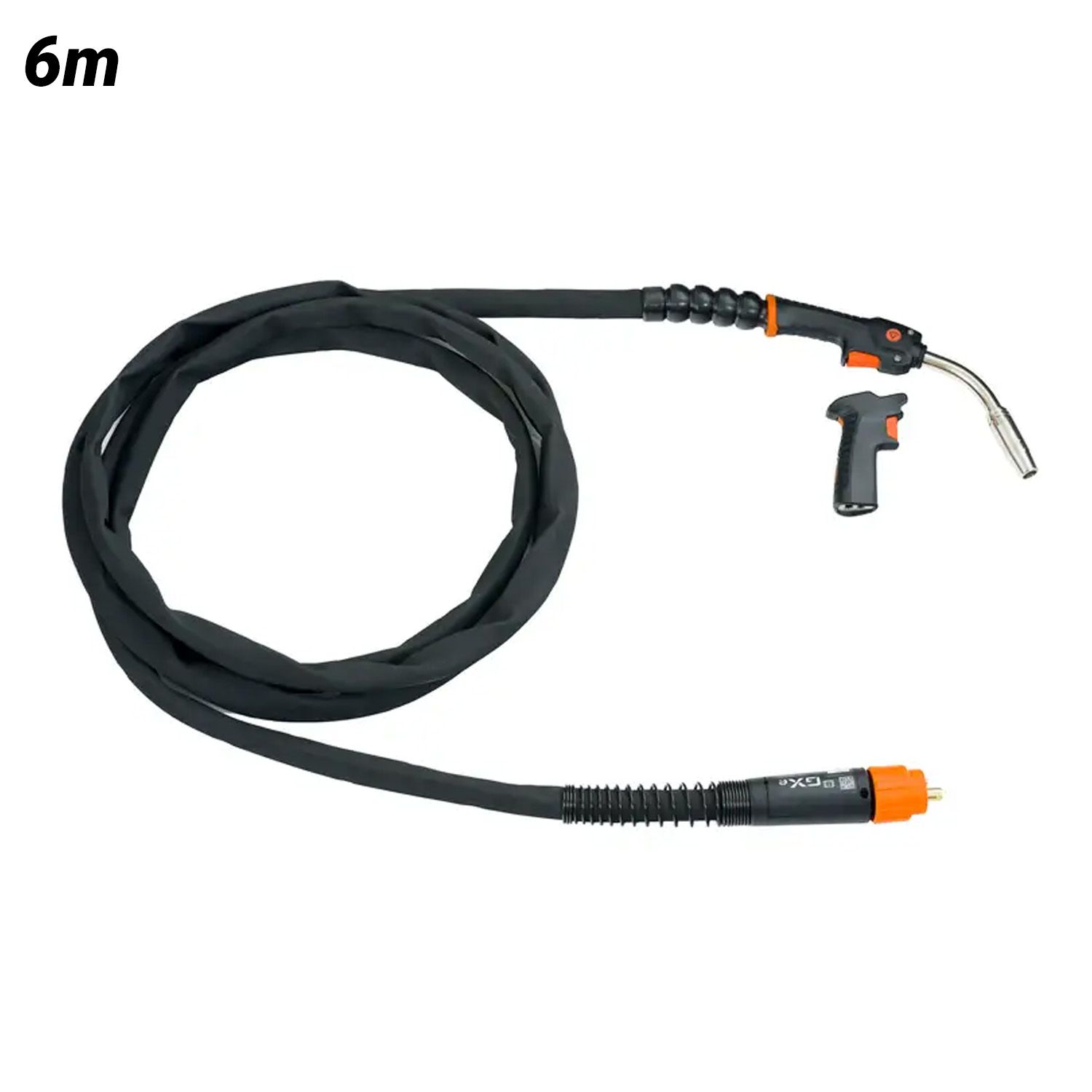

A gas-cooled 300 A MIG/MAG welding torch with Euro connector. Cable length is 6 meters.

Features:

• Professional Performance: A gas-cooled MIG/MAG welding torch designed to reliably deliver 300 A for demanding fabrication and welding tasks
• Extended Reach: Equipped with a generous 6-meter cable, giving you excellent freedom of movement to work around large structures without constantly repositioning the welding machine

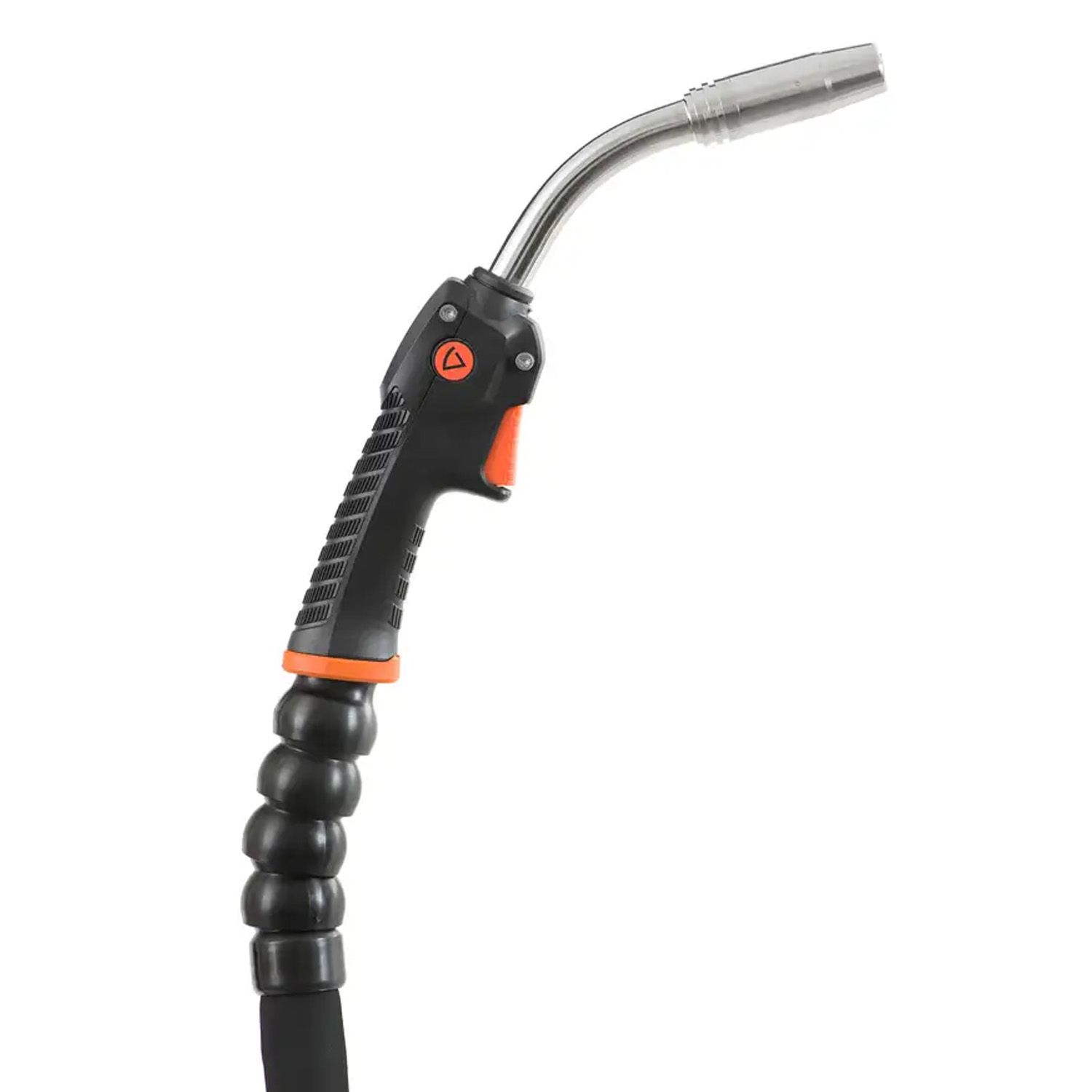

• Rotating G-Neck: The upgraded air-cooled neck features a robust rotation mechanism, allowing for easier torch positioning, reduced wrist fatigue, and improved arc stability in awkward welding positions
• Smart Cable & Ergonomics: Features an anatomically designed handle combined with a ball joint bending support at the cable connection. This provides maximum flexibility, a smoother wireline, and greatly reduces the load on the welder's wrist
• IP5X Protection: Fully protected against dust and built to resist humidity, ensuring long-term reliability and a cost-efficient lifespan even in harsh industrial environments
• Universal Compatibility: Fitted with a standard Euro connector for wide compatibility and shares the same proven consumables as the previous GX series, helping you streamline your inventory and reduce consumable costs

Specifications:

• Welding Connection Type: Euro
• Filler Wire Diameter:
  • Ss: 1 - 1.2mm
  • Al: 1.2mm
• Type of Cooling: Air
• Contact Tip: M10x1
• Method of Guidance: Manual
• Load Capacity:
  • 35% / Ar + 18% CO₂: 300 A
• Load Capacity Test:
  • Filler Wire Material: Fe
  • Filler Wire Diameter: 1.2mm
  • Stick Out Length: 18mm
  • Gas Flow: 15 L/min
• Remote Control: Optional
• Temperature:
  • Operating: -20 - 40°C
  • Storage: -40 - 60°C
• Standards: IEC 60974-7
• Gun Handle: Yes
• Neck Type: Rotating
• Neck Angle: 50°
• Neck Dimensions (L x H): 135mm x 96mm
• Cable Length: 6m
