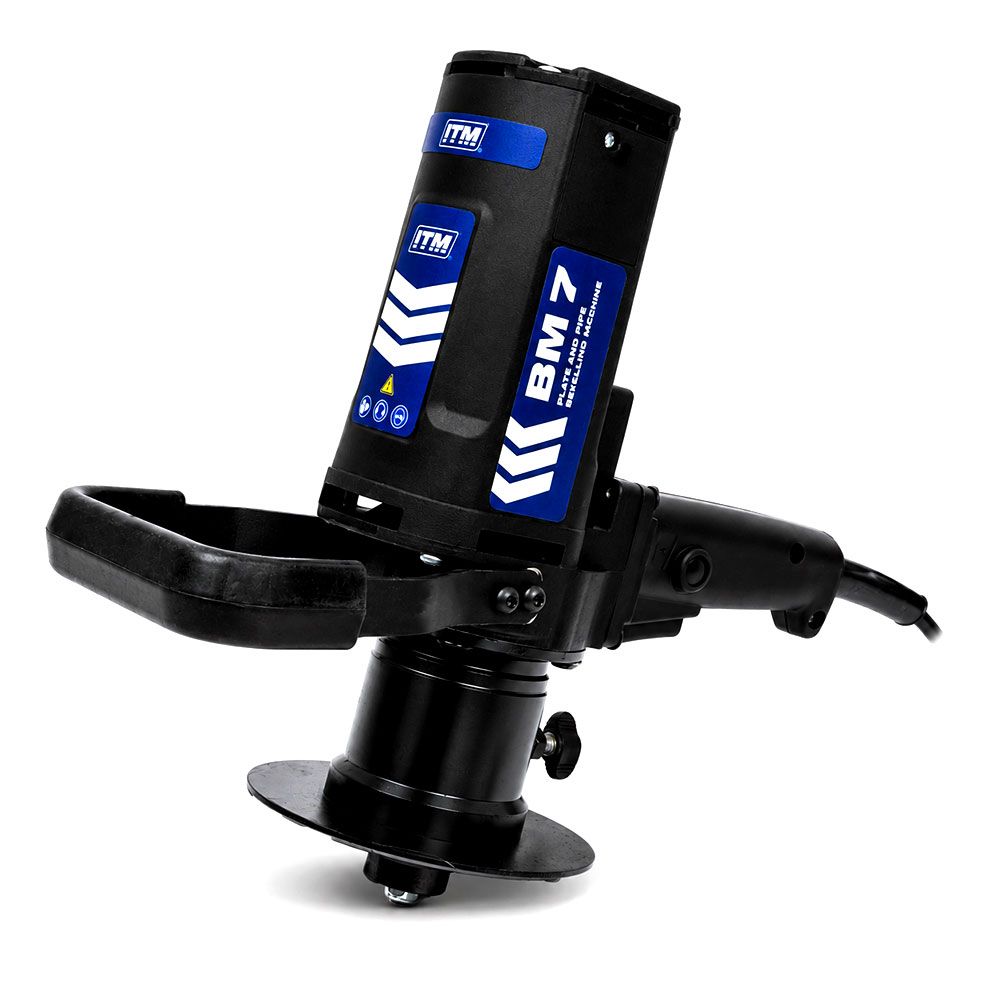

ITM WA-BM7 240V 1100W Motor Portable Beveller - Max Bevel Width 7mm

The ITM WA-BM7 Portable Beveller is a compact, lightweight beveling machine designed for fast and precise edge preparation on steel plates, pipes and contour profiles. Capable of producing 45° bevels or radius edges up to 7mm in a single pass, it is the ideal solution for fabrication, welding preparation and corrosion protection before painting.

Includes:

• 1 x BM7 Portable Beveller
• 1 x 45° Milling Head (without inserts)
• 1 x Plastic Carry Case
• 1 x Special Wrench
• 1 x Torx T15 Screwdriver
• 1 x 5g Screw Grease

Features:

• Lightweight and compact portable design
• Creates bevels and radius edges in a single pass
• Ideal for steel plates, pipes and contour profiles
• Perfect for edge preparation before welding or painting
• Produces R2, R3, R4 and R5 radius edges
• Continuous bevel width adjustment
• One 45° milling head for both V bevels and radius milling
• Suitable for top beveling applications
• Suitable for arched edge beveling
• Suitable for pipe outside diameter beveling
• Excellent for confined and restricted work areas
• Improves coating adhesion by removing sharp edges
• Powerful 1100W motor delivers reliable performance

Specifications:

• Power Supply: 220–240V, 50–60Hz
• Motor Power: 1100W
• No Load Speed: 6500rpm
• Maximum Bevel Width: 7mm
• Bevel Angle: 45° (30° optional)
• Radius Capacity: R2, R3, R4, R5
• Minimum Plate Thickness: 5mm
• Minimum Countersinking Diameter: 40mm
• Minimum Pipe ID: 40mm
• Dimensions (L x W x H): 327mm x 142mm x 319mm
• Weight: 6.1kg

Warranty:

• 2 Year Warranty Covered by ITM
