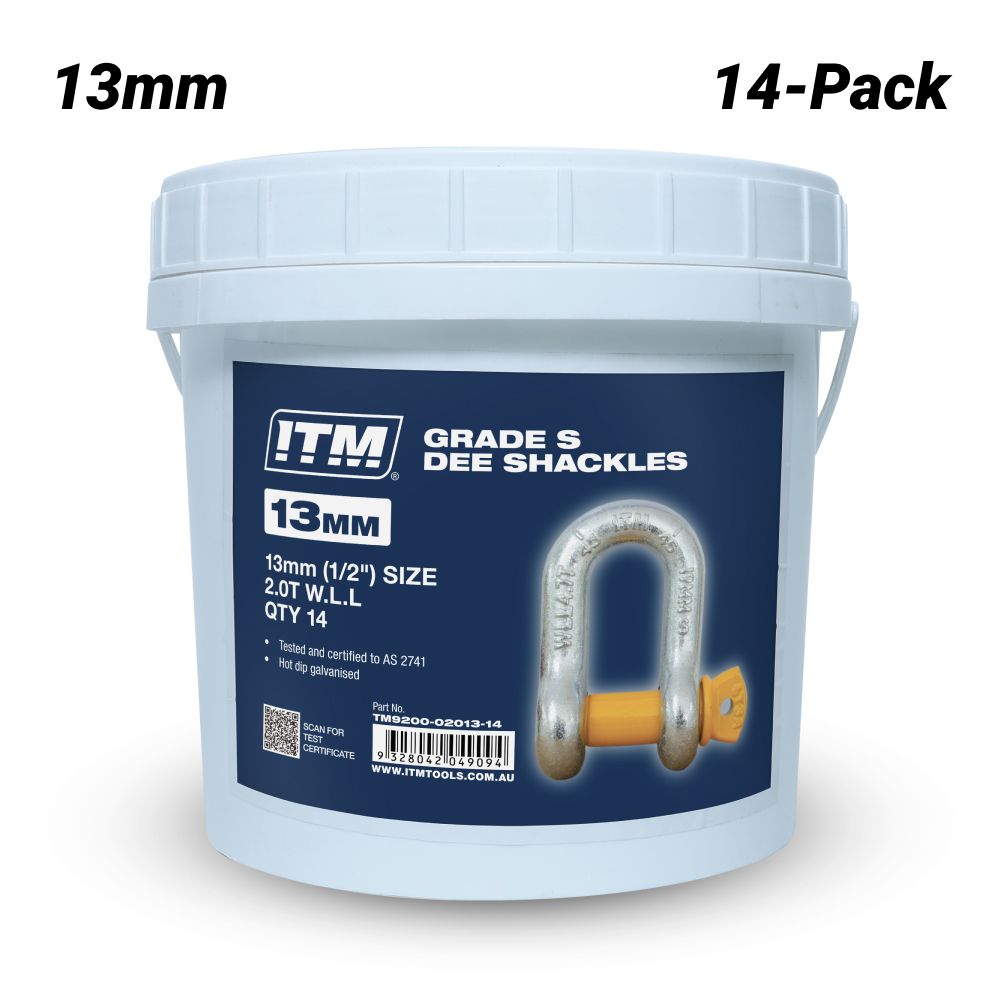

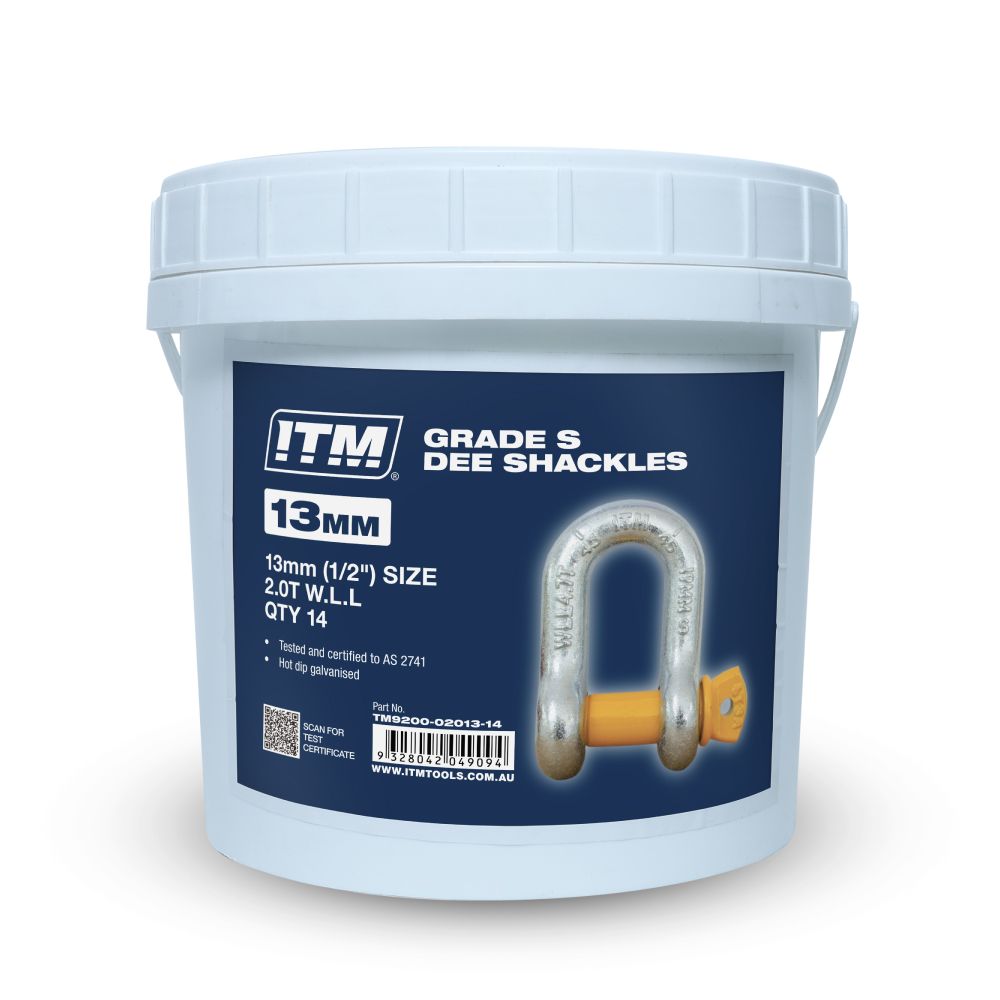

ITM TM9200-02013-14 14-Pack 2T 13mm Yellow Pin Grade S Screw Pin Dee Shackles

ITM TM9200-02013-14 14-Pack 2T 13mm Yellow Pin Grade S Screw Pin Dee Shackles

The ITM Yellow Pin Grade S Screw Pin Dee Shackles are supplied in a convenient 14-pack pail for lifting and rigging applications. Each shackle is drop forged, quenched and tempered, with a galvanised finish for durability.

The shackles are tested and certified to AS 2741, with a maximum proof load of twice the Working Load Limit and a minimum breaking force of six times the Working Load Limit.

Includes:

• 14 x ITM 2T 13mm Yellow Pin Grade S Screw Pin Dee Shackles

Features:

• Maximum proof load of 2 x Working Load Limit
• Minimum breaking force of 6 x Working Load Limit
• Drop forged, quenched and tempered
• Galvanised finish
• Supplied in a convenient storage pail

Specifications:

• Nominal Size: 13mm (1/2")
• Working Load Limit: 2T
• Dimension A: 21mm
• Dimension B: 16mm
• Dimension C: 42mm
• Pack Quantity: 14
• Standard: AS 2741
