ITM TM9200-00506-100 100-Pack 0.5T 6mm Yellow Pin Grade S Screw Pin Dee Shackles

ITM TM9200-00506-100 100-Pack 0.5T 6mm Yellow Pin Grade S Screw Pin Dee Shackles

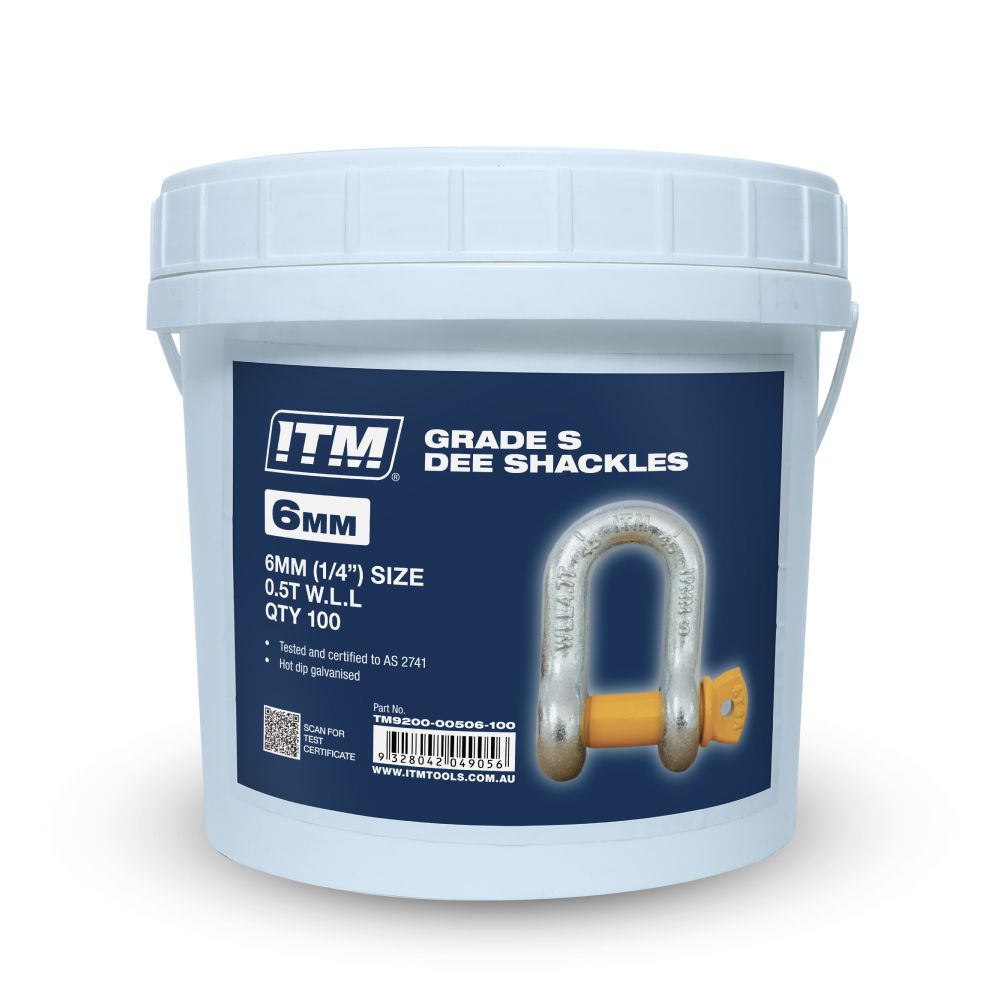

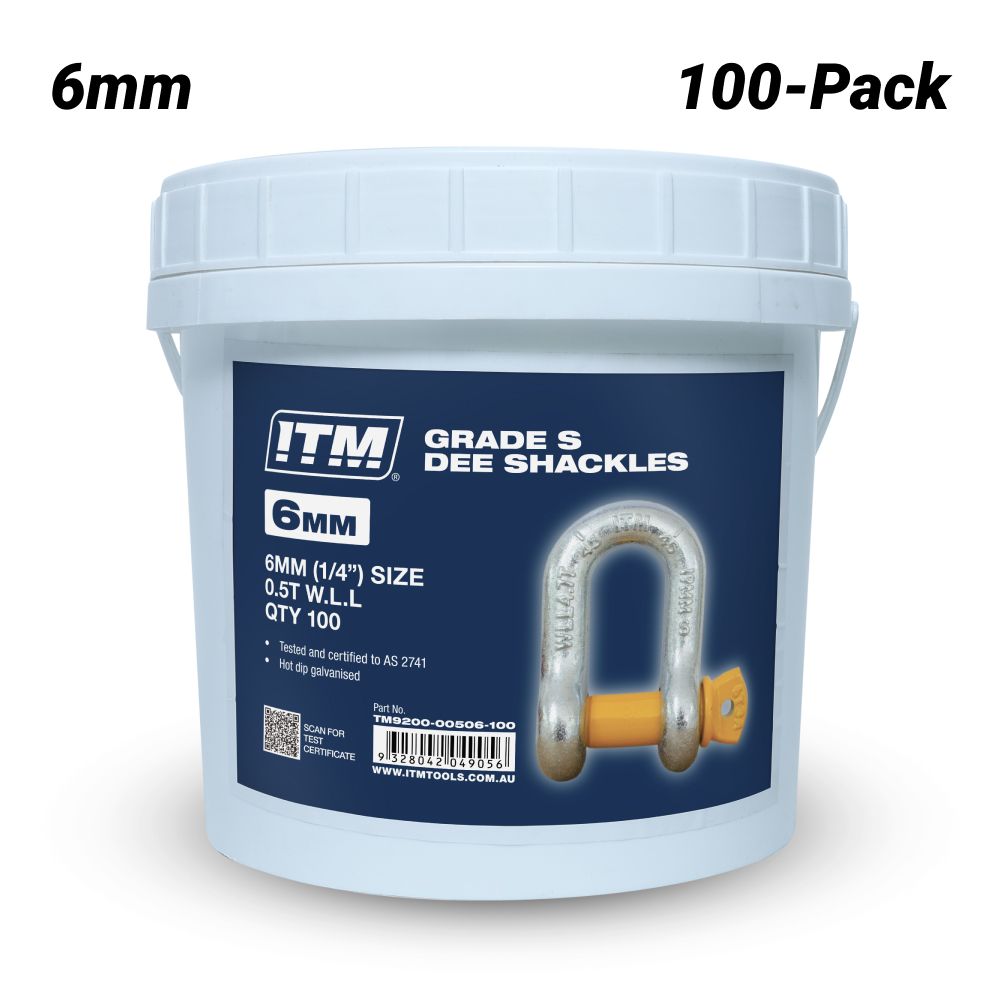

The ITM Yellow Pin Grade S Screw Pin Dee Shackles are supplied in a convenient 100-pack pail for lifting and rigging applications. Each shackle is drop forged, quenched and tempered, with a galvanised finish for durability.

The shackles are tested and certified to AS 2741, with a maximum proof load of twice the Working Load Limit and a minimum breaking force of six times the Working Load Limit.

Includes:

• 100 x ITM 0.5T 6mm Yellow Pin Grade S Screw Pin Dee Shackles

Features:

• Maximum proof load of twice the Working Load Limit
• Minimum breaking force of six times the Working Load Limit
• Drop forged, quenched and tempered
• Galvanised finish
• Supplied in a storage pail

Specifications:

• Nominal Size: 6mm (1/4")
• Working Load Limit: 0.5T
• Dimension A: 12mm
• Dimension B: 8mm
• Dimension C: 25mm
• Pack Quantity: 100
• Standard: AS 2741
