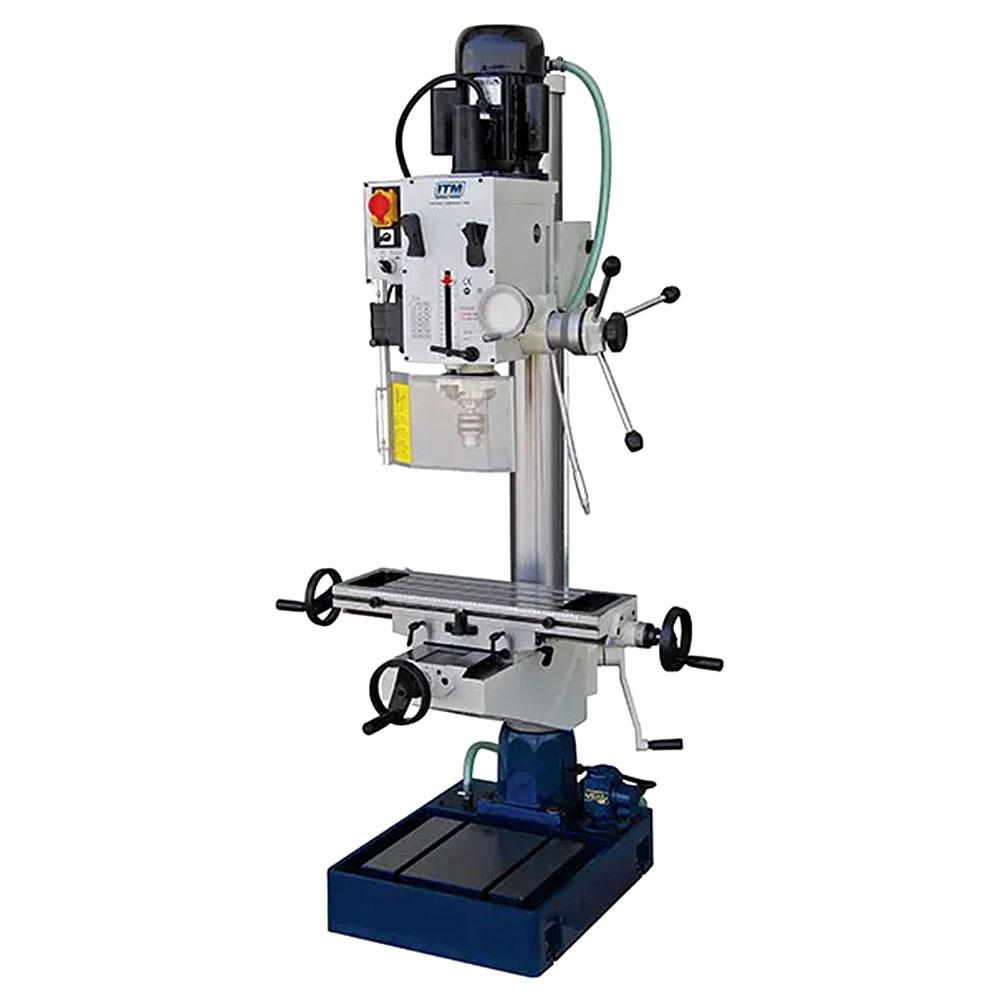

ITM TGMD400-3 1120W Geared Head Mill Drill with Coolant - 3 Phase

ITM TGMD400-3 1120W Geared Head Mill Drill with Coolant - 3 Phase

This 1120W Geared head mill drill with coolant features quality precision when drilling, milling & tapping. The geared head is capable of tilting 90° to the right and left. It can be used in forward and reverse operation.

Features:

• Quality precision machine for drilling, milling & tapping
• No. 4 Morse taper spindle
• 1120W motor, three phase
• Micro feed precision
• Geared head tilts 90° right & left
• Forward and reverse operation
• Recirculating coolant system
• Accessories include arbor, draw bar, milling chuck, 16mm drill chuck, drill sleeves

Specifications:

• Motor: 1120W
• Voltage: 415V
• Phase: 3
• Max Drilling Capacity: 40mm
• Spindle Taper: MT4
• Spindle Nose To Base: 1180mm
• Spindle Nose To Table: 610mm
• Spindle To Column: 272.5mm
• Diameter Of Column: 115mm
• Quill Travel: 120mm
• Swing: 660mm
• Spindle Speeds: 75, 170, 280, 540, 960 & 1600rpm
• Table Surface: 600mm x 190mm
• Cross Travel: 190mm
• Longitude Travel: 370mm
• Overall Height: 1770mm
• Base Dimensions: 650 x 450mm
• Weight: 340kg
