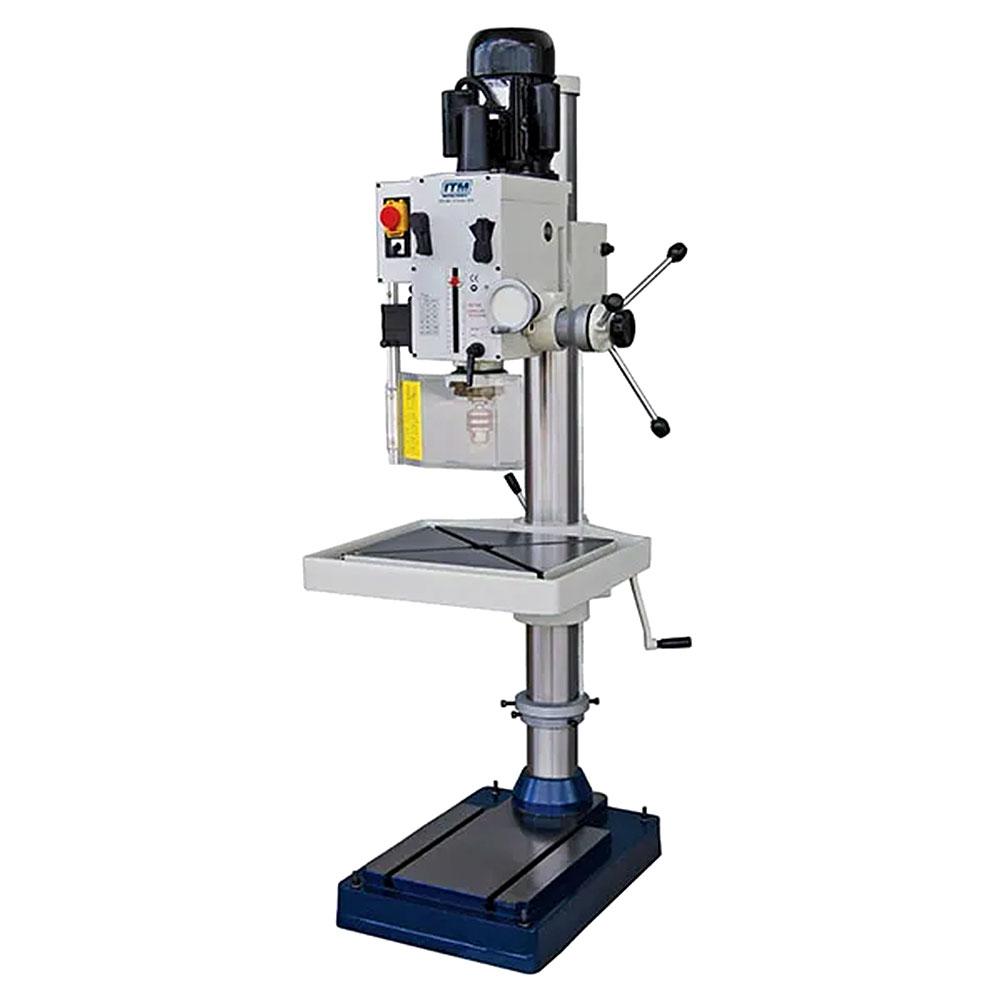

ITM TGD400-3 1120W Geared Head Drill - 3 Phase

ITM TGD400-3 1120W Geared Head Drill - 3 Phase

This 1120W Geared head drill features quality precision when drilling, milling & tapping. The geared head is capable of tilting 90° to the right and left. It can be used in forward and reverse operation.

Features:

• Quality precision machine for drilling, milling & tapping
• No. 4 Morse taper spindle
• 1120W motor, three phase
• Micro feed precision
• Geared head tilts 90° right & left
• Forward and reverse operation
• Accessories include arbor, 16mm drill chuck, drill sleeves

Specifications:

• Motor: 1120W
• Voltage: 415V
• Phase: 3
• Max Drilling Capacity: 40mm
• Spindle Taper: MT4
• Spindle Nose To Base: 1180mm
• Spindle Nose To Table: 715mm
• Spindle To Column: 272.5mm
• Diameter Of Column: 115mm
• Swing: 660mm
• Spindle Speeds: 75, 170, 280, 540, 960 & 1600rpm
• Table Dimensions: 540mm x 470mm
• Overall Height: 1770mm
• Base Dimensions: 650mm x 450mm
• Weight: 320kg
