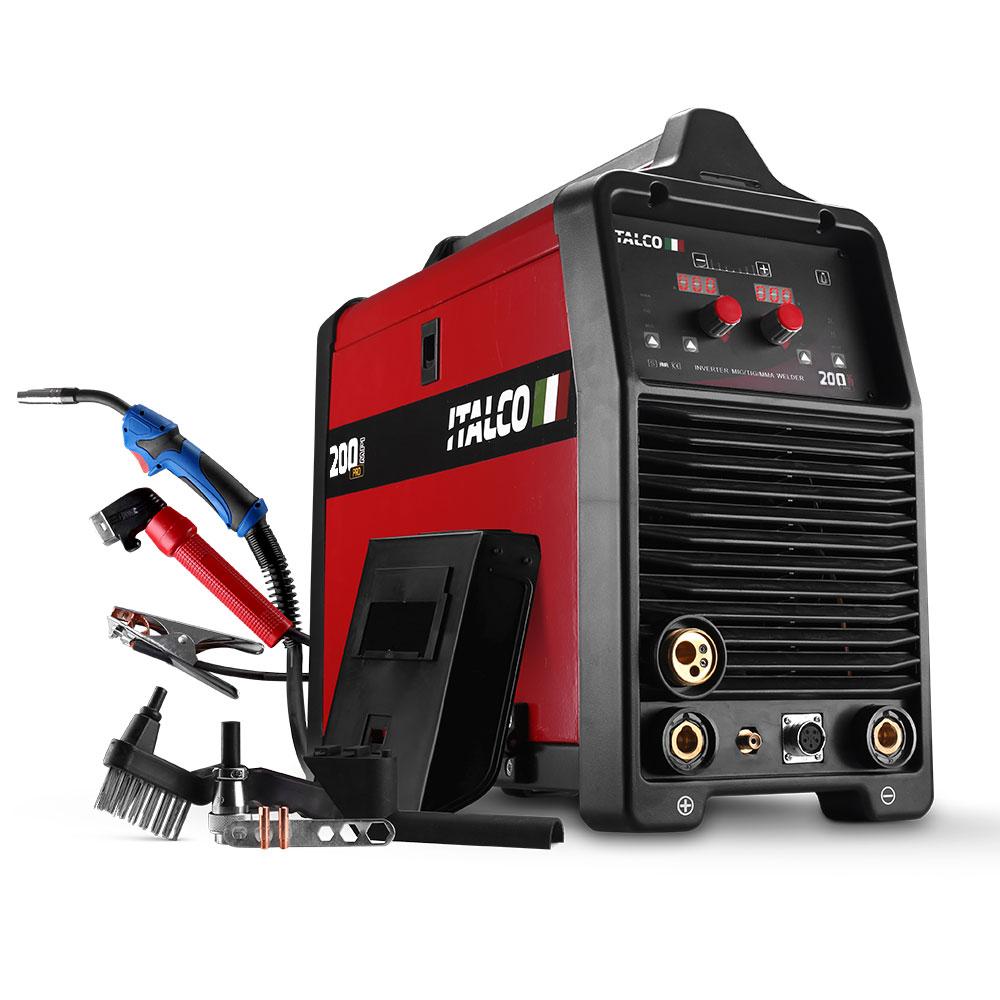

Italco 200MPI 200 Inverter 200 amp MIG/Arc/TIG Welder

Italco 200MPI 200 Inverter 200 amp MIG/Arc/TIG Welder

The Italco 200MPI offers the best all-in-one solution for all welding tasks in it's class. Able to produce smooth, accurate work this Italian designed welding machine is capable of all welding or joining work. Suitable for welding stainless steel, aluminium, copper, iron, brass, titanium, carbon steel and more, the 200MPI features precise digital displays and provides incomparible quality to other machines in it's class.

While every transformer system has it's own unique characteristics the Italco 200MPI allows you to individually adjust the dynamics of the arc to suit the work and welding position at hand and will find the simplest and fastest arc setting that is most suitable in each case. The rest of the job is carried out by the intelligent arc control technology incorporated within the machine to achieve a perfect weld seam every time.

Light Industrial Application:

• Thin sheet metal fabrication
• Car Repair
• Agriculture
• Instrallation and set-up
• Repair and maintenance

Processes:

• MIG (GMAW)
• TIG (GTAW) Lift-Arc
• Stick (SMAW)

Specifications:

• Input Power: 115/230V 1-Phase
• Amperage Range: 20-200A
• Weight: 16kg
• Rated Input Voltage: 1PH ~ 230V +/- 15%
• Max. Load Power Capacity: 8KVA
• Rated Duty Cycle(40oC) 35%:
• MIG: 200A/24V
• MMA:200A/28V
• TIG: 200A/18V
• MIG: 130A/20.5V
• MMA: 130A/25.2V
• TIG: 130A/15.2V
• Welding Current/Voltage Range:
• MIG:20A/15V ~200A/24V
• MMA: 20A/20.8V~200A/28V
• TIG: 20A/10.8V~200A/18V
• Open Circuit Voltage: 60~80V
• Power Factor: 0.8
• Efficiency: 80%
• Pre-Gas Time: 0-15S
• Flow-Gas Time: 0-15S

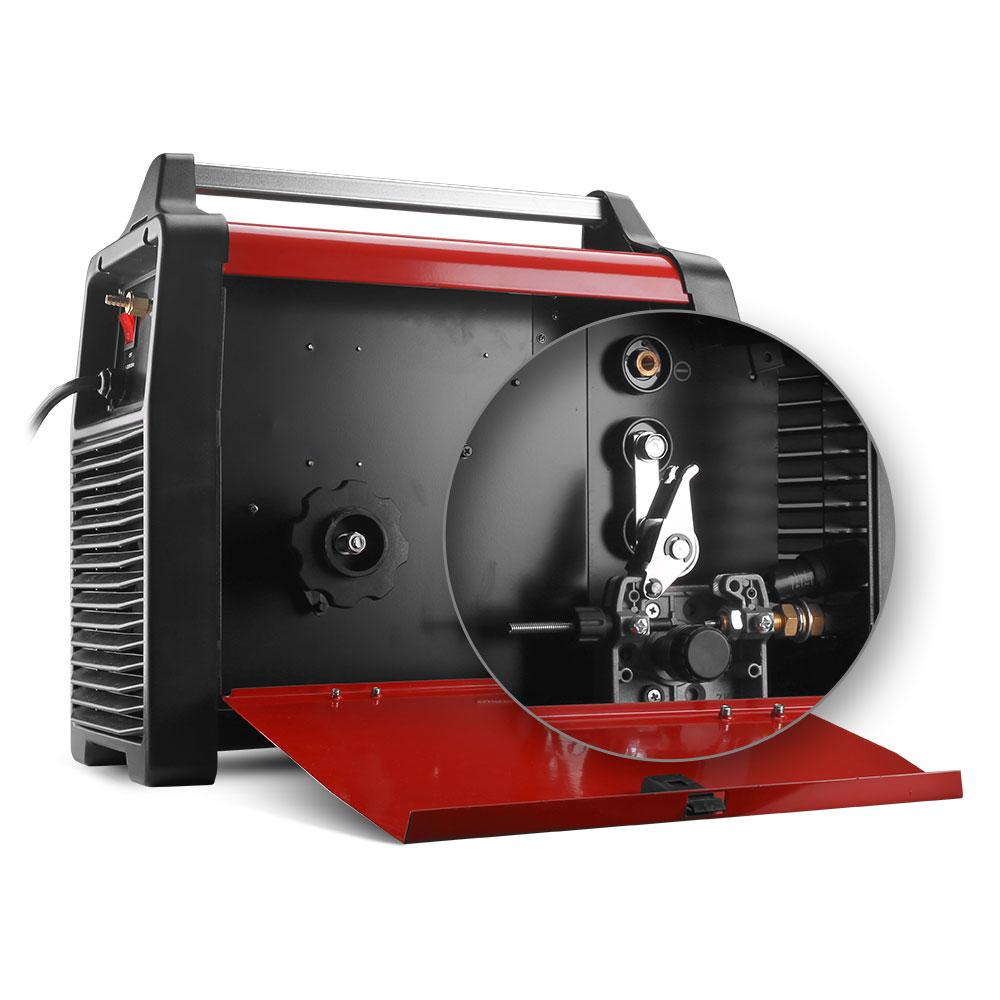

• Wire-feed Mechanism: 2 Rollers
• Wire-feed Speed Range: 1-13 m/min
• Wire Spool Capacity: 200mm (5kg)
• Filler Wires (mm) Fe solid wire: 0.6~1.0mm

Warranty

12 Month Warranty Included
