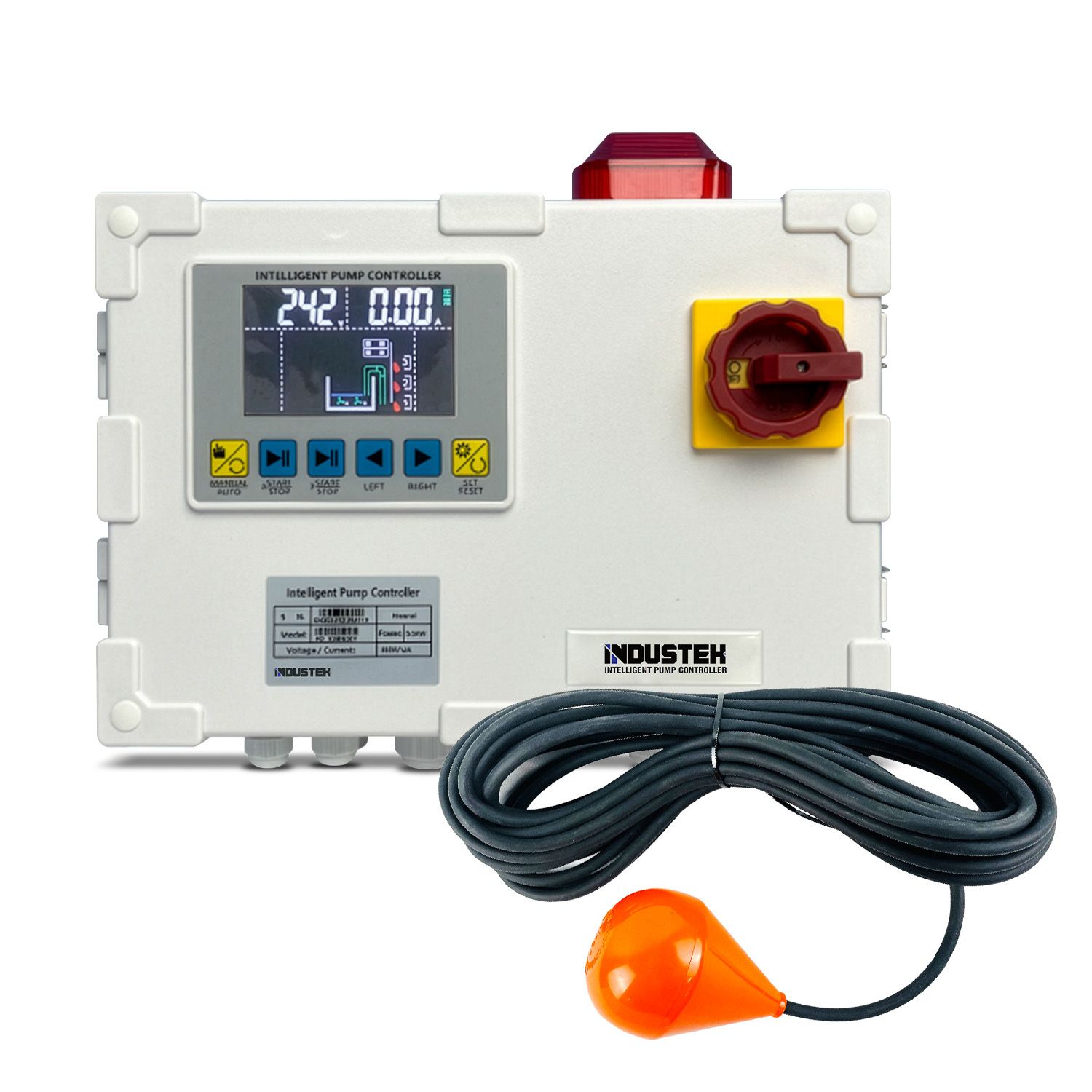

Industek IPC43 Dual Pump Industrial Water Pump Controller with 5m Float Switch

Industek IPC43 Dual Pump Industrial Water Pump Controller with 5m Float Switch

Take complete control of your plumbing system with the Industek IPC43 Dual Pump Industrial Water Pump Controller, the ultimate high-performance solution for demanding commercial and industrial applications. Designed to keep your operations running seamlessly, it features an intuitive LCD that delivers real-time system diagnostics and instant status updates at a glance. Housed in a robust IP54-rated heavy-duty enclosure built to conquer harsh, dusty, and wet environments, this advanced controller integrates an interlocked safety power switch, a built-in circuit breaker, and a heavy-duty contactor to provide uncompromising operator safety and equipment protection.

Features:

• Intuitive LCD: Features real-time monitoring of the floating ball status and pump operation, delivering crystal-clear system diagnostics at a glance
• IP54-Rated Heavy-Duty Plastic Case: Engineered with an IP54 protection grade, offering robust dust and splash resistance for reliable performance in diverse and harsh environments
• Interlocked Safety Power Switch: Controls system power with an integrated safety mechanism that prevents the cabinet from being opened while operational, ensuring maximum user protection
• Integrated Air Switch (Circuit Breaker): Provides vital short-circuit and overload protection, safeguarding personnel from hazards and preventing costly equipment damage
• Heavy-Duty Contactor: Safely manages high-current power switching, engaging the pump instantly only when all automated control conditions are met
• Dedicated Power Connection: Heavy-duty terminals for stable, secure main power input. Water Pump Inlet Cable Connection: Dedicated, secure termination point for reliable power delivery straight to the pump
• Flexible Control Connections: Universal terminal block supporting direct integration with either float switches or liquid level electrodes

Specifications:

• PDX Automatic Intelligent Water Pump Controller:
  • Undervoltage Operation Time: <2 Seconds
  • Undervoltage Operating Voltage: Nominal Voltage 80%
  • Overpressure Operation Time: <2 Seconds
  • Overvoltage Operating Voltage: Nominal Voltage 120%
  • Overload Operation Time: <5 Seconds
  • Overload Fault Recovery Time: 5 Minutes (Modifiable)
  • Dry Rotation Time: <5 Seconds
  • Dry Turn Fault Recovery Time: 30 minutes (Modifiable)
  • Rotation Time: <1 Second
  • Failback Recovery Time: 30 Minutes (Modifiable)
  • Short Circuit Operation Time: <0.1 Seconds
  • Out-of-phase Action Time: <2 Seconds
  • Liquid Level Transmission Distance: <1000 Meters
  • (Note: Dry rotation protection, overload protection, and blocked rotation protection can be set by percentage point).
• Heavy Duty Ball Level Float Switch:
  • Maximum Diving Depth: 20m
  • Cable Length: 5m
  • Working Temperature: -15°C to +80°C
  • Storage Temperature: -30°C to +100°C
  • Protection: IP68 Grade
  • Maximum Operating Current: 5A
  • Maximum Operating Voltage: 250V AC

Warranty:

• 12 Month Warranty covered by Industek
