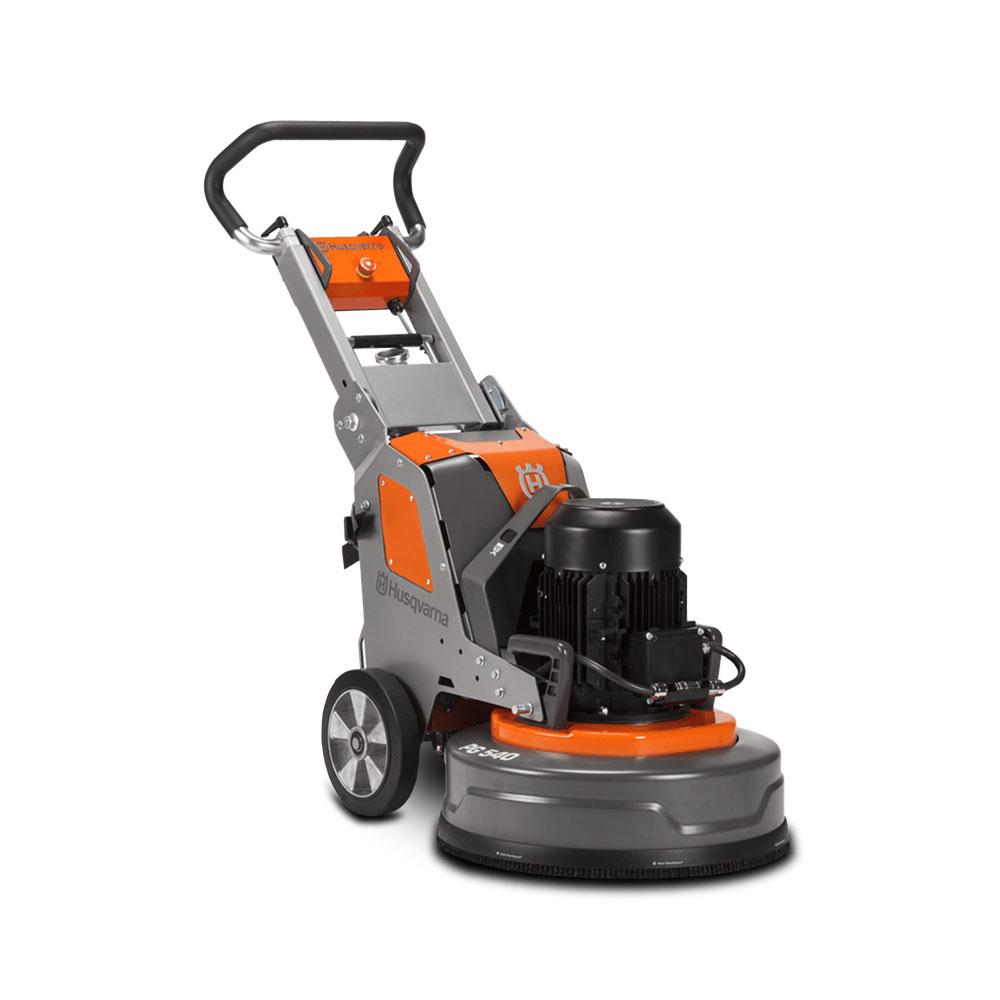

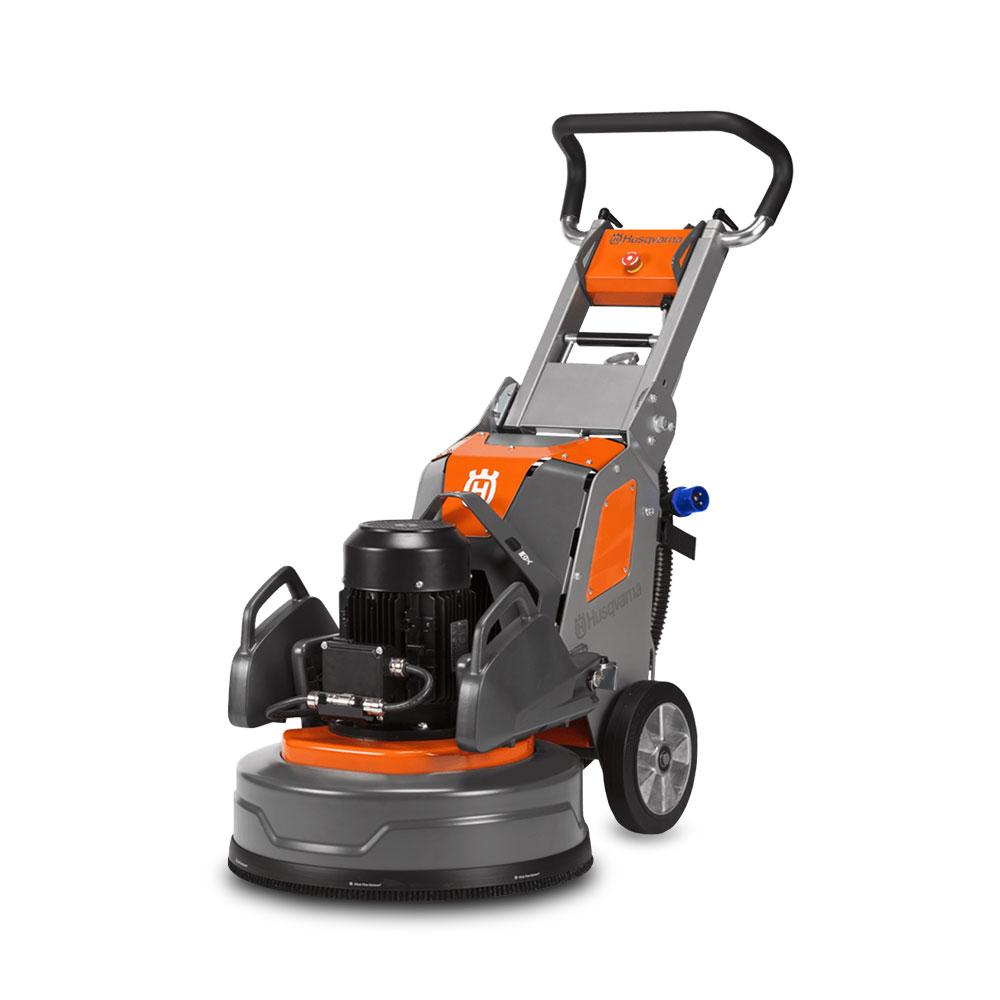

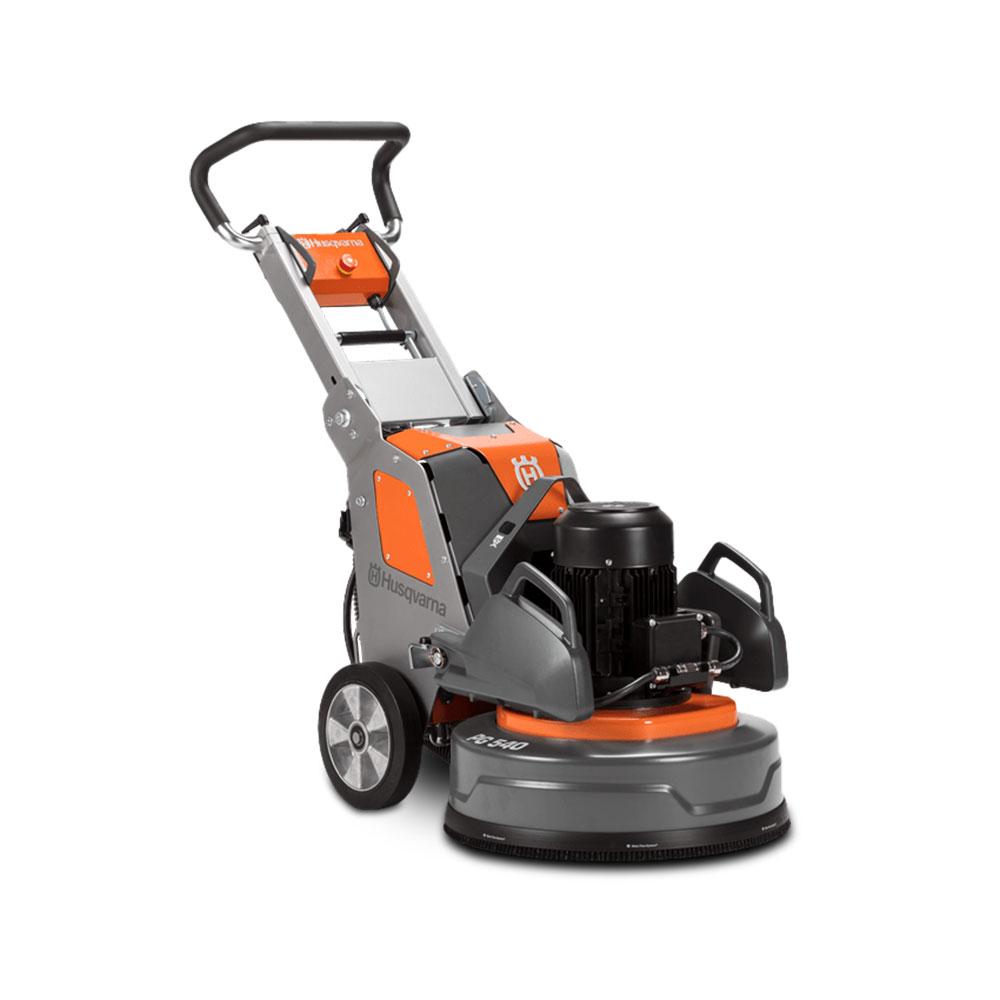

Husqvarna PG540P1 (967977407) 2.2kW Single Phase 540mm (21-1/4") Concrete Floor Grinder

Husqvarna PG540P1 (967977407) 2.2kW Single Phase 540mm (21-1/4") Concrete Floor Grinder

The PG 540 (3 hp / 2.2 kW) is a single phase, compact and versatile planetary floor grinder, perfect for smaller jobs. It combines a smart compact design for easy transportation with real work-horse performance and sheer grinding power. Thanks to the split-chassis design, the PG 540 fits in most standard cars. It's easy to handle, tilt and operate with optional adjustable weights for extra grinding pressure. Suitable for all applications: floor prep, grinding and polishing. The PG 540 is the compact choice for the HIPERFLOOR™ concrete polishing system. To maximise reliability and reduce maintenance, the vital components of the PG 540 are protected against dust and slurry inside the hermetically sealed grinding head and electrical cabinet.

Features:

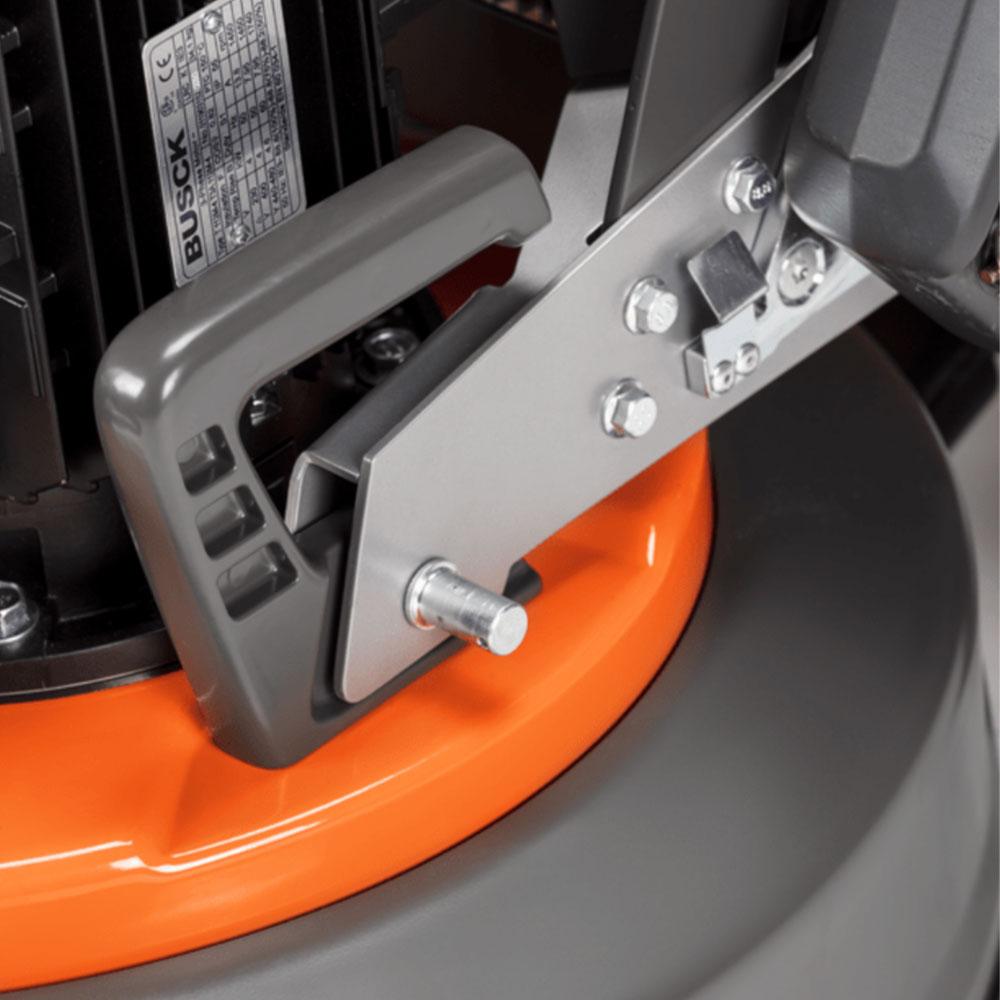

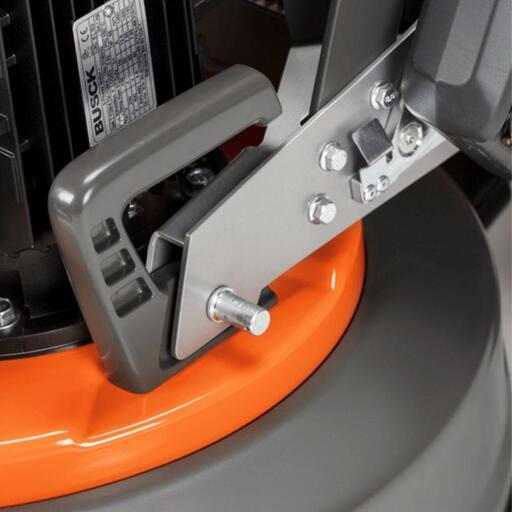

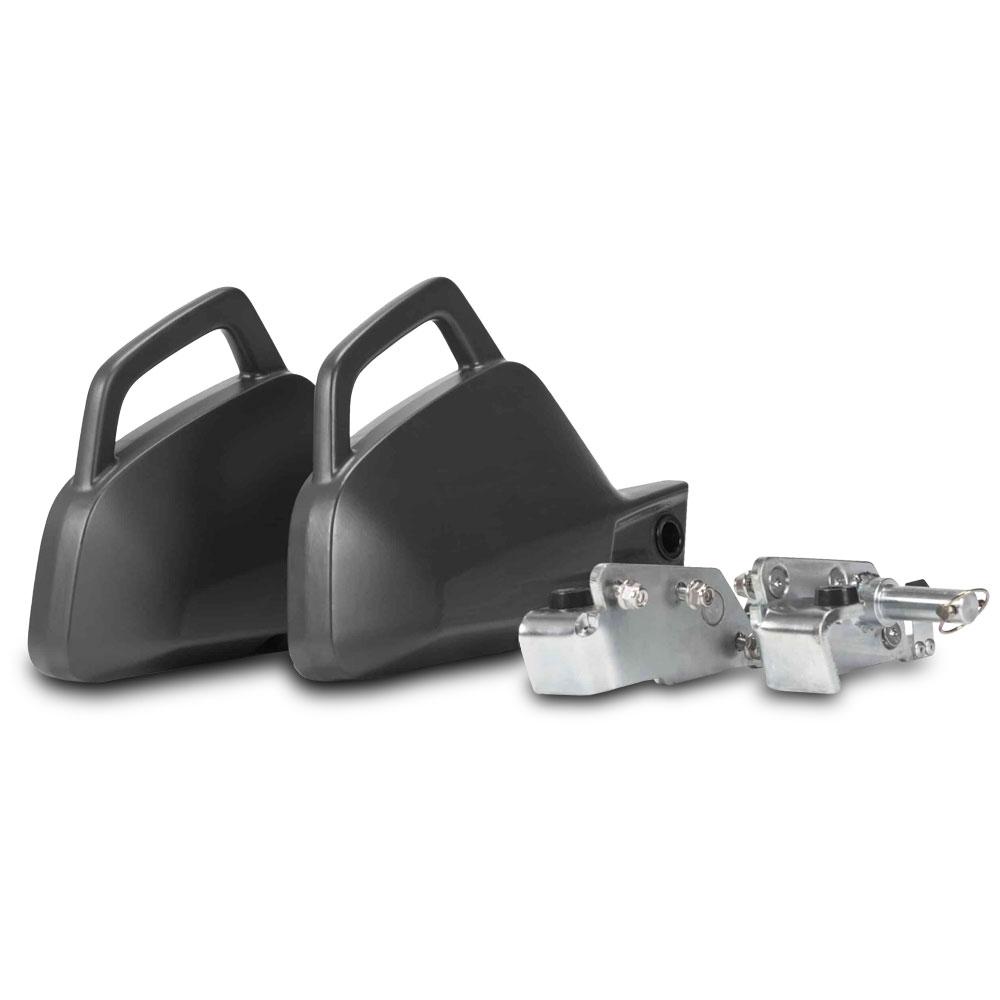

• Adjustable Grinding Pressure - allow to adjust grinding pressure in three pre-set positions.
• Sealed Grinding Head - No dust or water can intrude to damage components.

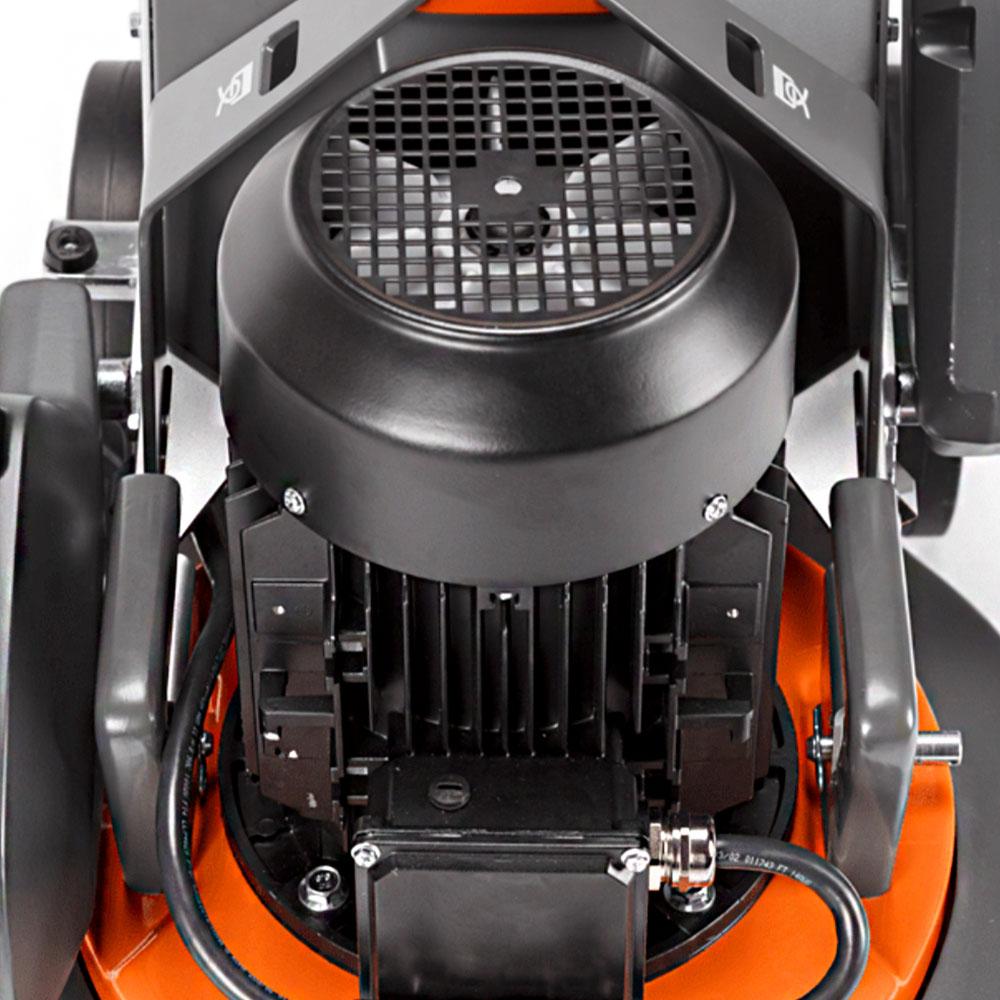

• Protected Electronics - Dust sealed electrical cabinet with external cooling technology.
• Hour and RPM Meter - Possibility to log operating hours and read the RPM of the machine.
• Efficient Dust Management - Self-adjusting floating cover with brush list follows the surface and gives a tight seal to prevent the dust from entering the working environment.
• Time-saving Tool Change - Redi Lock® is an instant and hassle-free system for changing diamond tooling.

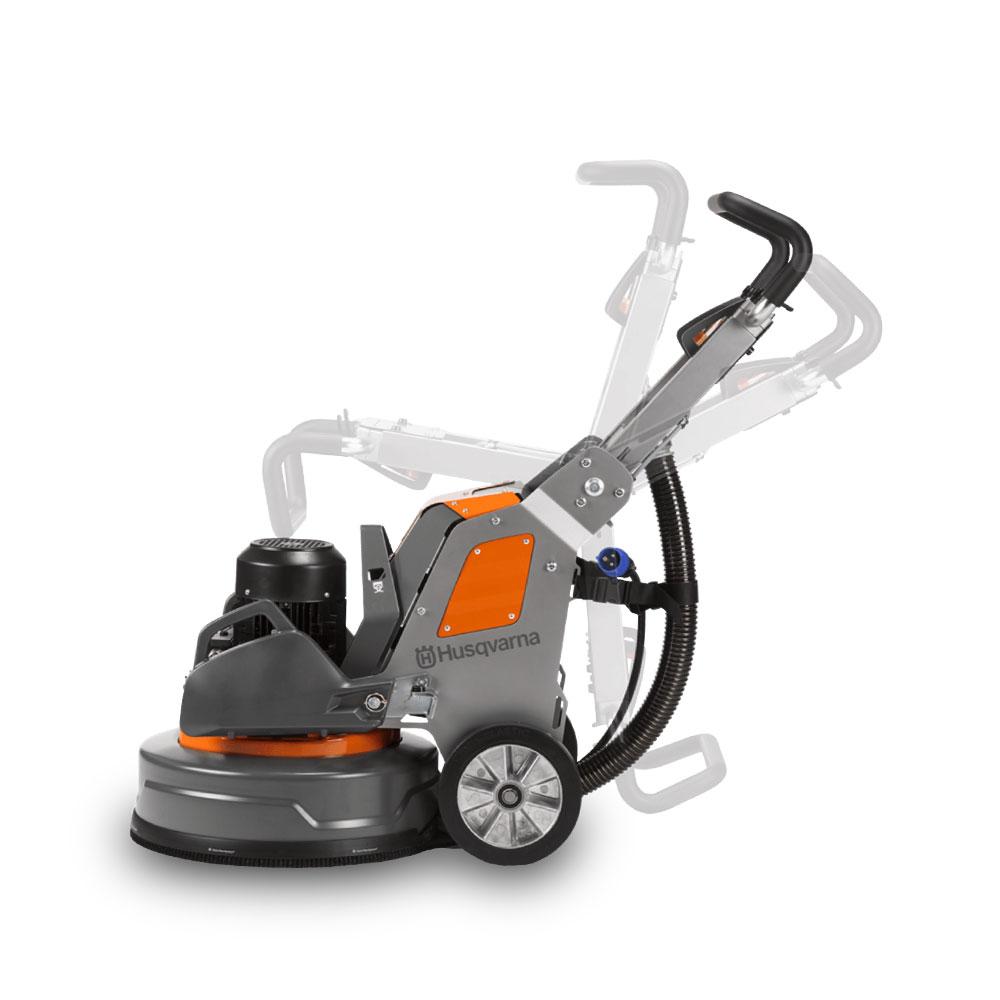

• Ergonomic Handle - Adjustable handle for better ergonomics.

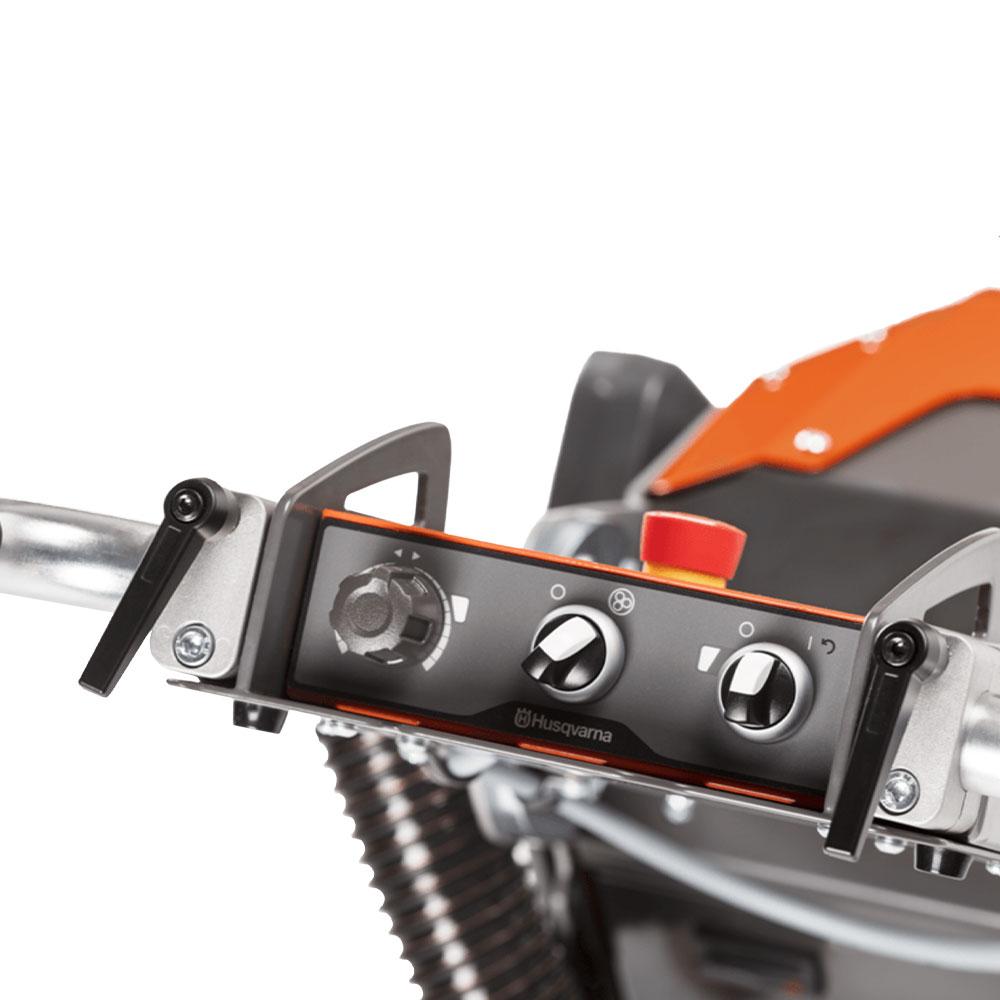

• Always in Control - The control panels in the new range are completely redesigned to offer more control and feedback, even with gloves on.
• Fleet Ready - Husqvarna Fleet Services™ is a digital, cloud-based asset management service that gathers and presents key machine data via machine sensors that are either embedded or retrofitted to the machines exterior.

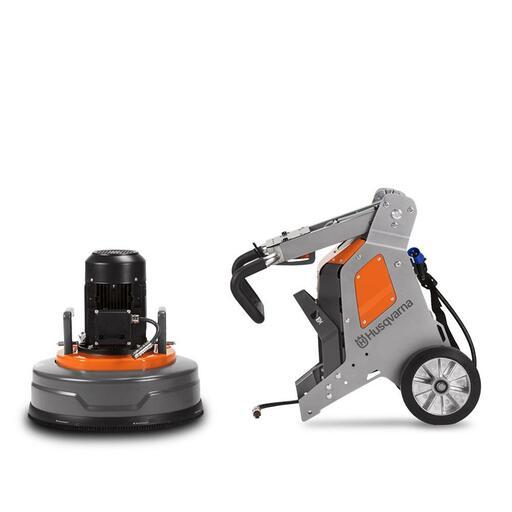

• Fits into most standard cars - Split-chassis design of the handy PG 540 model makes transportation fast and easy.

Specifications:

• Rated Input: 2.2kW
• Rated Current: 13A
• Voltage: 200-240V
• Phases: 1
• Pins: 2P+E
• Frequency: 60Hz
• Grinding width: 500mm

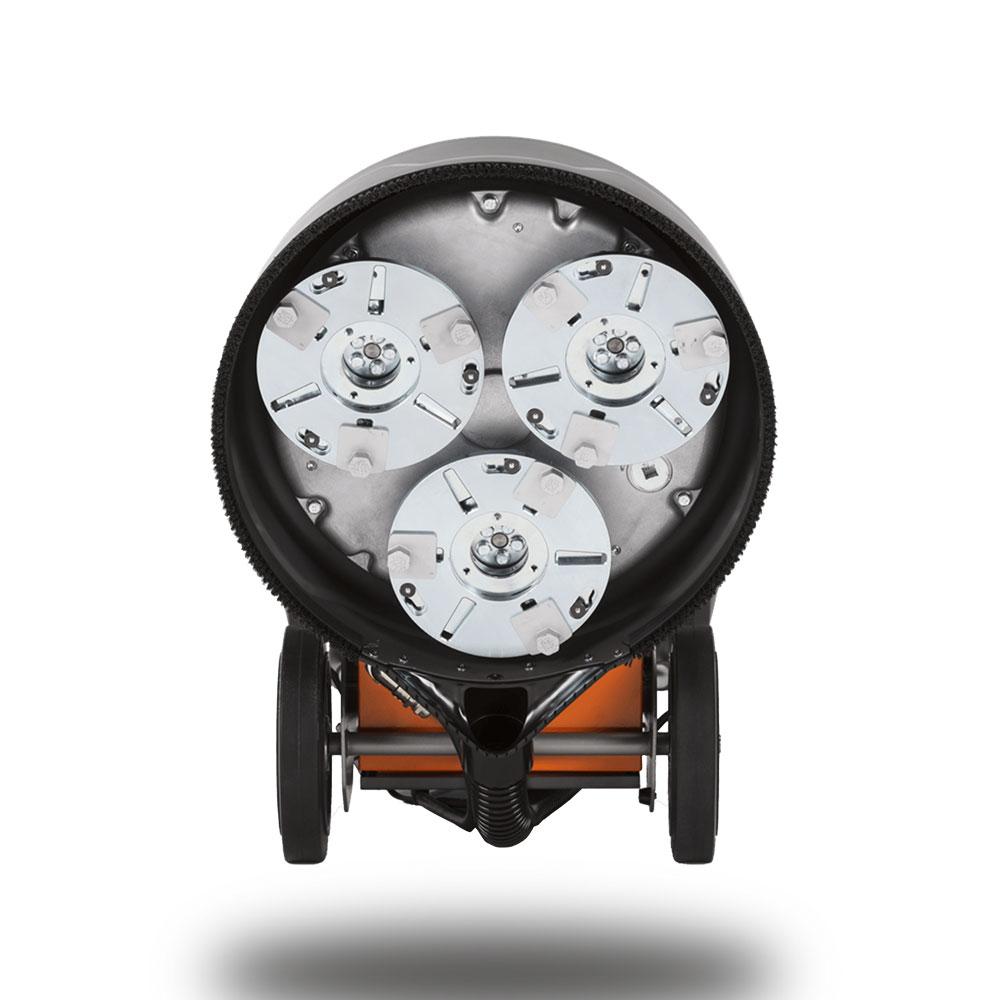

• Number of grinding discs: 3
• Grinding disc diameter: 230mm
• Grinding disc speed min/max: 348-1160rpm
• Grinding pressure: 75kg
• Direction of rotation:
  • Grinding Head: Clockwise
  • Grinding Disc: Counter-clockwise
• Dimensions (L x W x H): 1015mm x 560mm x 735mm
• Weight: 169kg
