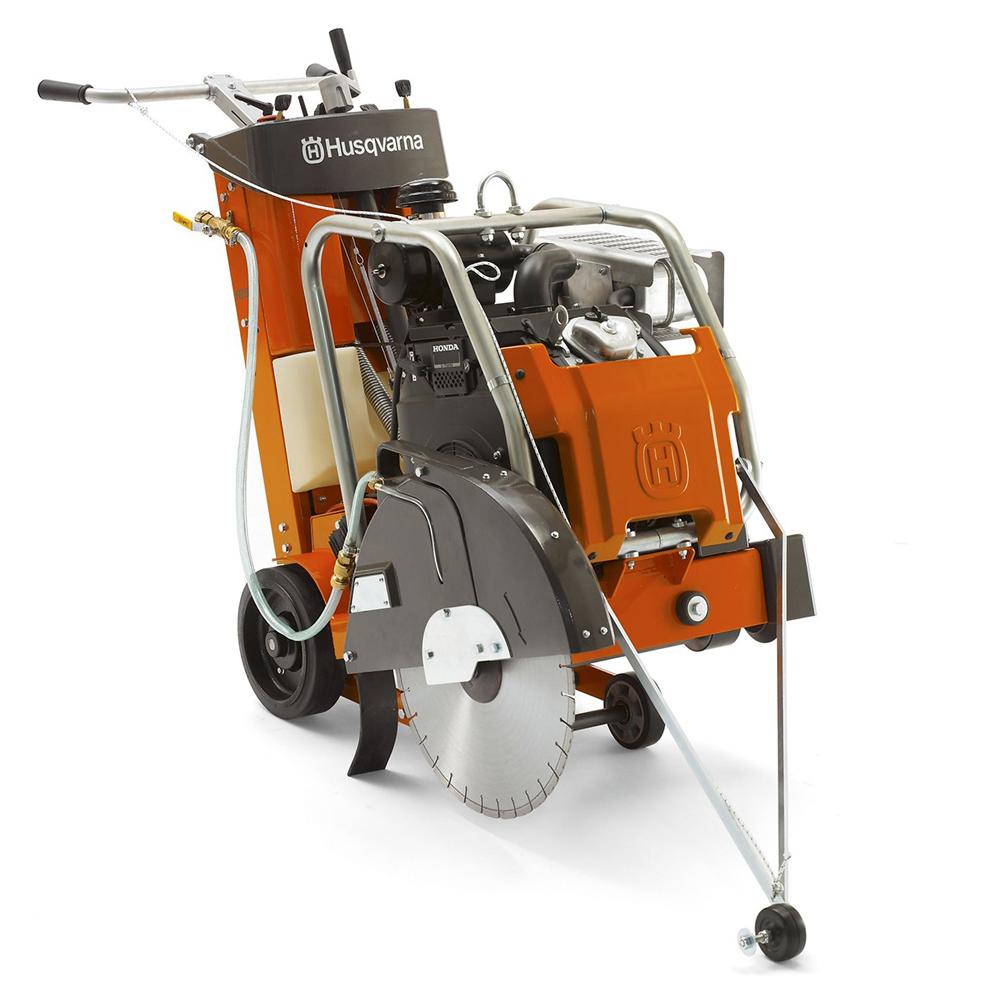

Husqvarna FS 524 (967046102) 21HP 15.5kW 600mm (24") 4 Stroke Petrol Engine Floor Saw Powered By Honda GX390

Husqvarna FS 524 (967046102) 21HP 15.5kW 600mm (24") 4 Stroke Petrol Engine Floor Saw Powered By Honda GX390

Our convenient FS 524 is a powerful, yet compact, self-propelled petrol floor saw ideal for asphalt and concrete cutting. Suitable for small to medium-sized service and repair jobs, up to 241 mm cutting depth. The optimal power transmission makes it ideal for more demanding jobs, despite its compact size. User-friendly and developed with a clear focus on your comfort.

Features:

• Poly-V belts for optimum power transmission.
• Husqvarna's floor saws are robust, well designed and easy to use thanks to features as protective cage, lift bail and cutting depth indicator.
• Patent-pending raise/lower assist system, using springs.
• Innovative series of self-propelled small flat saws with blade capacities of 500 to 600 mm.
• Patent-pending engine and bladeshaft mounting system reduce vibrations and give better cutting performance.
• Patented IntelliSeal bladeshaft system allows for a minimum of 250 maintenance-free hours and eliminates daily greasing of bearings.
• Patent-pending spring-assist screw feed adjustment reduces the force required to adjust the blade in and out of the cut.
• Self-contained drive system Self-contained differential drive system eliminating drive gear from rear wheels and related wear. It is simple to handle and maintain
• Low vibration engine mount Patent-pending low-vibration engine mount offering a greater comfort in work.

Applications:

• Medium to small service and repair work jobs where a self propelled saw is needed for production.

Specifications:

• Motor Engine: Honda
• Engine Power: 15.5kW
• Engine Cooling: Air
• Fuel Tank Volume: 8.33L
• No. of Strokes: 4 Stroke Engine
• Cylinders: 2
• Exhust emissions (CO2, EU V): 751 g/kWh
• Cutting depth: max 247mm
• Blade diameter: max600 mm
• Arbor diameter: 25.4 mm
• Blade depth control: Handwheel
• Blade diameter: max 600 mm
• Transmission speed forward: 24.48m/min
• Dimensions (L x W x H): 1750 mm x 646mm.  x 1200 mm
• Weight: 239kg
