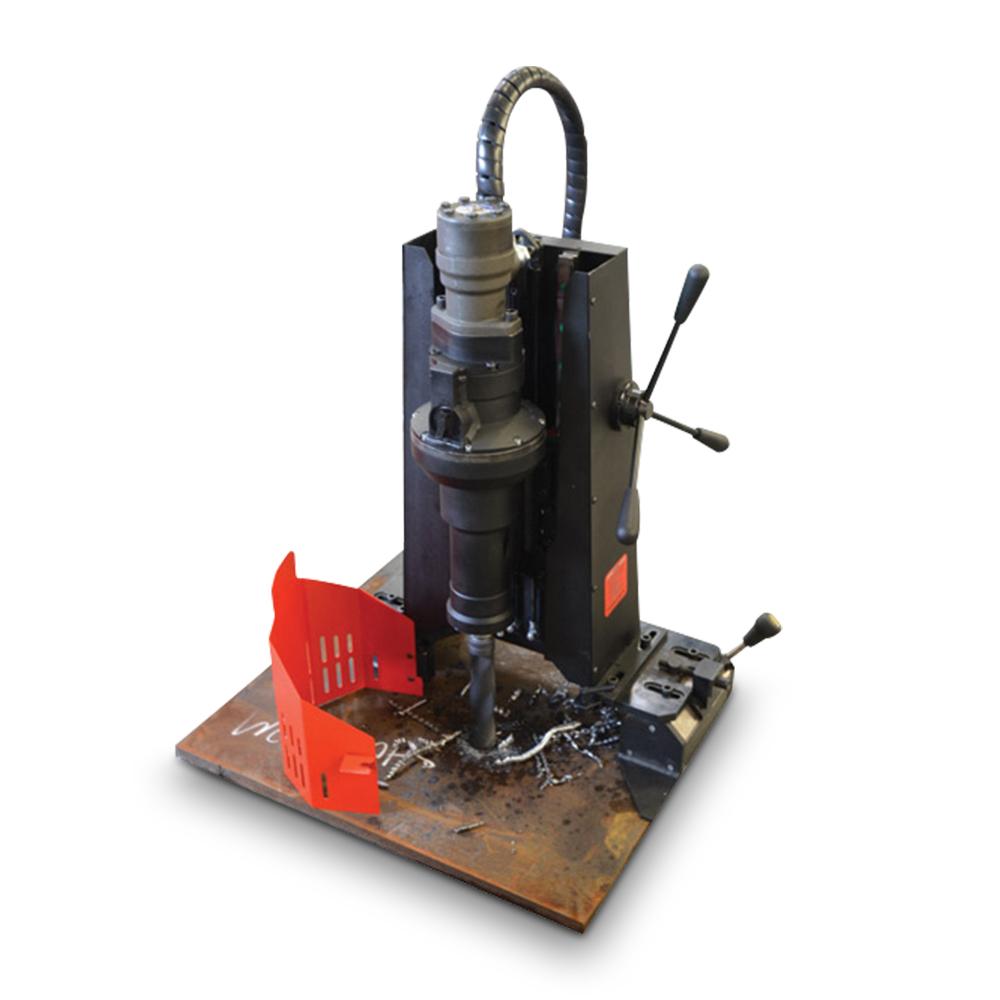

Holemaker HM-PRO200H 200mm Dia Cap 5mt Hyd 200, (Hydraulic) Magnetic Base Drill - MADE IN EUROPE

Holemaker HM-PRO200H 200mm Dia Cap 5mt Hyd 200, (Hydraulic) Magnetic Base Drill - MADE IN EUROPE

The PRO200H is a new hydraulic portable magnetic drilling machine with 200mm diameter drilling and M52 tapping capacity.

The spindle bore is No.5 Morse Taper and the drill chuck is 1-1/4" Weldon.

Features:

• 2 speeds - ideal for drilling and tapping.
• Detachable parts - can be delivered and assembled on site.
• Powerful drive.
• Robust design.
• Adaptive magnets - work on flat and curved surfaces.
• Low noise.
• Optional hydraulic pack or can be connected to existing lines.
• Runs on hydraulic oil.
• Integrated swarf guard.
• Reverse.
• Magnet adhesion force - 2 x 14700Nm.
• Both the machine and the body of the PRO200H drill is certified ATEX II2G/D C IIC T6;T4 and meets the requirements for use in areas with a risk of explosion.

Specifications:

• Motor Speeds (under load):
• 22 rpm (gear I)
• 90 rpm (gear II)
• Motor Power: 2000 W
• Spindle: MT5
• Tool holder: 31.75 mm Weldon (1-1/4")
• Max milling capacity: 200 mm (7-7/8")
• Max drilling capacity: 45 mm (1-3/4")
• Max Tap size: M48
• Stroke: 400 mm (15-3/4")
• Max depth of cut: 100 mm (4")
• Magnetic clamping force: 2 × 14700 Nm
• Min. workpiece thickness: 13 mm (1/2")
• Max Working Height: 991mm
• Max Working Width: 900mm
• Max Working Length: 528mm
• Weight: 130 kg (290 lbs.)
